2003 TOYOTA CELICA Owners Manual

’03MY CELICA U (L/O 0208)
229
2003 CELICA from Aug. ’02 Prod. (OM20809U)

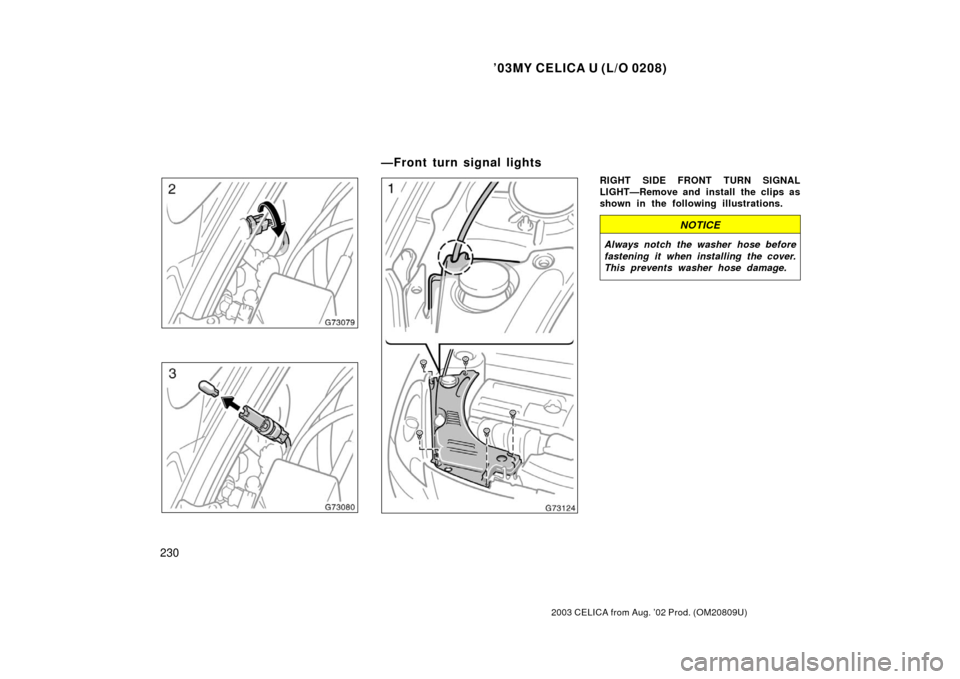

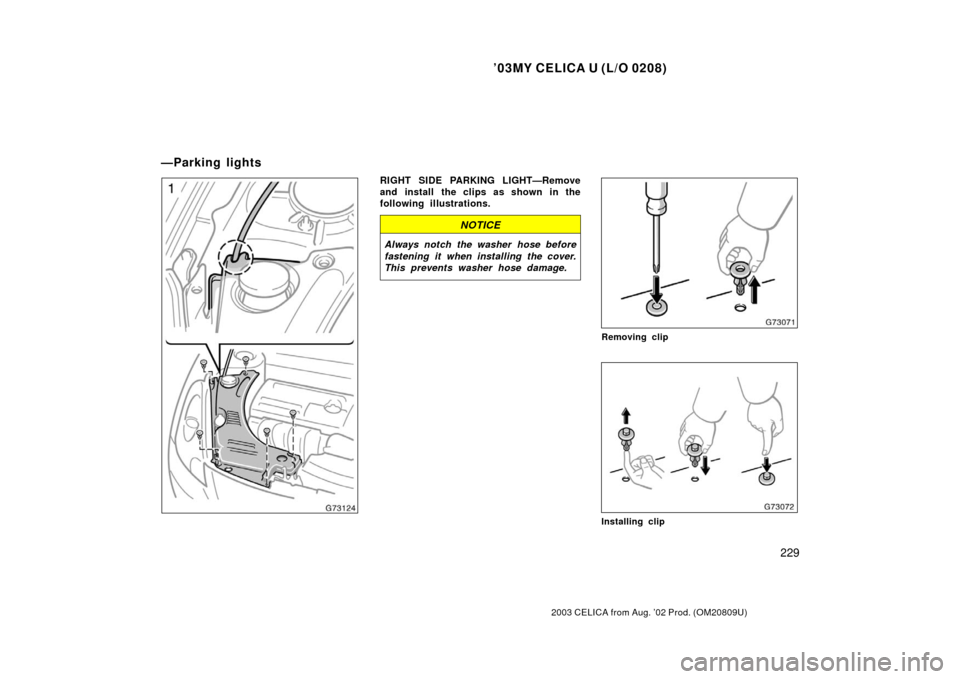

RIGHT SIDE PARKING LIGHT—Remove
and install the clips as shown in the
following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
Removing clip
Installing clip
—Parking lights

’03MY CELICA U (L/O 0208)
230
2003 CELICA from Aug. ’02 Prod. (OM20809U)

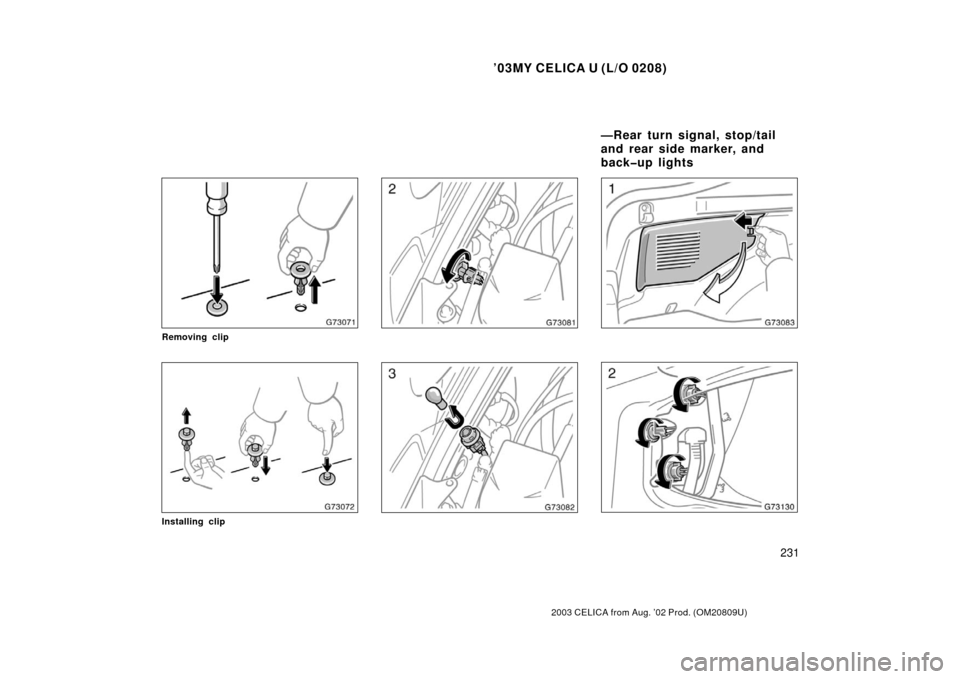

RIGHT SIDE FRONT TURN SIGNAL
LIGHT—Remove and install the clips as
shown in the following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Front turn signal lights

’03MY CELICA U (L/O 0208)
231
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Removing clip
Installing clip

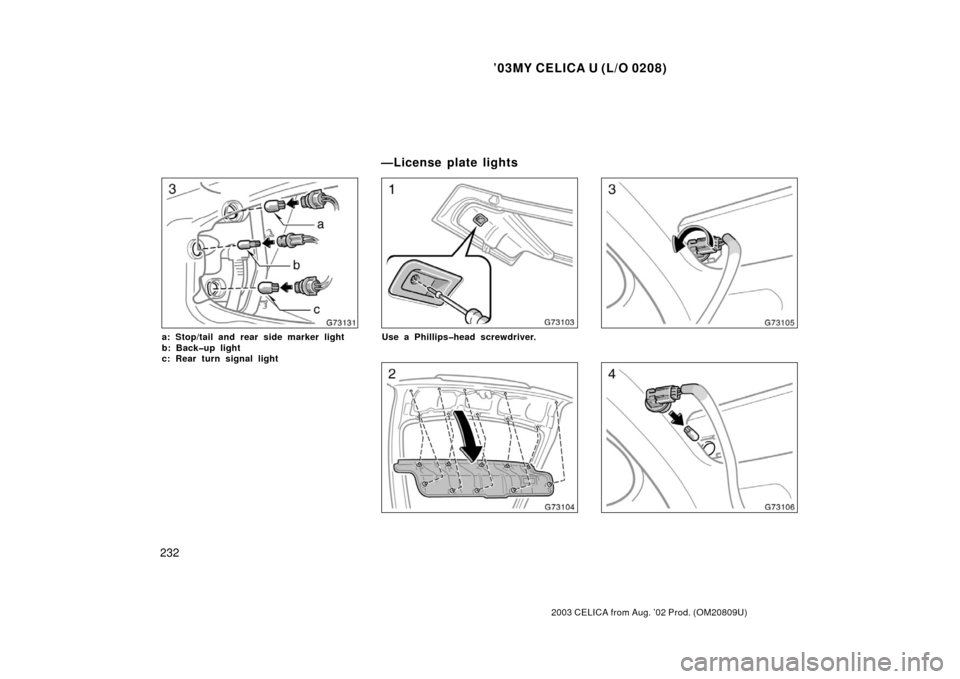

—Rear turn signal, stop/tail
and rear side marker, and
backup lights

’03MY CELICA U (L/O 0208)
232
2003 CELICA from Aug. ’02 Prod. (OM20809U)
a: Stop/tail and rear side marker light
b: Backup light
c: Rear turn signal lightUse a Phillipshead screwdriver.
—License plate lights

’03MY CELICA U (L/O 0208)
233
2003 CELICA from Aug. ’02 Prod. (OM20809U)
SPECIFICATIONS
Dimensions and weight234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’03MY CELICA U (L/O 0208)
234
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Overall length mm (in.) 4330 (170.5)
Overall width mm (in.) 1735 (68.3)
Overall height mm (in.) 1305 (51.8)
∗
Wheelbase mm (in.) 2600 (102.4)
Front tread mm (in.) 1490 (58.7)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 329 (725)
∗: Unladen vehicle Model:
1ZZFE and 2ZZGE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZFE engine 79.0  91.5 (3.11  3.60)
2ZZGE engine
82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZFE engine 1794 (109.5)
2ZZGE engine 1796 (109.6) Fuel type:
1ZZFE engineUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
2ZZGE engine Select premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher for opti-
mum engine performance
Fuel tank capacity, L (gal., Imp. gal.): 55 (14.5, 12.1)
Dimensions and weight EngineFuel

’03MY CELICA U (L/O 0208)
235
2003 CELICA from Aug. ’02 Prod. (OM20809U)
ENGINE
Valve clearance (engine cold), mm (in.):1ZZFE engineIntake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
2ZZGE engine (on a roller side) Intake 0.08—0.18 (0.003—0.007)
Exhaust 0.22—0.32 (0.009—0.013)
Spark plug type: 1ZZFE engineDENSO SK16R11
NGK IFR5A11
2ZZGE engine DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill),
L (qt., Imp. qt.):
1ZZFE engineWith filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
2ZZGE engine With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)“Toyota Genuine Motor Oil” is f
illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL “EnergyConserving” or
ILSAC multigrade engine oil

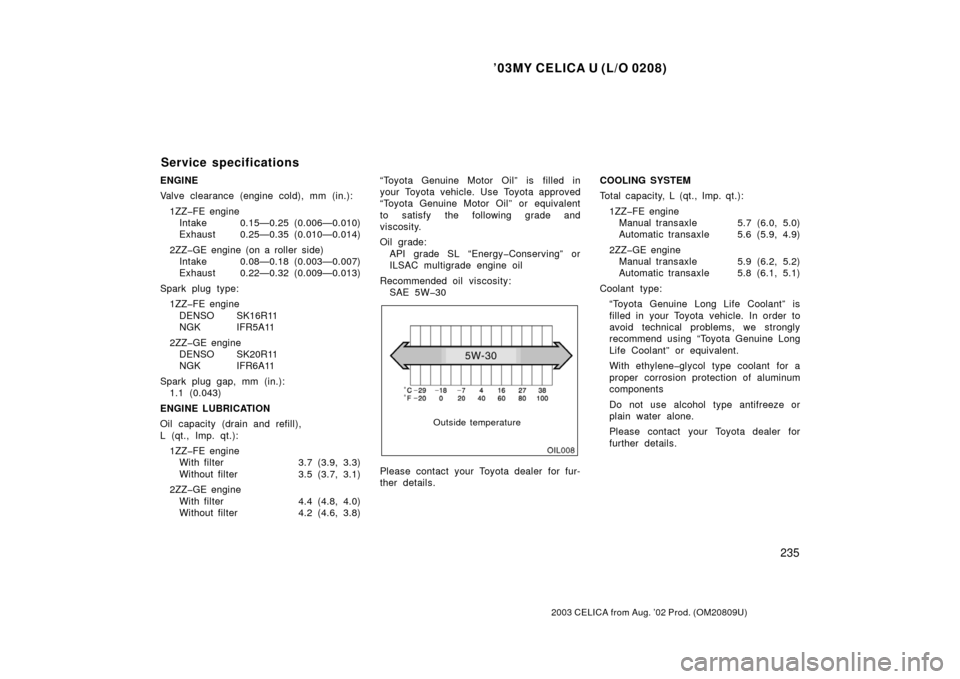

Recommended oil viscosity: SAE 5W30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
1ZZFE engineManual transaxle 5.7 (6.0, 5.0)
Automatic transaxle 5.6 (5.9, 4.9)
2ZZGE engine Manual transaxle 5.9 (6.2, 5.2)
Automatic transaxle 5.8 (6.1, 5.1)
Coolant type: “Toyota Genuine Long Life Coolant” is
filled in your Toyota vehicle. In order to
avoid technical problems, we strongly
recommend using “Toyota Genuine Long
Life Coolant” or equivalent.
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
Please contact your Toyota dealer for
further details.
Service specifications

’03MY CELICA U (L/O 0208)
236
2003 CELICA from Aug. ’02 Prod. (OM20809U)
BATTERY
Open voltage
∗ at 20C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1ZZFE engine 1.9 (2.0, 1.7)
2ZZGE engine 2.3 (2.4, 2.0)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and ref
ill),
L (qt., Imp. qt.):
1ZZFE engineUp to 2.9 (3.1, 2.6)
2ZZGE engine
Up to 3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF Type TIV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change auto-
matic transmission fluid only if your ve-
hicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or “Own-
er ’s Manual Supplement”. When changing
the automatic transmission fluid, use only
“Toyota Genuine ATF Type TIV” (ATF
JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
85 (3.4)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 7—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
