Tire size and pressure:Model
Tire size
Tire pressure
kPa (kgf/cm2 or bar, psi)Wheel size
FrontRear
1ZZFE engine195/60R15 88H210 (2.1, 29)210 (2.1, 29)15 61/2JJ
P195/60R15 87H210 (2.1, 29)210 (2.1, 29)15 61/2JJ
2ZZGE engine
205/55R15 87V220 (2.2, 32)220 (2.2, 32)15 61/2JJ
P205/55R15 87V220 (2.2, 32)220 (2.2, 32)15 61/2JJ
205/50R16 87V220 (2.2, 32)220 (2.2, 32)16 61/2JJ
Compact spare tire
Tire size
Tire pressure kPa (kgf/cm2 or bar, psi)Wheel size
T125/70D16 96M420 (4.2, 60)164T
Wheel nut torque, N·m (kgf·m, ft·Ibf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through “Alum inum
wheel precautions” in Section 72.
Tires

’03MY CELICA U (L/O 0208)
238
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Engine compartment
Engine compartment

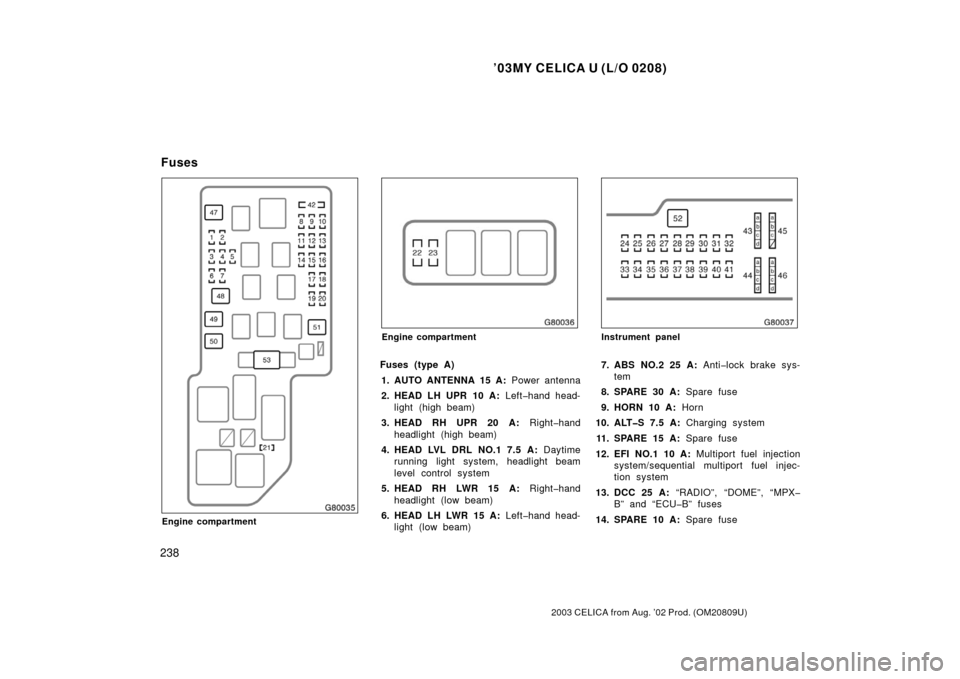

Fuses (type A)1. AUTO ANTENNA 15 A: Power antenna
2. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
3. HEAD RH UPR 20 A: Righthand
headlight (high beam)
4. HEAD LVL DRL NO.1 7.5 A: Daytime
running light system, headlight beam
level control system
5. HEAD RH LWR 15 A: Righthand
headlight (low beam)
6. HEAD LH LWR 15 A: Lefthand head-
light (low beam)
Instrument panel
7. ABS NO.2 25 A: Antilock brake sys-
tem
8. SPARE 30 A: Spare fuse
9. HORN 10 A: Horn
10. ALTS 7.5 A: Charging system
11. SPARE 15 A: Spare fuse
12. EFI NO.1 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
13. DCC 25 A: “RADIO”, “DOME”, “MPX
B” and “ECUB” fuses
14. SPARE 10 A: Spare fuse
Fuses

’03MY CELICA U (L/O 0208)
239
2003 CELICA from Aug. ’02 Prod. (OM20809U)
15. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
16. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI NO.1” and “EFI NO.2”
fuses
17. ST 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
18. AM2 7.5 A: Starting system
19. IG2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
20. HAZ 10 A: Emergency flashers
21. ETCS 10 A: Electronic throttle control
system
22. HEAD RH UPR 10 A: Righthand
headlight (high beam), daytime running
light system
23. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
24. S/ROOF 15 A: Electric moon roof
25. FL P/W 20 A: Power windows 26. STOP 10 A:
Stop lights, antilock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. SRSIG 7.5 A: SRS airbag system
28. WASHER 15 A: Windshield washer,
rear window washer
29. RADIO 15 A: Car audio system
30. TURN 7.5 A: Turn signal lights
31. HTR 10 A: Air conditioning system
32. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
33. CIG 15 A: Cigarette lighter
34. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRSIG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECUIG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS
IG” and “ECUIG” fuses
35. DOOR 20 A: Power door lock system
36. FR FOG 15 A: Front fog lights 37. OBD 7.5 A:
Onboard diagnosis sys-
tem
38. WIPER 25 A: Windshield wipers
39. MIR HTR 10 A: No circuit
40. RR WIPER 15 A: Rear window wiper
41. FR P/W 20 A: Power windows
Fuses (type B)
42. SPARE 7.5 A: Spare fuse
43. a. MPXB 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior light
d. ECUB 7.5 A: Air conditioning sys-
tem, gauges and meters
44. a. WARNING 5 A: Charging system,
gauges and meters
b. ECUIG 5 A: Cruise control system
c. ABSIG 5 A: Antilock brake sys-
tem
d

. FAN RLY 5 A: Electric cooling
fan

’03MY CELICA U (L/O 0208)
240
2003 CELICA from Aug. ’02 Prod. (OM20809U)
45. a. PANEL1 7.5 A: Glove box light, in-
strument panel lights
b. PANEL2 7.5 A: Front fog lights, in-
strument panel lights, instrument
cluster lights
c. ECUACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols, power antenna
46. a. BK/UP LP 5 A: Backup lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c. BODY ECUIG 5 A: Multiplex com-
munication system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof, power antenna
Fuses (type C)
47. HTR 50 A: Air conditioning system
48. RDI 30 A: Electric cooling fan
49. ABS NO.1 50 A: Antilock brake sys-
tem
50. CDS 30 A: Electric cooling fan
51. MAIN 40 A: Starting system, daytime
running light system, “ST” fuse
52. DEF 30 A: Rear window defogger Fuses (type D)
53. ALT 120 A: Cooling system, electric
cooling fan, starting system, rear win-
dow defogger, tail lights, “ABS NO.1”,
“ABS NO.2”, “HTR”, “FR P/W”, “FL
P/W”, “DOOR”, “OBD”, “STOP”, “S/
ROOF”, “MIR HTR”, “FR FOG” and
“AM1” fuses

’03MY CELICA U (L/O 0208)
241
2003 CELICA from Aug. ’02 Prod. (OM20809U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners242
. . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9

’03MY CELICA U (L/O 0208)
242
2003 CELICA from Aug. ’02 Prod. (OM20809U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Tollfree: 18003314331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
tollfree at 18004249393 (or
3660123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects for
U.S. owners
Uniform tire quality grading

’03MY CELICA U (L/O 0208)
243
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1 1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
