NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.

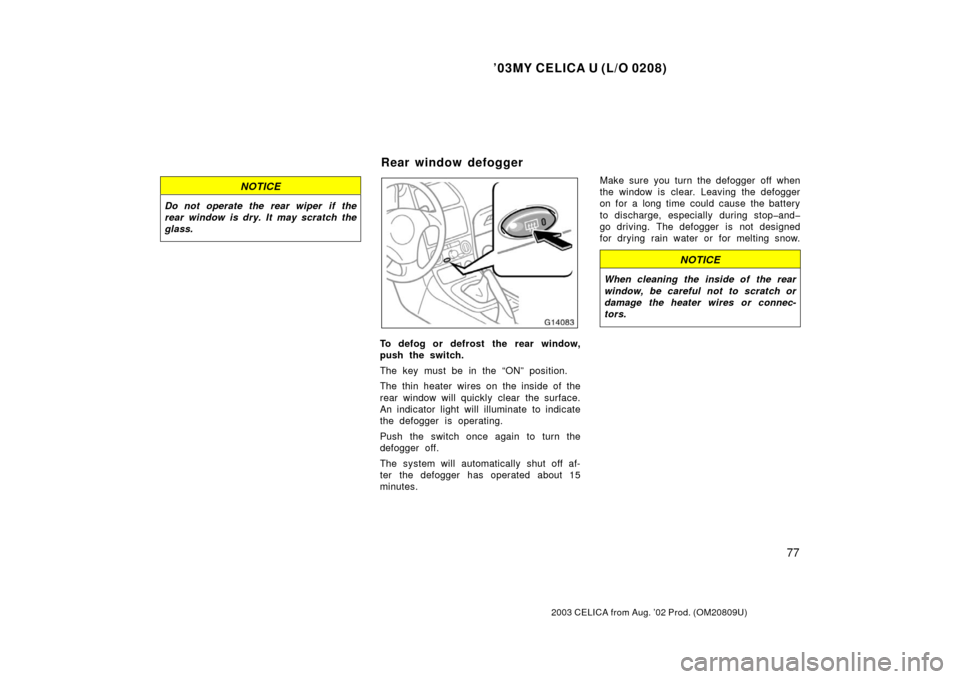

To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stopand
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window defogger

’03MY CELICA U (L/O 0208)
78
2003 CELICA from Aug. ’02 Prod. (OM20809U)

’03MY CELICA U (L/O 0208)
79
2003 CELICA from Aug. ’02 Prod. (OM20809U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature gauge 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 83
. . . . . . . . . . . . . . .
SECTION 1 5

’03MY CELICA U (L/O 0208)
80
2003 CELICA from Aug. ’02 Prod. (OM20809U)

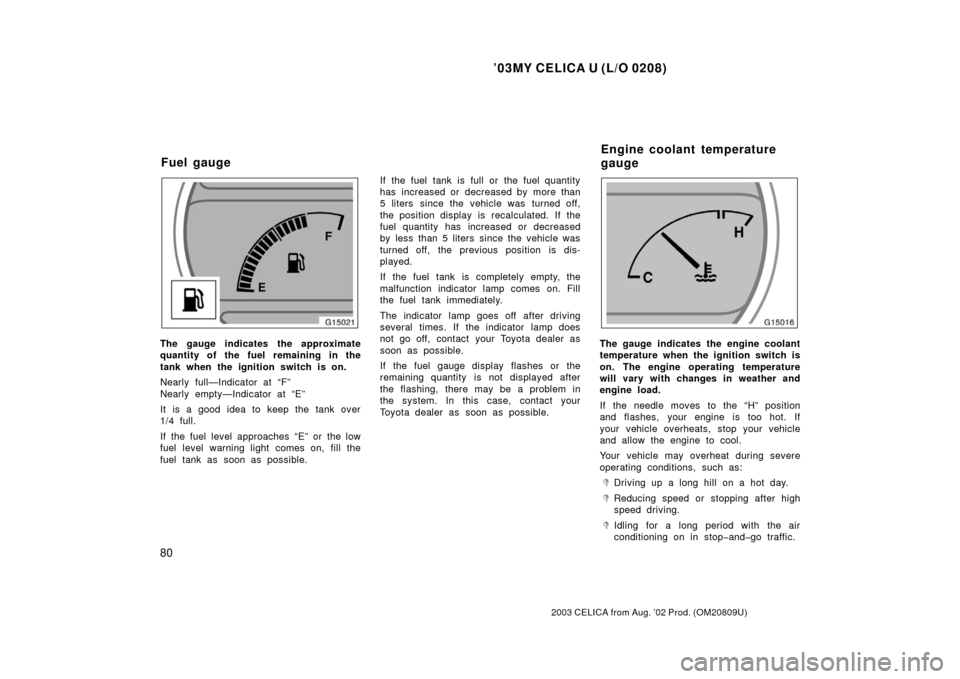

The gauge indicates the approximate
quantity of the fuel remaining in the
tank when the ignition switch is on.
Nearly full—Indicator at “F”
Nearly empty—Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.If the fuel tank is full or the fuel quantity
has increased or decreased by more than
5 liters since the vehicle was turned off,
the position display is recalculated. If the
fuel quantity has increased or decreased
by less than 5 liters since the vehicle was
turned off, the previous position is dis-
played.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
If the fuel gauge display flashes or the
remaining quantity is not displayed after
the flashing, there may be a problem in
the system. In this case, contact your
Toyota dealer as soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position
and flashes, your engine is too hot. If
your vehicle overheats, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
Fuel gauge
Engine coolant temperature
gauge

’03MY CELICA U (L/O 0208)
81
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Towing a trailer.
If the engine coolant temperature gauge
needle is not displayed, there may be a
problem in the system. In this case, con-
tact your Toyota dealer as soon as pos-
sible.
NOTICE
 Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.

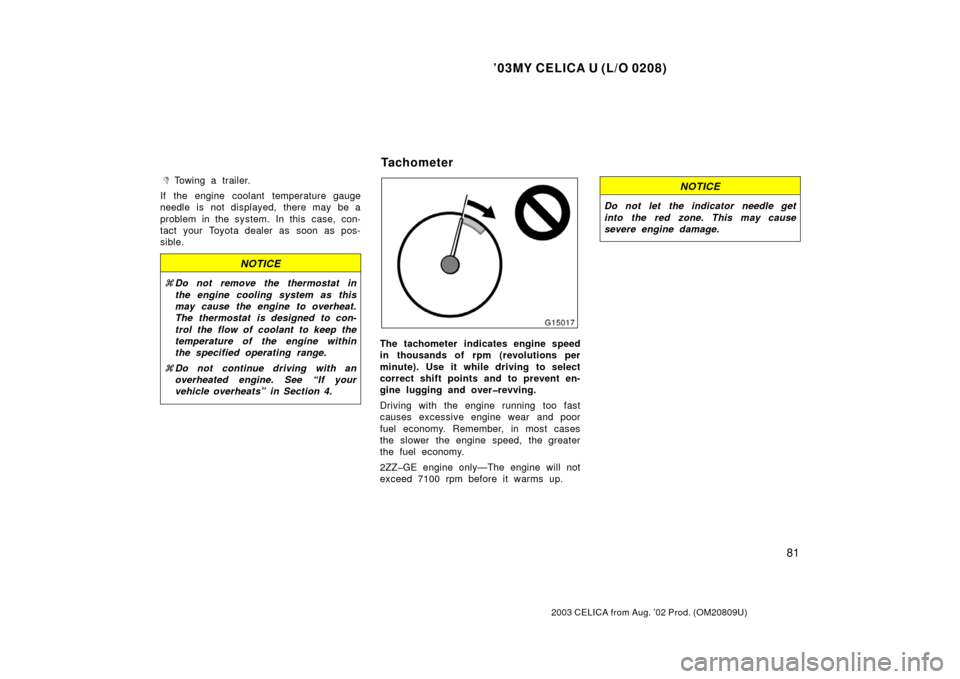

2ZZGE engine only—The engine will not
exceed 7100 rpm before it warms up.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’03MY CELICA U (L/O 0208)
82
2003 CELICA from Aug. ’02 Prod. (OM20809U)

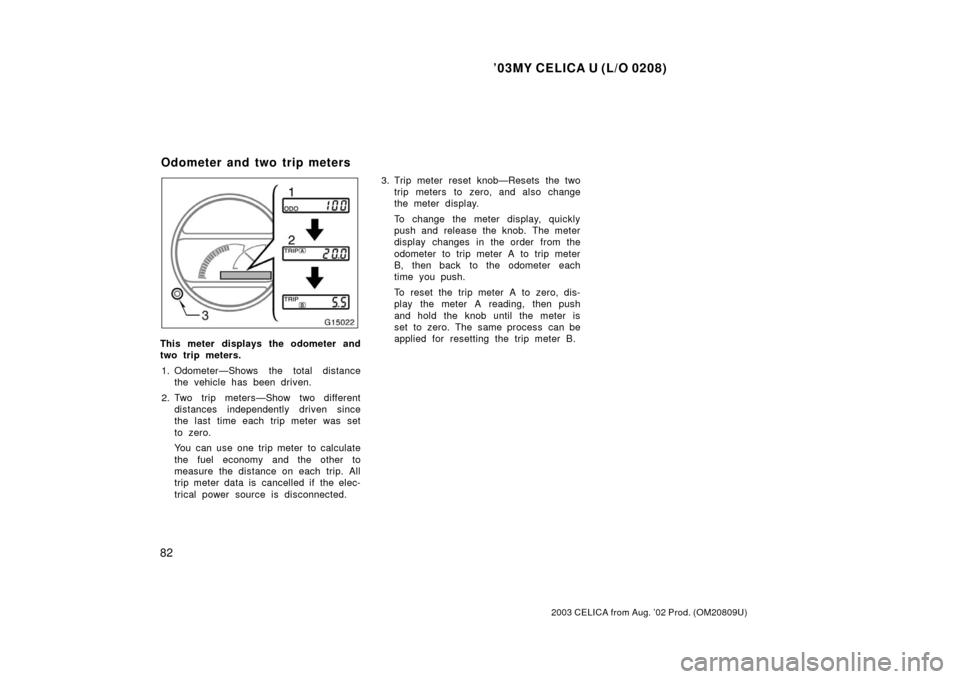

This meter displays the odometer and
two trip meters.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters

’03MY CELICA U (L/O 0208)
83
2003 CELICA from Aug. ’02 Prod. (OM20809U)
If the indicator or buzzer comes on...Do this.
(a)orIf parking brake is off, stop immediately and contact Toyota dealer.
(b)(indicator and buzzer)Fasten driver ’s seat belt.
(c)Have the front passenger fasten the seat belt.
(d)Stop and check.
(e)Stop and check.
(f)Take vehicle to Toyota dealer.
(g)Fill up tank.
Service reminder indicators and warning buzzers

’03MY CELICA U (L/O 0208)
84
2003 CELICA from Aug. ’02 Prod. (OM20809U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If the brake system warning light is also on, stop immediately and contact Toyota
dealer.
(i)Close both side doors and back door.
(j)Take vehicle to Toyota dealer immediately.
(k)Stop and check.
(l)Key reminder buzzerRemove key.
(m)Light reminder buzzerTurn off lights.
