2003 TOYOTA CELICA Owners Manual

’03MY CELICA U (L/O 0208)
13
2003 CELICA from Aug. ’02 Prod. (OM20809U)
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.

’03MY CELICA U (L/O 0208)
14
2003 CELICA from Aug. ’02 Prod. (OM20809U)
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either side door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’03MY CELICA U (L/O 0208)
15
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.

’03MY CELICA U (L/O 0208)
16
2003 CELICA from Aug. ’02 Prod. (OM20809U)

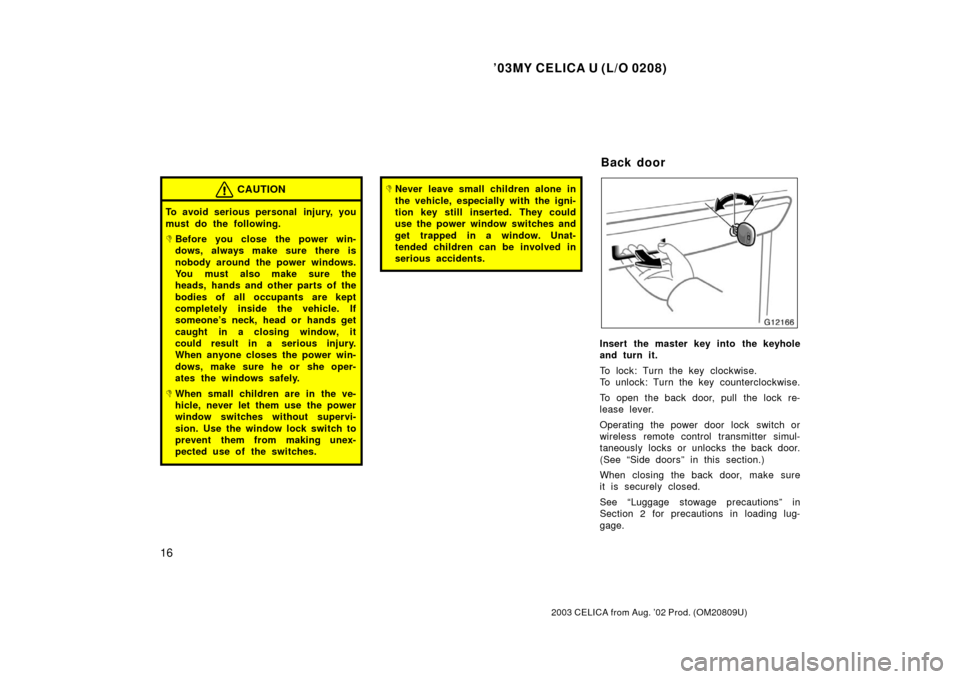

CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Insert the master key into the keyhole
and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “Side doors” in this section.)
When closing the back door, make sure
it is securely closed.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
Back door

’03MY CELICA U (L/O 0208)
17
2003 CELICA from Aug. ’02 Prod. (OM20809U)
When closing the back door, use the
inside handle for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

’03MY CELICA U (L/O 0208)
18
2003 CELICA from Aug. ’02 Prod. (OM20809U)

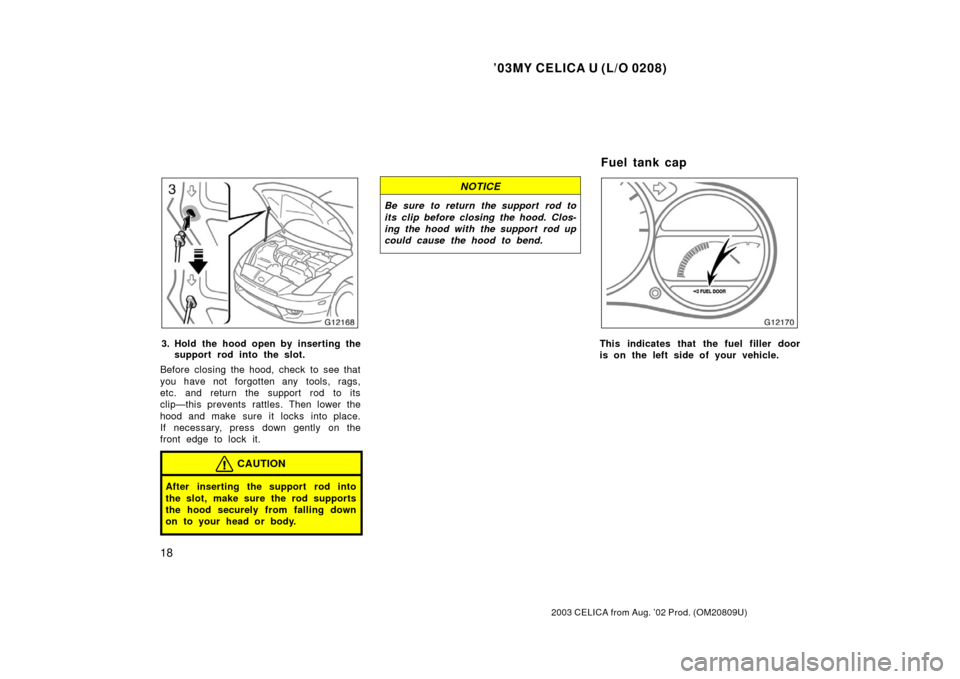

3. Hold the hood open by inserting thesupport rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

’03MY CELICA U (L/O 0208)
19
2003 CELICA from Aug. ’02 Prod. (OM20809U)
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built
in check valve to reduce fuel tank
pressure.

’03MY CELICA U (L/O 0208)
20
2003 CELICA from Aug. ’02 Prod. (OM20809U)

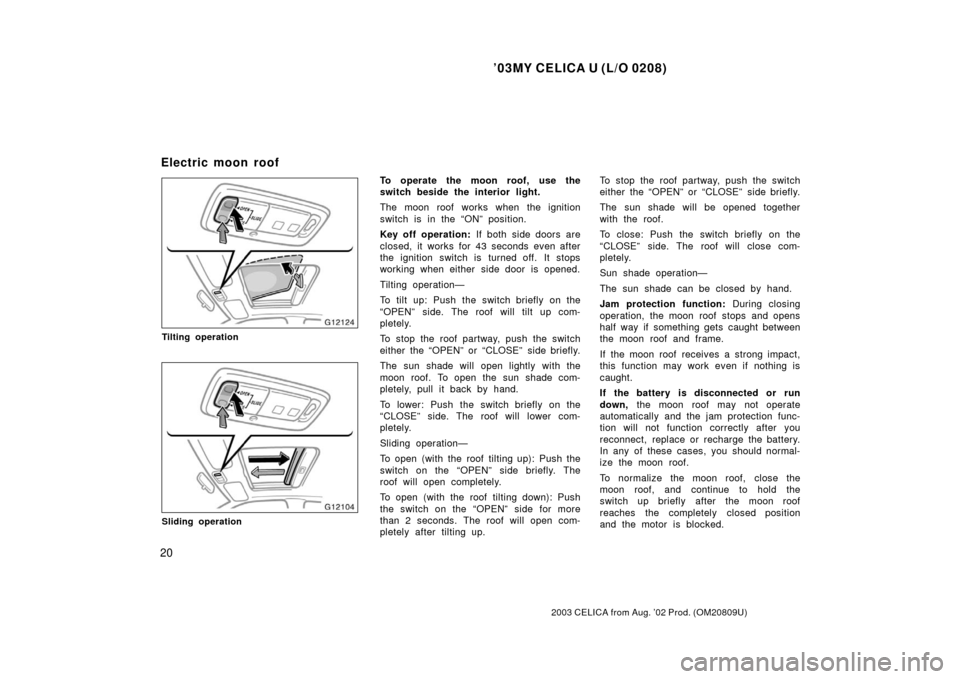

Tilting operation
Sliding operation
To operate the moon roof, use the
switch beside the interior light.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either side door is opened.
Tilting operation—
To tilt up: Push the switch briefly on the
“OPEN” side. The roof will tilt up com-
pletely.
To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will open lightly with the
moon roof. To open the sun shade com-
pletely, pull it back by hand.
To lower: Push the switch briefly on the
“CLOSE” side. The roof will lower com-
pletely.
Sliding operation—
To open (with the roof tilting up): Push the
switch on the “OPEN” side briefly. The
roof will open completely.
To open (with the roof tilting down): Push
the switch on the “OPEN” side for more
than 2 seconds. The roof will open com-
pletely after tilting up. To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch briefly on the
“CLOSE” side. The roof will close com-
pletely.
Sun shade operation—
The sun shade can be closed by hand.
Jam protection function:
During closing
operation, the moon roof stops and opens
half way if something gets caught between
the moon roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
If the battery is disconnected or run
down, the moon roof may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the moon roof.
To normalize the moon roof, close the
moon roof, and continue to hold the
switch up briefly after the moon roof
reaches the completely closed position
and the motor is blocked.
Electric moon roof
