2003 TOYOTA CELICA Owners Manual

’03MY CELICA U (L/O 0208)
109
2003 CELICA from Aug. ’02 Prod. (OM20809U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK”.) Push and hold down the button
until you hear a beep—this will set the
station to the button. The button number
will appear on the display.
To recall a preset station: Push the button
for the station you want. The button num-
ber and station frequency will appear on
the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” or “FM” button.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
(Program)
Push “
” (preset button 4) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (“
” indicates the top side, “”
indicates the bottom side).
Autoreverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward button)
Cassette player
Push “
” (preset button 6) to fastfor-
ward a cassette tape. “FF” will appear on
the display. Push “
” (preset button 5)
to rewind a tape. “REW” will appear on
the display.
To stop the tape while it is fastforward-
ing, push “
” or “TAPE” button. To stop
the tape while it is rewinding, push “
”
or “TAPE” button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fastforwards completely,
the cassette will play the other side of the
tape using the autoreverse feature. Compact disc player
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts lowpitched tones. The dis-
play ranges from 5 to 5.
MID (on some models): Adjusts mid
pitched tones. The display ranges from 5
to 5.
TRE: Adjusts highpitched tones. The dis-
play ranges from 5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.

’03MY CELICA U (L/O 0208)
11 0
2003 CELICA from Aug. ’02 Prod. (OM20809U)
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (upside
down). Clean the disc and reinsert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Overcurrent. Ask your
Toyota dealer to inspect. “CD OPEN”:
The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select the disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1” or “FM2”
will appear on the display. This system
allows you to set twelve FM stations, two
for each of the preset button.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.

’03MY CELICA U (L/O 0208)
111
2003 CELICA from Aug. ’02 Prod. (OM20809U)
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.
RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly. Compact disc player
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the top track of
the disc and replay. To turn off the repeat
feature, push this button again. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.

’03MY CELICA U (L/O 0208)
11 2
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track of the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.

’03MY CELICA U (L/O 0208)
11 3
2003 CELICA from Aug. ’02 Prod. (OM20809U)
TEXT
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.NOTICE
To ensure correct audio system op-
erations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or compact disc into
the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multipath—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
Car audio system operating
hints

’03MY CELICA U (L/O 0208)
11 4
2003 CELICA from Aug. ’02 Prod. (OM20809U)
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)Use highquality cassettes.
Lowquality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant autoreversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
cause your compact disc player to
skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.

’03MY CELICA U (L/O 0208)
11 5
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copyprotected CD
CDR (CDRecordable)
CDRW (CDRewritable)
CDROMSpecial shaped discs
Low quality discs
Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.

’03MY CELICA U (L/O 0208)
11 6
2003 CELICA from Aug. ’02 Prod. (OM20809U)

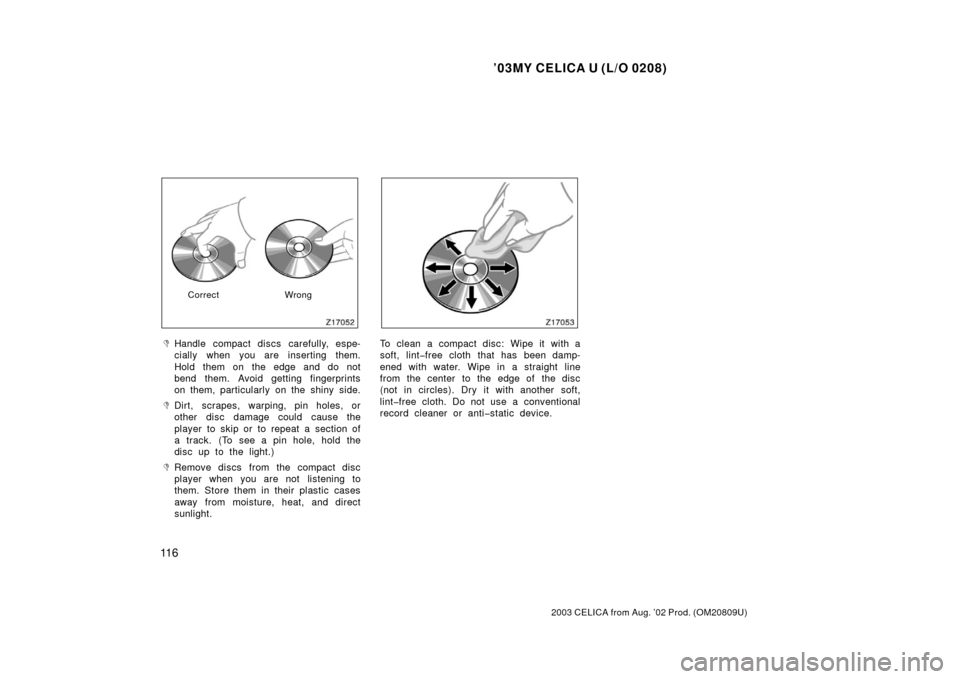

CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lintfree cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lintfree cloth. Do not use a conventional
record cleaner or antistatic device.
