AUTOMATIC TRANSMISSION 5A-73
Table 6.2.3 - Shift Quality Faults
Action
Check the resistance. Replace the inhibitor
switch as necessary.
Inspect and replace the sensor as necessary.
Inspect and adjust the band as necessary.Inspect and replace the ’0’rings as necessary.
Inspect, repair or replace S5 as necessary.
Inspect, repair or replace S1 or S4 as neces-
sary.
Inspect, repair or replace the BAR as neces-
sary.
Inspect and repair as necessary.
Inspect and clean CCCV.
Inspect, repair or replace as necessary.
Possible Cause
Faulty inhibitor switch.
Faulty throttle position sensor. Incorrect front band adjustment.Damaged front servo piston ’0’rings.
Faulty or damaged variable pressure so- lenoid (S5). Faulty S1 or S4 solenoid. Faulty band apply regulator valve (BAR). Misassembled front servo return spring. Jammed converter clutch control valve(CCCV).Faulty solenoid 7.Symptom
Harsh 1-2 shift stalls when Drive
or Reverse selected Shudder
on Rolldown

AUTOMATIC TRANSMISSION 5A-75
SELF DIAGNOSIS TEST
1. Turn the ignition switch to “OFF ” position.
2. Connect the scanner harness connector to the engine compartment diagnosis socket.
3. Turn the ignition switch to “ON ” position.
4. Select “Electronics control vehicle diagnosis ” from the
function selection display and press “Enter ”.
5. Select “Musso(98 face lift) ” from the vehicle model selection
model selection display and press “Enter ”.
6. Select “Transmission control unit(TCU) ” from the control
system selection and press “Enter ”.
7. Select “Self-diagnosis ” from diagnosis items.
Notice
Check sensor output value displays if necessary.
8. Determine the fault code and check the detective Items. NoticeRefer to sefadf3fnosfs list.

5A-76 AUTOMATIC TRANSMISSION
Action
Check cable for open / short.
Check connection of other connectors.
Check voltage between terminal 27 and 29 of TCU,
- Standard value : 0.2 - 4.7V
Check TPS.
Check cable for open / short.
Check connection of other connectors.
Check engine speed sensor.
Check resistance between terminal 8 and 24 of TCU (when the connector is disconnected).
- Standard value : 1 .9 - 0.2 k
Check cable for open / short.
Check connection of other connectors.
Check vehicle speed sensor.
Check cable for open / short.
Check connection of other connectors.
Check engine speed sensor.
Check inhibitor switch resistance between terminal 34 and 37 of TCU(when the connector is disconnected).
- Standard value : 1st gear - 4 - 4.4 k
2nd gear - 4,8 - 2.2 k
3rd gear - 3 - 3.4 k
D gear - 4.5 - 4.g k
N gear - 6.8 - 7.2 k
R gear - 10.8 -11.2 k
P gear - 18.6 - 19 k
Check voltage between terminal 31 and 37 of TCU.
- Standard value : 0-5V(P,R,N,D,L)
Check cable for open / short.
Check connection of other connectors.
Check mode switch.
Check condition between terminal 1 and 13 of TCU.
Winter mode :12V, Normal mode : Open status, Power mode : 0V
Check cable for open / short.
Check connection of other connectors.
Check voltage between terminal 32 and 38 of TCU.
- Standard value : 0-5V
Check oil temperature sensor.
Check cable for open / short.
Check connection of other connectors.
Check battery condition.
Check alternator.
Possible Cause
Throttle position sensor
Engine RPM
Vehicle speed Shift lever
W, E, P mode switch T/M oil temperature Battery voltage
Symptom
P1702 P1703 P1704 P4705 P1706 P1707P1708
Self-diagnosis List

AUTOMATIC TRANSMISSION 5A-77
Action
Check cable for open / short.
Check connection of other connectors.
Check voltage between terminal 4 and 11 of TCU.
- Standard value : when the A/C compressor is ON : 12V
when the A/C compressor is OFF : 0V
Check cable for open / short,
Check connection of other connectors.
Check voltage between terminal 1 and 12 of TCU.
- Standard value : when the kick down switch is ON : 12V
when the kick down switch is OFF : 0V
Fully depress accelerator pedal for 5 seconds(ignition key is ON).
Release accelerator pedal.
Depress brake pedal and start the engine in ‘P’ position.
Depress brake pedal and idle the engine for 5 seconds in ‘D’
position.
Shift into ‘D’ position and determine fault code for throttle initial-
ization.
Complete the initialization.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 34 of TCU(when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors,
Check resistance between terminal 1 and 40 of TCU (when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 41 of TCU (when theconnector is disconnected).
- Standard value : 26 - 30
Check solenoid.
Check cable for open / short.
Check connection of other connectors.
Check resistance between terminal 1 and 33 of TCU (when theconnector is disconnected),
- Standard value : 26 - 30
Possible Cause
Air conditioner switch
Kick down switch Pedal
Vehicle ID
VPS offset
Throttle position sensor
initialization
Solenoid 1 Solenoid 2Solenoid 3Solenoid 4
Symptom
P1710 P1712P1713 P1714P1715P1716 P1733 P1734P1735 P1736

5A-82 AUTOMATIC TRANSMISSIONMAINTENANCE AND REPAIR
ON-VEHICLE SERVICE
Tightening Torque 70 - 80 Nm
5. Remove the rear propeller shaft .
Installation Notice
REMOVAL & INSTALLATION OF TRANSMISSION
1. Disconnect the negative battery cable.
2. Disconnect the connectors from transfer case.
3. Disconnect the speedometer connector from transfer case.
4. Disconnect the inhibitor and Sear position sensor connector.
6. Unscrew the eight bolts and two nuts, and remove the cross member.

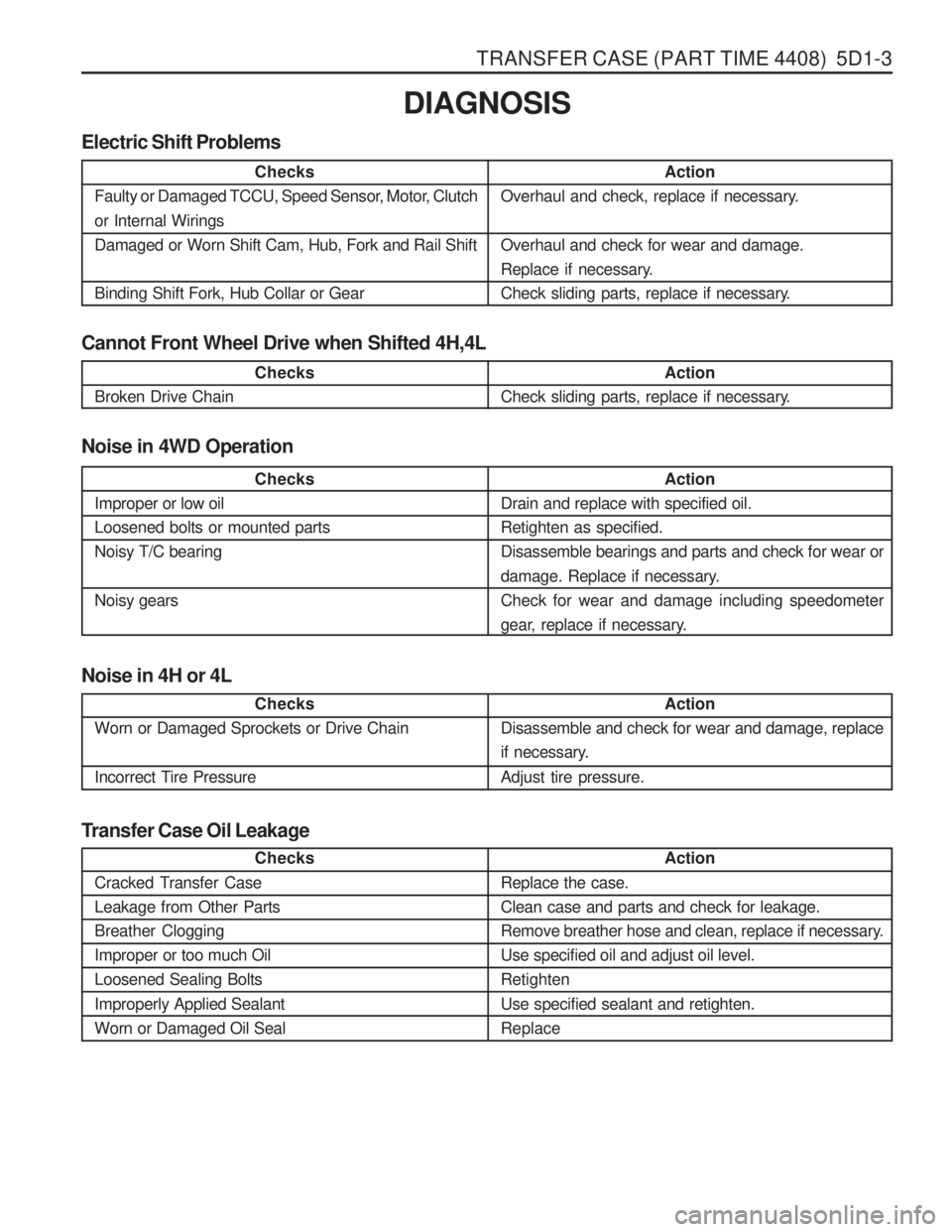

TRANSFER CASE (PART TIME 4408) 5D1-3
Cannot Front Wheel Drive when Shifted 4H,4LDIAGNOSIS
Electric Shift Problems
Action
Overhaul and check, replace if necessary. Overhaul and check for wear and damage.
Replace if necessary.
Check sliding parts, replace if necessary.
Checks
Faulty or Damaged TCCU, Speed Sensor, Motor, Clutch or Internal Wirings Damaged or Worn Shift Cam, Hub, Fork and Rail Shift Binding Shift Fork, Hub Collar or Gear
Checks
Broken Drive Chain Action
Check sliding parts, replace if necessary.
Noise in 4WD Operation
Checks
Improper or low oil Loosened bolts or mounted partsNoisy T/C bearing Noisy gears Action
Drain and replace with specified oil. Retighten as specified.Disassemble bearings and parts and check for wear or
damage. Replace if necessary. Check for wear and damage including speedometer
gear, replace if necessary.
Noise in 4H or 4L
Checks
Worn or Damaged Sprockets or Drive Chain
Incorrect Tire Pressure Action
Disassemble and check for wear and damage, replace
if necessary. Adjust tire pressure.
Transfer Case Oil Leakage
Action
Replace the case. Clean case and parts and check for leakage.
Remove breather hose and clean, replace if necessary.Use specified oil and adjust oil level.Retighten Use specified sealant and retighten. Replace
Checks
Cracked Transfer CaseLeakage from Other PartsBreather CloggingImproper or too much OilLoosened Sealing Bolts Improperly Applied Sealant Worn or Damaged Oil Seal

5D1-4 TRANSFER CASE (PART TIME 4408)SELF-DIAGNOSIS
SYSTEM DESCRIPTION
1. TCCU detects transfer case system malfunctions and indicates malfunctioning part(s) through flashing 4H,4L indicator lights.
Using a service connector, connect it to the diagnosis box in the engine room and read the flashing of the ‘4WD
CHECK ’ indicator light.
The flashing indicator light will show you defective code(s).
2. Identify 7 defective codes after reading the flashing indicator light.
TCCU
Shift motor
Magnetic synchronizer clutch
Speed sensor
Hub solenoid
Selector switch
Motor position sensor
3. Transfer case system is malfunctioning when: 4H ,4L indicator lights are remain on after 0.6 second when turning the ignition switch ‘ON ’
4H,4L indicator lights are continuously come on during driving.
4. If only 1 part is malfunctioning, ‘4WD CHECK ’ indicator light
will display defective code 3 times continuously.
5. If more then 2 part is malfunctioning, the first malfunctioning part will be displayed 3 times and following malfunctioningparts will be displayed .
6. To read defective code, connect the service connector and turn the ignition switch 'ON'.
7. After repairing, eliminate the defective code stored in the TCCU. NoticeBefore replacing the malfunction parts with defective code, check the wires and connectors for proper condition.

5D1-6 TRANSFER CASE (PART TIME 4408)
Diagnostic Table
Connect a service connector. If turn the ignition switch ‘ON ’
‘ 4WD CHECK ’ indicator light will come on for 0.6 second and
turn off for 3 seconds and then display a defective code 3
times continuously.
No. Defective Code
Malfunctioning Part
1
2 3 4
5 TCCU
Shift Motor
Synchronizer Clutch
Speed SensorHub Solenoid
4WD CHECK Light ON OFF
Defective Code
4WD CHECK Light ON OFF
Defective Code
4WD CHECKLight ONOFF
Defective Code
4WD CHECKLight ONOFF
Defective Code
4WD CHECK Light ONOFF
Defective Code
