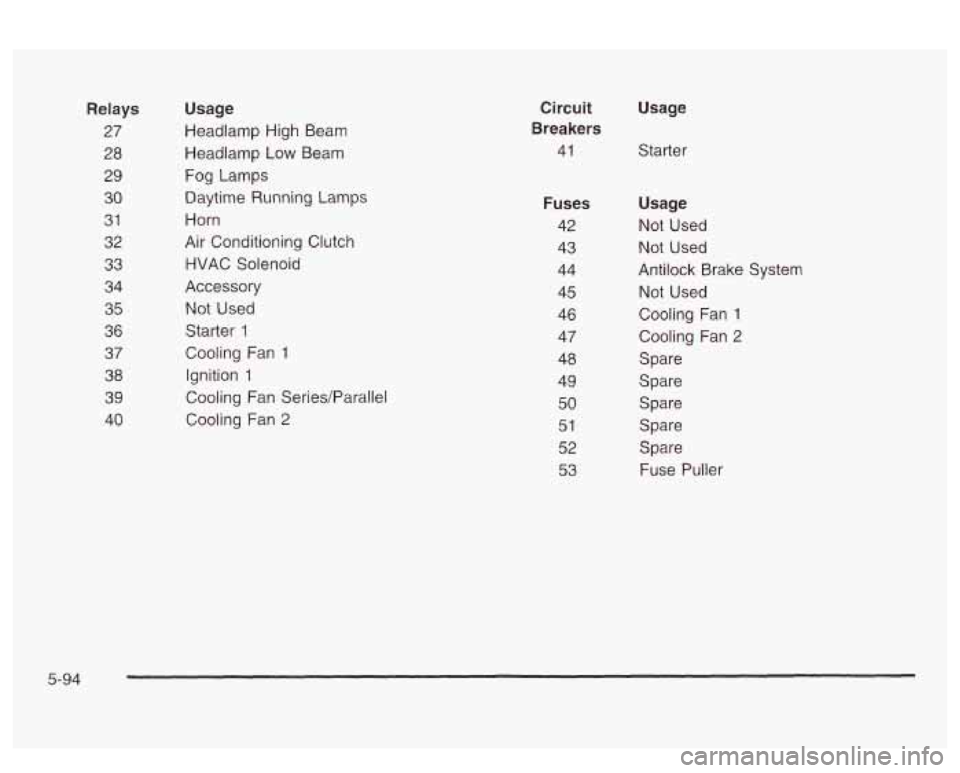

Relays
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Usage
Headlamp High Beam
Headlamp Low Beam
Fog Lamps
Daytime Running Lamps
Horn
Air Conditioning Clutch
HVAC Solenoid
Accessory
Not Used
Starter 1
Cooling Fan 1
Ignition
1
Cooling Fan Series/Parallel
Cooling Fan
2
Circuit
Breakers
41
Fuses
42
43
44
45
46
47
48
49
50
51
52
53
Usage
Starter
Usage
Not Used Not Used
Antilock Brake System
Not Used
Cooling Fan 1
Cooling Fan
2
Spare
Spare
Spare Spare
Spare
Fuse Puller
5-94

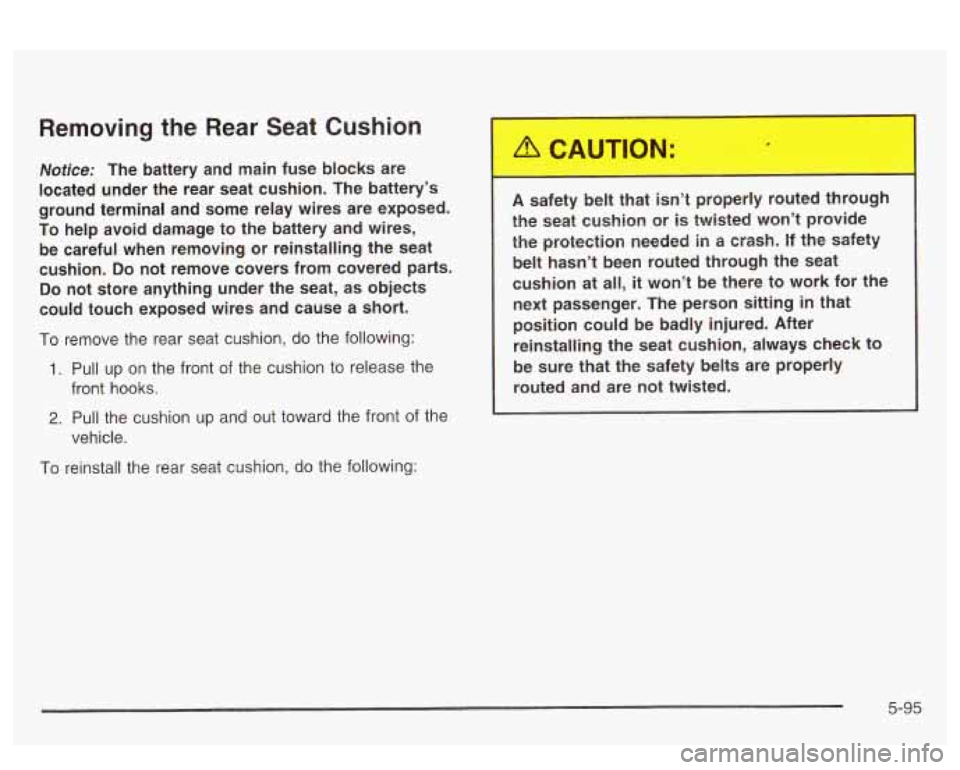

Removing the Rear Seat Cushion
Notice: The battery and main fuse blocks are
located under the rear seat cushion. The battery’s
ground terminal and some relay wires are exposed.
To help avoid damage to the battery and wires,
be careful when removing or reinstalling the seat
cushion.
Do not remove covers from covered parts.
Do not store anything under the seat, as objects
could touch exposed wires and cause a short.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
2. Pull the cushion up and out toward the front of the
front
hooks,
vehicle.
To reinstall the rear seat cushion, do the following:
A safety belt tha sn’t properly roL.---. _hrough
the seat cushion or
is twisted won’t prowide
the protection needed in a crash. If the safety
belt hasn’t been routed through the seat
cushion at all,
it won’t be there to work for the
next passenger. The person sitting in that
position could be badly injured. After reinstalling the seat cushion, always check to
be sure that the safety belts are properly
routed and are not twisted.
5-95

1. Buckle the center passenger position safety belt,
then route the safety belts through the proper slots
in the seat cushion. Don’t let the safety belts get
twisted.
2. Slide the rear of the cushion up and under the
seatback
so the rear locating guides hook into
the wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the
spring locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat.
Also make sure the seat
cushion is secured.

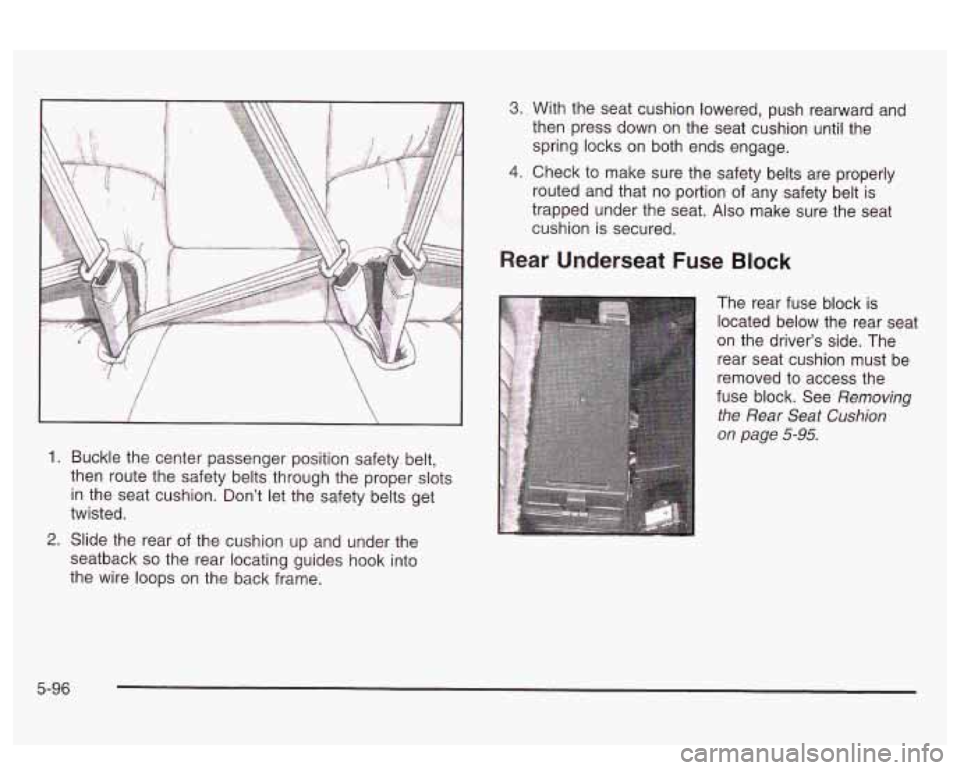

Rear Underseat Fuse Block
The rear fuse block is
located below the rear seat
, on the driver’s side. The
~ rear seat cushion must be
removed to access the
fuse block. See
Removing
the Rear Seat Cushion
on page
5-95.
5-96

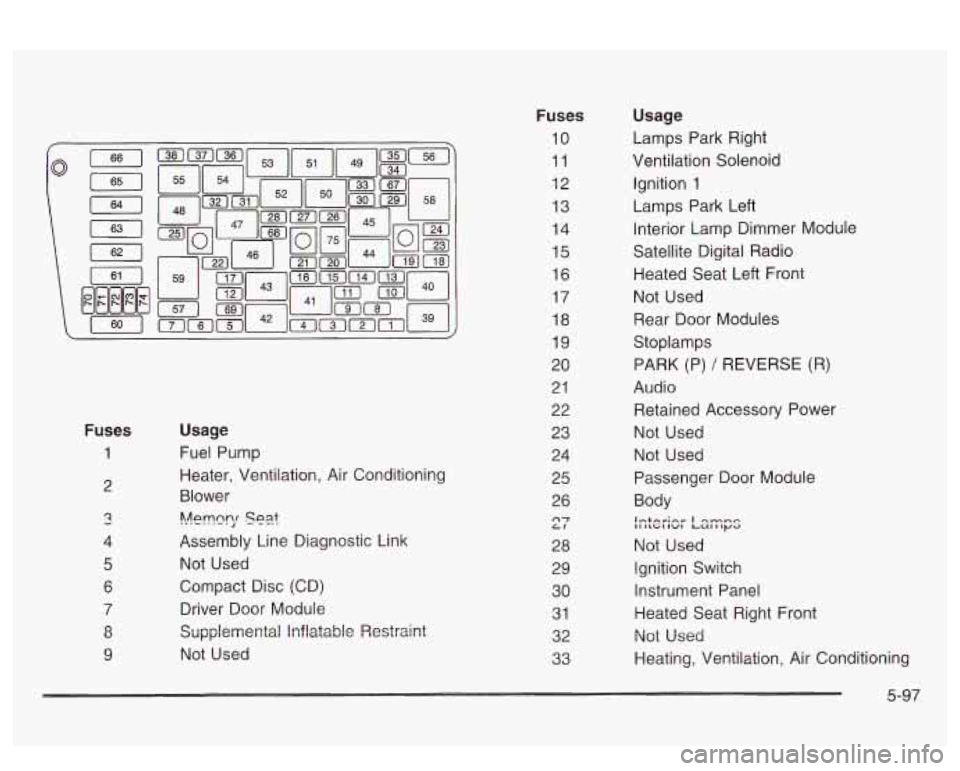

Fuses
1
2
Usage
Fuel Pump
Heater, Ventilation, Air Conditioning
Blower
Assembly Line Diagnostic Link
Not Used
Compact Disc (CD) Driver Door Module
Not Used
hllemCl!-y SP?!
Ssn- uppltz, r\.nr I IGfifCll -I In II lflaLaute I t hl Bestrairrt Fuses
10
11
12
13
14
15
16
17
18
19
20
21
22
23 24
25
26
07 LI
28
29
30
31
32
33
Usage
Lamps Park Right
Ventilation Solenoid
Ignition 1
Lamps Park Left Interior Lamp Dimmer Module
Satellite Digital Radio
Heated Seat Left Front
Not Used Rear Door Modules
Stoplamps PARK (P)
/ REVERSE (R)
Audio Retained Accessory Power
Not Used
Not Used Passenger Door Module
Body
Not Used
Ignition Switch
Instrument Panel
Heated Seat Right Front
iiof: Used
Heating, Ventilation, Air Conditioning
ln+nu;-u I nmnr. I1 ILGI IVI LUI I lvcl
5-97

Fuses
34
35
36 37
38
Relays
39
40
41 42
43
Usage
Ignition 3 Rear
Antilock Brake System
Turn SignaVHazard HVAC Battery
Dash Integration Module
Usage
Fuel Pump
Parking Lamps
Ignition 1 Rear Fog Lamps
Not Used
Relays
44
45 46
47
48
49
50
51
52
53
54
55
Usage
Park Brake
Reverse Lamps Retained Accessory Power
Fuel Tank Door Lock
Not Used Ignition
3
Fuel Tank Door Release
Interior Lamps
Trunk Release Front Courtesy Lamps
Not Used
Electronic Level Control Compressor
5-98

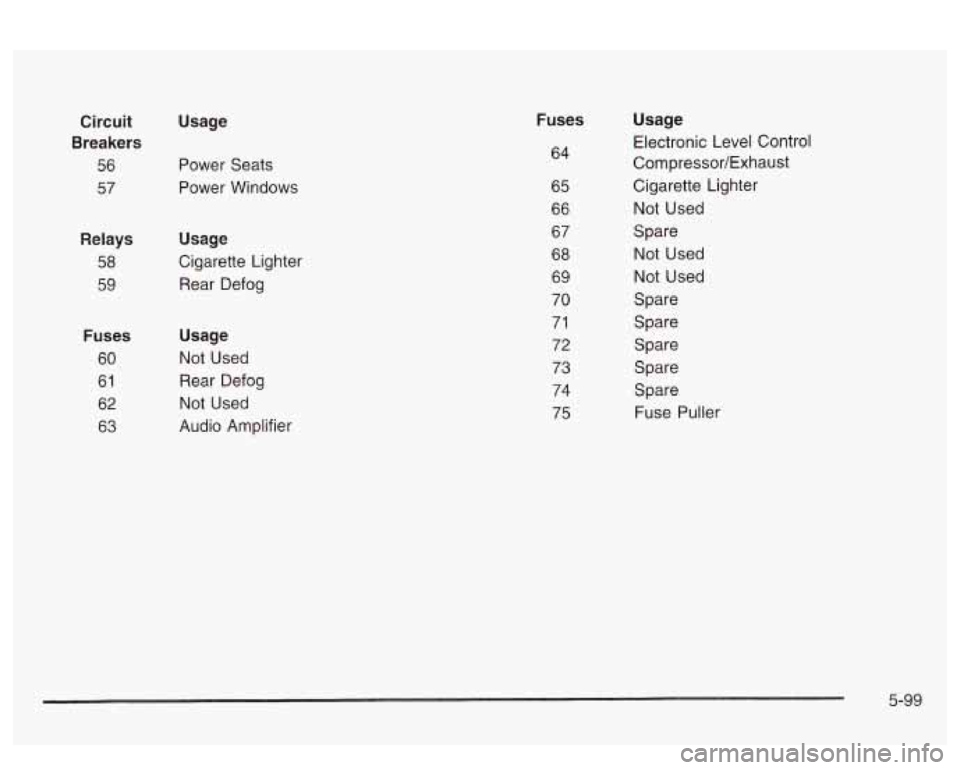

Circuit
Breakers
56
57
Relays
58
59
Fuses
60
61 62
63
Usage
Power Seats
Power Windows
Usage
Cigarette Lighter
Rear Defog
Usage
Not Used Rear Defog
Not Used
Audio Amplifier
Fuses
64
65
66
67
68 69 70
71
72
73
74
75
Usage
Electronic Level Control
Compressor/Exhaust
Cigarette Lighter
Not Used
Spare Not Used
Not Used
Spare
Spare
Spare Spare Spare Fuse Puller
5-99

Capacities and Specifications
The following approximate capacities are given in English and metric conversions. Please refer to
Part D: Recommended Fluids and Lubricants on page 6-24 for more information.
Capacities
Capacities
Application English Metric
Automatic Transaxle
7.4 quarts 7.0 L
Engine Cooling System
10.0 quarts 9.5 L
Engine Oil with Filter
4.5 quarts 4.3 L -
Fuel Tank 18.5 gallons 70.0 L
Wheel Nut Torque 1 00 Ib-ft 140 Nam
Air Conditioning Refrigerant R134a 2.2 Ibs. 1 .O kg
All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
5-1 00

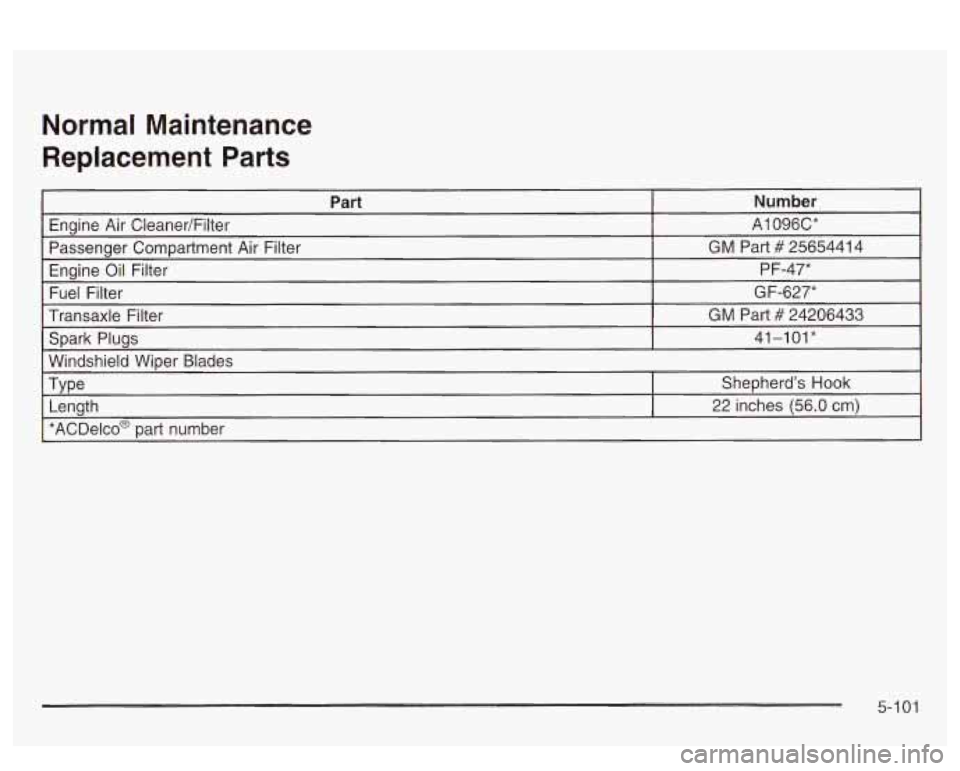

Normal Maintenance Replacement Parts
