PEUGEOT SERVICING21
Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows:  Switch off the ignition,
 Press and hold the trip recorderre-set button,
 Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered.
MAINTENANCE OF PARTS SUBJECT TO WEAR AND A CHECK OF CON- SUMABLES Some of your vehicle's vital components have specific servicing schedules. ¥ The brake fluid is to be replaced every 36,000/40,000 miles (60,000 km) or
every two years maximum;
¥ The passenger compartment filter must be checked at each serviceby a
PEUGEOT dealer (services and intermediate visits) or more often, depending
on the environment (dust, pollution, etc.);
¥ For HDI turbo diesel engines with particulate emission filter , maintenance
of the filterand topping up of the additive reservoirmust be carried out every
72,000 miles (120,000 km) maximum by a PEUGEOT dealer;
¥ Replacement of the timing belt: contact a PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years .
¥ Tyre pressure sensors are to be replaced every 10 years.
¥ The check on tyre inflation presure must be carried out cold at least once a
month .
Note: the engine coolant does not need to be changed.

10-02-2003
PEUGEOT SERVICING
22
THE SERVICE LEVELS Each vehicle has its own servicing cycle, defined by the manufacturer in terms of its technical specification.
This cycle consists of alternating 2 types of service A and C, intermediate visits and a few additional operations specific toyour vehicle; these correspond to key stages in the life of your 607.At your first and each subsequent service, your dealer will advise you of the type and content of the next servicedue.
Intermediate top-up visit.
MAINTENANCE CYCLE FOR YOUR PETROL ENGINE 607
2 litre 16 V and 2.2 litre 16V petrol engines : service every 2 years or 20,000 miles (30 000 km) maximum (unless the
service indicator shows it is required before this)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
MILES (KM) 40,000 (60 000) 80,000 (120 000) 120,000 (180 000)
24V V6 petrol injection engine: service every 2 years or 20,000 miles (30 000 km) maximum (unless the service
indicator shows it is required before this)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
MILES (KM) 40,000 (60 000) 80,000 (120 000) 120,000 (180 000)
Automatic gearbox oil level every 40,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 40,000 miles (60 000 km).
These fixed operations are carried out with synthetically based oil. Fuel economy oil
or synthetic oil may also be used (except for the 2.2 litre 16 V petrol engine).
+ replacement of air filter
+ replacement of fuel filter+ replacement of air filter
+ replacement of fuel filter
* Whichever comes first.

10-02-2003
PEUGEOT SERVICING23
Intermediate top-up visit.
MAINTENANCE CYCLE FOR YOUR 607 TURBO DIESEL HDI
Turbo diesel HDI: service every 2 years or 12,000 miles (20 000 km) maximum (unless the service indicator shows it is
required before this).
1st service
at 6,000 miles (10 000 km) or 6 months*.
This is necessary in
order to benefit from the warranty.
MILES (KM) 36,000 (60 000)
72,000 (120 000) 108,000 (180 000)
+ maintenance of
particulate emission filter
Automatic gearbox oil every 36,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 36,000 miles (60 000 km).
These fixed operations are carried out:
Ð with synthetically based oil, Fuel Economy oil or synthetic oil ;
Ð with 5W 40 oil for Turbo Diesel HDI engines fitted with a particulate emission filter.
* Whichever comes first.

10-02-2003
ARDUOUS CONDITIONS OF USE
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions: Ð countries with temperatures often above +30 ¡C,
Ð countries with temperatures often below Ð15 ¡C,
Ð countries with a dusty atmosphere,
Ð countries whose lubricants or fuels do not conform to our recommendations.
PEUGEOT SERVICING
24

10-02-2003
PEUGEOT SERVICING25
∀
All driving conditions. oArduous conditions. * According to destination.
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil∀∀- Bleed fuel filter (diesel)∀∀∀- Oil filter∀∀- Fuel filter* (petrol)∀REPLACE- Fuel filter element (diesel)∀- Air filter element∀- Spark plugs (petrol)∀- Engine oil (check + top-up)∀∀- Manual gearbox oil (check + top-up)∀∀- Battery (check + top-up) if cap is removable∀∀LEVEL- Screen wash front/rear (check + top-up)∀∀∀∀- Coolant (check + top-up)∀∀∀∀- Brake fluid (check + top-up)∀∀∀- Power steering fluid (check + top up according to specification)∀∀∀- Operation of lights and indicators∀∀∀- Condition of glass, headlamp and light lenses and mirrors∀∀- Horn∀∀- Windscreen washer jets∀∀- Condition of wiper blades∀∀- Condition and tension of the ancillary drive belts∀∀- Handbrake∀∀- Condition of hydraulic circuits (hoses and covers)∀∀CHECK- Condition of rubber boots and gaiters∀∀∀- Brake pads∀∀ #- Play in hubs, link rods, ball joints, flexible mountings∀- Shock absorbers∀- Rear drum brake lining wear∀- Condition and pressure of tyres (including spare wheel)∀∀∀- Emission control check as per current legislation (petrol)∀∀∀- Smoke opacity (diesel)∀∀- Passenger compartment filter (according to specification)∀∀ #- Visual check of the whole vehicle∀∀
SERVICE*Courtesy vehicle∀
ROAD TEST∀∀

10-02-2003
DIESEL
DIESEL
PETROL PETROL
26
(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers).
API= American Petroleum Institute
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.

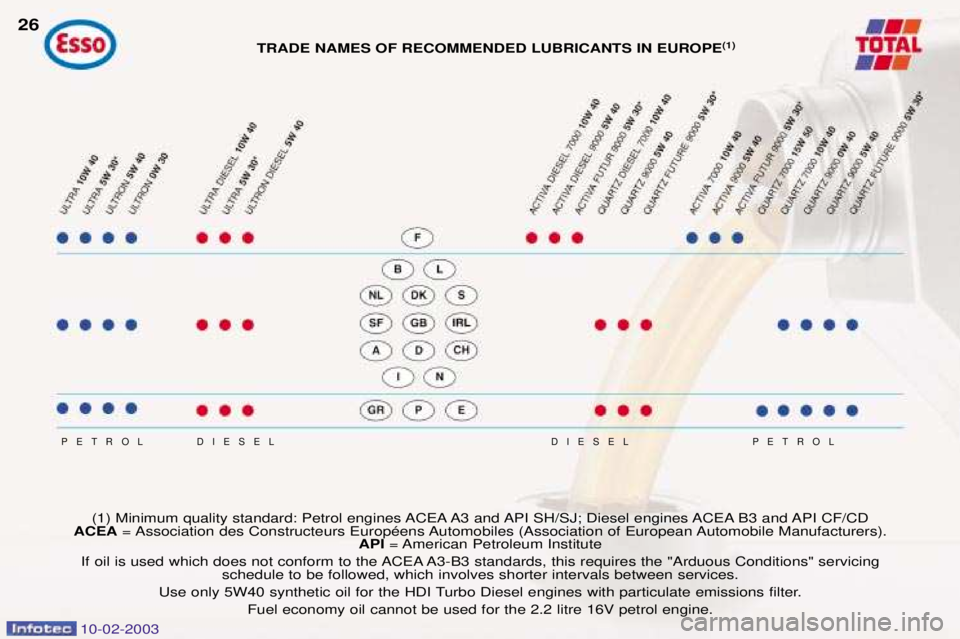

Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter. Fuel economy oil cannot be used for the 2.2 litre 16V petrol engine.TRADE NAMES OF RECOMMENDED LUBRICANTS IN EUROPE
(1)

10-02-2003
27
Recommendations for approved lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depend-ing on the temperatures at which theoils are to be used. It is also possible to use synthetic oils of `superior quality'. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ qual-ity (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the 'Arduous Con-ditions' servicing schedule, whichspecifies shorter service intervals. Do not hesitate to ask for advice from a Peugeot dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W 80 PR 9736.41 75W 80
ONLY
Automatic Gearbox ATF 4HP20-AL4 PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Power steering FLUIDE DA PR 9730.A1*
Brake circuit PEUGEOT DOT4
Cooling circuit PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000ONLYProtection to minus 35 degrees Celsius
* Only for extremely cold countries. Other recommended products
PEUGEOT SERVICING

10-02-2003
INSTRUMENTS AND CONTROLS
28
1 -
Handbrake indicator light.
2 - Main beam headlamps indicator light.
3 - Dipped beam headlamps indicator light.
4 - Rev counter.
5 - Left-hand direction indicator.
6 - Fuel gauge.
7 - Right-hand direction indicator.
8 - Speedometer. 9 -
Front fog lamps indicator light.
10 - ABS anti-lock braking system warning light.
11 - Rear fog lamps indicator light.
12 - Engine diagnostics warninglight.
13 - Coolant temperature indicator.
14 - CHECK button.
15 - Trip recorder zero re-set.
16 - Service indicator and total
distance recorder. 17 -
Warning/status screen.
18 - Illumination button +.
19 - Illumination button -.
20 - Engine oil level indicator.
- Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: PETROL
