2003 PEUGEOT 607 Owners Manual

PRACTICAL INFORMATION
164

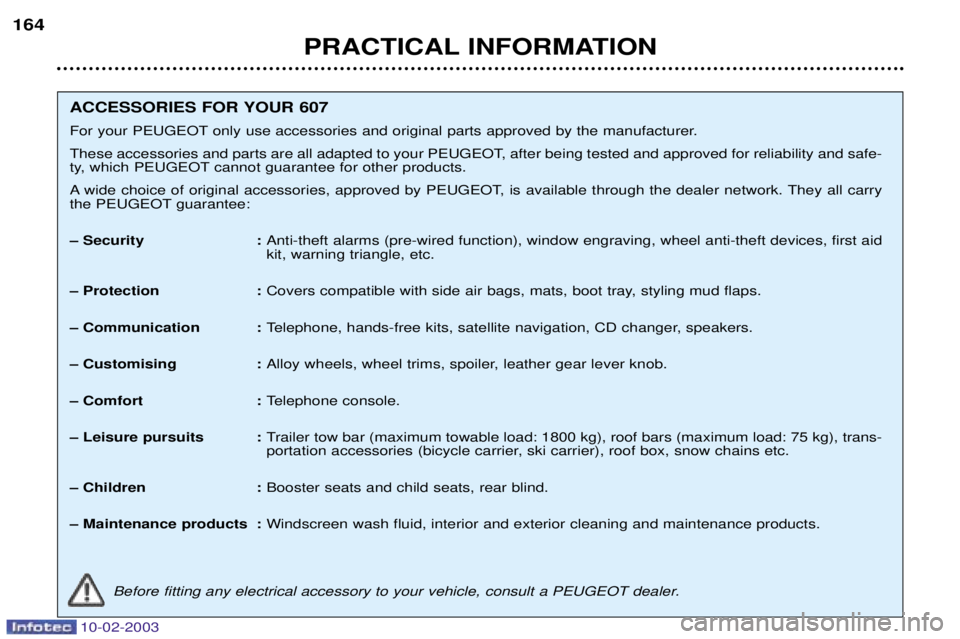

ACCESSORIES FOR YOUR 607
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safe-
ty, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee:
Ð Security :
Anti-theft alarms (pre-wired function), window engraving, wheel anti-theft devices, first aid kit, warning triangle, etc.
Ð Protection : Covers compatible with side air bags, mats, boot tray, styling mud flaps.
Ð Communication : Telephone, hands-free kits, satellite navigation, CD changer, speakers.
Ð Customising : Alloy wheels, wheel trims, spoiler, leather gear lever knob.
Ð Comfort : Telephone console.
Ð Leisure pursuits : Trailer tow bar (maximum towable load: 1800 kg), roof bars (maximum load: 75 kg), trans-
portation accessories (bicycle carrier, ski carrier), roof box, snow chains etc.
Ð Children : Booster seats and child seats, rear blind.
Ð Maintenance products : Windscreen wash fluid, interior and exterior cleaning and maintenance products.
Before fitting any electrical accessory to your vehicle, consult a PEUGEOT dealer.
10-02-2003

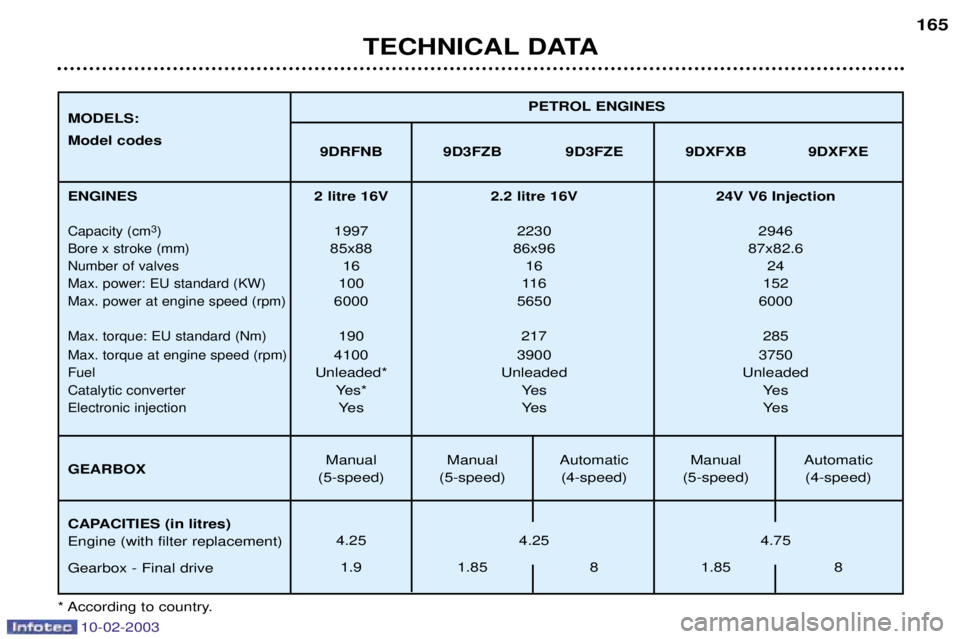

TECHNICAL DATA165
* According to country. MODELS: Model codes
PETROL ENGINES
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power: EU standard (KW)Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm) FuelCatalytic converterElectronic injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement) Gearbox - Final drive 2 litre 16V 2.2 litre 16V 24V V6 Injection
1997 2230 2946
85x88 86x96 87x82.6 16 16 24
100 116 152
6000 5650 6000
190 217 285
4100 3900 3750
Unleaded* Unleaded Unleaded Yes* Yes YesYe s Ye s Ye s
Manual Manual Automatic Manual Automatic
(5-speed) (5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.751.9 1.85 8 1.85 8
10-02-2003

TECHNICAL DATA
166
Turbo diesel Turbo diesel2 litre HDI 2.2 litre 16V HDI 1997 2179
85x88 85x96
81 6
80 79 98 4000 4000
250 314
1750 2000
Diesel Diesel Yes* Yes
No Yes Yes Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.75 4.75
1.85 1.85 8

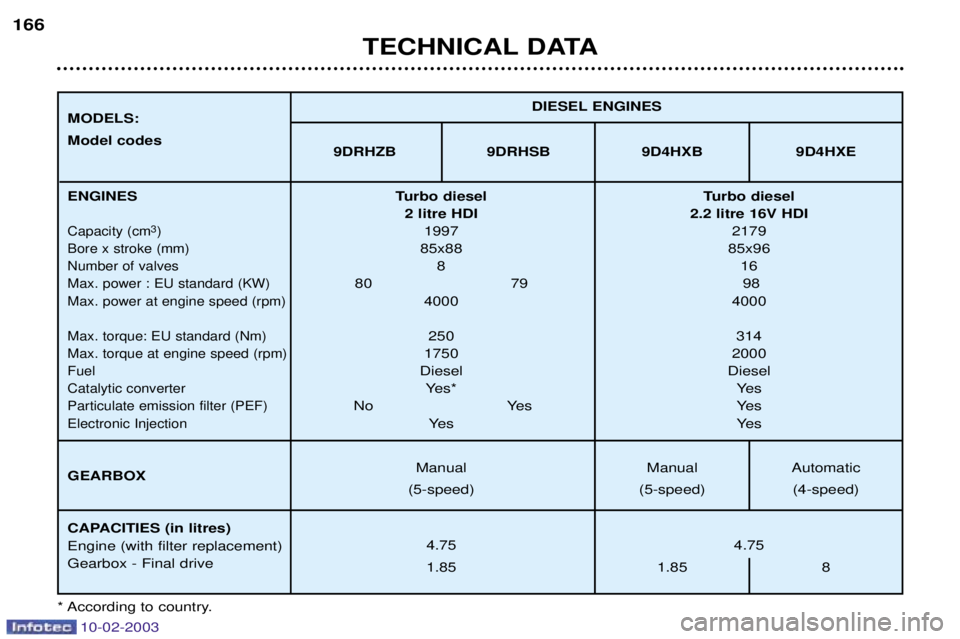

DIESEL ENGINES
MODELS: Model codes 9DRHZB 9DRHSB 9D4HXB 9D4HXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power : EU standard (KW) Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm)FuelCatalytic converterParticulate emission filter (PEF)Electronic Injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive
* According to country.
10-02-2003

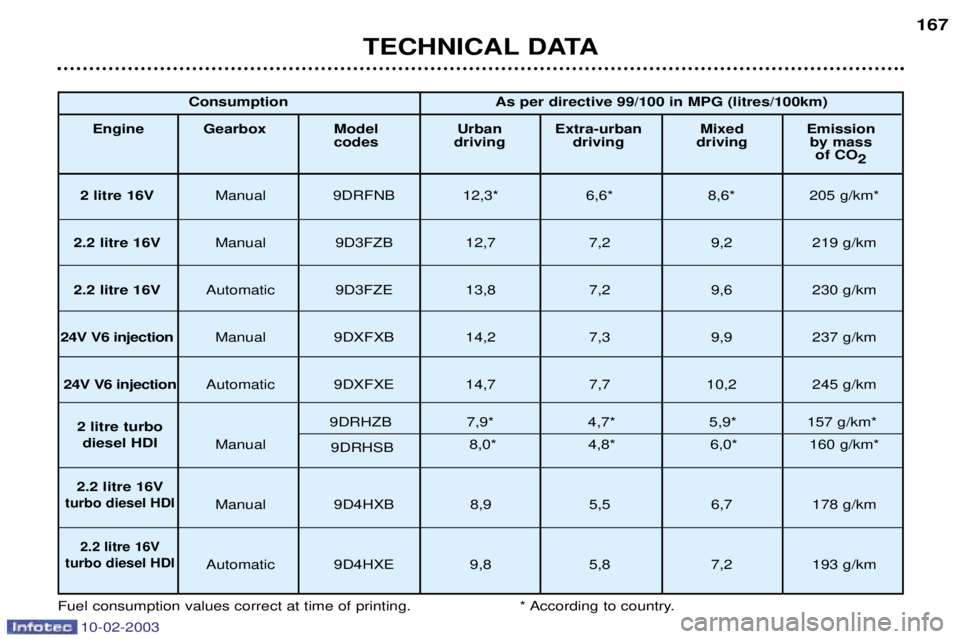

TECHNICAL DATA167
2 litre 16V
Manual 9DRFNB 12,3* 6,6* 8,6* 205 g/km*
2.2 litre 16V Manual 9D3FZB 12,7 7,2 9,2 219 g/km
2.2 litre 16V Automatic 9D3FZE 13,8 7,2 9,6 230 g/km
24V V6 injection Manual 9DXFXB 14,2 7,3 9,9 237 g/km
24V V6 injection Automatic 9DXFXE 14,7 7,7 10,2 245 g/km
2 litre turbo diesel HDI Manual 8,0* 4,8* 6,0* 160 g/km*
2.2 litre 16V
turbo diesel HDIManual 9D4HXB 8,9 5,5 6,7 178 g/km
2.2 litre 16V
turbo diesel HDI
Automatic 9D4HXE 9,8 5,8 7,2 193 g/km
Fuel consumption values correct at time of printing. * According to country. Consumption As per directive 99/100 in MPG (litres/100km)
Engine Gearbox Model Urban Extra-urban Mixed Emission codes driving driving driving by mass of CO2
9DRHZB 7,9* 4,7* 5,9* 157 g/km*
9DRHSB
10-02-2003

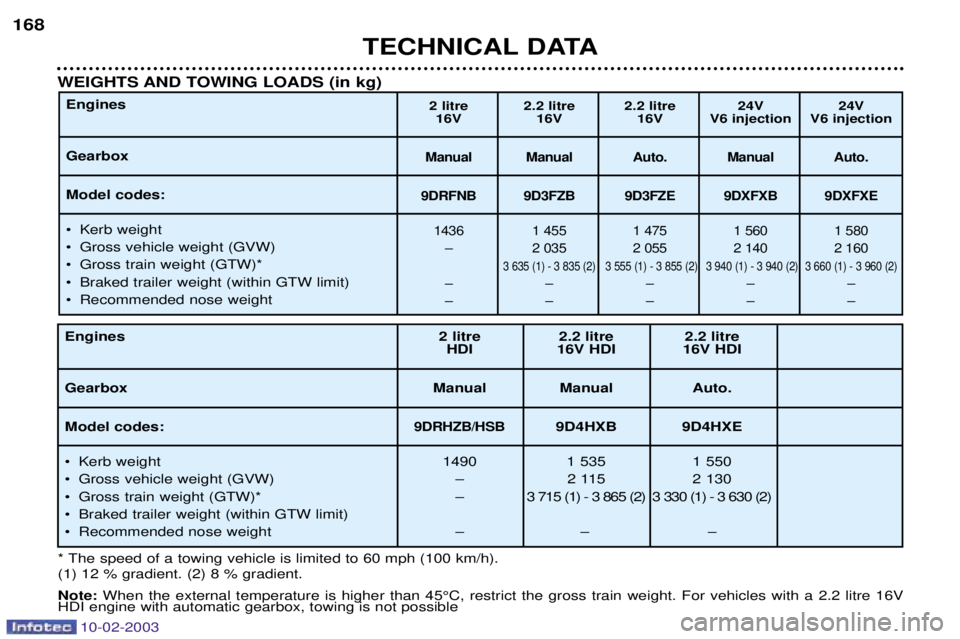

TECHNICAL DATA
168
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre 24V 24V
16V 16V 16V V6 injection V6 injection
Manual Manual Auto. Manual Auto.
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE 1436 1 455 1 475 1 560 1 580Ð 2 035 2 055 2 140 2 160
3 635 (1) - 3 835 (2) 3 555 (1) - 3 855 (2) 3 940 (1) - 3 940 (2) 3 660 (1) - 3 960 (2)
ÐÐÐÐÐÐÐÐÐÐ
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre
HDI 16V HDI 16V HDI
Manual Manual Auto.
9DRHZB/HSB9D4HXB 9D4HXE
1490 1 535 1 550 Ð 2 115 2 130
Ð 3 715 (1) - 3 865 (2) 3 330 (1) - 3 630 (2)
ÐÐ Ð
* The speed of a towing vehicle is limited to 60 mph (100 km/h). (1) 12 % gradient. (2) 8 % gradient. Note: When the external temperature is higher than 45¡C, restrict the gross train weight. For vehicles with a 2.2 litre 16V
HDI engine with automatic gearbox, towing is not possible
WEIGHTS AND TOWING LOADS (in kg)
10-02-2003

TECHNICAL DATA169

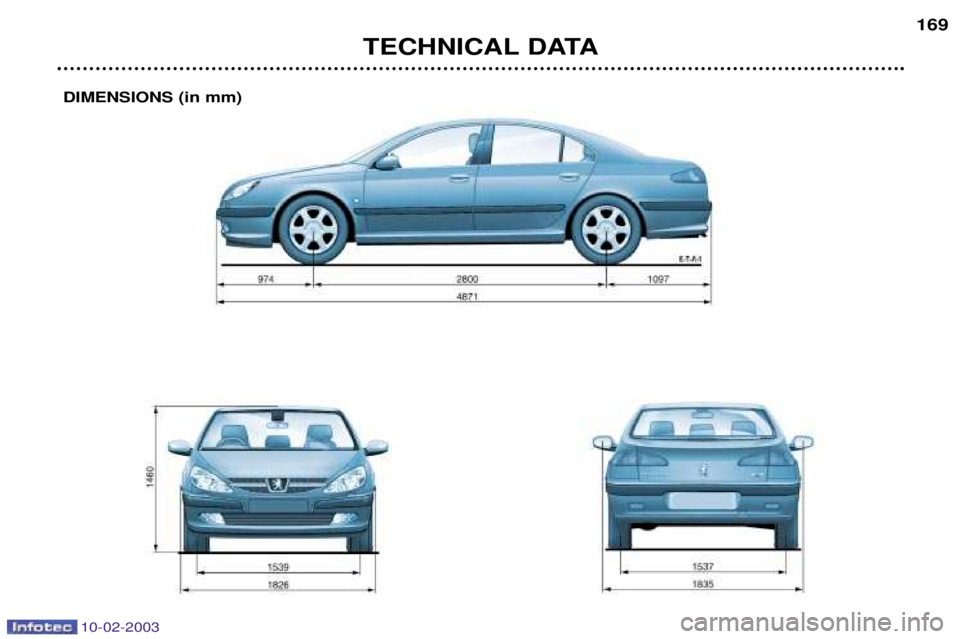

DIMENSIONS (in mm)
10-02-2003

TECHNICAL DATA
170

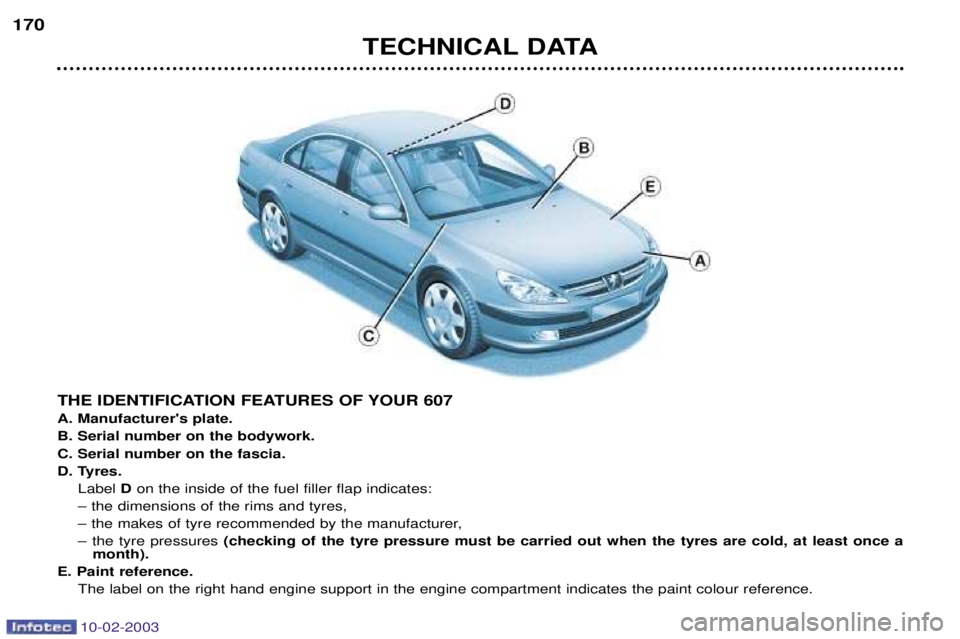

THE IDENTIFICATION FEATURES OF YOUR 607 A. Manufacturer's plate.B. Serial number on the bodywork.C. Serial number on the fascia.
D. Tyres.Label Don the inside of the fuel filler flap indicates:
Ð the dimensions of the rims and tyres,
Ð the makes of tyre recommended by the manufacturer,Ð the tyre pressures (checking of the tyre pressure must be carried out when the tyres are cold, at least once a
month).
E. Paint reference. The label on the right hand engine support in the engine compartment indicates the paint colour reference.
