2003 PEUGEOT 607 Owners Manual

10-02-2003
YOUR AT A GLANCE7
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear left electric window.
4 - Rear right electric window.5 - Disarming the rear window controls. Manual mode: Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode:  Press or pull the switch firmly.
One touch completely opens or closes the window. Safety auto-reverse: when the glass rises and meets an
obstacle, it stops and lowers again. ELECTRIC REAR VIEW MIRRORS  Turn knob 6to the right or to the left to select the corresponding mirror.
 Move the knob in all four directions to adjust.
When parked, the mirrors can be folded back manually, electrically by means of button 6or automatically on locking
the vehicle. STEERING WHEEL
HEIGHT AND DEPTHADJUSTMENT
Pull handle Adownwards to
unlock the steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock by pushing handle Afully
upwards.
124
125127

10-02-2003
14
FUEL FILLER FLAP Opening / Closing: Locking and unlocking of the fuel filler flap, the doors and boot is simultane-ous (except when selective unlockingis initialised; in this case press theunlocking button of the remote controlonce). FILLING WITH FUEL This must be carried out with the engine and the ignition switched off.
A hook is provided inside the fuel filler flap to hold the filler cap.
A label affixed to the inside of the fuel filler flap informs you which fuels are authorised or prohibited. The tank capacity is approximately 80 litres.When the minimum level of the tank is reached, this light comes on, accompanied by an audible signal and the message 'Fuel
level low' on the multi-function display.
You have enough fuel to drive approximately30 miles (50 km).
OPENING THE BONNET From inside:
 pull the handle downwards.
From outside:  lift the catch and raise the bonnet.
YOUR AT A GLANCE
11 611 6

10-02-2003
YOUR AT A GLANCE9
REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (per-son, vehicle, tree, gate, kerb...)located behind the vehicle.
To activate With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepsounds to inform you that it isactive. The proximity information is given by an audible signal, con-sisting of bleeps which becomemore and more rapid as the vehi-cle approaches the obstacle. When the distance between the rear of the vehicle and the obsta-cle is less than approximatelytwenty-five centimetres, the signal becomes con-tinuous.  The system ceas- es to be activewhen you changeto neutral. TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warn-ing if there is a malfunction (speedgreater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light comes on, accompaniedby a bleep and the mes-sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible. Puncture
Display of this warning light, accompanied by anaudible signal and themessage 'Punctured
tyre(s) detected', is fol-
lowed by illumination of the
STOP warning light.
Stop immediately, avoiding allabrupt manoeuvres with thesteering wheel and the brakes. Change the damaged (punctured or very under-inflated) wheel andhave the tyre pressure checkedas soon as possible. Note: if the damaged wheel is
stored temporarily in the boot, it will again send this message as areminder of the necessity of hav-
ing it repaired. This will prevent asimilar warning being displayed. Sensor(s) not detected
Display of this warninglight, accompanied by anaudible signal and themessage 'X tyre pres-
sure sensor(s) missing', indi-
cates that one or more wheelsare not being detected.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
Warning: this message is dis-
played when one of the wheels is at a distance from the vehicle(being repaired) or when a wheelwithout a sensor is fitted (winterfitting). This system does not eliminate the need to check the tyre
pressure regularly.
137148

10-02-2003
YOUR AT A GLANCE10
AUTOMATIC GEARBOX 'PORSCHE TIPTRONIC system'
The four speed automaticgearbox offers a choice between the comfort
of integral automatic operation, enhanced by a sport programme and
a snow programme, or the pleasure of manual gear changing.
Gear selection gate  Move the lever in the gate to select one of the functions.Once the function is selected, the indicator light for that function is dis- played on the instrument panel screen.
S: sport programme.
$ : snow programme.
P ark: to immobilise the vehicle and to start the
engine, with the handbrake on or owff.
R everse: to engage reverse; select this function
with the vehicle stationary and the engine at idle. N eutral: to start the engine and to park, with the
handbrake on. Note : if position Nis engaged by mistake while
the car is moving, allow the engine to return to idling speed before engaging function Dto accel-
erate. D rive: for automatic gear changing.
M anual: for manualgear changing.
To change the four gears manually:
 Push the lever to the +symbol to change up to
the next gear and pull it towards the -symbol to
change down a gear.
Note: the S (sport) and
$(
snow) programmes do
not operate in manual mode.
Moving Off With the engine running, to move
off from position P:
 it is essential to press the
brake pedal to exit position P,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehi-
cle will move off immediately.
You can also move off from posi-tion N:
 release the handbrake, withyour foot on the brake,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehi-
cle will move off immediately.
WARNING When the engine is idling with the brakes not applied, if functionR , D or M is selected, the vehicle
moves without the acceleratorbeing pressed. For this reason, do not leave
children unsupervised inside the vehicle, with the enginerunning. When maintenance operations have to be carried out with theengine running, apply the hand-brake and select position P.
131

10-02-2003
No. Symbol Function1 Air conditioning
on/off.
2 Front visibility
programme.
3 Air intake
control.
4 Rear screen
demisting.
5 Switching
off.
6Passenger setting
7 Passenger comfort
programme.
8 Passenger air distribution
setting.
9 Air flow
adjustment.
10 Driver air distribution
setting.
11 Driver comfort
programme.
12 Driver setting.
12YOUR AT A GLANCE
AUTOMATIC AIR CONDITIONING Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air conditioning, automatic switching on of the lights and the automatic adjust-ment of the instrument panel brightness.
96

13YOUR AT A GLANCE
10-02-2003

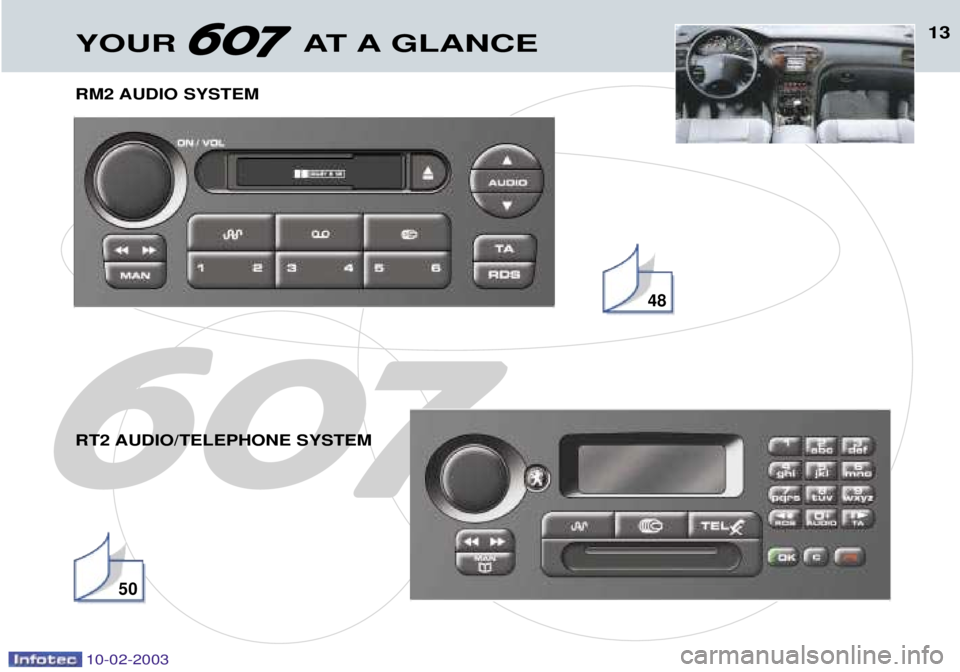

RM2 AUDIO SYSTEM
RT2 AUDIO/TELEPHONE SYSTEM
48
50

10-02-2003
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason that the PEUGEOT network invites you to an intermediate visit between regular services.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15 000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines. A Peugeot dealer will carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIALTO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER
PEUGEOT SERVICING
18

10-02-2003
PEUGEOT SERVICING
20
5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thedisplay shows the total or trip dis-tances. The distance remaining before the next service is less than 1,000 km. Example:
900 km remain before the
next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances.SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to themanufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows thedistance remaining (in round figures)before the next service. Example: 4,800 km remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates:The service is overdue.
Each time the ignition is switched onand for 5 seconds, the symbol andthe excess distance flash.. Example: the service is overdue by
300 km. The service should be car-
ried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and the
symbol remains lit. The displayshows the total or trip distances.
