2003 PEUGEOT 607 Owners Manual

10-02-2003

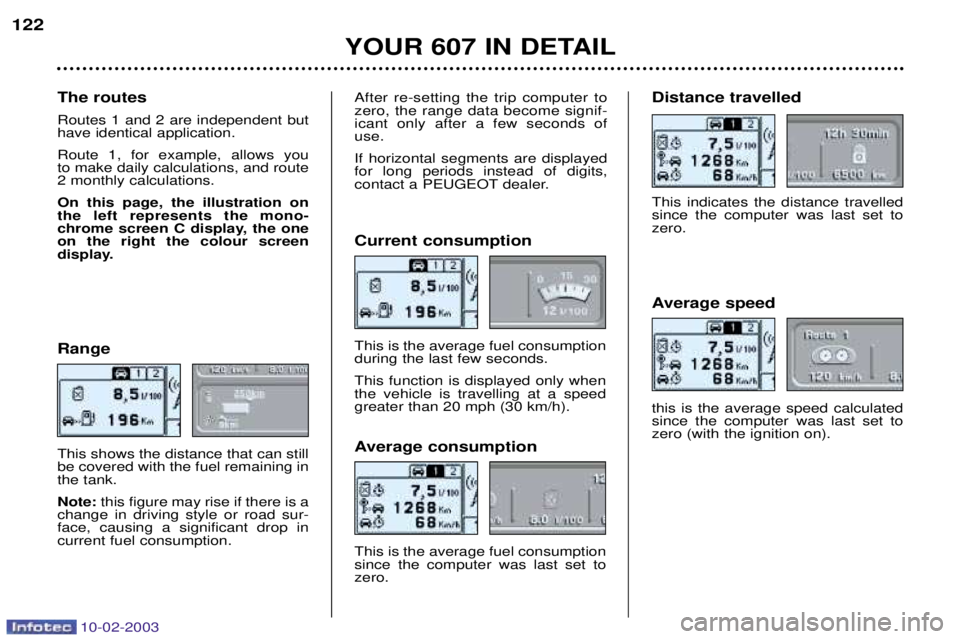

122Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed this is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signif-icant only after a few seconds ofuse. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.

10-02-2003
121
YOUR 607 IN DETAIL

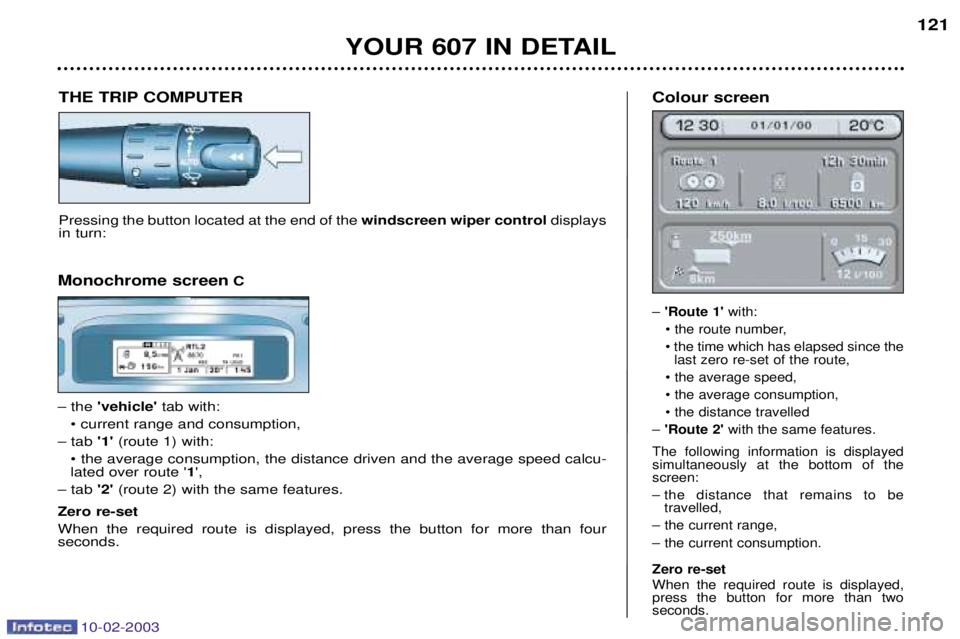

THE TRIP COMPUTER
Pressing the button located at the end of the windscreen wiper controldisplays
in turn: Colour screen
Ð
'Route 1' with:
¥ the route number, ¥ the time which has elapsed since the last zero re-set of the route,
¥ the average speed, ¥ the average consumption,¥ the distance travelled
Ð 'Route 2' with the same features.
The following information is displayed simultaneously at the bottom of thescreen:
Ð the distance that remains to be travelled,
Ð the current range,Ð the current consumption. Zero re-set When the required route is displayed, press the button for more than twoseconds.
Monochrome screen C
Ð the 'vehicle' tab with:
¥ current range and consumption,
Ð tab '1' (route 1) with:
¥ the average consumption, the distance driven and the average speed calcu- lated over route ' 1',
Ð tab '2' (route 2) with the same features.
Zero re-set When the required route is displayed, press the button for more than four seconds.

10-02-2003
122Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed this is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signif-icant only after a few seconds ofuse. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.

10-02-2003

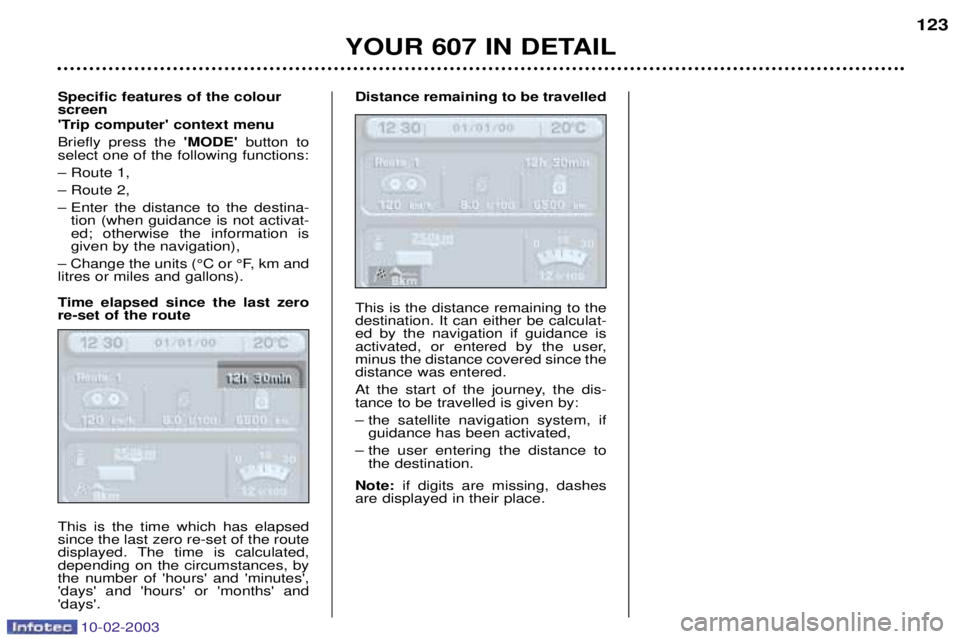

Specific features of the colour screen
'Trip computer' context menu Briefly press the 'MODE' button to
select one of the following functions:Ð Route 1,Ð Route 2,
Ð Enter the distance to the destina- tion (when guidance is not activat- ed; otherwise the information isgiven by the navigation),
Ð Change the units (¡C or ¡F, km andlitres or miles and gallons).
Time elapsed since the last zero re-set of the route This is the time which has elapsed since the last zero re-set of the route
displayed. The time is calculated,depending on the circumstances, bythe number of 'hours' and 'minutes','days' and 'hours' or 'months' and'days'. Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculat-ed by the navigation if guidance is
activated, or entered by the user,minus the distance covered since thedistance was entered.
At the start of the journey, the dis- tance to be travelled is given by:
Ð the satellite navigation system, if
guidance has been activated,
Ð the user entering the distance to the destination.
Note: if digits are missing, dashes
are displayed in their place.
YOUR 607 IN DETAIL 123

10-02-2003
YOUR 607 IN DETAIL
124
You have two options: Manual operation:
 press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Automatic operation:  press or pull switch 1fully. The
window opens or closes comple-tely when the switch is released.Pressing the switch again stops
the movement of the window.
Safety auto-reverse When the window rises and meets an obstacle, it stops and lowersagain. Note: In the case of unwanted ope-
ning of the window on closing (for example, in the case of ice), if thewindow will not rise, pull the switch
until the window closes completely.Continue to press the switch for onesecond after closing. Following reconnection of the batte-
ry, in the event of a malfunction, youmust reinitialise the safety auto-reverse function:
- open the window completely, then
close it, it will rise in stages of a few centimetres with each press,repeat the operation until the win-dow is completely closed,
- continue to press the switch for at least one second after reachingthis position.
The safety auto-reverse functionis not operational during theseoperations.

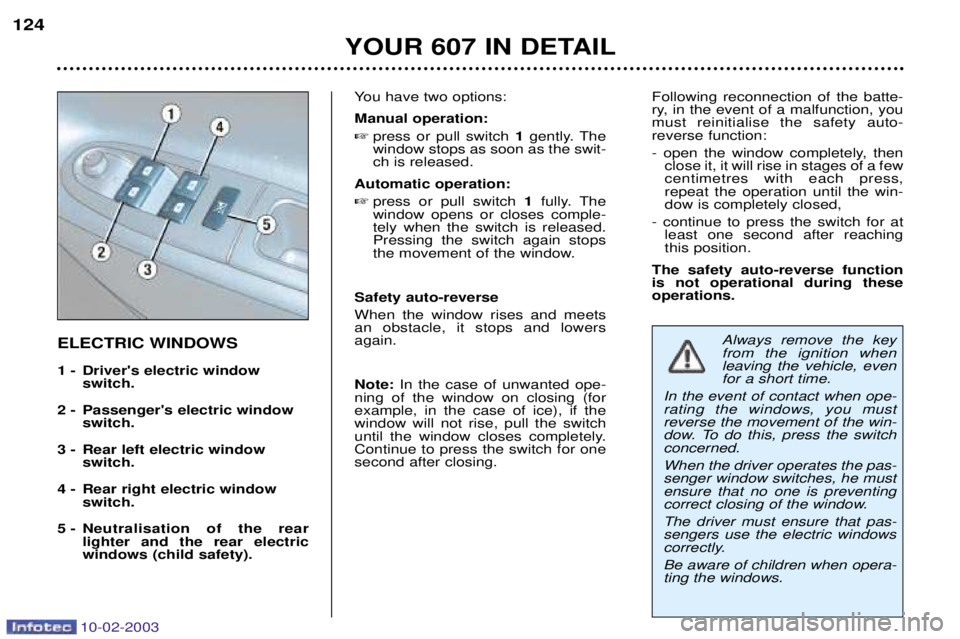

ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
3 - Rear left electric window switch.
4 - Rear right electric window switch.
5 - Neutralisation of the rear lighter and the rear electric windows (child safety).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact when ope-rating the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger window switches, he mustensure that no one is preventing
correct closing of the window. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.

10-02-2003
YOUR 607 IN DETAIL125

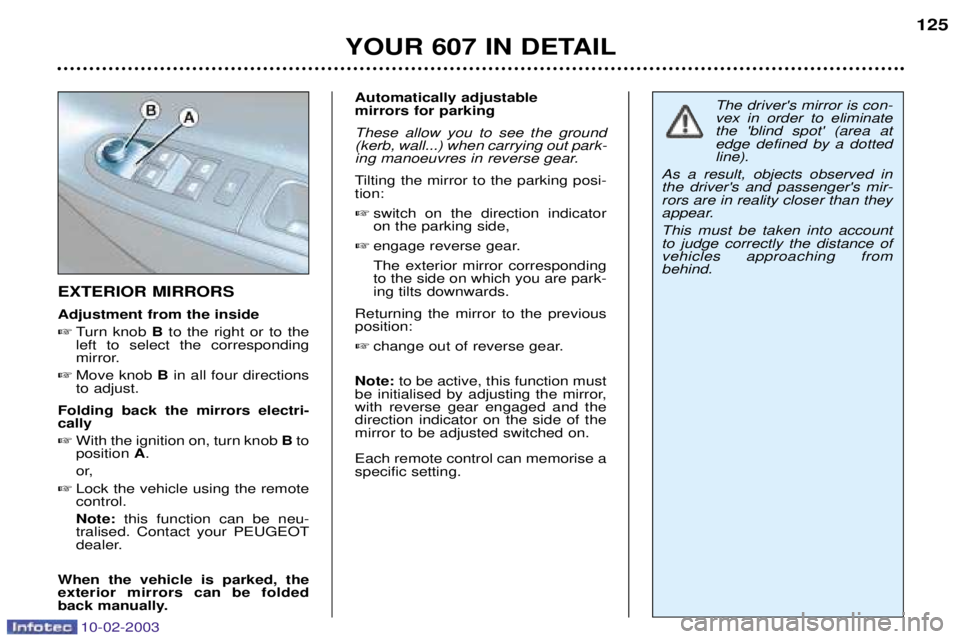

EXTERIOR MIRRORS Adjustment from the inside
Turn knob Bto the right or to the
left to select the corresponding
mirror.
 Move knob Bin all four directions
to adjust.
Folding back the mirrors electri-cally  With the ignition on, turn knob Bto
position A.
or,
 Lock the vehicle using the remote control. Note: this function can be neu-
tralised. Contact your PEUGEOT
dealer.
When the vehicle is parked, theexterior mirrors can be folded
back manually. Automatically adjustable mirrors for parking These allow you to see the ground (kerb, wall...) when carrying out park-
ing manoeuvres in reverse gear.
Tilting the mirror to the parking posi- tion:
 switch on the direction indicatoron the parking side,
 engage reverse gear. The exterior mirror corresponding to the side on which you are park-ing tilts downwards.
Returning the mirror to the previousposition:  change out of reverse gear.
Note: to be active, this function must
be initialised by adjusting the mirror,with reverse gear engaged and thedirection indicator on the side of themirror to be adjusted switched on. Each remote control can memorise a specific setting.
The driver's mirror is con- vex in order to eliminatethe 'blind spot' (area atedge defined by a dottedline).
As a result, objects observed inthe driver's and passenger's mir-rors are in reality closer than they
appear. This must be taken into account to judge correctly the distance ofvehicles approaching frombehind.

10-02-2003
YOUR 607 IN DETAIL
126
Automatic day/night interior mirror This automatically and gradually changes between the day and night positions.
To prevent dazzling, the glass of the mirror darkens automatically depending onthe intensity of the light from behind. It clears as the light (headlamps of follow-
ing vehicles, sunlight) decreases, ensuring maximum visibility. Operation Switch on the ignition and press switch
1:
Ð Indicator light 2lit (switch pressed): automatic operation.
Ð Indicator light 2off: automatic system off. The mirror remains at its most clear.
Special feature
To ensure maximum visibility during manoeuvres, the mirror clears automatical- ly when reverse gear is engaged. Manual interior mirror The interior mirror has two positions: - day (normal),- night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.
Areas for toll cards / car park tickets The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.

10-02-2003
YOUR 607 IN DETAIL127

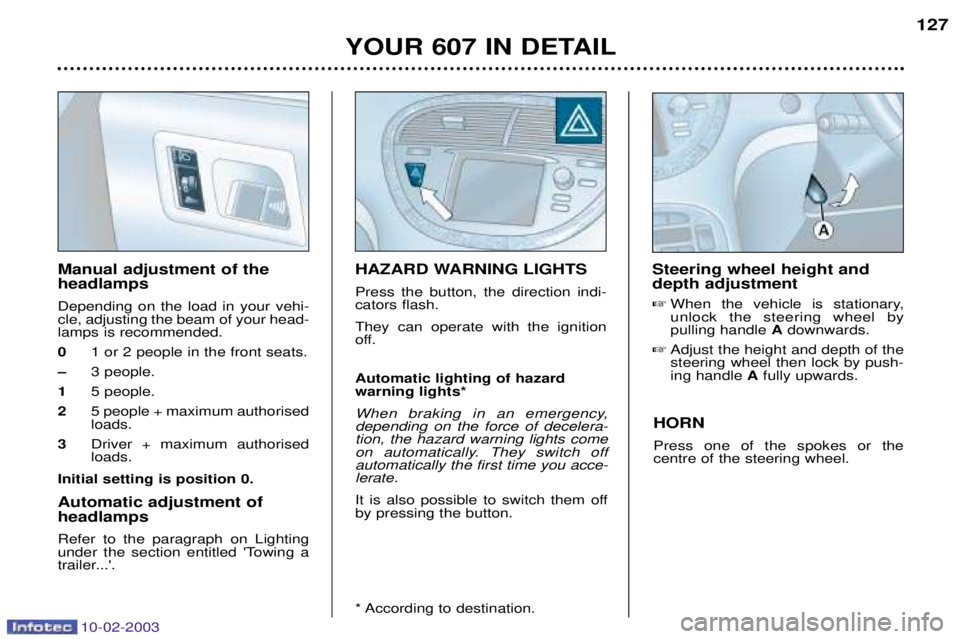

HORN Press one of the spokes or the centre of the steering wheel.
Manual adjustment of the headlamps Depending on the load in your vehi- cle, adjusting the beam of your head-lamps is recommended. 0 1 or 2 people in the front seats.
Ð 3 people.
1 5 people.
2 5 people + maximum authorisedloads.
3 Driver + maximum authorisedloads.
Initial setting is position 0.
Automatic adjustment of headlamps Refer to the paragraph on Lighting
under the section entitled 'Towing a
trailer...'. HAZARD WARNING LIGHTS Press the button, the direction indi- cators flash. They can operate with the ignition
off.
Steering wheel height and depth adjustment
When the vehicle is stationary, unlock the steering wheel bypulling handle Adownwards.
 Adjust the height and depth of thesteering wheel then lock by push-ing handle Afully upwards.
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time you acce-lerate.
It is also possible to switch them off by pressing the button.
* According to destination.
