2003 PEUGEOT 607 Owners Manual

10-02-2003
YOUR 607 IN DETAIL99
THE SEATS Manual front seats
1 - Forwards-backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment *
Raise the catch while pressing on or easing off the seat back to obtain the required height.
3 - Driver's seat height adjustment* Raise the catch to obtain the required height.
4 - Seat back angle adjustment Raise the catch to obtain the required angle.
5 - Lumbar adjustment *
Raise or lower the lever to obtain the correct position.
6 - Head restraint height adjustment The head restraint has a frame with notches whichprevent the head restraint dropping down (safety
device in the event of an impact).
To raise the head restraint, push it upwards.
The setting is correct when the upper edge of the head restraint is level with the top of the head.
To lower the head restraint, it is necessary to pushsimultaneously : Ð
the button located on the base of the head restraint frame,
Ð the head restraint downwards.The head restraint angle is also adjustable.
To remove the head restraint, lift it out by pressing the lug.
Warning : never drive with the head restraints removed; they
must be in place and correctly adjusted.
* Driver's seat only.

10-02-2003
YOUR 607 IN DETAIL101
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

10-02-2003
YOUR 607 IN DETAIL
100
Electric front seats
A - Forwards-backwards adjustment
Push the control forwards or backwards to slide the seat.
B - Seat cushion angle adjustment Tilt the front of the control upwards or downwards toobtain the required angle.
C - Seat height adjustment Tilt the rear part of the control upwards or downwardsto obtain the required height.
D - Seat back angle adjustment Tilt the control to the front or the rear to obtain the cor-rect angle.
E - Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F - Head restraint height adjustment Tilt the control upwards or push it downwards to obtainthe correct height.
The setting is correct when the upper edge ofthe head restraint is level with the top of thehead.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45¡ and place the head restraint in the high position, thenpull with both hands.
Note: the electrical functions of the driver's seat are inoper-
ative three minutes after the ignition has been switched off.

10-02-2003
YOUR 607 IN DETAIL101
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

10-02-2003
YOUR 607 IN DETAIL
102

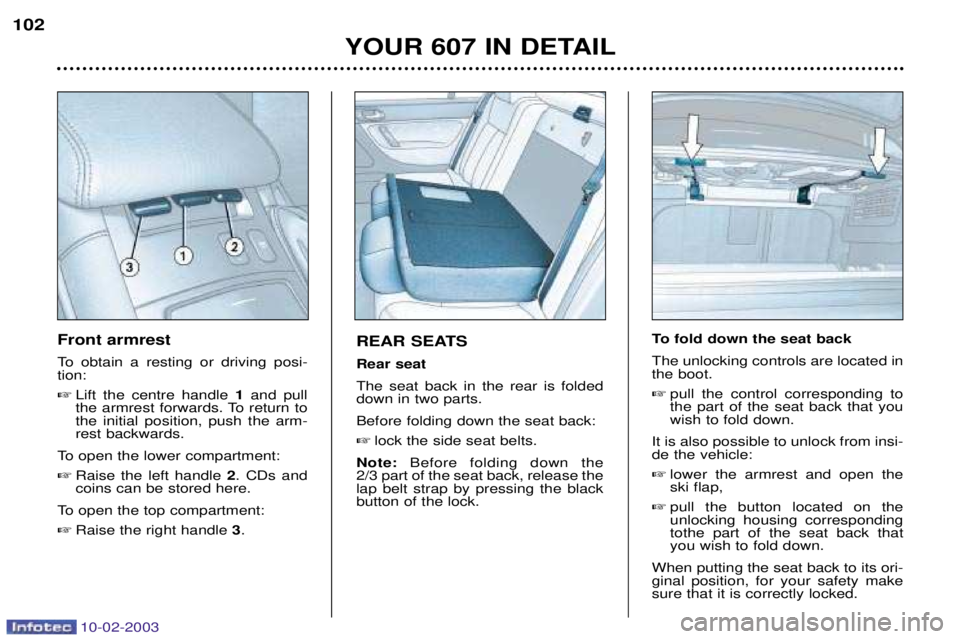

REAR SEATS Rear seatThe seat back in the rear is folded down in two parts. Before folding down the seat back:
 lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the lap belt strap by pressing the blackbutton of the lock.
Front armrest
To obtain a resting or driving posi- tion:
 Lift the centre handle 1and pull
the armrest forwards. To return tothe initial position, push the arm-rest backwards.
To open the lower compartment:  Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:  Raise the right handle 3. To fold down the seat back The unlocking controls are located in the boot.
 pull the control corresponding tothe part of the seat back that youwish to fold down.
It is also possible to unlock from insi-de the vehicle:  lower the armrest and open theski flap,
 pull the button located on theunlocking housing correspondingtothe part of the seat back thatyou wish to fold down.
When putting the seat back to its ori-ginal position, for your safety makesure that it is correctly locked.

10-02-2003
YOUR 607 IN DETAIL103
Ski flap
 Lower the armrest to access the ski flap. Open by pulling the han-dle.

10-02-2003
YOUR 607 IN DETAIL
104
Rules for transporting children on the front passenger seat**: Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe most rearward position and armthe passenger air bag. The rearwards facing position is per- mitted from birth to 18 kg. In thisposition, it is essential to disarm thepassenger air bag.
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
- Since 1992, all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
In order to recognise a child seat which conforms to current legislation, check
that it bears an orange label indicating the weight range for its use and its approval number .
- A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear.
- The safest seats in your vehicle for the transportation of children are therear seats.
- If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat beltmust be positioned on the child's shoulder without touching the neck. PEU-
GEOT recommends that you use a booster seat with a back, fitted with a seatbelt guide.
- Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

10-02-2003
YOUR 607 IN DETAIL105
"ISOFIX" MOUNTINGS The one third side of the rear seat of your vehicle is fitted with ISOFIX
mountings . These are 2 rings loca-
ted between the seat back and seatcushion of your vehicle. The ISOFIX child seats are fitted
with 2 locks which fit onto these rings. The ISOFIX child seat approved for
PEUGEOT vehicles and sold by the
PEUGEOT network is the
ISOFIX
KIDDY* child seat. It can be installed
in the rearwards facing position frombirth to 13 kg and in the forwards
facing position from 9 to 18 kg. In the front, in the rearwards facing position, the front passenger seatmust be moved as far forwards aspossible so that the shell of the childseat is in contact with, or as close aspossible to, the fascia.
In the rear, in the forwards facing position, the front passenger seatmust be in the intermediate longitudi-nal position, with the seat backupright. The ISOFIX KIDDY child seat mayalso be used where there are no Iso-fix mountings.In this case it is com-pulsory to attach it to the vehicle'sseat using the three-point seat beltfor both the rearwards facing and for-wards facing positions.
If the ISOFIX KIDDY seat is fitted in the rearwards facing positionon the front passenger seat, it isessential to disarm the passengerair bag. Follow the instructions for fitting the child seat indicated in the seatmanufacturer's installation ins-tructions. Refer to the "Summary table for the installation of child seats".
* You can only secure ISOFIX child
seats, approved by PEUGEOT and sold by its network, on your vehi-cle's ISOFIX mountings.
