2003 PEUGEOT 607 Owners Manual

10-02-2003
Voice recognition The voice recognition system enables you to make telephone callsusing voice commands (pre-recor-
ded words or phrases) associatedwith numbers in the directories (SIMand telephone only) of a specificmobile telephone.
YOUR 607 IN DETAIL 75
Note: if the telephone contains more
than 254 directory files, only the first 254 files will be transferred to the sys-tem (in alphabetical order). It will bepossible to consult the rest of the filesdirectly on the telephone. In addition to your telephone's directories, you have an assistancedirectory which enables you to:
- call 112 "Emergency call" ,
- call the PEUGEOT customer service "PEUGEOT Service" .
Note: the emergency call is only
possible if all of the access condi- tions are fulfilled (PIN, network signallevel).
To gain access to the directories:
- press and hold the end of the steering wheel stalk (no call in progress),
or
- press the "MENU"button on the
screen's control keypad to gain access to the "General menu" ,
select "Telephone" and confirm,
then select "telephone directo-
ries" and confirm.
Select the directory of your choi-ce, then a correspondent to makea call.

10-02-2003
YOUR 607 IN DETAIL
76
Functions available with telephones which have the Bluetooth system The table below lists the functions available depending on the type of telephone. Functions Nokia
6310i
Operator name Ye s
Network levelYe s
Make a call using the mobile telephone's keypad Yes
Make a call using the GSM voice recognition Yes
Make a call using a known numberYes
Pick up an incoming callYe s
Do not pick up an incoming call Yes
End a callYe s
Read the telephone directory Yes
Read the BIS directories, calls receivedYes
Make a call using a known number Yes
Displaying of the numberYe s
Secrecy modeYe s
Management of a second call Yes
Continuity of service Ye s

10-02-2003
The control pad This lets you select and confirm the functions, controls and programmes dis- played. It is located by the side of the screen.Dial; this has two functions:
Ð Rotation of the dial:This allows you to move roundthe screen and thus select a
function.
It also allows you: Ð with a 'setting' type parameter, after selection, to increase
or decrease the value,
Ð with a 'list'type parameter, to open the list and scroll
through the values.
Ð Pressing the dial: This allows:Ð confirmation of the selected function or the modified value.
Ð selection of a 'setting' or 'list' type parameter for modifica-
tion.
Ð cancelling of a superimposed display.
'MENU' button:This allows access at any time to the general menu.
'MODE' button:
Ð brief press: Ð monochrome screen C: selection of functions (audio sys-
tem, navigation / guidance...),
Ð colour screen: access to the list of controls (context menu)
of the function being displayed.
Ð Pressing for more than two seconds puts the screen on standby. 'ESC' button:
Ð brief press: cancelling of operation in progress and return to the previous screen or erasing of a superimposed display.
Ð pressing for more than two seconds returns to the welcome screen. 77
SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination. The heart of the system lies in the use of a map data base and GPS
(Global Positioning System). With
this system you can fix the positionof your vehicle by means of a satel-lite network. The system uses the following ele- ments: Ð the control pad,Ð the CD-ROM drive,
Ð the last voice message and route change recall control,
Ð the map data in CD-ROM format,Ð the monochrome or colour screen.
Certain functions or services
described may vary depending
on the version of CD-ROM or the
country where the vehicle is sold.
YOUR 607 IN DETAIL

10-02-2003
The CD-ROM drive This is located on the left hand side of the boot. Open the panel to access it. 1.Ejection button of the CD-ROM.
2. CD-ROM housing.
3. The CD indicator light shows the presence of a CD-ROM in the drive.
78
YOUR 607 IN DETAILThe last voice message and route change recall control
A brief press on the button onthe end of the lights stalkrepeats the last voice infor-mation and if necessary pro-vides more detailed voice andgraphic information on theroute ahead. Press for more than two sec- onds to make a route change.
The CDÐROM This contains all the mapdata. It must be inserted in the drive, printed face upwards. With the colour screen, you
have a second CD-ROM (software) containing the voice synthesis software and languages.
The use of copied compact discs may cause malfunctions.

10-02-2003
YOUR 607 IN DETAIL79

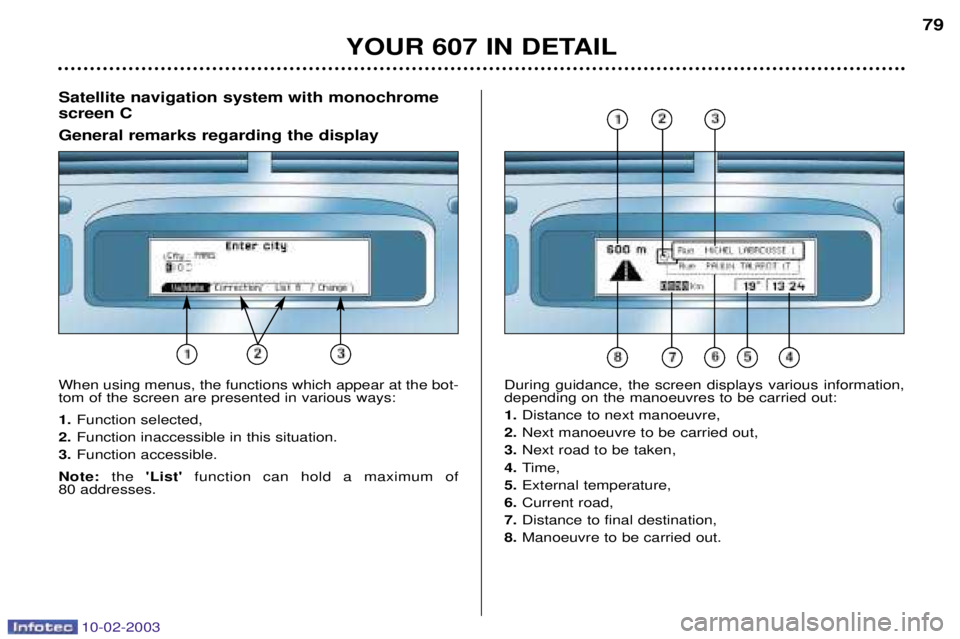

Satellite navigation system with monochrome screen C General remarks regarding the display
When using menus, the functions which appear at the bot- tom of the screen are presented in various ways: 1. Function selected,
2. Function inaccessible in this situation.
3. Function accessible.
Note: the 'List' function can hold a maximum of
80 addresses. During guidance, the screen displays various information, depending on the manoeuvres to be carried out: 1.
Distance to next manoeuvre,
2. Next manoeuvre to be carried out,
3. Next road to be taken,
4. Time,
5. External temperature,
6. Current road,
7. Distance to final destination,
8. Manoeuvre to be carried out.

10-02-2003
The ''Navigation/Guidance'' menu offers following options:
- inputting of the address of a new destination,
- selection of a service (hotel, station, airport...) available in a town,
- selection of an address stored in one of the two directo- ries,
- access to the "Navigation Options" menu.
Main menu Switch on the ignition. Press the
'Menu'button to access the 'Main menu'.
Select a function by turning the dial, then confirm (press the dial). Navigation / guidance Following selection of the 'Navigation / guidance'menu,
a screen warns you about the use of the navigation sys- tem. Please observe the instructions. Press the dial to access the next screen.
YOUR 607 IN DETAIL
80

10-02-2003

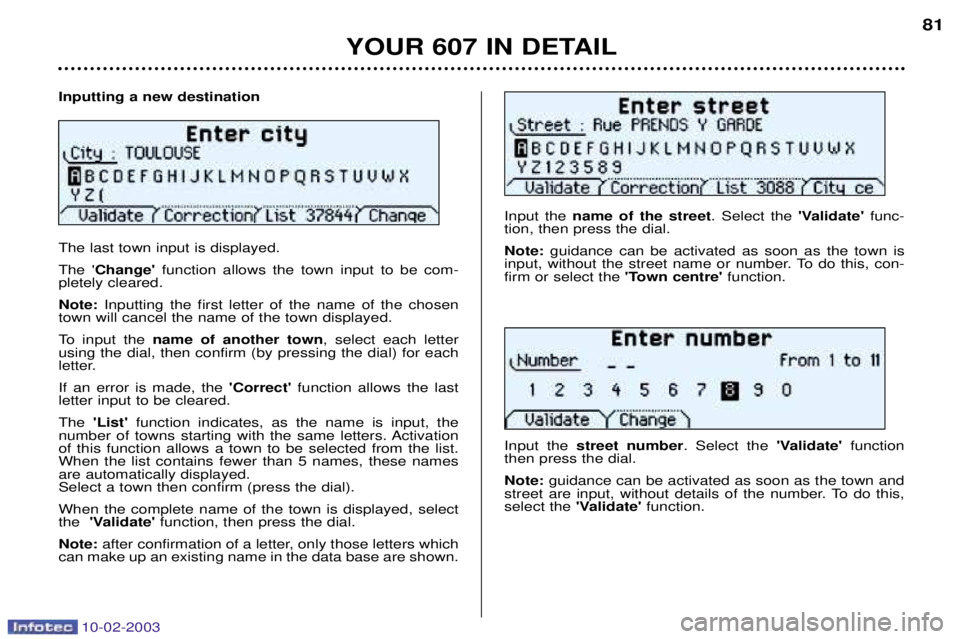

Inputting a new destination The last town input is displayed. The 'Change' function allows the town input to be com-
pletely cleared.Note: Inputting the first letter of the name of the chosen
town will cancel the name of the town displayed.
To input the name of another town , select each letter
using the dial, then confirm (by pressing the dial) for each
letter. If an error is made, the 'Correct' function allows the last
letter input to be cleared.The 'List' function indicates, as the name is input, the
number of towns starting with the same letters. Activation of this function allows a town to be selected from the list.When the list contains fewer than 5 names, these namesare automatically displayed.Select a town then confirm (press the dial). When the complete name of the town is displayed, select the 'Validate' function, then press the dial.
Note: after confirmation of a letter, only those letters which
can make up an existing name in the data base are shown. Input the
name of the street . Select the 'Validate'func-
tion, then press the dial. Note: guidance can be activated as soon as the town is
input, without the street name or number. To do this, con- firm or select the 'Town centre' function.
Input the street number . Select the 'Validate'function
then press the dial. Note: guidance can be activated as soon as the town and
street are input, without details of the number. To do this, select the 'Validate' function.
YOUR 607 IN DETAIL 81

10-02-2003
The complete destination is displayed. Select the 'Vali-
date' function then press the dial.
Note: you can also change the destination or store it in one
of the two directories (see paragraph 'Storing an address
in a directory' ).
The last guidance criterion used is displayed.
Guidance begins automatically by retaining this criterionif
there is no action within 5 seconds or after validating the 'YES' function.
Follow the instructions. If you wish to change the guidance criterion, select the
'NO' function, then press the dial. Select a
criterion from the list offered, then confirm (press
the dial). When the criterionof your choice is selected,
select the 'Validate' function, then press the dial.
Guidance begins, follow the instructions.
YOUR 607 IN DETAIL
82
