DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
PFP:23731
DescriptionEBS004RQ
The crankshaft position sensor (TDC) monitors engine speed by
means of signals from the sensing plate (with 23 protrusions)
installed to the fly wheel. The datum signal output is detected 15°
signal and sent to the ECM. The sensor signal is used for fuel injec-
tion control and fuel injection timing control.
CONSULT-II Reference Value in Data Monitor ModeEBS004RR
Specification data are reference values.
ECM Terminals and Reference ValueEBS004RS
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0368E
MONITOR ITEM CONDITION SPECIFICATION
CKPS ·RPM (TDC)
lTachometer: Connect
lRun engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
CONSULT-II value.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA(DC Voltage and Pulse Sig-
nal)
B20 L/RCrankshaft position sen-
sor (TDC) ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
B21 L/GCrankshaft position sen-
sor (TDC)[Engine is running]
lWarm-up condition
lIdle speed0 - 12.5V
[Engine is running]
lWarm-up condition
lEngine speed is 2,000 rpm0 - 12.5V
PBIB0395E
PBIB0396E

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-735
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
On Board Diagnosis LogicEBS004RT
DTC Confirmation ProcedureEBS004RU
Before performing the following procedure, confirm that battery voltage is more than 10V.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 1 second.
3. Start engine and run it for at least 2 seconds at idle speed.
4. If DTC is detected, go toEC-737, "
Diagnostic Procedure".
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0335
lAn improper voltage signal from the sensor is sent
to ECM during running and cranking.lHarness or connectors
(The sensor circuit is open or shorted.)
lCrankshaft position sensor (TDC)
SEF817Y

EC-736
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)

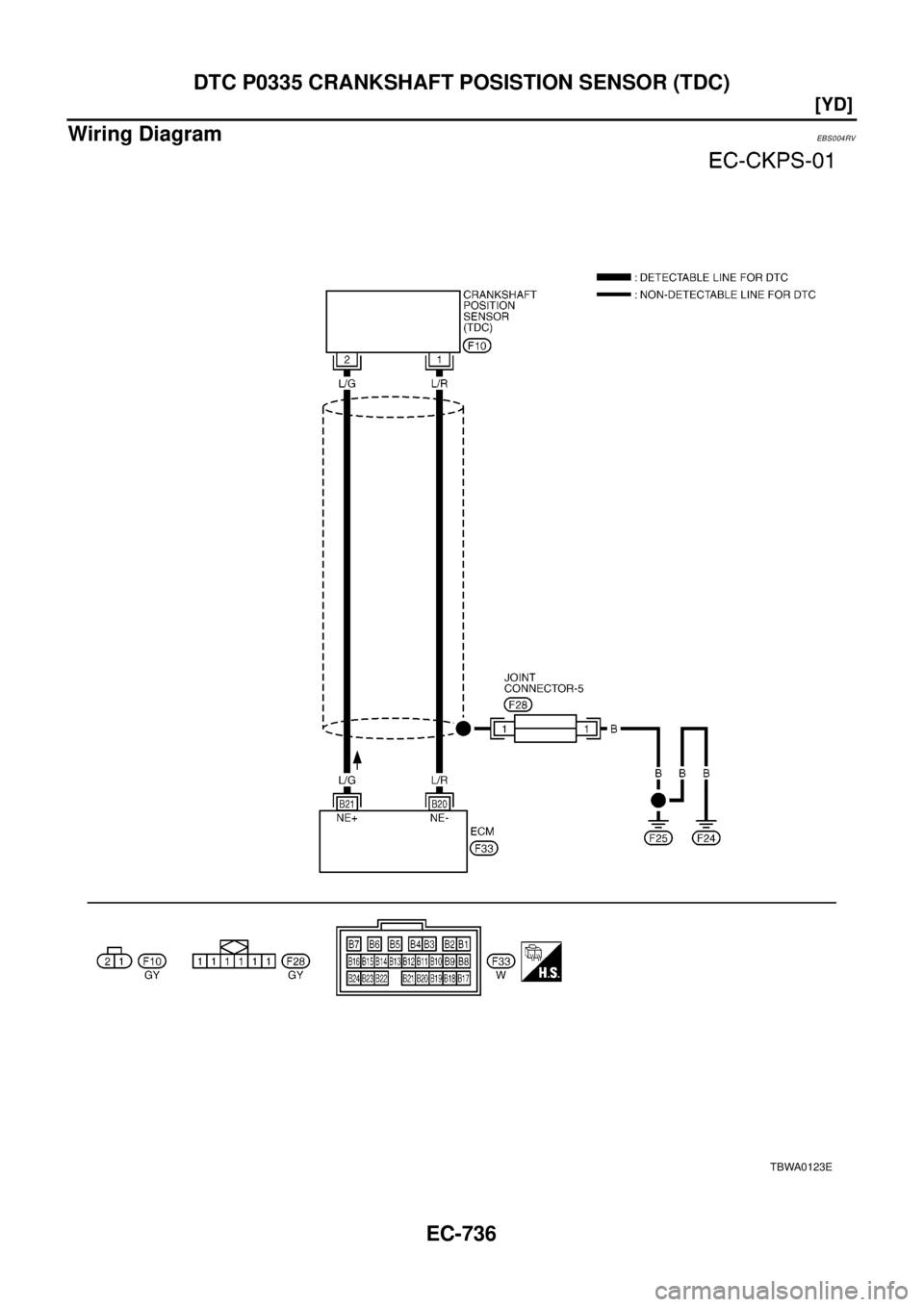

Wiring Diagram
EBS004RV
TBWA0123E

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-737
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS004RW
1.CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect crankshaft position sensor (TDC) harness connector
and ECM harness connector.
4. Check harness continuity between ECM terminal B20 and
crankshaft position sensor (TDC) terminal 1. Refer to Wiring
Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2.CHECK CRANKSHAFT POSITION SENSOR (TDC) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between crankshaft position sensor (TDC) terminal 2 and ECM terminal B21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK CRANKSHAFT POSITION SENSOR (TDC)
Refer toEC-737, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (TDC).
4.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS008YW
CRANKSHAFT POSITION SENSOR(TDC)
1. Loosen the fixing bolt of the sensor.
PBIB0385E
Continuity should exist.
PBIB0416E
Continuity should exist.

EC-738
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
2. Disconnect crankshaft position sensor (TDC) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS008YX
CRANKSHAFT POSITION SENSOR (TDC)
When installing crankshaft position sensor (TDC), tighten it with spe-
cific torque.
PBIB0419E
Resistance: 1,850 - 2,450W
PBIB0417E
Tightening torque:
4.9 - 7.9 N·m (0.50 - 0.81 kg-m, 43 - 70 in-lb)
PBIB0416E

DTC P0340 CAMSHAFT POSITION SENSOR
EC-739
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CAMSHAFT POSITION SENSORPFP:23731
DescriptionEBS008YN
The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90°
signal and sent to the ECM. The sensor signal is used for fuel injec-
tion control and fuel injection timing control.
ECM Terminals and Reference ValueEBS008YP
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS008YQ
DTC Confirmation ProcedureEBS008YR
Before performing the following procedure, confirm that battery voltage is more than 10V.
PBIB0367E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA(DC Voltage and Pulse Sig-
nal)
B18 R/GCamshaft position sensor
ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
B19 R/Y Camshaft position sensor[Engine is running]
lWarm-up condition
lIdle speed0-3V
[Engine is running]
lWarm-up condition
lEngine speed is 2,000 rpm0-3V
PBIB0393E
PBIB0394E
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0340
lAn improper voltage signal from the sensor is send
to ECM during running and cranking.lHarness or connectors
(The sensor circuit is open or shorted.)
lCamshaft position sensor

EC-740
[YD]
DTC P0340 CAMSHAFT POSITION SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 1 second.
3. Start engine and run it for at least 2 seconds at idle speed.
4. If DTC is detected, go toEC-742, "
Diagnostic Procedure".
SEF817Y

DTC P0340 CAMSHAFT POSITION SENSOR
EC-741
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

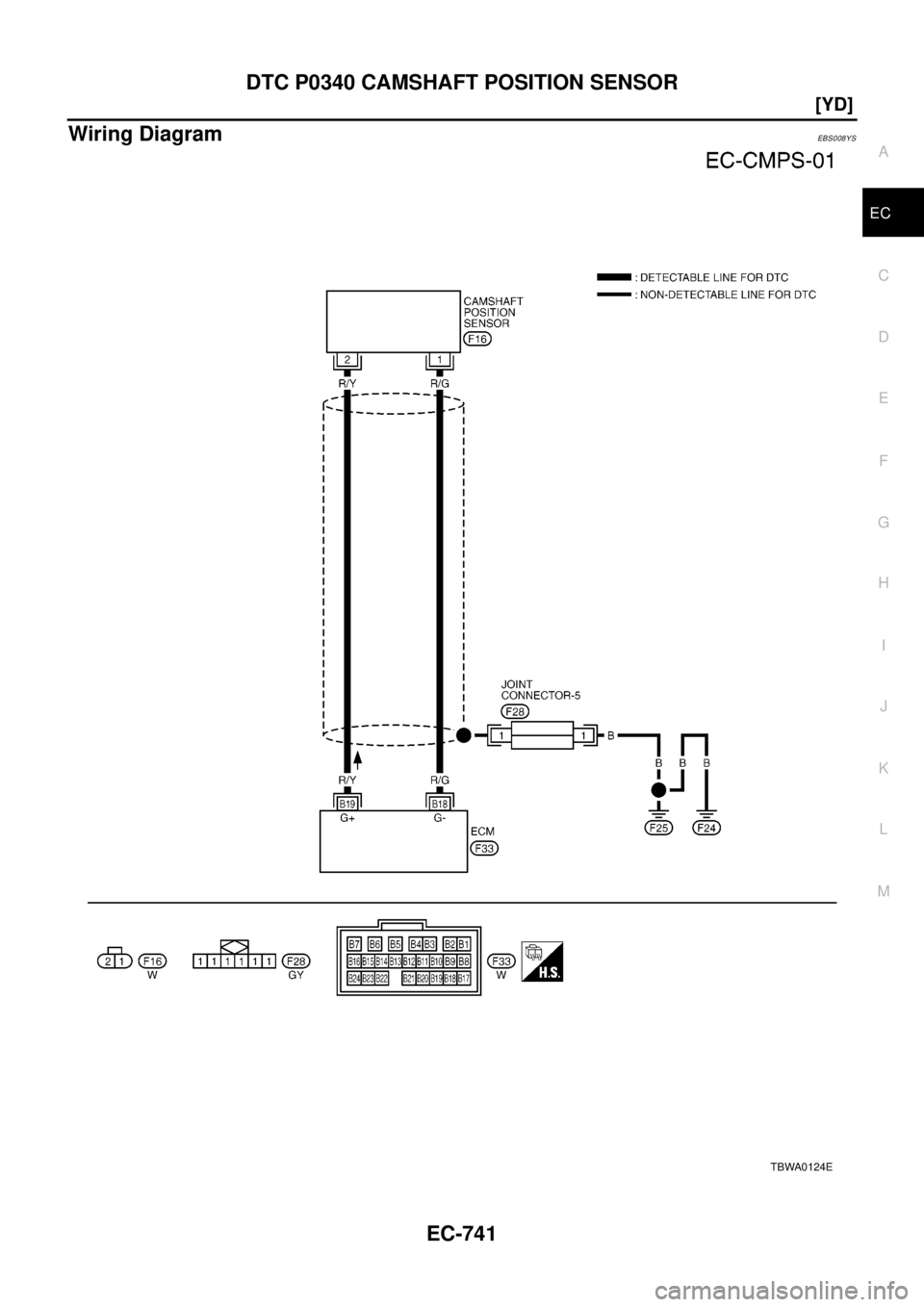

Wiring DiagramEBS008YS
TBWA0124E
