2003 NISSAN X-TRAIL sensor

DTC P0115 ENGINE COOLANT TEMPERATURE (ECT) SENSOR (CIRCUIT)
EC-711
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

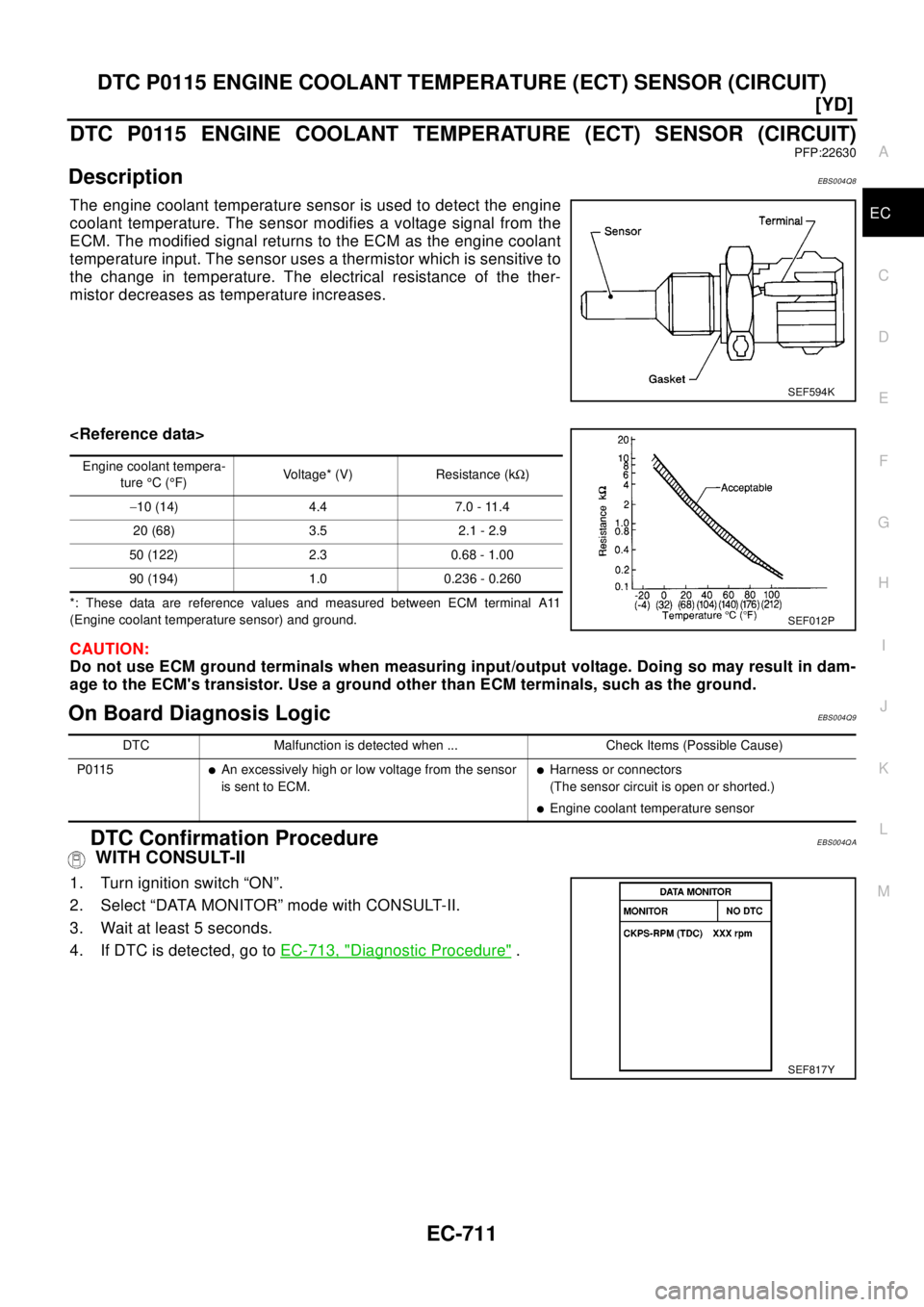

DTC P0115 ENGINE COOLANT TEMPERATURE (ECT) SENSOR (CIRCUIT)
PFP:22630
DescriptionEBS004Q8
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

*: These data are reference values and measured between ECM terminal A11
(Engine coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS004Q9
DTC Confirmation ProcedureEBS004QA
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go toEC-713, "
Diagnostic Procedure".
SEF594K
Engine coolant tempera-
ture°C(°F)Voltage* (V) Resistance (kW)
-10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.3 0.68 - 1.00
90 (194) 1.0 0.236 - 0.260
SEF012P
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0115
lAn excessively high or low voltage from the sensor
is sent to ECM.lHarness or connectors
(The sensor circuit is open or shorted.)
lEngine coolant temperature sensor
SEF817Y

EC-712
[YD]
DTC P0115 ENGINE COOLANT TEMPERATURE (ECT) SENSOR (CIRCUIT)

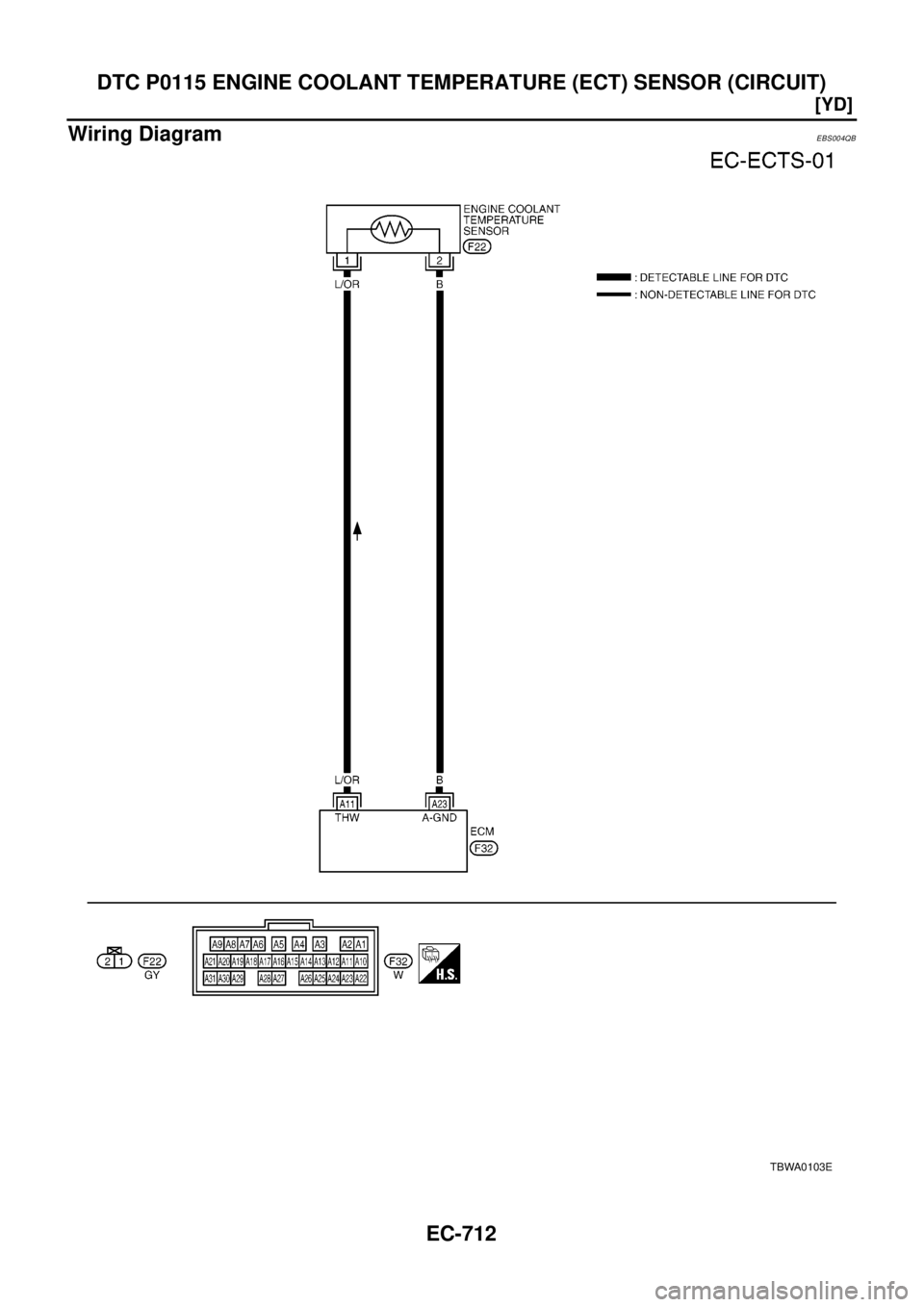

Wiring Diagram
EBS004QB
TBWA0103E

DTC P0115 ENGINE COOLANT TEMPERATURE (ECT) SENSOR (CIRCUIT)
EC-713
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

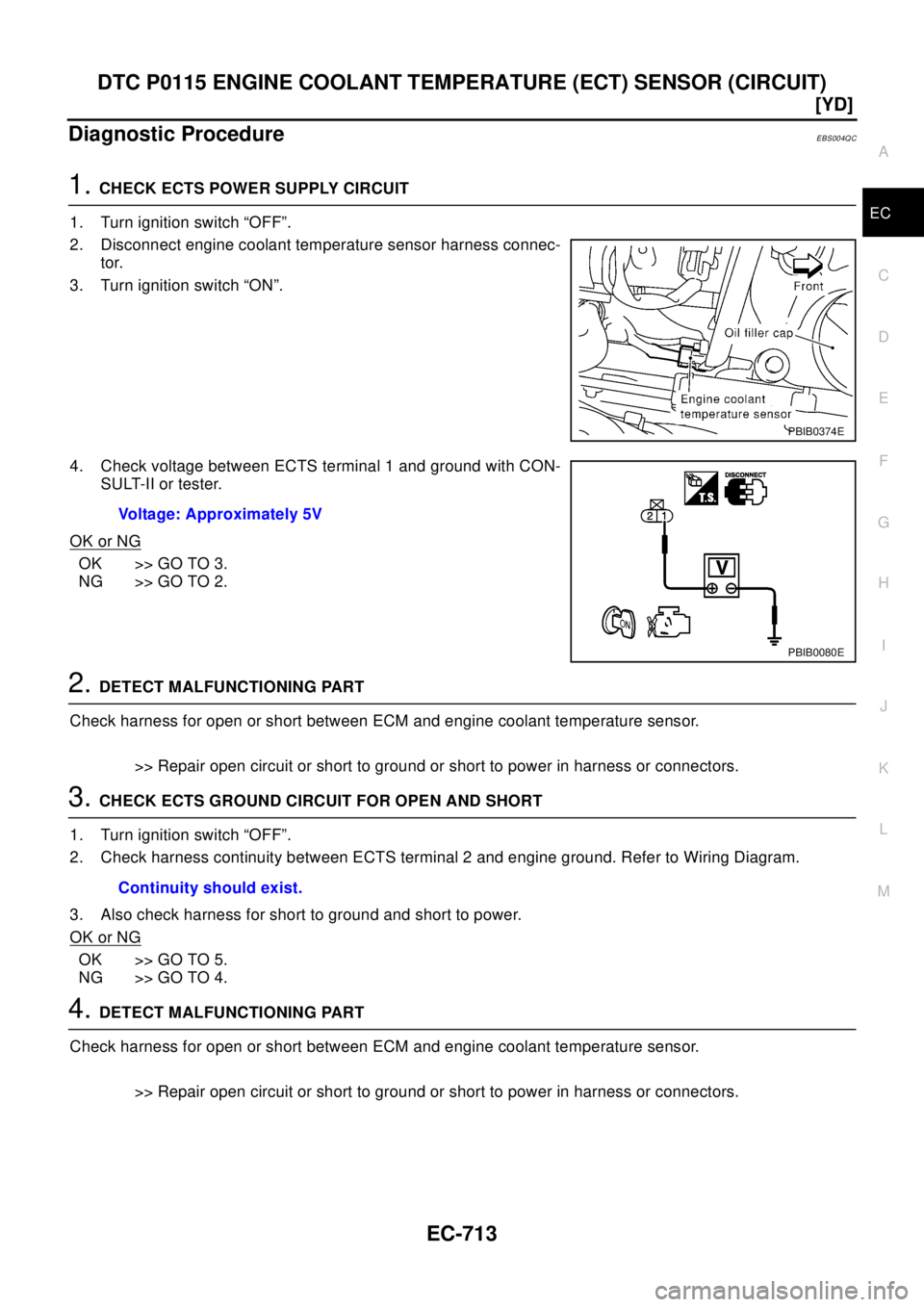

Diagnostic ProcedureEBS004QC
1.CHECK ECTS POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect engine coolant temperature sensor harness connec-
tor.
3. Turn ignition switch “ON”.
4. Check voltage between ECTS terminal 1 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check harness for open or short between ECM and engine coolant temperature sensor.
>> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK ECTS GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between ECTS terminal 2 and engine ground. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check harness for open or short between ECM and engine coolant temperature sensor.
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0374E
Voltage: Approximately 5V
PBIB0080E
Continuity should exist.

EC-714
[YD]
DTC P0115 ENGINE COOLANT TEMPERATURE (ECT) SENSOR (CIRCUIT)
5.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer toEC-714, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace engine coolant temperature sensor.
6.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END

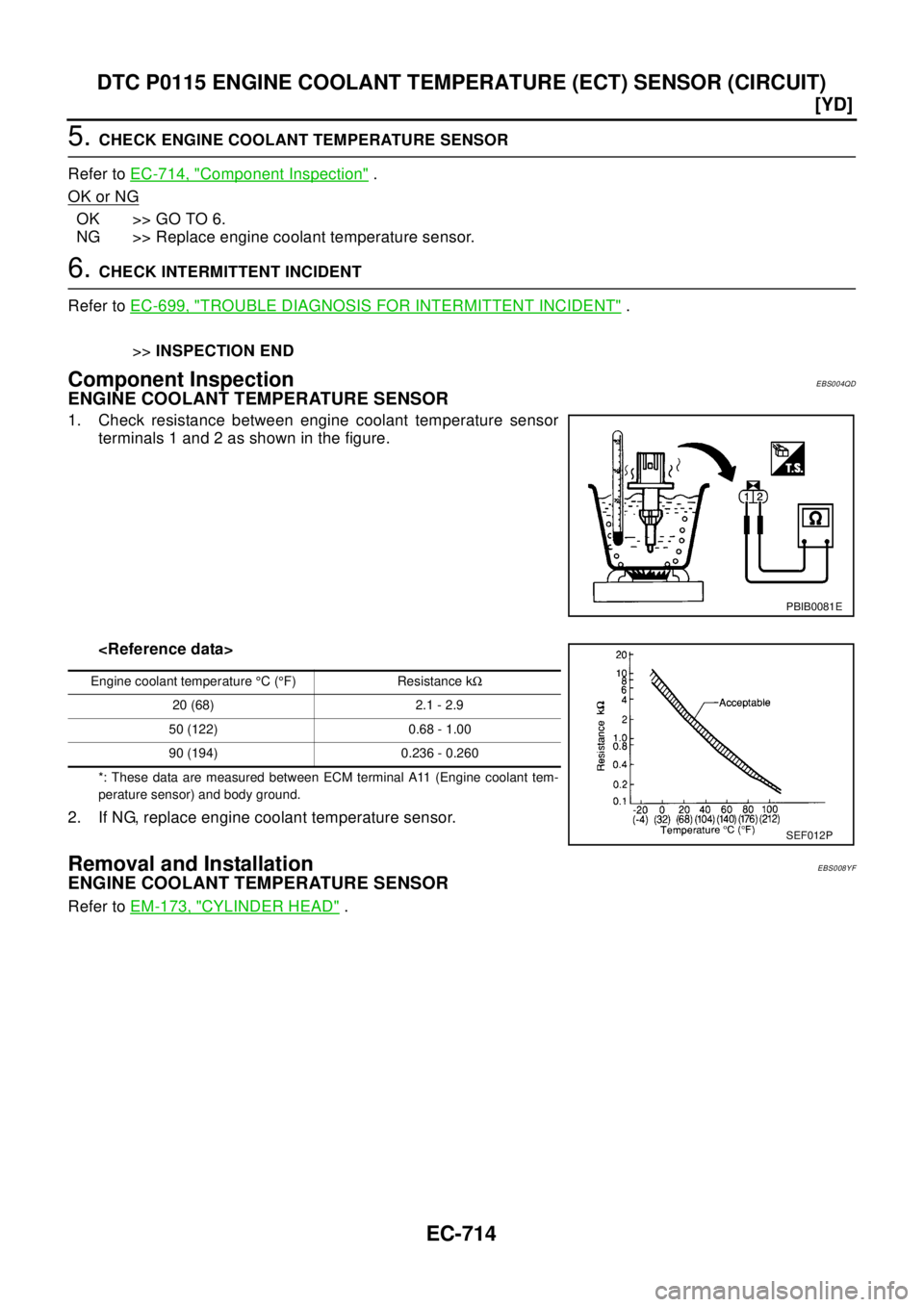

Component InspectionEBS004QD
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

*: These data are measured between ECM terminal A11 (Engine coolant tem-
perature sensor) and body ground.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationEBS008YF
ENGINE COOLANT TEMPERATURE SENSOR
Refer toEM-173, "CYLINDER HEAD".
PBIB0081E
Engine coolant temperature°C(°F) Resistance kW
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P

DTC P0120 ACCELERATOR PEDAL POSITION SENSOR
EC-715
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

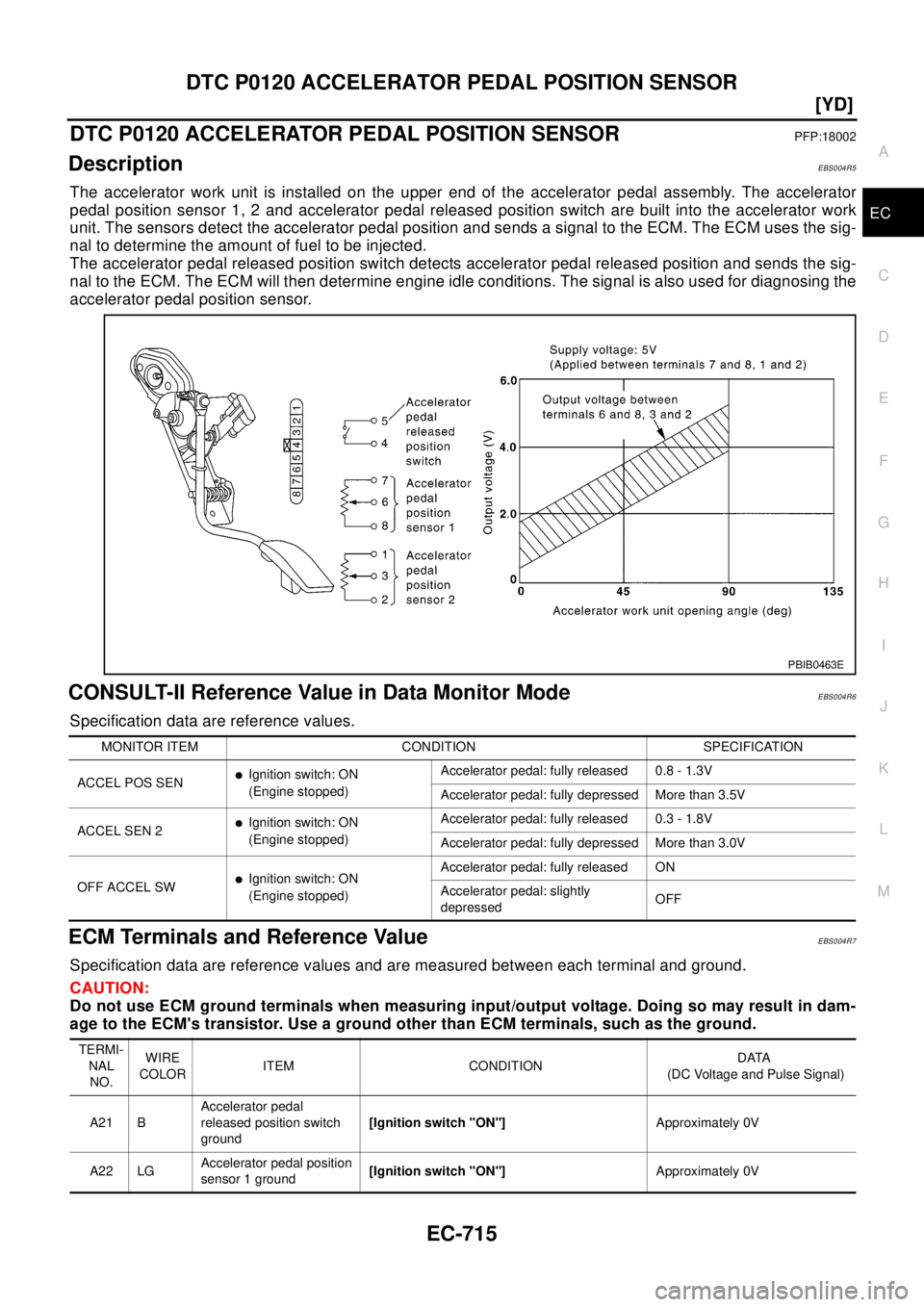

DTC P0120 ACCELERATOR PEDAL POSITION SENSORPFP:18002
DescriptionEBS004R5
The accelerator work unit is installed on the upper end of the accelerator pedal assembly. The accelerator
pedal position sensor 1, 2 and accelerator pedal released position switch are built into the accelerator work
unit. The sensors detect the accelerator pedal position and sends a signal to the ECM. The ECM uses the sig-
nal to determine the amount of fuel to be injected.
The accelerator pedal released position switch detects accelerator pedal released position and sends the sig-
nal to the ECM. The ECM will then determine engine idle conditions. The signal is also used for diagnosing the
accelerator pedal position sensor.
CONSULT-II Reference Value in Data Monitor ModeEBS004R6
Specification data are reference values.
ECM Terminals and Reference ValueEBS004R7
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0463E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN
lIgnition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.8 - 1.3V
Accelerator pedal: fully depressed More than 3.5V
ACCEL SEN 2
lIgnition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.3 - 1.8V
Accelerator pedal: fully depressed More than 3.0V
OFF ACCEL SW
lIgnition switch: ON
(Engine stopped)Accelerator pedal: fully released ON
Accelerator pedal: slightly
depressedOFF
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
A21 BAccelerator pedal
released position switch
ground[Ignition switch "ON"]Approximately 0V
A22 LGAccelerator pedal position
sensor 1 ground[Ignition switch "ON"]Approximately 0V

EC-716
[YD]
DTC P0120 ACCELERATOR PEDAL POSITION SENSOR
On Board Diagnosis Logic
EBS004R8
DTC Confirmation ProcedureEBS004R9
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Depress and release fully accelerator pedal slowly.
4. If DTC is detected, go toEC-718, "
Diagnostic Procedure".
A26 LG/RAccelerator pedal position
sensor 2 ground[Ignition switch "ON"]Approximately 0V
A28 PU/RAccelerator pedal position
sensor 1 power supply[Ignition switch "ON"]Approximately 5V
B15 WAccelerator pedal position
sensor 1[Ignition switch "ON"]
lAccelerator pedal fully released0.8 - 1.3V
[Ignition switch "ON"]
lAccelerator pedal fully depressedMore than 3.5V
B16 GAccelerator pedal position
sensor 2[Ignition switch "ON"]
lAccelerator pedal fully released0.3 - 1.8V
[Ignition switch "ON"]
lAccelerator pedal fully depressedMore than 3.0V
B23 GY/LAccelerator pedal position
sensor 2 power supply[Ignition switch “ON”]Approximately 5V
D14 G/YAccelerator pedal
released position switch[Ignition switch “ON”]
lAccelerator pedal slightly depressedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
lAccelerator pedal fully releasedApproximately 0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0120
lAn improper voltage signal from accelerator pedal
position sensor 1 and/or 2 is send to ECM.lHarness or connectors
(The sensor circuit is open or shorted.)
lAccelerator pedal position sensor 1
lAccelerator pedal position sensor 2
lAccelerator pedal released position switch
SEF817Y

DTC P0120 ACCELERATOR PEDAL POSITION SENSOR
EC-717
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

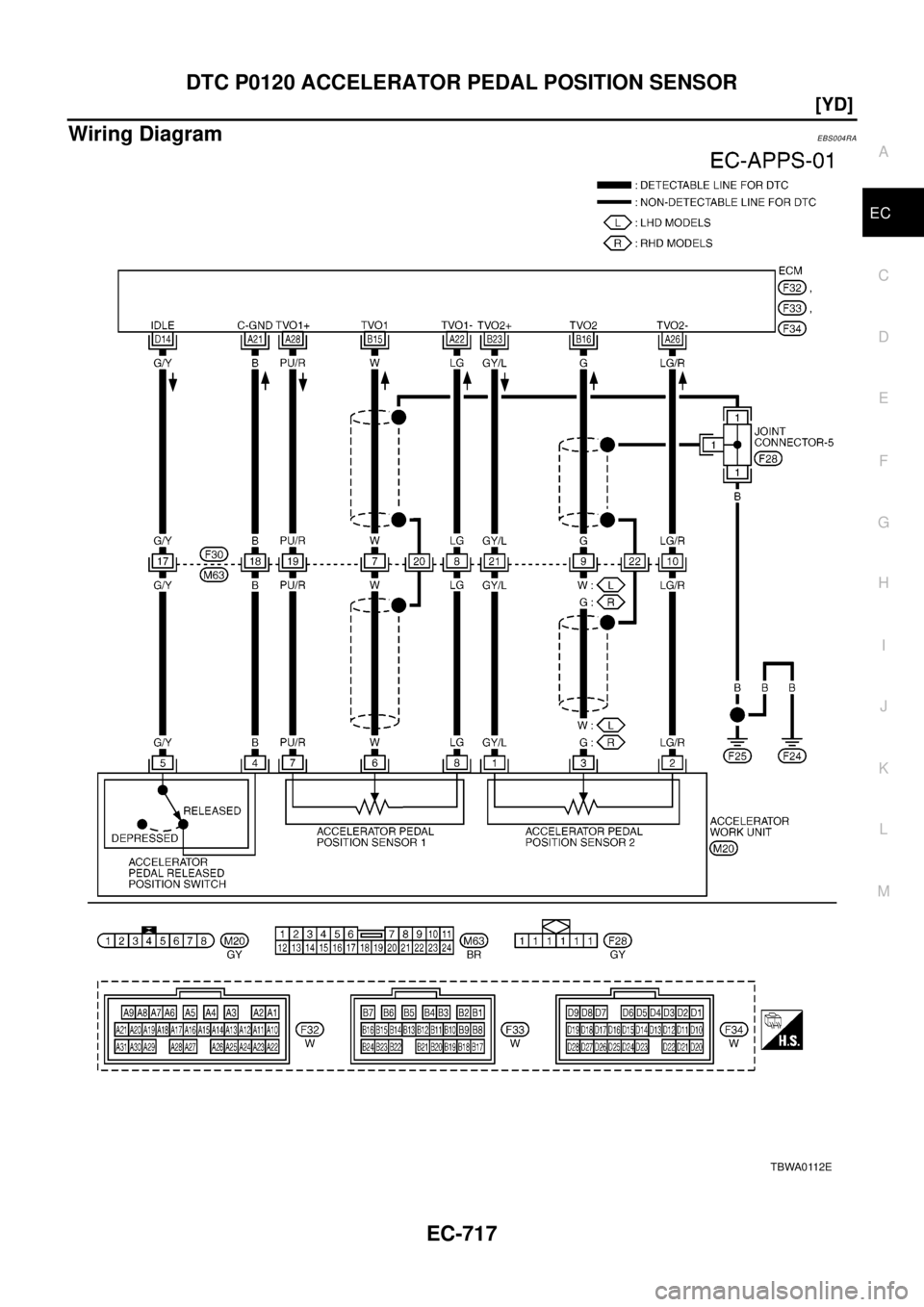

Wiring DiagramEBS004RA
TBWA0112E

EC-718
[YD]
DTC P0120 ACCELERATOR PEDAL POSITION SENSOR
Diagnostic Procedure
EBS004RB
1.CHECK ACCELERATOR PEDAL POSITION SENSOR FUNCTION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “ACCEL POS SEN” and “ACCEL SEN 2” in “DATA MONITOR” mode with CONSULT-II.
3. Check “ACCEL POS SEN” and “ACCEL SEN 2” signal under
the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2.CHECK ACCELERATOR PEDAL RELEASED POSITION SWITCH FUNCTION
With CONSULT-II
1. Select “OFF ACCEL SW” in “DATA MONITOR” mode with CONSULT-II.
2. Check “OFF ACCEL SW” signal under the following conditions.
OK or NG
OK >> GO TO 16.
NG >> GO TO 10.
Conditions ACCEL POS SEN ACCEL SEN 2
Accelerator pedal fully
released0.8 - 1.3V 0.3 - 1.8V
Accelerator pedal fully
depressedMore than 3.5V More than 3.0V
PBIB0403E
Conditions OFF ACCEL SW
Accelerator pedal fully released ON
Accelerator pedal depressed OFF
PBIB0404E
