2003 NISSAN X-TRAIL sensor

EC-742
[YD]
DTC P0340 CAMSHAFT POSITION SENSOR
Diagnostic Procedure
EBS008YT
1.CHECK CAMSHAFT POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect camshaft position sensor harness connector and
ECM harness connector.
4. Check harness continuity between ECM terminal B18 and cam-
shaft position sensor terminal 1. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2.CHECK CAMSHAFT POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between camshaft position sensor terminal 2 and ECM terminal B19. Refer to
Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK CAMSHAFT POSITION SENSOR
Refer toEC-742, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace camshaft position sensor.
4.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS008YU
CAMSHAFT POSITION SENSOR
1. Loosen the fixing bolt of the sensor.
PBIB0385E
Continuity should exist.
PBIB0381E
Continuity should exist.

DTC P0340 CAMSHAFT POSITION SENSOR
EC-743
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

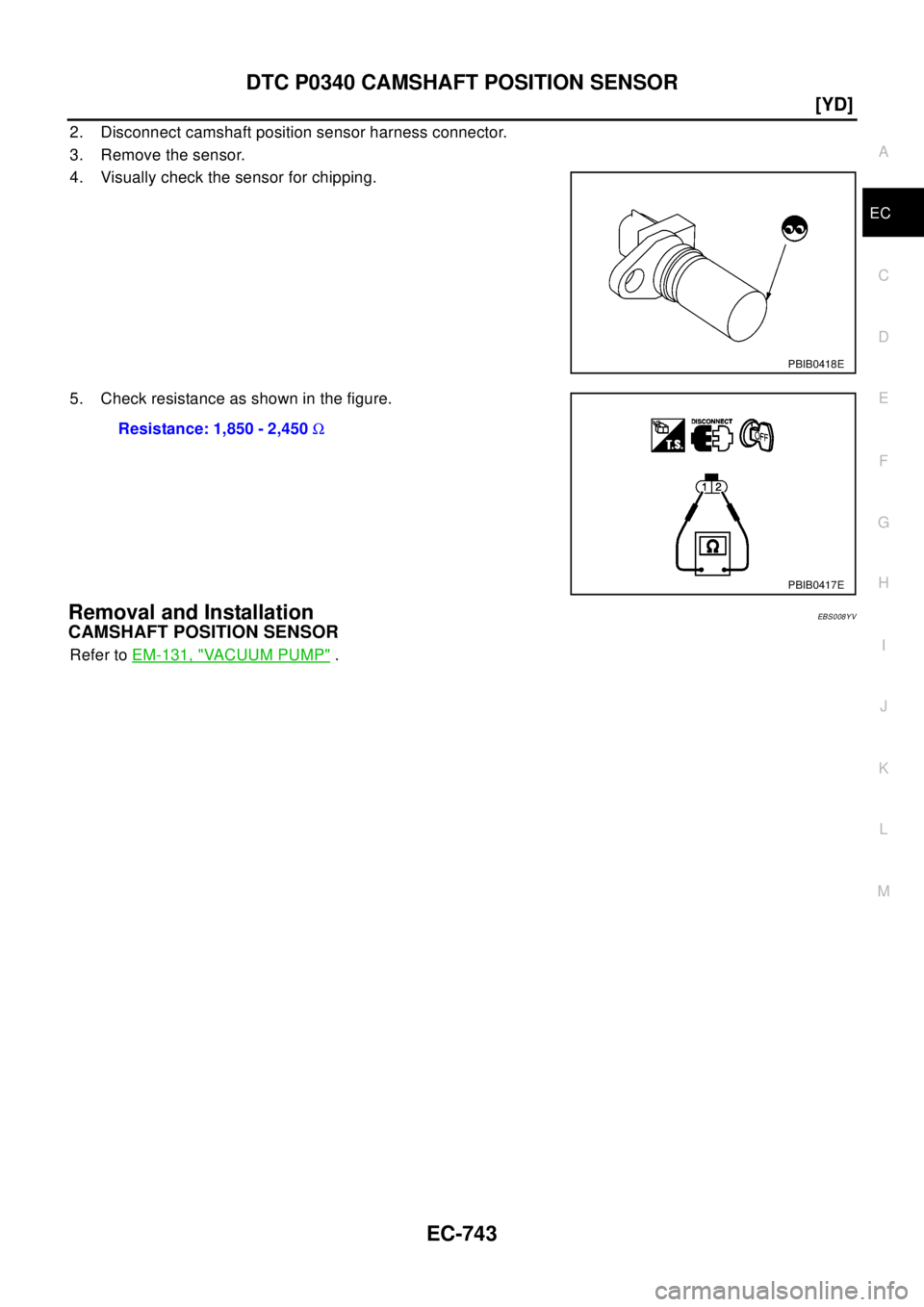

2. Disconnect camshaft position sensor harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS008YV
CAMSHAFT POSITION SENSOR
Refer toEM-131, "VACUUM PUMP".
PBIB0418E
Resistance: 1,850 - 2,450W
PBIB0417E

EC-744
[YD]

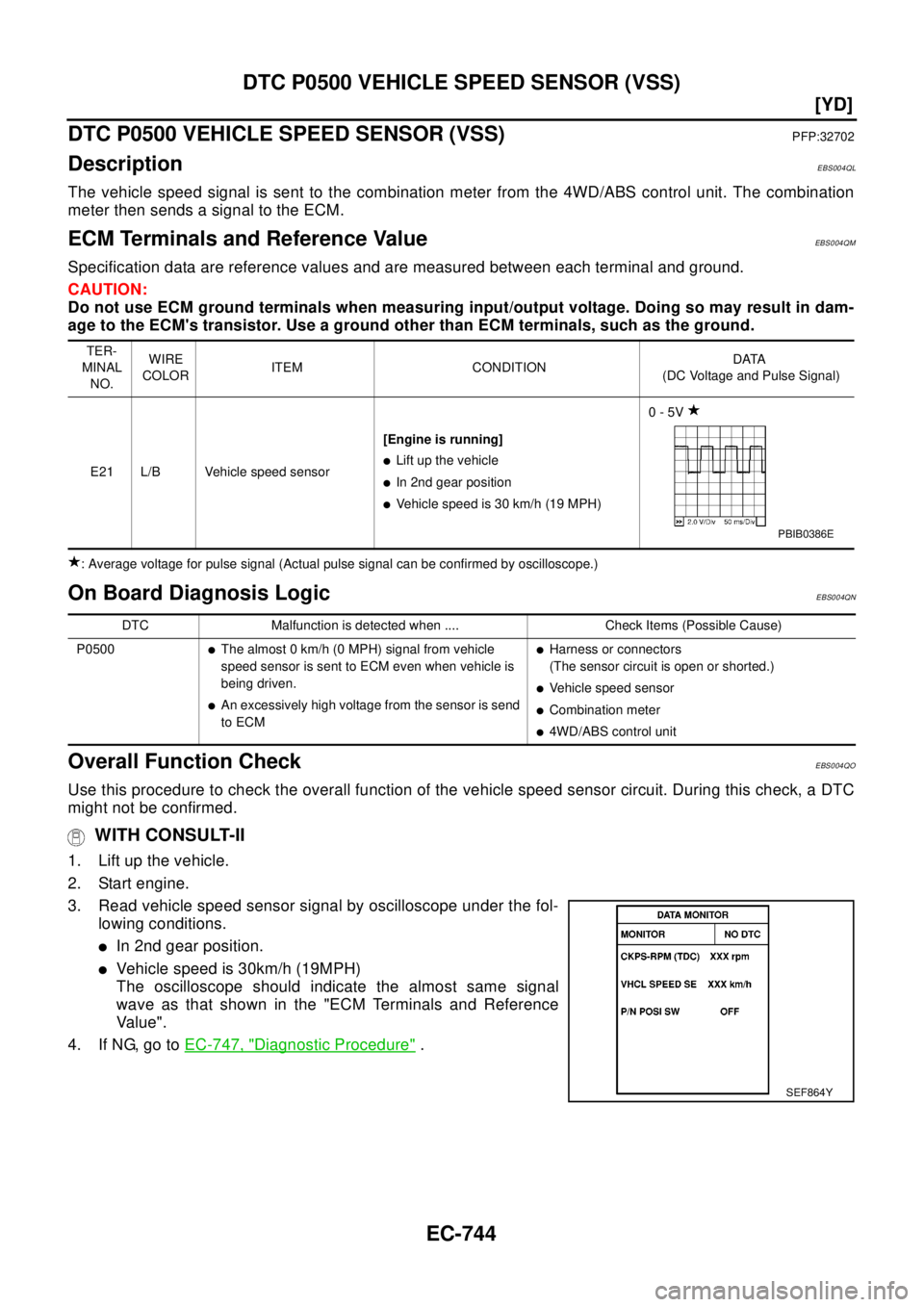

DTC P0500 VEHICLE SPEED SENSOR (VSS)
DTC P0500 VEHICLE SPEED SENSOR (VSS)
PFP:32702
DescriptionEBS004QL
The vehicle speed signal is sent to the combination meter from the 4WD/ABS control unit. The combination
meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS004QM
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS004QN
Overall Function CheckEBS004QO
Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a DTC
might not be confirmed.
WITH CONSULT-II
1. Lift up the vehicle.
2. Start engine.
3. Read vehicle speed sensor signal by oscilloscope under the fol-
lowing conditions.
lIn 2nd gear position.
lVehicle speed is 30km/h (19MPH)
The oscilloscope should indicate the almost same signal
wave as that shown in the "ECM Terminals and Reference
Value".
4. If NG, go toEC-747, "
Diagnostic Procedure".
TER-
MINAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
E21 L/B Vehicle speed sensor[Engine is running]
lLift up the vehicle
lIn 2nd gear position
lVehicle speed is 30 km/h (19 MPH)0-5V
PBIB0386E
DTC Malfunction is detected when .... Check Items (Possible Cause)
P0500
lThe almost 0 km/h (0 MPH) signal from vehicle
speed sensor is sent to ECM even when vehicle is
being driven.
lAn excessively high voltage from the sensor is send
to ECM
lHarness or connectors
(The sensor circuit is open or shorted.)
lVehicle speed sensor
lCombination meter
l4WD/ABS control unit
SEF864Y

DTC P0500 VEHICLE SPEED SENSOR (VSS)
EC-745
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

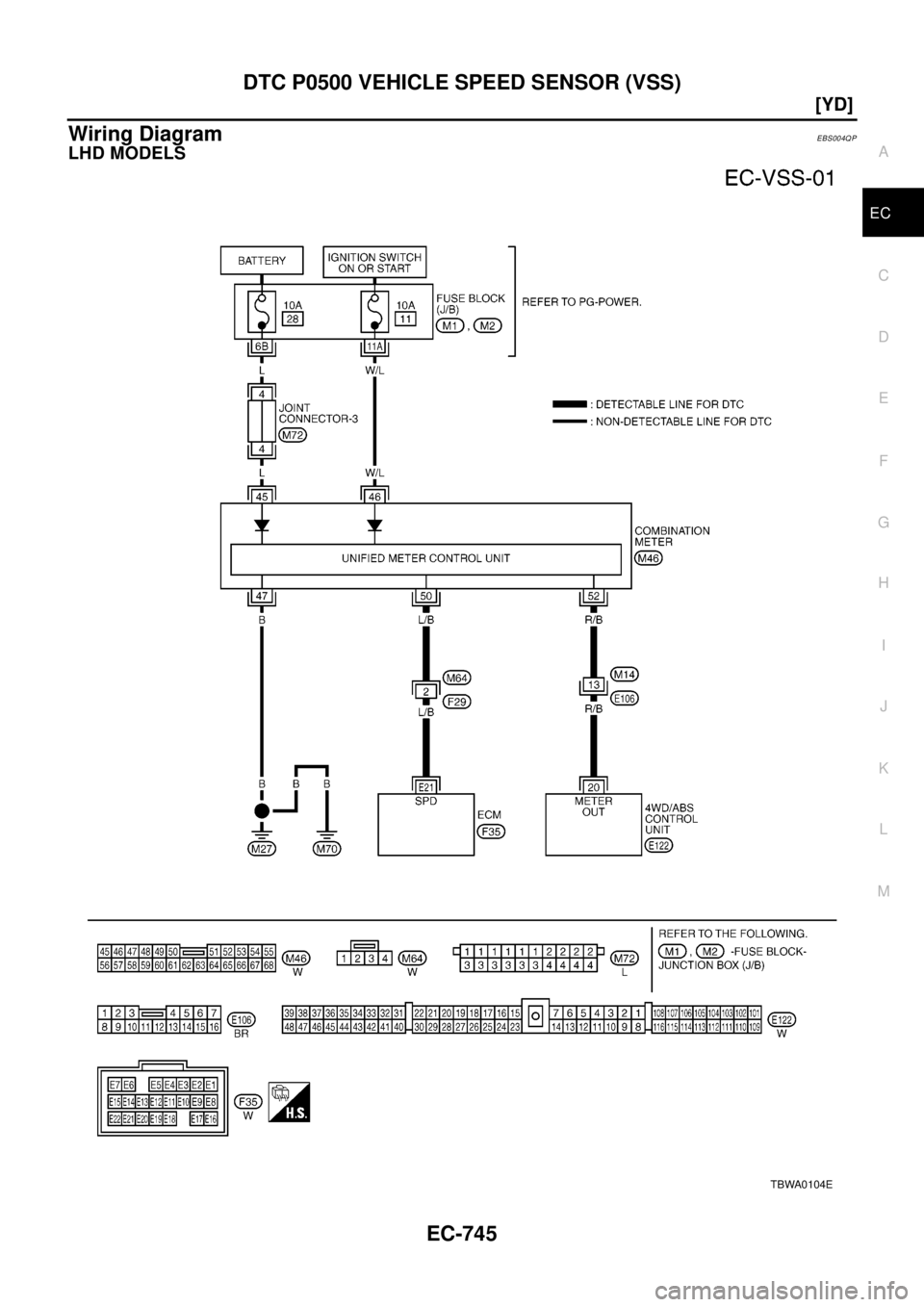

Wiring DiagramEBS004QP
LHD MODELS
TBWA0104E

EC-746
[YD]
DTC P0500 VEHICLE SPEED SENSOR (VSS)

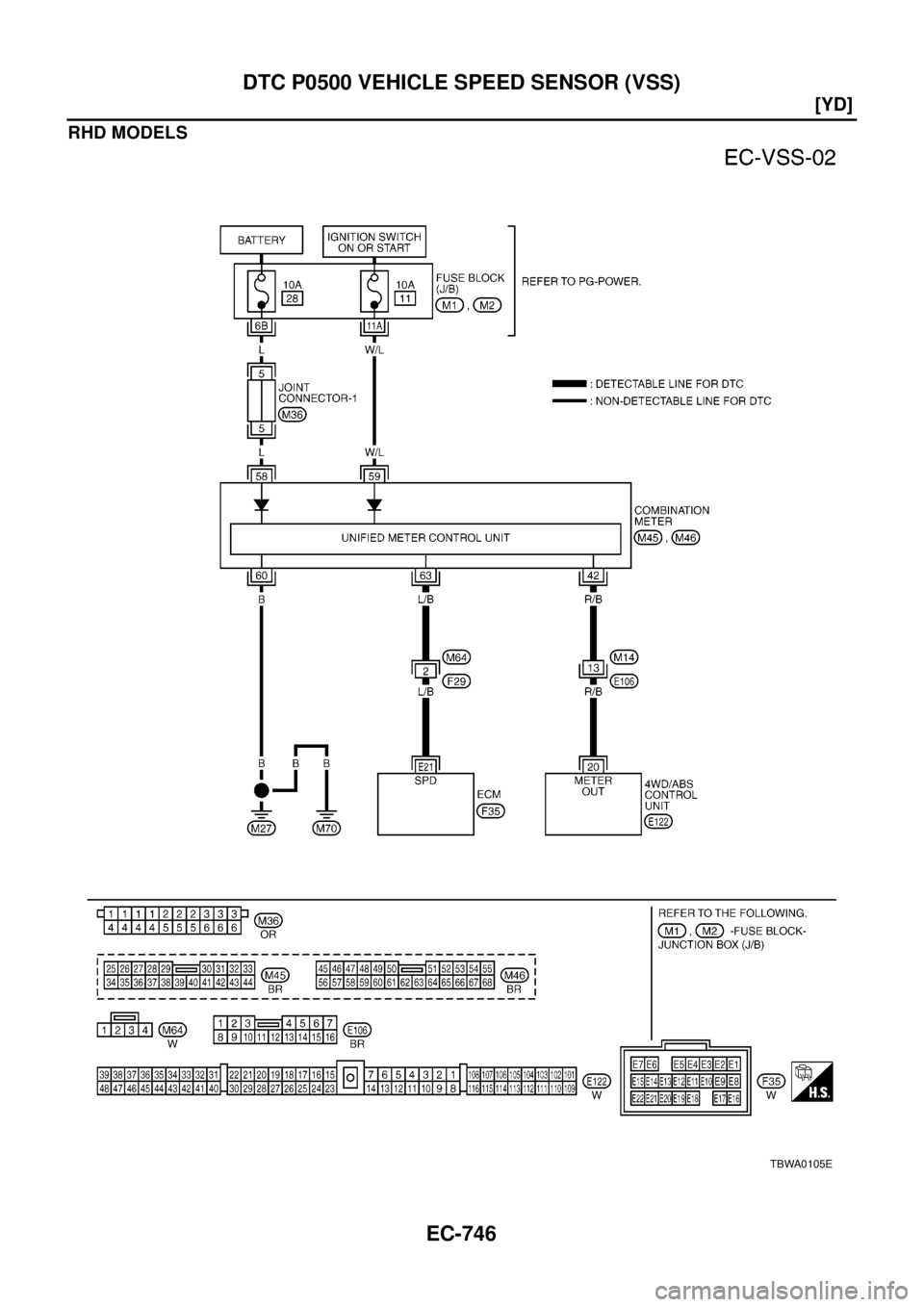

RHD MODELS
TBWA0105E

DTC P0500 VEHICLE SPEED SENSOR (VSS)
EC-747
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS004QQ
1.CHECK DTC WITH 4WD/ABS CONTROL UNIT
Check DTC with 4WD/ABS control unit.
Refer toBRC-7, "
TROUBLE DIAGNOSIS".
OK or NG
OK >> GO TO 2.
NG >> Reform trouble shooting relevant to DTC indicated.
2.CHECK SPEEDOMETER FUNCTION
Make sure that speed meter functions properly.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3.CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect ECM harness connector and combination meter harness connector.
3. Check harness continuity between ECM terminal E21 and combination meter terminal 50 or 63. Refer to
Wiring Diagram.
4. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M64, F29
lHarness for open and short between ECM and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK SPEEDOMATER INPUT SIGNL FOR OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect combination meter harness connector and 4WD/ABS control unit harness connector.
3. Check continuity between combination meter terminal 52 or 42 and 4WD/ABS control unit harness con-
nector. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.Continuity should exist.
Continuity should exist.

EC-748
[YD]
DTC P0500 VEHICLE SPEED SENSOR (VSS)
6.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M14, E106
lHarness for open and short between 4WD/ABS control unit and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK SPEED METER
Refer toDI-4, "
COMBINATION METERS (LHD MODELS)"orDI-22, "COMBINATION METERS (RHD MOD-
ELS)".
OK or NG
OK >> GO TO 8.
NG >> Replace combination meter.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END

DTC P1107 ABSOLUTE PRESSURE SENSOR
EC-749
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

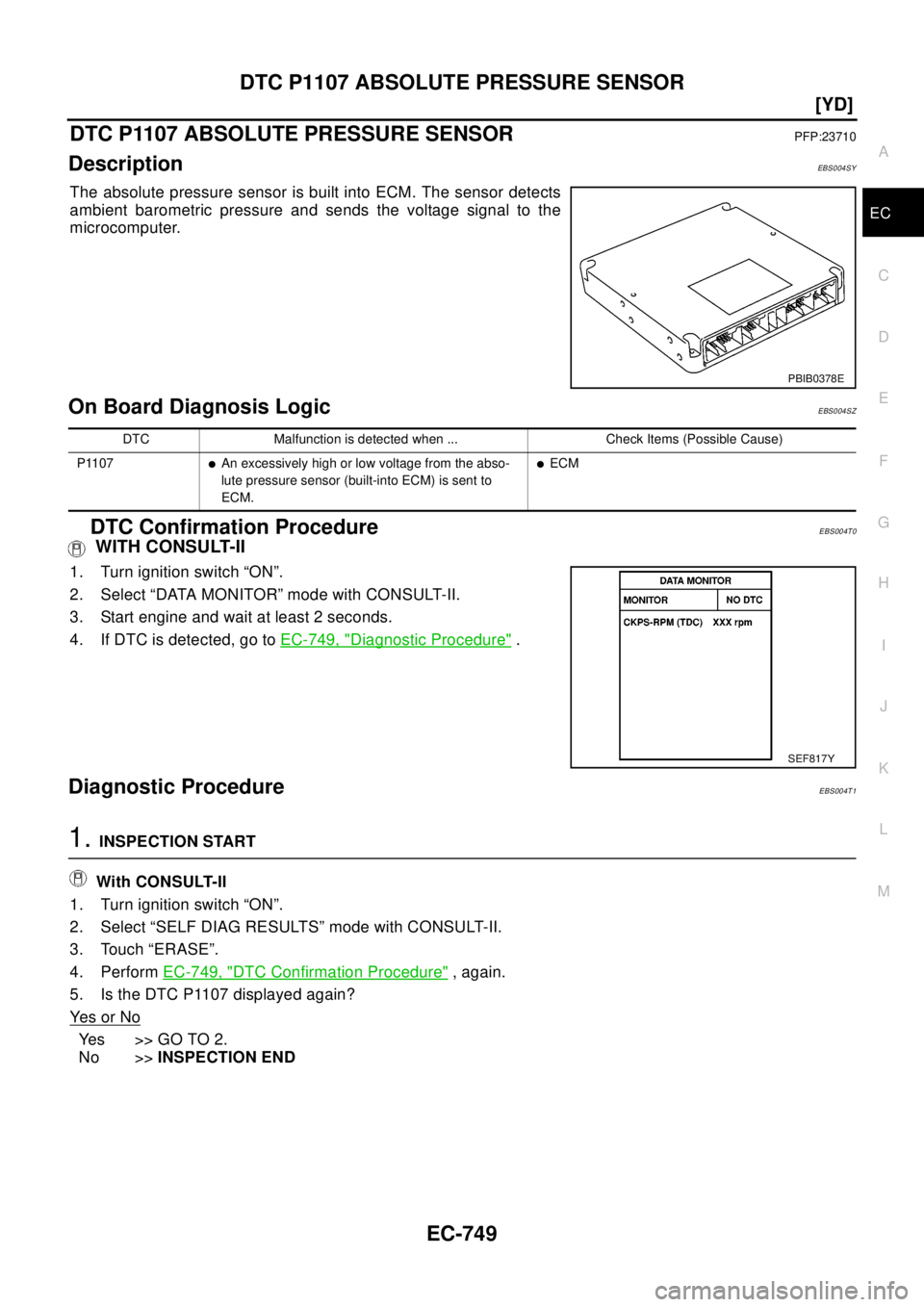

DTC P1107 ABSOLUTE PRESSURE SENSORPFP:23710
DescriptionEBS004SY
The absolute pressure sensor is built into ECM. The sensor detects
ambient barometric pressure and sends the voltage signal to the
microcomputer.
On Board Diagnosis LogicEBS004SZ
DTC Confirmation ProcedureEBS004T0
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait at least 2 seconds.
4. If DTC is detected, go toEC-749, "
Diagnostic Procedure".
Diagnostic ProcedureEBS004T1
1.INSPECTION START
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. PerformEC-749, "
DTC Confirmation Procedure",again.
5. Is the DTC P1107 displayed again?
Ye s o r N o
Yes >>GOTO2.
No >>INSPECTION END
PBIB0378E
DTC Malfunction is detected when ... Check Items (Possible Cause)
P1107
lAn excessively high or low voltage from the abso-
lute pressure sensor (built-into ECM) is sent to
ECM.lECM
SEF817Y
