2003 NISSAN X-TRAIL sensor

FUEL PUMP CIRCUIT
EC-631
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

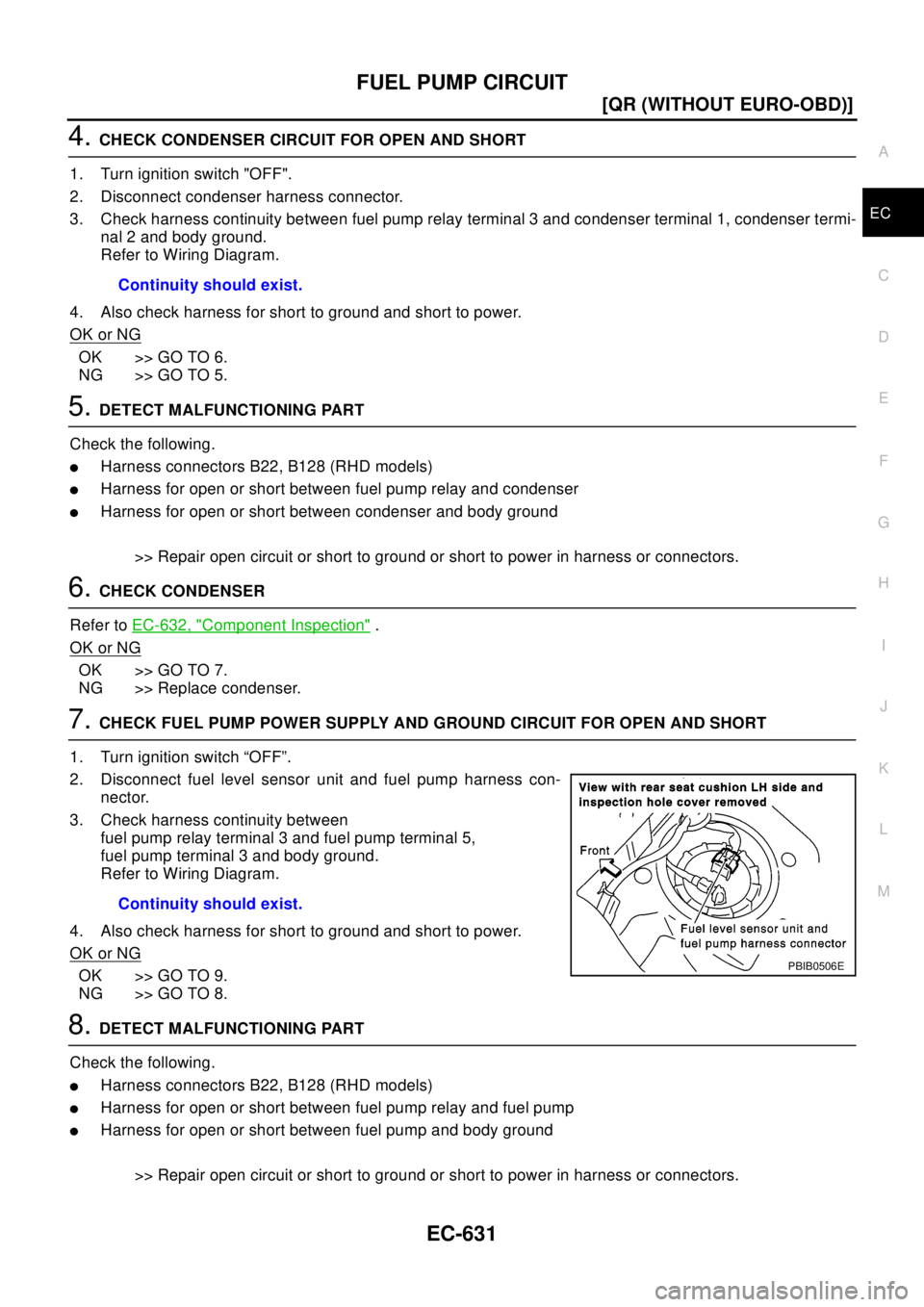

4.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect condenser harness connector.
3. Check harness continuity between fuel pump relay terminal 3 and condenser terminal 1, condenser termi-
nal 2 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors B22, B128 (RHD models)
lHarness for open or short between fuel pump relay and condenser
lHarness for open or short between condenser and body ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CONDENSER
Refer toEC-632, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> Replace condenser.
7.CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect fuel level sensor unit and fuel pump harness con-
nector.
3. Check harness continuity between
fuel pump relay terminal 3 and fuel pump terminal 5,
fuel pump terminal 3 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors B22, B128 (RHD models)
lHarness for open or short between fuel pump relay and fuel pump
lHarness for open or short between fuel pump and body ground
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
PBIB0506E

FUEL PUMP CIRCUIT
EC-633
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
FUEL PUMP
1. Disconnect fuel level sensor unit and fuel pump harness connector.
2. Check resistance between fuel level sensor unit and fuel pump
terminals 3 and 5.
CONDENSER
1. Turn ignition switch "OFF".
2. Disconnect condenser harness connector.
3. Check resistance between condenser terminals as 1 and 2.
Removal and InstallationEBS00BA2
FUEL PUMP
Refer toFL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY". Resistance: Approximately 1.0W[at 25°C(77°F)]
PBIB0658E
Resistance: Above 1 MWat 25°C(77°F)
SEF124Y

EC-634
[QR (WITHOUT EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR
PFP:92136
Component DescriptionEBS00BA3
The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
ECM Terminals and Reference ValueEBS00BA4
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0503E
SEF099X
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
83 R/LRefrigerant pressure
sensor[Engine is running]
lWarm-up condition
lBoth A/C switch and blower switch are “ON”.
(Compressor operates.)1.0 - 4.0V

REFRIGERANT PRESSURE SENSOR
EC-635
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00BA5
TBWA0088E

EC-636
[QR (WITHOUT EURO-OBD)]
REFRIGERANT PRESSURE SENSOR

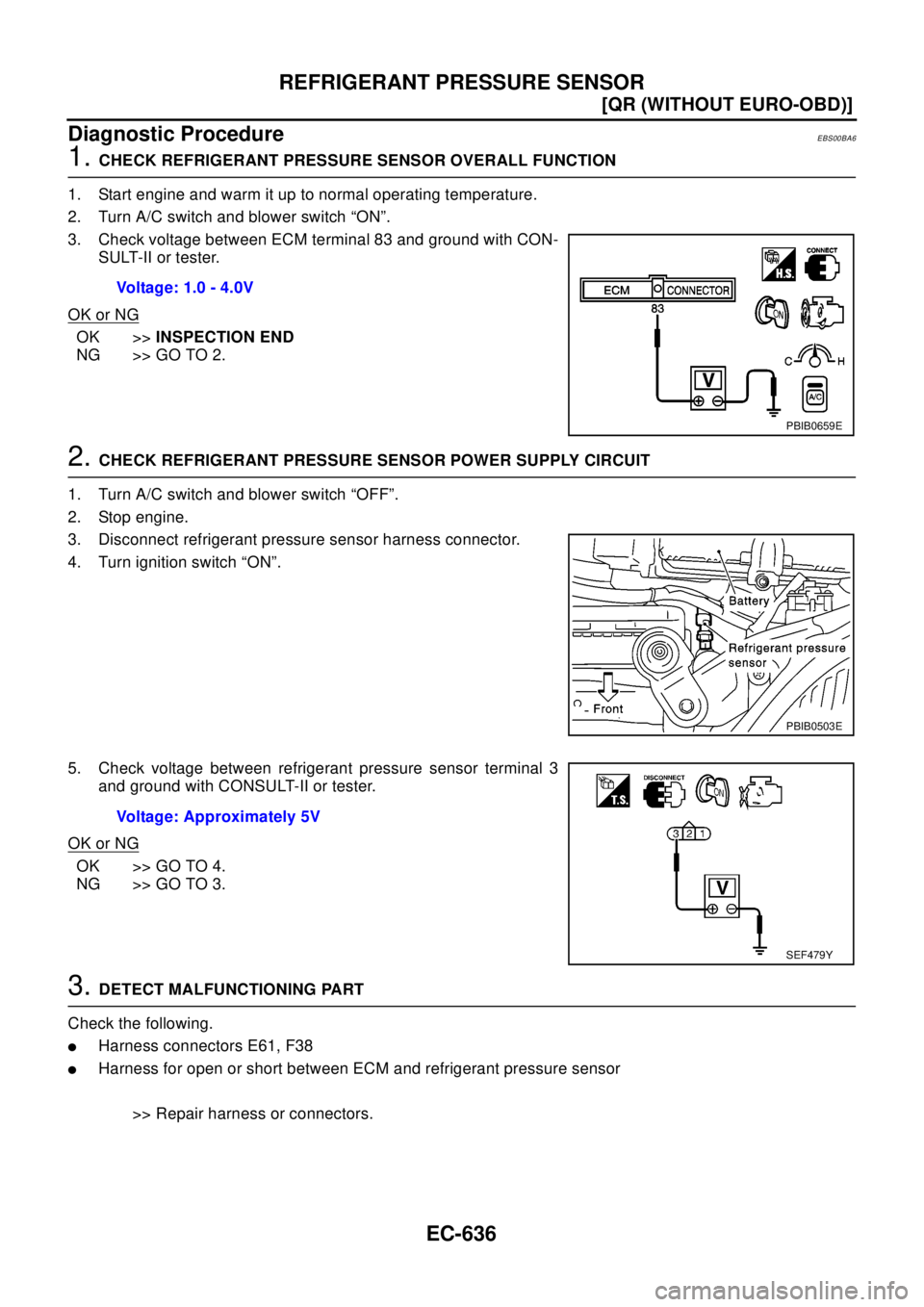

Diagnostic Procedure
EBS00BA6
1.CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch “ON”.
3. Check voltage between ECM terminal 83 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn A/C switch and blower switch “OFF”.
2. Stop engine.
3. Disconnect refrigerant pressure sensor harness connector.
4. Turn ignition switch “ON”.
5. Check voltage between refrigerant pressure sensor terminal 3
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between ECM and refrigerant pressure sensor
>> Repair harness or connectors. Voltage: 1.0 - 4.0V
PBIB0659E
PBIB0503E
Voltage: Approximately 5V
SEF479Y

REFRIGERANT PRESSURE SENSOR
EC-637
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between refrigerant pressure sensor terminal 1 and engine ground. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 83 and refrigerant pressure sensor terminal 2. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS00BA7
REFRIGERANT PRESSURE SENSOR
Refer toATC-123, "REFRIGERANT LINES". Continuity should exist.
Continuity should exist.

EC-652
[QR (WITHOUT EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Fuel PressureEBS00BAH
Idle Speed and Ignition TimingEBS00BAI
*1: Under the following conditions:
lAir conditioner switch: OFF
lElectric load: OFF (Lights, heater fan & rear window defogger)
lSteering wheel: Kept in straight-ahead position
Calculated Load ValueEBS00BAJ
Mass Air Flow SensorEBS00BAK
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorEBS00BAL
Engine Coolant Temperature SensorEBS00BAM
Heated Oxygen Sensor 1 HeaterEBS00BAN
Heated Oxygen sensor 2 HeaterEBS00BAO
Crankshaft Position Sensor (POS)EBS00BAP
Refer toEC-505, "Component Inspection".
Camshaft Position Sensor (PHASE)EBS00BAQ
Refer toEC-512, "Component Inspection".
Fuel pressure at idle kPa (bar, kg/cm2,psi)Approximately 350 (3.5, 3.7, 51)
Ta r g e t i d l e s p e e d
No-load*1(in“P”orN”position)A/T: 700±50 rpm
M/T: 650±50 rpm
Air conditioner: ON In “P” or N” position 725 rpm or more
Ignition timingIn “P” or N” position AT: 16°±5°BTDC
MT: 14°±5°BTDC
Calculated load value % (Using CONSULT-II or GST)
At idle10 - 35
At 2,500 rpm10 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.1 - 1.5*V
Massairflow(UsingCONSULT-IIorGST)1.4 - 4.0 g·m/sec at idle*
4.0 - 10.0 g·m/sec at 2,500 rpm*
Temperature°C(°F) Resistance kW
25 (77)1.9 - 2.1
80 (176)0.31 - 0.37
Temperature°C(°F) Resistance kW
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 25°C(77°F)] 2.3 - 4.3W
Resistance [at 25°C(77°F)] 2.3 - 4.3W

EC-654
[YD]
INDEX FOR DTC
[YD]INDEX FOR DTCPFP:00024
Alphabetical IndexEBS00368
X: Applicable —: Not applicable
DTC No. IndexEBS0036C
X: Applicable —: Not applicable Items
(CONSULT-II screen terms)DTC MI illumination Reference page
ACCEL POS SENSOR P0120´EC-715
ACCEL POS SW (F/C) P1510´EC-783
BATTERY VOLTAGE P1660´EC-794
CAM POS SEN/CIR P0340´EC-739
COOLANT TEMP SEN P0115´EC-711
CR PRES SEN P0190´EC-723
CRANK POS SEN (TDC) P0335´EC-734
CYL1 INJECTOR P0201´EC-727
CYL2 INJECTOR P0202´EC-727
CYL3 INJECTOR P0203´EC-727
CYL4 INJECTOR P0204´EC-727
ECM 1 P1606´EC-788
ECM 10 P1107´EC-749
ECM 15 P1621 —EC-790
FUEL LEAK FNCTN P1305´EC-781
INJ DRIVE UNIT P1216´EC-754
INJ1 CORREC R P1301 —EC-777
INJ2 CORREC R P1302 —EC-777
INJ3 CORREC R P1303 —EC-777
INJ4 CORREC R P1304 —EC-777
MAS AIR FLOW SEN P0100´EC-706
NATS MALFUNCTION P1610 - P1617 —BL-70
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.P0000——
OVER HEAT P1217´EC-761
P9·FUEL TEMP SEN P1180´EC-751
SUCTION CONT/V1 P1233´EC-772
SUCTION CONT/V2 P1234´EC-772
VEHICLE SPEED SEN P0500´EC-744
DTCItems
(CONSULT-II screen item)MI illumination Reference page
P0000NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.——
P0100 MASS AIR FLOW SEN´EC-706
P0115 COOLANT TEMP SEN´EC-711
P0120 ACCEL POS SENSOR´EC-715
P0190 CR PRES SEN´EC-723
P0201 CYL1 INJECTOR´EC-727
P0202 CYL2 INJECTOR´EC-727
