DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-203
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

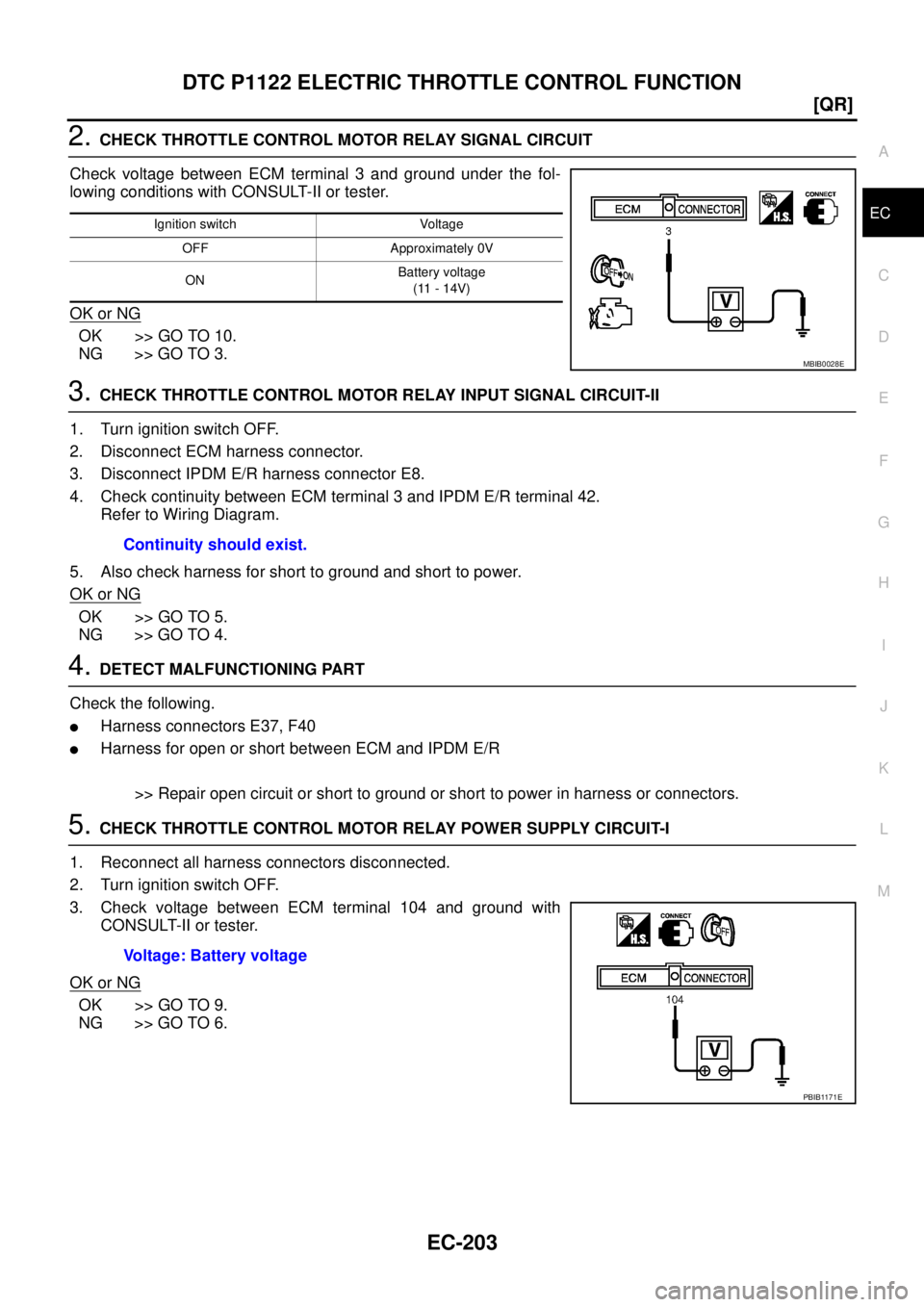

2. CHECK THROTTLE CONTROL MOTOR RELAY SIGNAL CIRCUIT
Check voltage between ECM terminal 3 and ground under the fol-
lowing conditions with CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 3.
3. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E8.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 42.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E37, F40

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch OFF.
3. Check voltage between ECM terminal 104 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
Ignition switch Voltage
OFF Approximately 0V
ONBattery voltage
(11 - 14V)
MBIB0028E
Continuity should exist.
Voltage: Battery voltage
PBIB1171E

EC-204
[QR]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION

6. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E103, M53

Harness connectors E11, E253

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 9.
NG >> Replace 15A fuse.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.Continuity should exist.

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-211
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

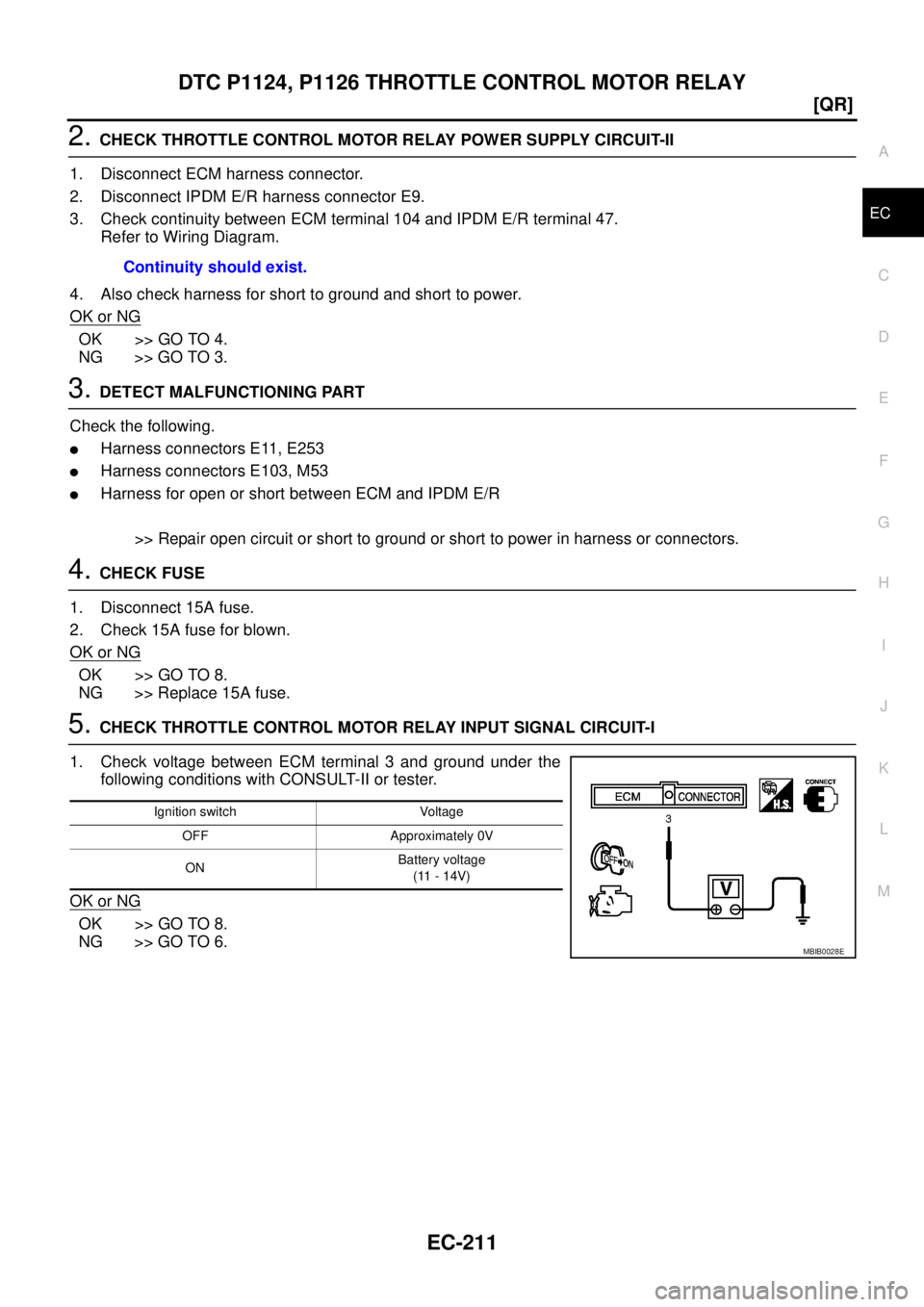

2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, E253

Harness connectors E103, M53

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 8.
NG >> Replace 15A fuse.
5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Check voltage between ECM terminal 3 and ground under the
following conditions with CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.Continuity should exist.
Ignition switch Voltage
OFF Approximately 0V
ONBattery voltage
(11 - 14V)
MBIB0028E

EC-212
[QR]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

6. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E8.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 42.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E37, F40

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.Continuity should exist.

DTC P1217 ENGINE OVER TEMPERATURE
EC-219
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.
The cooling fan operates at low (LOW) speed when cooling fan motors-1 and -2 are circuited in series under
middle speed condition.
CONSULT-II Reference Value in Data Monitor ModeBBS005G8
Specification data are reference values.
On Board Diagnosis LogicBBS005G9
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise. When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction
is indicated.
This self-diagnosis has the one trip detection logic.
Cooling fan speedCooling fan relay
123
Stop (OFF) OFF OFF OFF
Low (LOW) OFF ON OFF
Middle (MID) ON OFF OFF
High (HI) ON OFF ON
Cooling fan speedCooling fan motor terminals
(+) (−)
Middle (MID)1 3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
High (HI) 1 and 2 3 and 4
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

Engine: After warming up, idle the
engine

Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)LOW
Engine coolant temperature is
100°C (212°F) or moreHIGH

Engine: After warming up, idle the
engine

Air conditioner switch: ON

Refrigerant pressure is less than
1,280 kPa (12.80 bar, 13.05 kg/
cm2, 185.6 psi)Engine coolant temperature is 94°C
(201°F) or lessLOW
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)MID
Engine coolant temperature is
100°C (212°F) or moreHIGH

DTC P1217 ENGINE OVER TEMPERATURE
EC-225
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK COMPONENT PARTS
Check the following.

Radiator cap (Refer to CO-14, "Checking Radiator Cap" .)

Thermostat (Refer to CO-24, "THERMOSTAT AND WATER CONTROL VALVE" .)

Engine coolant temperature sensor (Refer to EC-135, "Component Inspection" .)
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning component.
6. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-227, "
Main 12 Causes of Overheating" .
>>INSPECTION END
CHECK COOLING FAN CONTROL CIRCUIT
1. CHECK COOLILNG FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connectors E6.
3. Check voltage between IPDM E/R terminal 15 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

40A fusible link

Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground in harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT
1. Disconnect IPDM E/R harness connectors E8, E9.
2. Check harness continuity between IPDM E/R terminal 16, 38, 60 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or connectors.Voltage: Battery voltage
PBIB1681E
Continuity should exist.

EC-226
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

4. CHECK COOLING FAN MOTOR-1 CIRCUIT-I
1. Disconnect cooling fan motor-1 harness connector.
2. Check voltage between cooling fan motor-1 terminals 1, 2 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

40A fusible link

Harness for open or short between cooling fan motor-1 and battery
>> Repair open circuit or short to ground in harness or connectors.
6. CHECK COOLING FAN MOTOR-1 CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E5.
3. Check harness continuity between cooling fan motor-1 terminal 3 and IPDM E/R terminal 8, cooling fan
motor-1 terminal 4 and IPDM E/R terminals 11, 12.
Refer to Wiring diagram.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2130E
Voltage: Battery voltage
PBIB1670E

DTC P1217 ENGINE OVER TEMPERATURE
EC-227
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

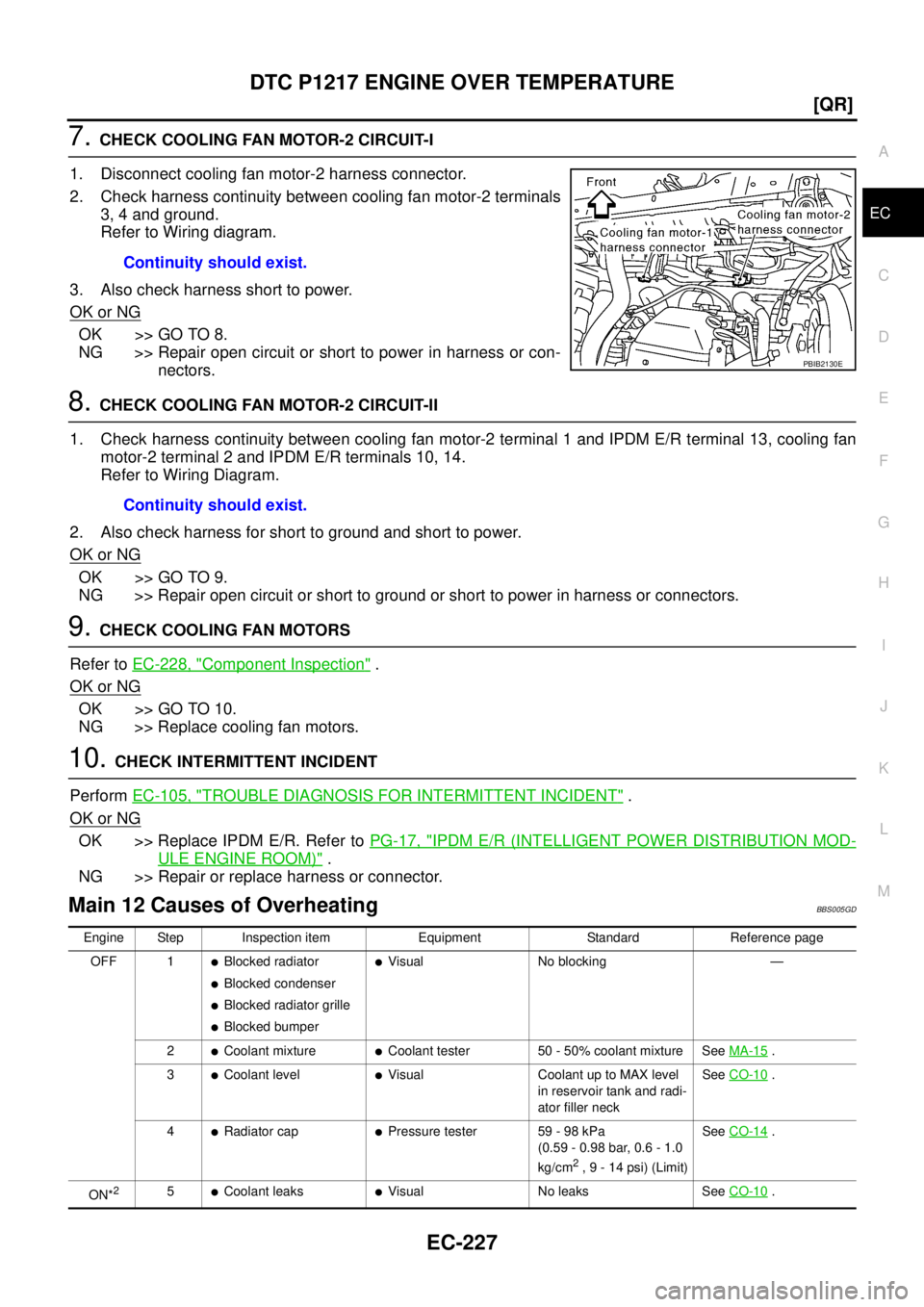

7. CHECK COOLING FAN MOTOR-2 CIRCUIT-I
1. Disconnect cooling fan motor-2 harness connector.
2. Check harness continuity between cooling fan motor-2 terminals
3, 4 and ground.
Refer to Wiring diagram.
3. Also check harness short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to power in harness or con-
nectors.
8. CHECK COOLING FAN MOTOR-2 CIRCUIT-II
1. Check harness continuity between cooling fan motor-2 terminal 1 and IPDM E/R terminal 13, cooling fan
motor-2 terminal 2 and IPDM E/R terminals 10, 14.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK COOLING FAN MOTORS
Refer to EC-228, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace cooling fan motors.
10. CHECK INTERMITTENT INCIDENT
Perform EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connector.
Main 12 Causes of OverheatingBBS005GD
Continuity should exist.
PBIB2130E
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixture See MA-15 .
3

Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSee CO-10 .
4

Radiator cap
Pressure tester 59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2 , 9 - 14 psi) (Limit)See CO-14
.
ON*
25
Coolant leaks
Visual No leaks See CO-10 .
