BL-54
REMOTE KEYLESS ENTRY SYSTEM

Terminals and Reference Value for IPDM E/RBIS000WL
CONSULT-II Function (BCM)BIS000WM
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
*: Refer to BCS-14, "CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
CONSULT-II START PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Work Support
Te r m i n a lWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
38 B Ground (Power) — — 0
48 L CAN-HInput/
Output——
49 P CAN-LInput/
Output——
60 B Ground (Signal) — — 0
BCM diagnosis posi-
tionInspection items and diagnosis mode Description
BCM C/U*WORK SUPPORT Change setting of each function.
Self-diagnosis results Carries out the self-diagnosis.
DATA MONITOR Displays the input data to BCM on real-time basis.
CAN DIAGNOSTIC SUPPORT MONITORThe results of transmit/receive diagnosis of CAN communica-
tion can be read.
ACTIVE TEST Gives a drive signal to a load to check the operation.
ECU PART NUMBER Displays BCM parts number.
MULTI REMOTE ENTDATA MONITORDisplays the input remote keyless entry system data to BCM
on real–time basis.
ACTIVE TEST Gives a drive to a load to check the operation.
WORK SUPPORT Changes the setting for each function.
Test Item Description
REMO CONT ID REGIST Key fob ID code can be registed.
REMO CONT ID ERASER Key fob ID code can be erased.
REMO CONT ID CONFIR It can be checked whether key fob ID code is registered or not in this mode.
HAZARD LAMP SETHazard reminder mode can be changed in this mode. The hazard reminder mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
AUTO LOCK SETAuto locking function mode can be changed in this mode. The function mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
TRUNK OPENKeyless trunk open operation mode can be changed in this mode. The operation mode will
be changed when “CURRENT SETTING” on CONSULT-II screen is touched.

DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-83
D
E
F
G
H
I
J
K
L
MA
B
CVT

5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and them drive the vehi-
cle [more than 40 km/h (25 MPH)], perform self-diagnosis check. Refer to CVT-79, "
DTC Confirmation Proce-
dure" .
Is
“P0720 VEH SPD SEN/CIR AT” detected again?
YES >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NO >> Replace TCM. Refer to CVT-9, "
Precautions for TCM and CVT Assembly Replacement" .
6. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminals and output
speed sensor (secondary speed sensor) harness connector ter-
minal. Refer to CVT-31, "
Circuit Diagram" .
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No. 83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminal and output
speed sensor (secondary speed sensor) harness connector ter-
minal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Continuity
TCM F106 10
Ye s
Output speed sensor
(Secondary speed sensor) F48 3
TCM F106 19
Ye s
Output speed sensor
(Secondary speed sensor) F48 3
SCIA2369E
Item Connector Terminal Continuity
TCM F107 42
Ye s
Output speed sensor
(Secondary speed sensor) F48 1
SCIA2347E

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-137
D
E
F
G
H
I
J
K
L
MA
B
CVT

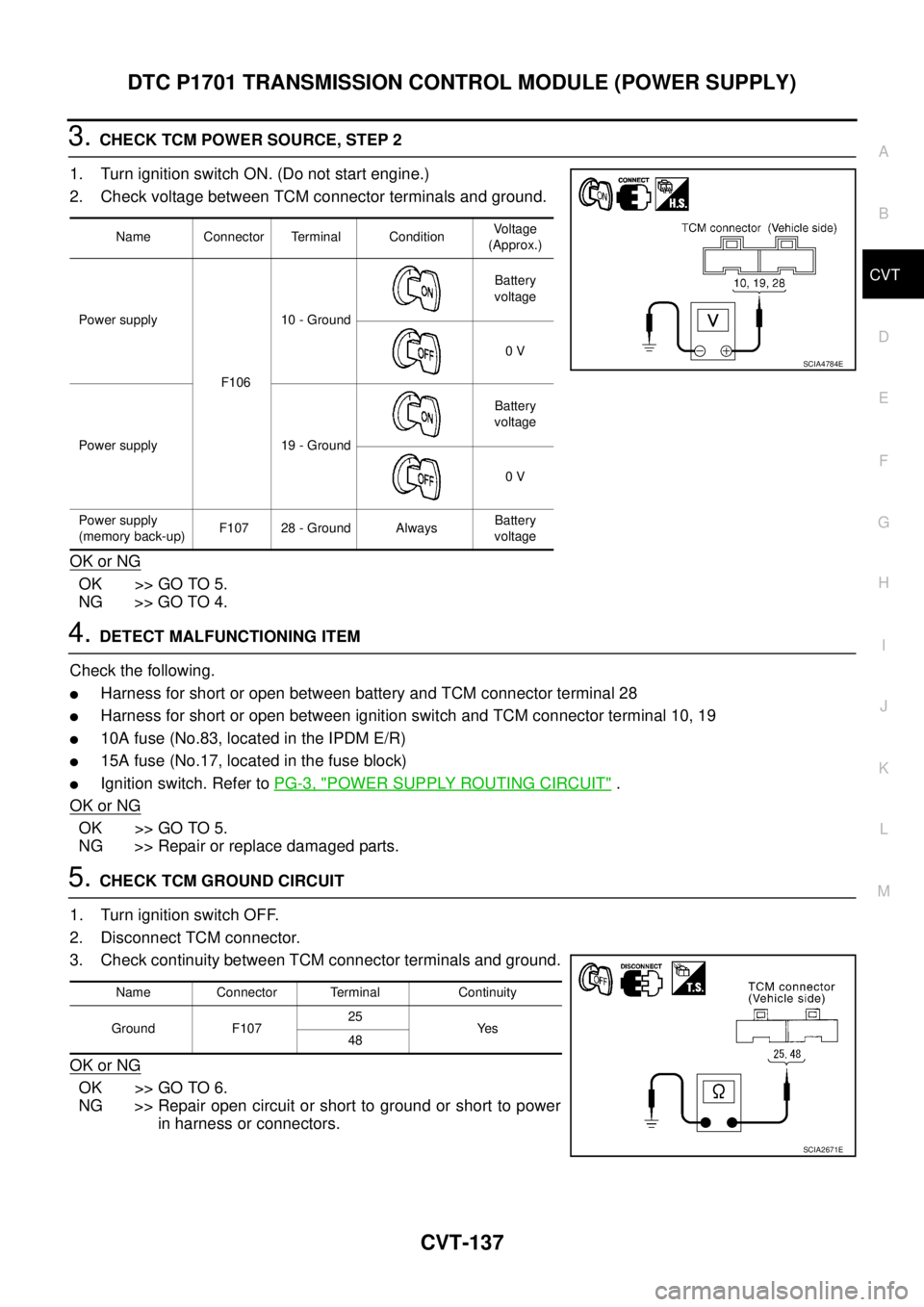

3. CHECK TCM POWER SOURCE, STEP 2
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following.

Harness for short or open between battery and TCM connector terminal 28

Harness for short or open between ignition switch and TCM connector terminal 10, 19

10A fuse (No.83, located in the IPDM E/R)

15A fuse (No.17, located in the fuse block)

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Name Connector Terminal ConditionVoltage
(Approx.)
Power supply
F10610 - GroundBattery
voltage
0 V
Power supply 19 - GroundBattery
voltage
0 V
Power supply
(memory back-up)F107 28 - Ground AlwaysBattery
voltage
SCIA4784E
Name Connector Terminal Continuity
Ground F10725
Ye s
48
SCIA2671E

CVT-164
TROUBLE DIAGNOSIS FOR SYMPTOMS

CVT Indicator Lamp Does Not Come OnBCS001MB
SYMPTOM:
CVT indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated in the results?
YES >> Check CAN communication line. Refer to CVT-53, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.

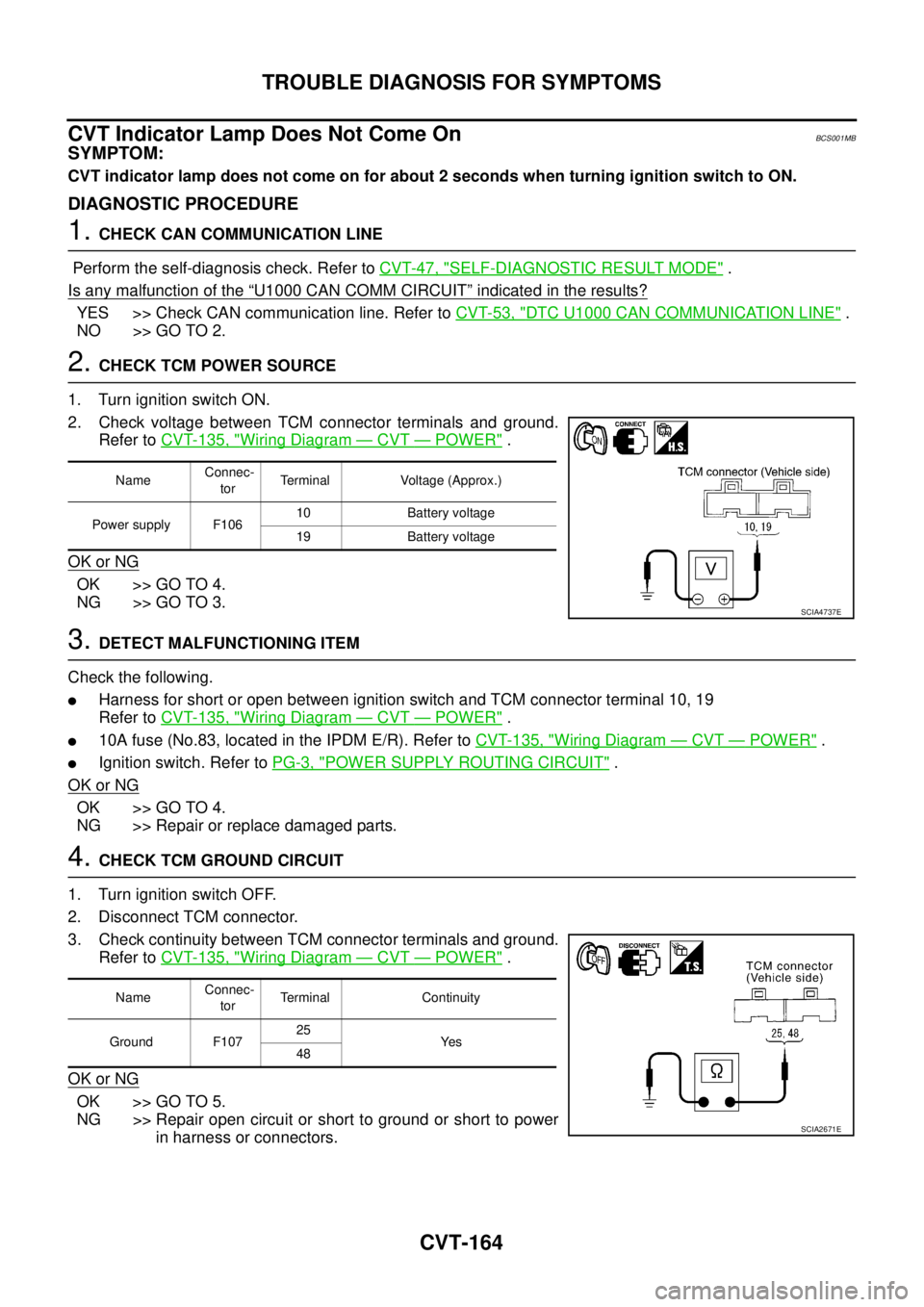

2. CHECK TCM POWER SOURCE
1. Turn ignition switch ON.
2. Check voltage between TCM connector terminals and ground.
Refer to CVT-135, "
Wiring Diagram — CVT — POWER" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following.

Harness for short or open between ignition switch and TCM connector terminal 10, 19
Refer to CVT-135, "
Wiring Diagram — CVT — POWER" .

10A fuse (No.83, located in the IPDM E/R). Refer to CVT-135, "Wiring Diagram — CVT — POWER" .

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals and ground.
Refer to CVT-135, "
Wiring Diagram — CVT — POWER" .
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Name Connec-
tor Terminal Voltage (Approx.)
Power supply F10610 Battery voltage
19 Battery voltage
SCIA4737E
Name Connec-
tor Terminal Continuity
Ground F10725
Ye s
48
SCIA2671E

DI-46
WARNING LAMPS

5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 6.
6. CHECK OIL PRESSURE SWITCH
Check oil pressure switch. Refer to DI-47, "
Electrical Component Inspection"
OK or NG
OK >> GO TO 7.
NG >> Replace oil pressure switch.
7. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and oil pressure switch connector.
3. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 and oil pressure switch harness connector F257 termi-
nal 1 (VQ engine), F11 terminal 1 ( QR engine ).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)BKS001ST
NOTE:
For oil pressure inspection, refer to LU-20, "
OIL PRESSURE CHECK" .
1. CHECK IPDM E/R OUTPUT SIGNAL
Activate IPDM E/R auto active test. Refer to PG-21, "
Auto Active Test" .
Is oil pressure warning lamp blinking?
No malfunction detected>> GO TO 3.
Malfunction detected>> Go to 2.
2. CHECK SELF-DIAGNOSTIC RESULTS OF IPDM E/R
Select “IPDM E/R” on CONSULT-II, and perform self diagnosis of IPDM E/R. Refer to PG-19, "
CONSULT-II
Function (IPDM E/R)"
Self-diagnosis result content?
YES >> Replace combination meter.
NO >> GO TO PG-19, "
SELF-DIAG RESULTS" in “IPDM E/R”. 57 – Ground : Continuity should not exist.
SKIA5013E
57 – 1 : Continuity should exist.
PKIC9837E

WARNING LAMPS
DI-47
C
D
E
F
G
H
I
J
L
MA
B
DI

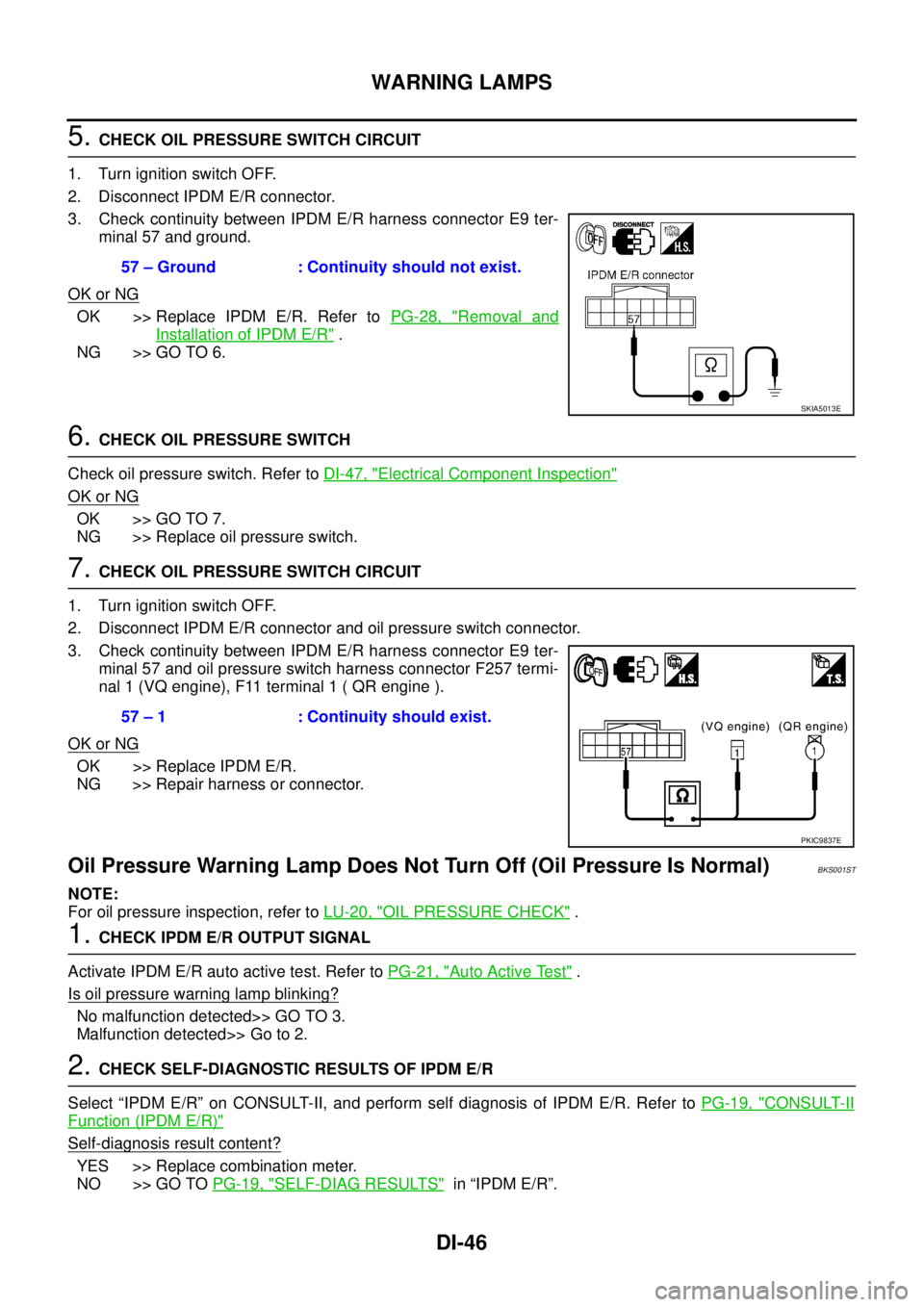

3. CHECK IPDM E/R OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect oil pressure switch connector.
3. Turn ignition switch ON.
4. Check voltage between oil pressure switch harness connector
F257 terminal 1 ( VQ engine ) or F11 terminal 1 ( QR engine )
and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Check oil pressure switch. Refer to DI-47, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch.
5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
Electrical Component InspectionBKS001SU
OIL PRESSURE SWITCH

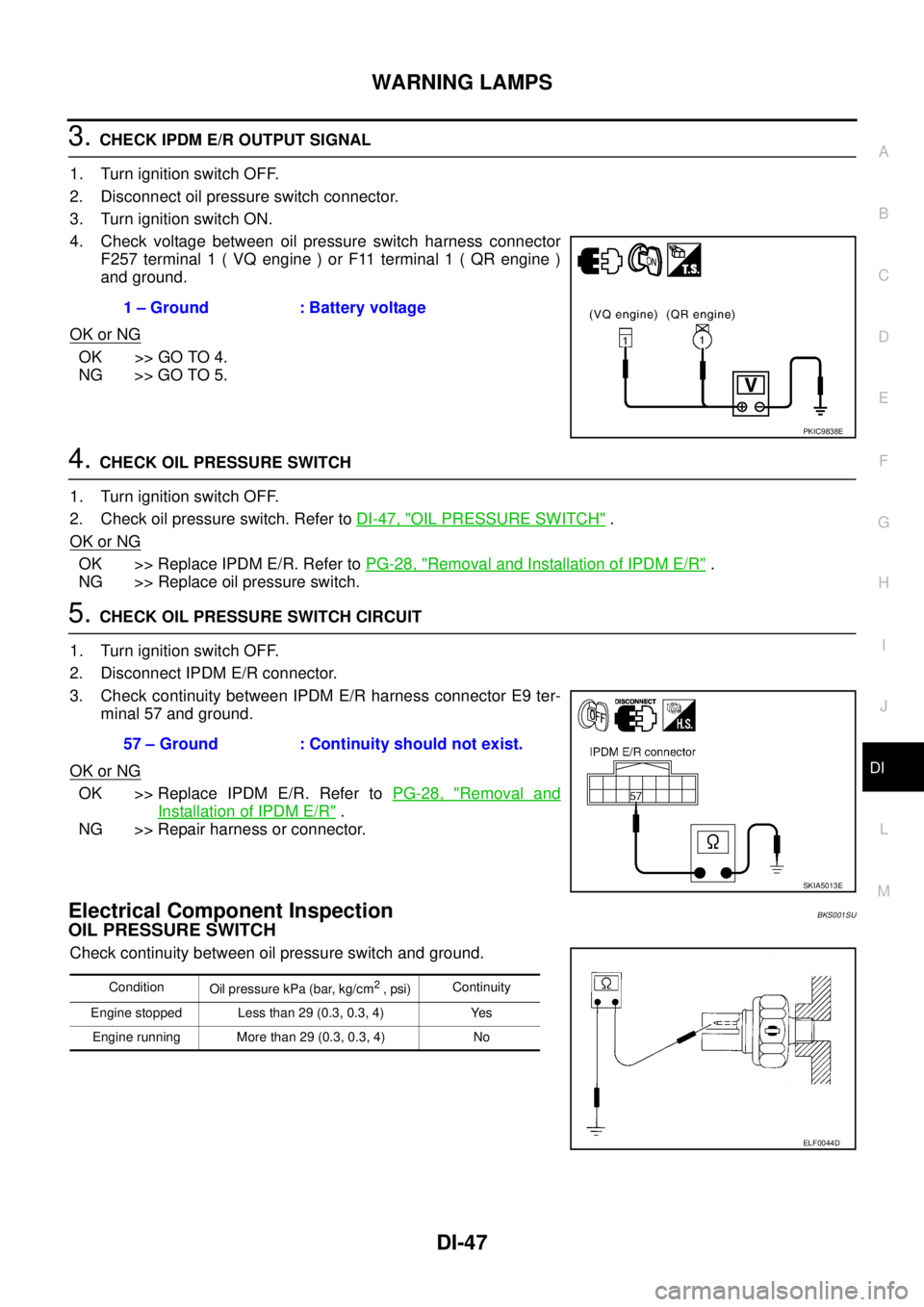

Check continuity between oil pressure switch and ground.1 – Ground : Battery voltage
PKIC9838E
57 – Ground : Continuity should not exist.
SKIA5013E
Condition
Oil pressure kPa (bar, kg/cm2 , psi) Continuity
Engine stopped Less than 29 (0.3, 0.3, 4) Yes
Engine running More than 29 (0.3, 0.3, 4) No
ELF0044D

EC-108
[QR]
POWER SUPPLY AND GROUND CIRCUIT

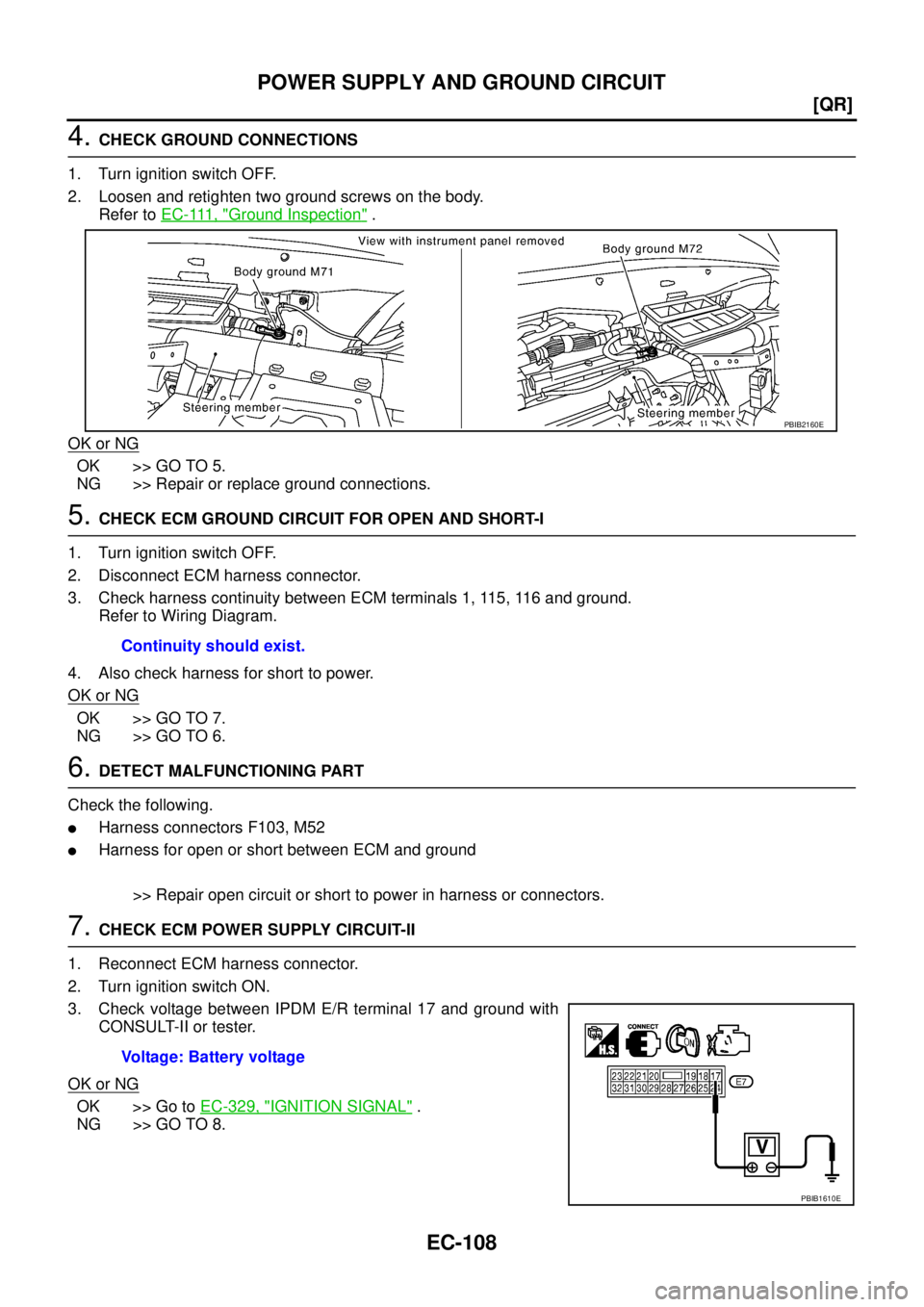

4. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to E C - 111 , "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 1, 115, 116 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F103, M52

Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Reconnect ECM harness connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R terminal 17 and ground with
CONSULT-II or tester.
OK or NG
OK >> Go to EC-329, "IGNITION SIGNAL" .
NG >> GO TO 8.
PBIB2160E
Continuity should exist.
Voltage: Battery voltage
PBIB1610E
