DTC P0841 PRESSURE SENSOR FUNCTIONPFP:31936
DescriptionBCS001K3
Using the engine load (throttle position), the primary pulley revolution speed, and the secondary pulley revolu-
tion speed as input signal, TCM changes the operating pressure of the primary pulley and the secondary pul-
ley and changes the groove width of the pulley to control the gear ratio.
CONSULT-II Reference ValueBCS001K4
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001K5
Diagnostic trouble code “P0841 PRESS SEN/FNCTN” with CONSULT-II is detected when correlation between
the values of the secondary pressure sensor and the primary pressure sensor is out of specification.
Possible CauseBCS001K6

Transmission fluid pressure sensor A (Secondary pressure sensor)

Transmission fluid pressure sensor B (Primary pressure sensor)

Harness or connectors
(Sensor circuit is open or shorted.)
DTC Confirmation ProcedureBCS001K7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 12
consecutive seconds.
VEHICLE SPEED: 40 km/h (25 MPH) More than
RANGE: “D” position
3. If DTC is detected, go to CVT-124, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
PRI HYDR SEN
“N” position idle0.7 - 3.5 V
SEC HYDR SEN1.0 V
BCIA0031E

DTC P1777 STEP MOTOR - CIRCUIT
CVT-155
D
E
F
G
H
I
J
K
L
MA
B
CVT

TCM terminals data are reference values.
Diagnostic ProcedureBCS001LY
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “TRANSMISSION” with CONSULT-II.

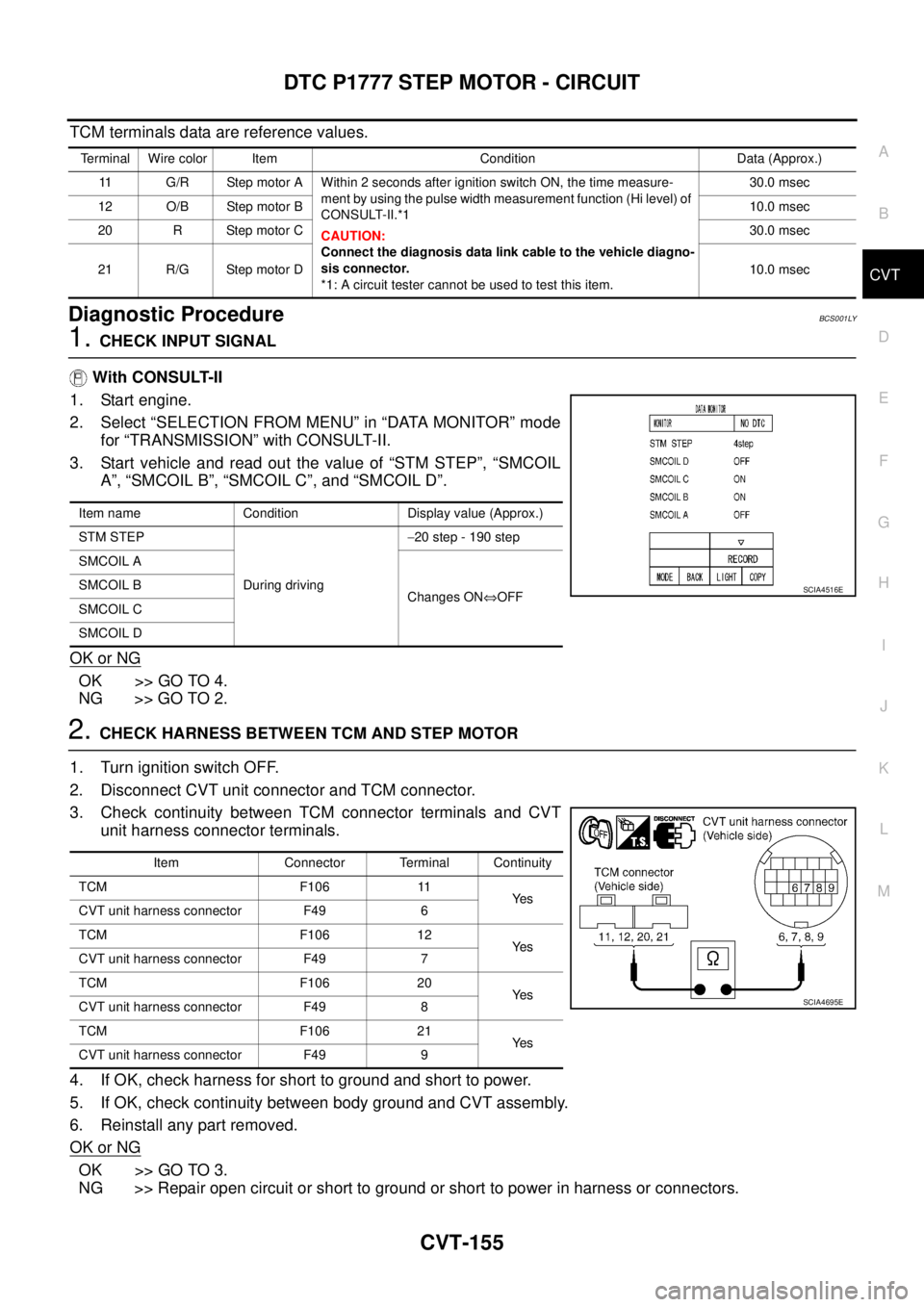

3. Start vehicle and read out the value of “STM STEP”, “SMCOIL
A”, “SMCOIL B”, “SMCOIL C”, and “SMCOIL D”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK HARNESS BETWEEN TCM AND STEP MOTOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit connector and TCM connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between body ground and CVT assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Terminal Wire color Item Condition Data (Approx.)
11 G/R Step motor A Within 2 seconds after ignition switch ON, the time measure-
ment by using the pulse width measurement function (Hi level) of
CONSULT-II.*1
CAUTION:
Connect the diagnosis data link cable to the vehicle diagno-
sis connector.
*1: A circuit tester cannot be used to test this item.30.0 msec
12 O/B Step motor B10.0 msec
20 R Step motor C30.0 msec
21 R/G Step motor D10.0 msec
Item name Condition Display value (Approx.)
STM STEP
During driving−20 step - 190 step
SMCOIL A
Changes ON⇔OFF SMCOIL B
SMCOIL C
SMCOIL D
SCIA4516E
Item Connector Terminal Continuity
TCM F106 11
Ye s
CVT unit harness connector F49 6
TCM F106 12
Ye s
CVT unit harness connector F49 7
TCM F106 20
Ye s
CVT unit harness connector F49 8
TCM F106 21
Ye s
CVT unit harness connector F49 9
SCIA4695E

EC-22
