CYLINDER BLOCK
EM-253
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM


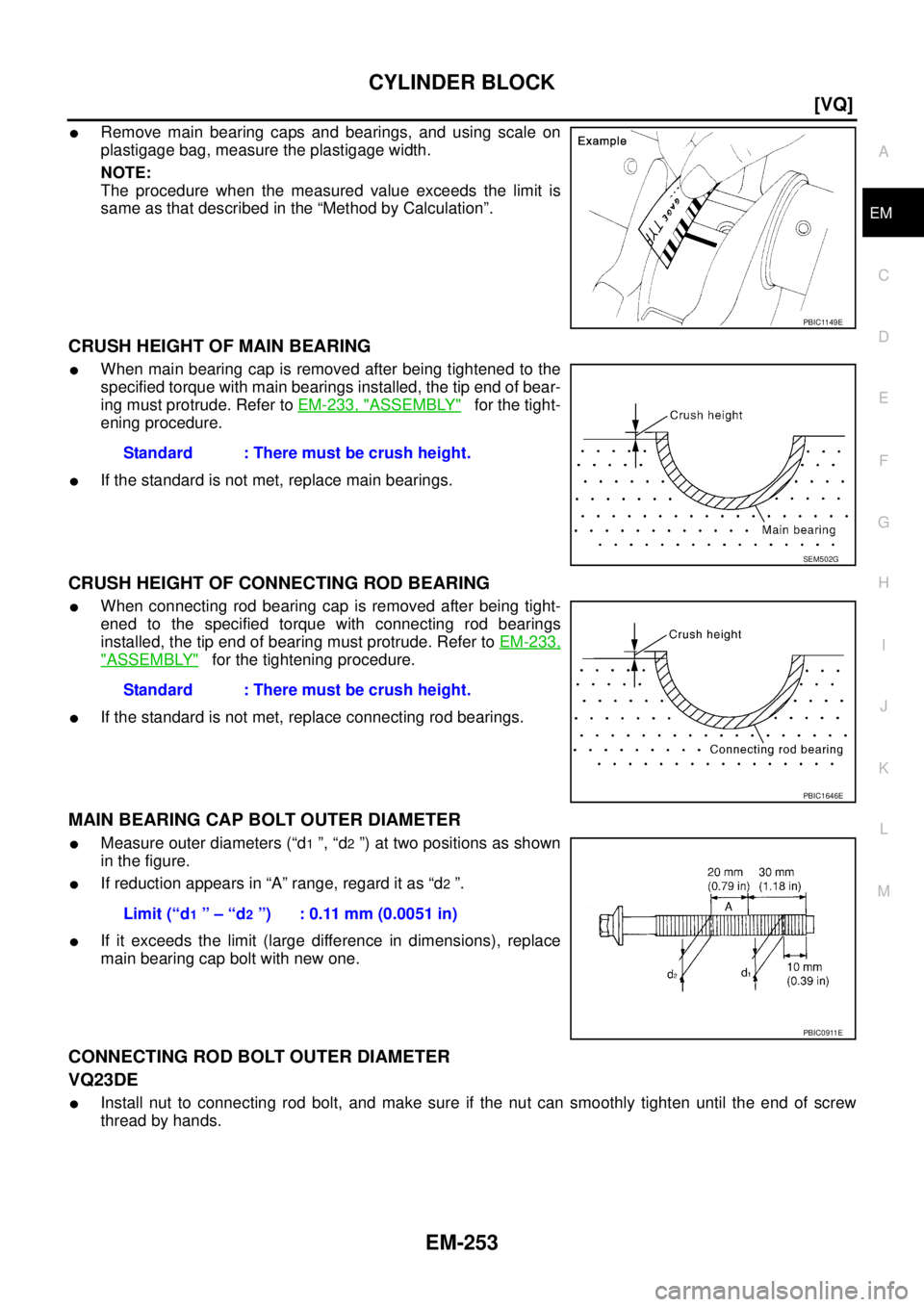

Remove main bearing caps and bearings, and using scale on
plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
CRUSH HEIGHT OF MAIN BEARING

When main bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude. Refer to EM-233, "
ASSEMBLY" for the tight-
ening procedure.

If the standard is not met, replace main bearings.
CRUSH HEIGHT OF CONNECTING ROD BEARING

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to EM-233,
"ASSEMBLY" for the tightening procedure.

If the standard is not met, replace connecting rod bearings.
MAIN BEARING CAP BOLT OUTER DIAMETER

Measure outer diameters (“d1 ”, “d2 ”) at two positions as shown
in the figure.

If reduction appears in “A” range, regard it as “d2 ”.

If it exceeds the limit (large difference in dimensions), replace
main bearing cap bolt with new one.
CONNECTING ROD BOLT OUTER DIAMETER
VQ23DE

Install nut to connecting rod bolt, and make sure if the nut can smoothly tighten until the end of screw
thread by hands.
PBIC1149E
Standard : There must be crush height.
SEM502G
Standard : There must be crush height.
PBIC1646E
Limit (“d1 ” – “d2 ”) : 0.11 mm (0.0051 in)
PBIC0911E

EM-262
[VQ]
SERVICE DATA AND SPECIFICATIONS (SDS)

Valve Seat
Unit: mm (in)
*
1 : Diameter made by intersection point of conic angles “α1” and “α2”
*2: Diameter made by intersection point of coind angles “α1” and “α2” ItemsStandard Oversize (Service) [0.5 (0.020)]
VQ23DE VQ35DE VQ23DE VQ35DE
Cylinder head seat recess diameter “D”Intake35.000 - 35.016
(1.3780 - 1.3786)38.000 - 38.016
(1.4961 - 1.4967)35.500 - 35.516
(1.3976 - 1.3983)38.500 - 38.516
(1.5157 - 1.5164)
Exhaust30.000 - 30.016
(1.1811 - 1.1817)32.200 - 32.216
(1.2677 - 1.2683)30.500 - 30.516
(1.2008 - 1.2014)32.700 - 32.716
(1.2874 - 1.2880)
Valve seat outer diameter “d”Intake35.080 - 35.096
(1.3811 - 1.3817)38.097 - 38.113
(1.4999 - 1.5005)35.580 - 35.596
(1.4008 - 1.014)38.597 - 38.613
(1.5196 - 1.5202)
Exhaust30.080 - 30.096
(1.1842 - 1.1849)32.280 - 32.296
(1.2709 - 1.2715)30.580 - 30.596
(1.2039 - 1.2046)32.780 - 32.796
(1.2905 - 1.2912)
Valve seat interference fitIntake0.064 - 0.096
(0.0025 - 0.0038)0.081 - 0.113
(0.0032 - 0.0044)0.064 - 0.096
(0.0025 - 0.0038)0.081 - 0.113
(0.0032 - 0.0044)
Exhaust 0.064 - 0.096 (0.0025 - 0.0038)
ItemsStandard
VQ23DE VQ35DE
Diameter″ d1 ″*
1Intake 32 (1.26) 35 (1.38)
Exhaust 26.5 (1.043) 28.7 (1.130)
Diameter″ d2 ″*
2Intake 33.3 – 33.8 (1.311 – 1.331) 36.3 – 36.8 (1.429 – 1.449)
Exhaust 28.1 – 28.6 (1.106 – 1.126) 30.3 – 30.8 (1.193 – 1.213)
Angle″ α1 ″Intake 60°
Exhaust 60°
Angle″ α2 ″Intake 88°45′ – 90°15′
Exhaust 88°45′ – 90°15′
Angle″ α3 ″Intake 120°
Exhaust 120°
Contacting width″ W ″*
3Intake 1.0 – 1.4 (0.039 – 0.055)
Exhaust 1.2 – 1.6 (0.047 – 0.063)
ItemsStandard Service
VQ23DE VQ35DE VQ23DE VQ35DE
Height “h”Intake6.2 - 6.3
(0.244 - 0.248)5.9 - 6.0
(0.232 - 0.236)5.4 - 5.5
(0.213 - 0.217)5.05 - 5.15
(0.1988 - 0.2028)
Exhaust5.9 - 6.0
(0.232 - 0.246)5.9 - 6.0
(0.232 - 0.236)4.95 - 5.05
(0.1949 - 0.1988)4.95 - 5.05
(0.1949 - 0.1988)
Depth “H”Intake 6.35 (0.2500) 6.0 (0.246) 6.35 (0.2500) 6.0 (0.246)
Exhaust 6.0 (0.246)
PBIC2745E

EM-268
[VQ]
SERVICE DATA AND SPECIFICATIONS (SDS)

MAIN BEARING
Undersize
Unit: mm (in)
Main Bearing Oil Clearance
Unit: mm (in)
*: Actual clearanceGrade number UPR/LWR Thickness mm (in) Width mm (in) Identification color Remarks
0 — 2.000 - 2.003 (0.0787 - 0.0789)
19.9 - 20.1
(0.783 - 0.791)Black
Grade is the same
for upper and lower
bearings. 1 — 2.003 - 2.006 (0.0789 - 0.0790) Brown
2 — 2.006 - 2.009 (0.0790 - 0.0791) Green
3 — 2.009 - 2.012 (0.0791 - 0.0792) Yellow
4 — 2.012 - 2.015 (0.0792 - 0.0793) Blue
5 — 2.015 - 2.018 (0.0793 - 0.0794) Pink
6 — 2.018 - 2.021 (0.0794 - 0.0796) Purple
7 — 2.021 - 2.024 (0.0796 - 0.0797) White
01UPP 2.003 - 2.006 (0.0789 - 0.0790) Brown
Grade is different
for upper and lower
bearings. LWR 2.000 - 2.003 (0.0787 - 0.0789) Black
12UPR 2.006 - 2.009 (0.0790 - 0.0791) Green
LWR 2.003 - 2.006 (0.0789 - 0.0790) Brown
23UPR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
LWR 2.006 - 2.009 (0.0790 - 0.0791) Green
34UPR 2.012 - 2.015 (0.0792 - 0.0793) Blue
LWR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
45UPR 2.015 - 2.018 (0.0793 - 0.0794) Pink
LWR 2.012 - 2.015 (0.0792 - 0.0793) Blue
56UPR 2.018 - 2.021 (0.0794 - 0.0796) Purple
LWR 2.015 - 2.018 (0.0793 - 0.0794) Pink
67UPR 2.021 - 2.024 (0.0796 - 0.0797) White
LWR 2.018 - 2.021 (0.0794 - 0.0796) Purple
PBIC2619E
Items Thickness Main journal diameter
0.25 (0.0098) 2.132 - 2.140 (0.0839 - 0.0843) Grind so that bearing clearance is the specified value.
Items Standard Limit
Main bearing oil clearance 0.035 - 0.045 (0.0014 - 0.0018)* 0.065 (0.0026)

GI-44
IDENTIFICATION INFORMATION

Dimensions BAS0007Z
Unit: mm (in)
*1: Model with QR20DE/VQ23DE engine
*2: Model with VQ35DE engine
Wheels & Tires BAS00080
*: Aluminum alloy wheelOverall length 4,845 (190.7)
Overall width 1,765 (69.5)
Overall height1,475 (58.1) (*1)
1,470 (57.9) (*2)
Front tread1,530 (60.2) (*1)
1,520 (59.8) (*2)
Rear tread1,535 (60.4) (*1)
1,525 (60.0) (*2)
Wheelbase 2,775 (109.3)
Road wheel
Size 16 x 6-1/2 JJ 16 x 6-1/2 JJ (*) 17 x 7 JJ (*)
Offset mm (in) 50 (1.97) 50 (1.97) 55 (2.17)
Tire size
Conventional 205/65 R16 205/65 R16 215/55 R17
Spare 205/65 R16 205/65 R16 215/55 R17

WW-36

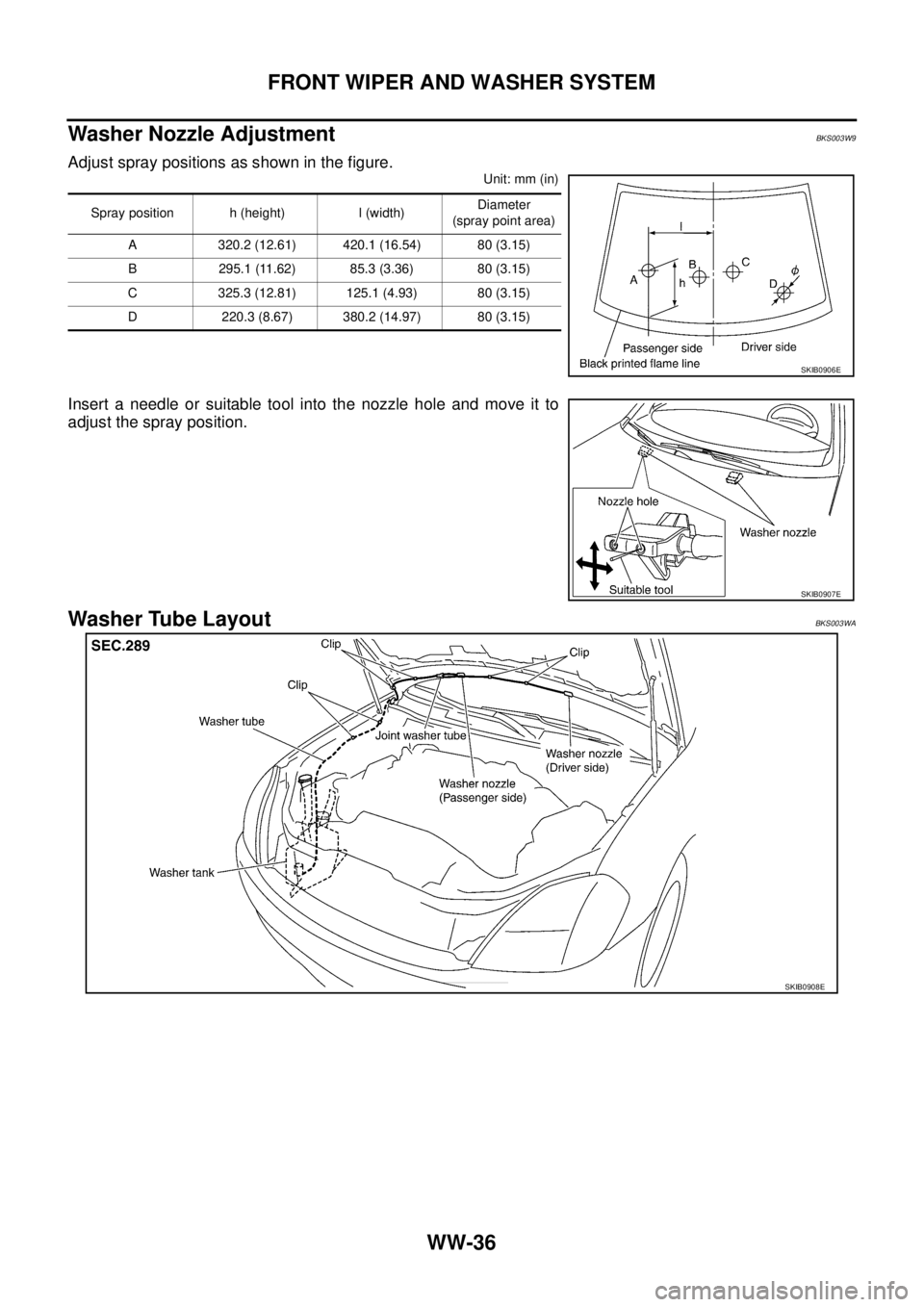

FRONT WIPER AND WASHER SYSTEM

Washer Nozzle AdjustmentBKS003W9
Adjust spray positions as shown in the figure.
Unit: mm (in)
Insert a needle or suitable tool into the nozzle hole and move it to
adjust the spray position.
Washer Tube LayoutBKS003WA
Spray position h (height) l (width)Diameter
(spray point area)
A 320.2 (12.61) 420.1 (16.54) 80 (3.15)
B 295.1 (11.62) 85.3 (3.36) 80 (3.15)
C 325.3 (12.81) 125.1 (4.93) 80 (3.15)
D 220.3 (8.67) 380.2 (14.97) 80 (3.15)
SKIB0906E
SKIB0907E
SKIB0908E
