EC-440
[VQ]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionBBS004YI
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MI.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionBBS004YJ

Vehicle driven distance: More than 5,000 km (3,107 miles)

Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Transmission: Warmed-up
–A/T models: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60°C (140°F).
–CVT models: After the engine is warmed up to normal operating temperature, drive vehicle until “ATF
TEMP SEN” (CVT fluid temperature sensor signal) indicates more than 60°C (140°F).

Electrical load: Not applied
–Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.

Engine speed: Idle
Inspection ProcedureBBS004YK
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-381, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-441, "
Diagnostic Procedure" .
SEF601Z

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-545
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV EPFP:23796
Component DescriptionBBS0051P
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeBBS0051Q
Specification data are reference values.
On Board Diagnosis LogicBBS0051R
DTC Confirmation ProcedureBBS0051S
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and let it idle for 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. It 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure" .
PBIB1842E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Shift lever: P or N

Air conditioner switch: OFF

No loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111
(Bank 1)
Intake valve timing control
solenoid valve circuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.

Harness or connectors
(The intake valve timing control solenoid
valve circuit is open or shorted.)

Intake valve timing control solenoid valve P1136
11 3 6
(Bank 2)
SEF058Y

EM-8
[QR]
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsBBS0058O
Tool number
Tool nameDescription
KV10111100
Seal cutterRemoving oil pan (lower and upper) and front
cover, etc.
ST0501S000
Engine stand assembly
1. ST05011000
Engine stand
2. ST05012000
BaseDisassembling and assembling engine
KV10106500
Engine stand shaft
KV10115300
Engine sub-attachment
KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
AdapterDisassembling and assembling valve
mechanism
Part (1) is a component of KV10116200, but
Part (2) is not so.
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. in angle
KV10117100
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensors
For 22 mm (0.87 in) width hexagon nut
S-NT046
NT042
NT028
ZZA1078D
PBIC1650E
S-NT014
NT379

EM-72
[QR]

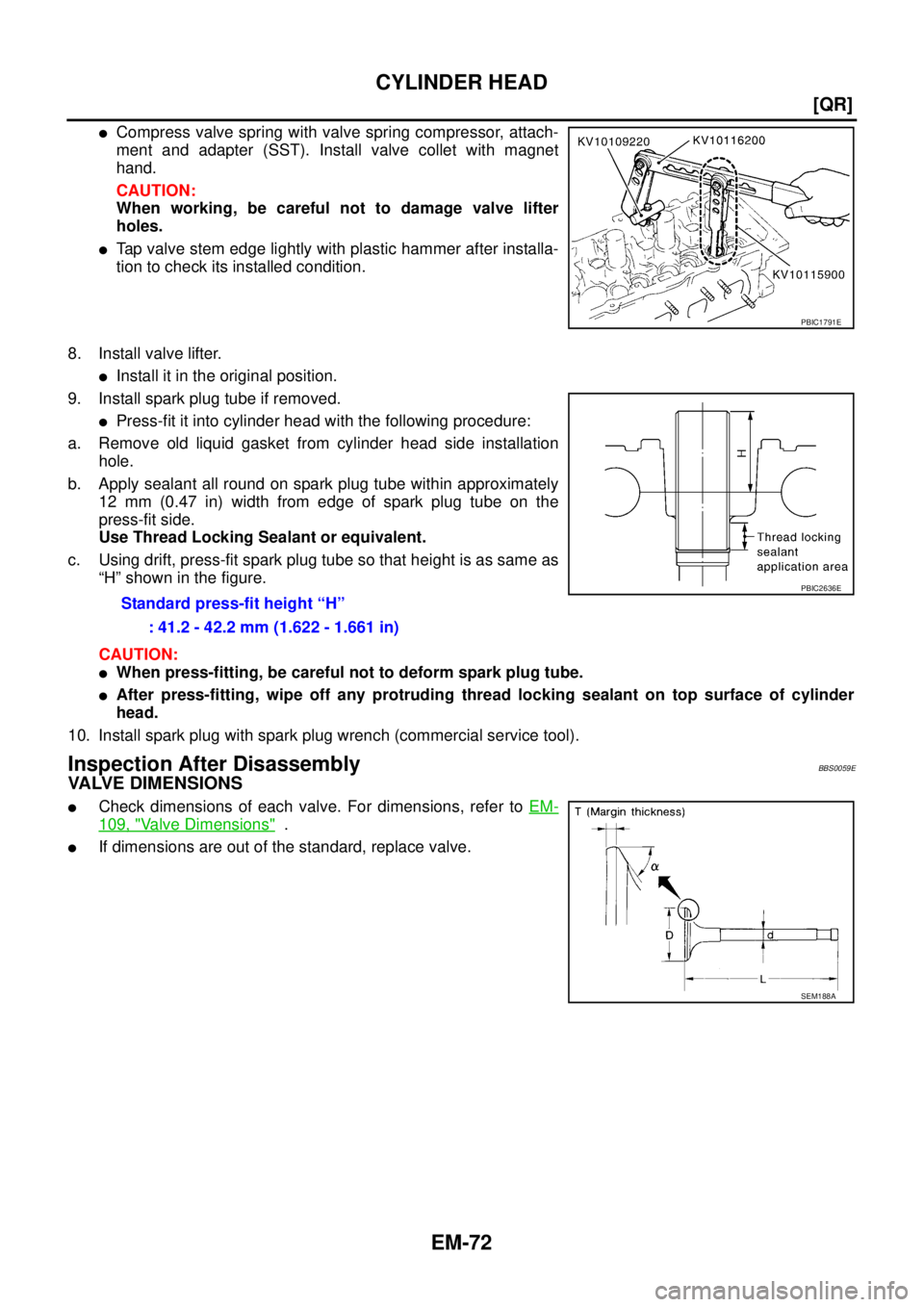

CYLINDER HEAD


Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Install valve collet with magnet
hand.
CAUTION:
When working, be careful not to damage valve lifter
holes.

Tap valve stem edge lightly with plastic hammer after installa-
tion to check its installed condition.
8. Install valve lifter.

Install it in the original position.
9. Install spark plug tube if removed.

Press-fit it into cylinder head with the following procedure:
a. Remove old liquid gasket from cylinder head side installation
hole.
b. Apply sealant all round on spark plug tube within approximately
12 mm (0.47 in) width from edge of spark plug tube on the
press-fit side.
Use Thread Locking Sealant or equivalent.
c. Using drift, press-fit spark plug tube so that height is as same as
“H” shown in the figure.
CAUTION:

When press-fitting, be careful not to deform spark plug tube.

After press-fitting, wipe off any protruding thread locking sealant on top surface of cylinder
head.
10. Install spark plug with spark plug wrench (commercial service tool).
Inspection After DisassemblyBBS0059E
VALVE DIMENSIONS

Check dimensions of each valve. For dimensions, refer to EM-
109, "Valve Dimensions" .

If dimensions are out of the standard, replace valve.
PBIC1791E
Standard press-fit height “H”
: 41.2 - 42.2 mm (1.622 - 1.661 in)
PBIC2636E
SEM188A

EM-106
[QR]

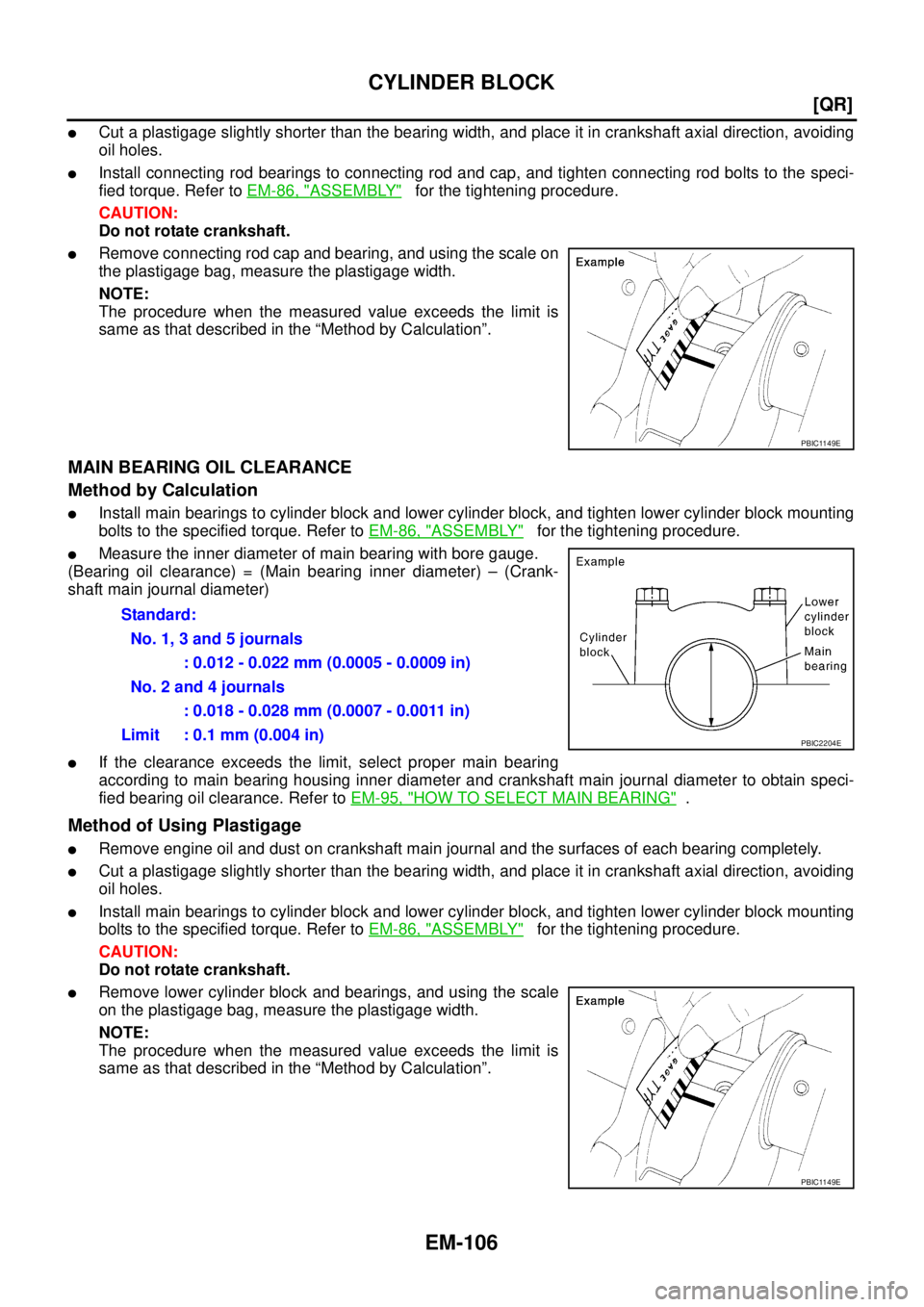

CYLINDER BLOCK


Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding
oil holes.

Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the speci-
fied torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.

Remove connecting rod cap and bearing, and using the scale on
the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
MAIN BEARING OIL CLEARANCE
Method by Calculation

Install main bearings to cylinder block and lower cylinder block, and tighten lower cylinder block mounting
bolts to the specified torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.

Measure the inner diameter of main bearing with bore gauge.
(Bearing oil clearance) = (Main bearing inner diameter) – (Crank-
shaft main journal diameter)

If the clearance exceeds the limit, select proper main bearing
according to main bearing housing inner diameter and crankshaft main journal diameter to obtain speci-
fied bearing oil clearance. Refer to EM-95, "
HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage

Remove engine oil and dust on crankshaft main journal and the surfaces of each bearing completely.

Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding
oil holes.

Install main bearings to cylinder block and lower cylinder block, and tighten lower cylinder block mounting
bolts to the specified torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.

Remove lower cylinder block and bearings, and using the scale
on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
PBIC1149E
Standard:
No. 1, 3 and 5 journals
: 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals
: 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)
PBIC2204E
PBIC1149E

PREPARATION
EM-123
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

EM03470000
Piston ring compressorInstalling piston assembly into cylinder bore
ST16610001
Pilot bushing pullerRemoving pilot converter
KV10111100
Seal cutterRemoving oil pan (lower and upper), front
and rear timing chain case, etc.
WS39930000
Tube presserPressing the tube of liquid gasket
KV10109300
Pulley holderRemoving and installing crankshaft pulley
a: 68 mm (2.68 in)
b: 8 mm (0.31 in) dia.
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. in angle
KV10117100
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensor 1
For 22 mm (0.87 in) width hexagon nut Tool number
Tool nameDescription
NT044
NT045
NT046
NT052
NT628
NT014
NT379

EM-244
[VQ]
CYLINDER BLOCK

Main Bearing Grade Table (All Journals)
Unit: mm (in)
Undersize Bearing Usage Guide

When the specified main bearing oil clearance is not obtained with standard size main bearings, use
underside (US) bearing.

When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft main journal to use undersize bear-
ings, keep the fillet R [1.5 mm (0.059 in)].
Bearing undersize table
Unit: mm (in)
NOTE:
Both VQ23DE and VQ35DE thickness of undersize bearing is the same.
Grade number Thickness Width Identification color Remarks
0 2.000 - 2.003 (0.0787 - 0.0789)
19.9 - 20.1
(0.783 - 0.791)Black
Grade and color are
the same for upper
and lower bearings. 1 2.003 - 2.006 (0.0789 - 0.0790) Brown
2 2.006 - 2.009 (0.0790 - 0.0791) Green
3 2.009 - 2.012 (0.0791 - 0.0792) Yellow
4 2.012 - 2.015 (0.0792 - 0.0793) Blue
5 2.015 - 2.018 (0.0793 - 0.0794) Pink
6 2.018 - 2.021 (0.0794 - 0.0796) Purple
7 2.021 - 2.024 (0.0796 - 0.0797) White
01UPR 2.003 - 2.006 (0.0789 - 0.0790) Brown
Grade and color are
different for upper and
lower bearings. LWR 2.000 - 2.003 (0.0787 - 0.0789) Black
12UPR 2.006 - 2.009 (0.0790 - 0.0791) Green
LWR 2.003 - 2.006 (0.0789 - 0.0790) Brown
23UPR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
LWR 2.006 - 2.009 (0.0790 - 0.0791) Green
34UPR 2.012 - 2.015 (0.0792 - 0.0793) Blue
LWR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
45UPR 2.015 - 2.018 (0.0793 - 0.0794) Pink
LWR 2.012 - 2.015 (0.0792 - 0.0793) Blue
56UPR 2.018 - 2.021 (0.0794 - 0.0796) Purple
LWR 2.015 - 2.018 (0.0793 - 0.0794) Pink
67UPR 2.021 - 2.024 (0.0796 - 0.0797) White
LWR 2.018 - 2.021 (0.0794 - 0.0796) Purple
PBIC1908E
Size Thickness
US 0.25 (0.0098) 2.132 - 2.140 (0.0839 - 0.0843)

EM-252
[VQ]
CYLINDER BLOCK


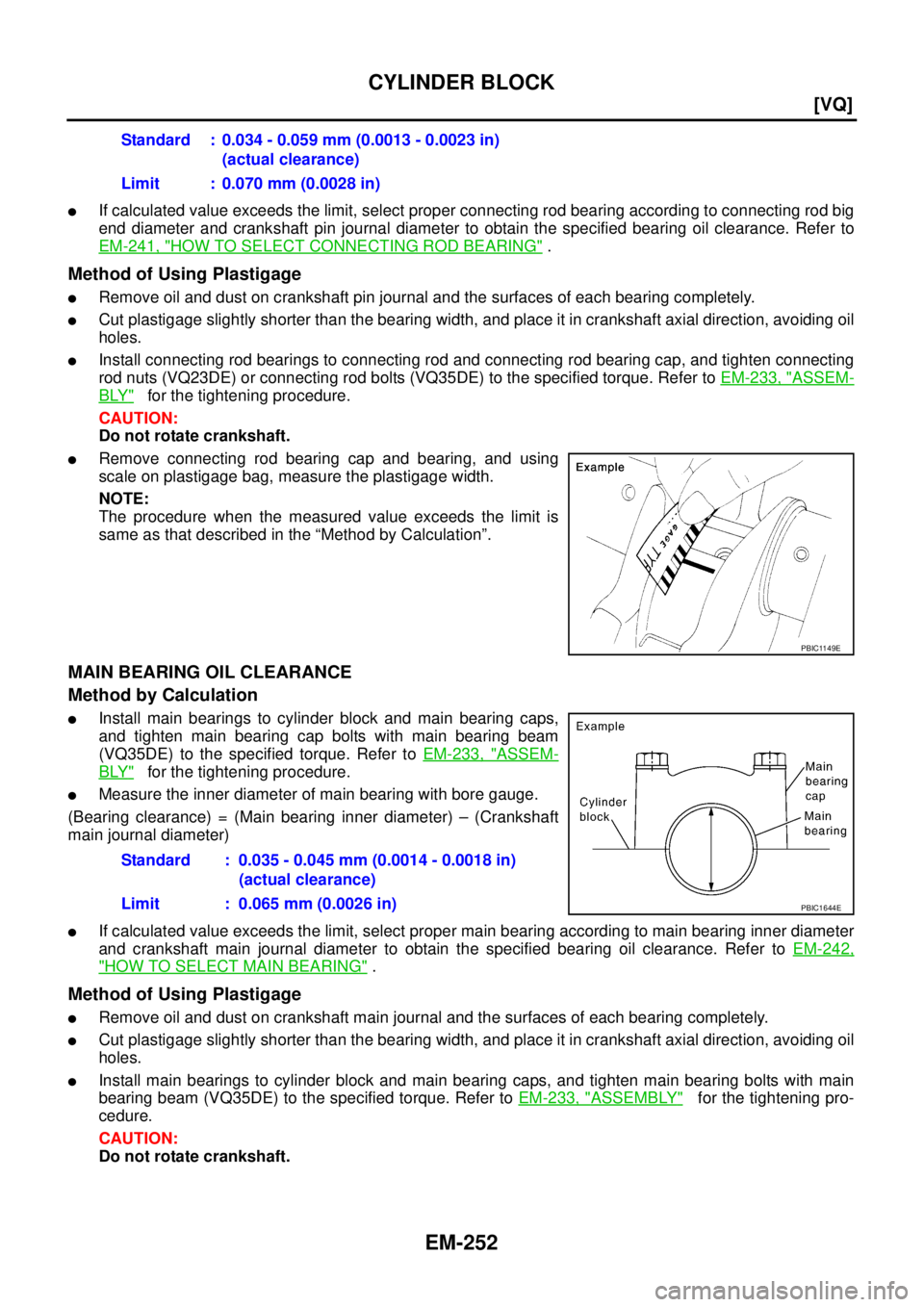

If calculated value exceeds the limit, select proper connecting rod bearing according to connecting rod big
end diameter and crankshaft pin journal diameter to obtain the specified bearing oil clearance. Refer to
EM-241, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage

Remove oil and dust on crankshaft pin journal and the surfaces of each bearing completely.

Cut plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil
holes.

Install connecting rod bearings to connecting rod and connecting rod bearing cap, and tighten connecting
rod nuts (VQ23DE) or connecting rod bolts (VQ35DE) to the specified torque. Refer to EM-233, "
ASSEM-
BLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.

Remove connecting rod bearing cap and bearing, and using
scale on plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
MAIN BEARING OIL CLEARANCE
Method by Calculation

Install main bearings to cylinder block and main bearing caps,
and tighten main bearing cap bolts with main bearing beam
(VQ35DE) to the specified torque. Refer to EM-233, "
ASSEM-
BLY" for the tightening procedure.

Measure the inner diameter of main bearing with bore gauge.
(Bearing clearance) = (Main bearing inner diameter) – (Crankshaft
main journal diameter)

If calculated value exceeds the limit, select proper main bearing according to main bearing inner diameter
and crankshaft main journal diameter to obtain the specified bearing oil clearance. Refer to EM-242,
"HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage

Remove oil and dust on crankshaft main journal and the surfaces of each bearing completely.

Cut plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil
holes.

Install main bearings to cylinder block and main bearing caps, and tighten main bearing bolts with main
bearing beam (VQ35DE) to the specified torque. Refer to EM-233, "
ASSEMBLY" for the tightening pro-
cedure.
CAUTION:
Do not rotate crankshaft.Standard : 0.034 - 0.059 mm (0.0013 - 0.0023 in)
(actual clearance)
Limit : 0.070 mm (0.0028 in)
PBIC1149E
Standard : 0.035 - 0.045 mm (0.0014 - 0.0018 in)
(actual clearance)
Limit : 0.065 mm (0.0026 in)
PBIC1644E
