2003 NISSAN TEANA check engine

CVT FLUID
CVT-13
D
E
F
G
H
I
J
K
L
MA
B
CVT

CVT FLUIDPFP:KLE50
Checking CVT FluidBCS001FX
Fluid level should be checked with the fluid warmed up to 50 to 80°C (122 to 176°F). The fluid level check pro-
cedure is as follows:
1. Check for fluid leakage.
2. With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20°C (68°F), it takes about 10
minutes for the CVT fluid to warm up to 50 to 80°C (122 to
176°F).
3. Park the vehicle on a level surface.
4. Apply parking brake firmly.
5. With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.
6. Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.
7. Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180° from the originally installed position,
then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.
CAUTION:
When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.
8. Place the selector lever in “P” or “N” and make sure the fluid
level is within the specified range.
CAUTION:
When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until it is securely locked.
SMA146B
SCIA1933E
SCIA1931E
SCIA1932E

CVT-14
CVT FLUID

9. Check CVT fluid condition.

If CVT fluid is very dark or smells burned, check operation of
CVT. Flush cooling system after repair of CVT.

If CVT fluid contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of CVT. Refer to CO-37,
"RADIATOR" .
Changing CVT FluidBCS001FY
1. Warm up CVT fluid by driving the vehicle for 10 minutes.

: Vehicle front

Radiator (2)

CVT fluid cooler hose [inlet side (3)]

Transaxle assembly (4)
2. Drain CVT fluid from CVT fluid cooler hose [outlet side (1)] and
refill with new CVT fluid at CVT fluid charging pipe with the
engine running at idle speed.
3. Refill until new CVT fluid comes out from CVT fluid cooler hose
[outlet side (1)].
About 30 to 50% extra fluid will be required for this procedure.
CAUTION:

Use only Genuine NISSAN CVT Fluid NS-2. Do not mix with other fluid.

Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and
CVT durability, and may damage the CVT, which is not covered by the warranty.

When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.

Delete CVT fluid deterioration date with CONSULT-II after changing CVT fluid. Refer to CVT-46,
"Check CVT Fluid Deterioration Date" .
4. Check fluid leakage, fluid level and condition.
ATA0022D
CVT fluid:
Genuine NISSAN CVT Fluid NS-2
Fluid capacity:
Approx. 10.2 (9 lmp qt)
SCIA6088E

TROUBLE DIAGNOSIS
CVT-25
D
E
F
G
H
I
J
K
L
MA
B
CVT

Step Motor
If an unexpected signal is sent from the step motor to the TCM, the step motor coil phases “A” through “D” are
all turned OFF to hold the gear ratio used right before the non-standard condition occurred.
CVT Lock-up Select Solenoid
If an unexpected signal is sent from the solenoid to the TCM, the CVT lock-up select solenoid is turned OFF to
cancel the lock-up.
TCM Power Supply (Memory Back-up)
Transaxle assembly is protected by limiting the engine torque when the memory back-up power supply (for
controlling) from the battery is not supplied to TCM. Normal statues is restored when turning the ignition switch
OFF to ON after the normal power supply.
How to Perform Trouble Diagnosis for Quick and Accurate RepairBCS001GG
INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, PNP
switch and provides shift control or lock-up control via CVT solenoid
valves.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve mal-
function, etc.
It is much more difficult to diagnose an error that occurs intermit-
tently rather than continuously. Most intermittent errors are caused
by poor electric connections or improper wiring. In this case, careful
checking of suspected circuits may help prevent the replacement of
good parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-II or a circuit tester connected should be performed.
Follow the CVT-26, "
WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such errors, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “DIAGNOSTIC WORKSHEET” as
shown on the example (Refer to CVT-27
) should be used.
Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.
SAT631IB
SAT632I
SEF234G

CVT-28
TROUBLE DIAGNOSIS

4❏ Perform road testCVT-35
4-1.Check before engine is started CVT-37
❏ CVT-164, "CVT Indicator Lamp Does Not Come On"
❏ Perform self-diagnosis. Enter checks for detected items. CVT-47
❏ CVT-53, "DTC U1000 CAN COMMUNICATION LINE"
❏ CVT-56, "DTC P0615 START SIGNAL CIRCUIT"
❏ CVT-60, "DTC P0703 STOP LAMP SWITCH CIRCUIT"
❏ CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
❏ CVT-69, "DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT"
❏ CVT-74, "DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)"
❏ CVT-79, "DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SEN-
SOR)"
❏ CVT-85, "DTC P0725 ENGINE SPEED SIGNAL"
❏ CVT-87, "DTC P0730 BELT DAMAGE"
❏ CVT-89, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
❏ CVT-94, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
❏ CVT-97, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
❏ CVT-102, "DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE
(LINE PRESSURE SOLENOID VALVE)"
❏ CVT-105, "DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE
(SEC PRESSURE SOLENOID VALVE)"
❏ CVT-108, "DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC
PRESSURE SOLENOID VALVE)"
❏ CVT-113, "DTC P0826 MANUAL MODE SWITCH CIRCUIT"
❏ CVT-118, "DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT
(SEC PRESSURE SENSOR)"
❏ CVT-123, "DTC P0841 PRESSURE SENSOR FUNCTION"
❏ CVT-126, "DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT
(PRI PRESSURE SENSOR)"
❏ CVT-131, "DTC P0868 SECONDARY PRESSURE DOWN"
❏ CVT-134, "DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)"
❏ CVT-139, "DTC P1705 THROTTLE POSITION SENSOR"
❏ CVT-141, "DTC P1722 ESTM VEHICLE SPEED SIGNAL"
❏ CVT-143, "DTC P1723 CVT SPEED SENSOR FUNCTION"
❏ CVT-145, "DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM"
❏ CVT-147, "DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT"
❏ CVT-153, "DTC P1777 STEP MOTOR - CIRCUIT"
❏ CVT-157, "DTC P1778 STEP MOTOR - FUNCTION"
4-2.Check at idleCVT-37
❏ CVT-165, "Engine Cannot Be Started in “P” or “N” Position"
❏ CVT-166, "In “P” Position, Vehicle Moves Forward or Backward When Pushed"
❏ CVT-166, "In “N” Position, Vehicle Moves"
❏ CVT-167, "Large Shock “N” → “R” Position"
❏ CVT-168, "Vehicle Does Not Creep Backward in “R” Position"
❏ CVT-169, "Vehicle Does Not Creep Forward in “D” Position"

TROUBLE DIAGNOSIS
CVT-29
D
E
F
G
H
I
J
K
L
MA
B
CVT

44-3.Cruise testCVT-38
❏ CVT-170, "CVT Does Not Shift"
❏ CVT-171, "Cannot Be Changed to Manual Mode"
❏ CVT-171, "CVT Does Not Shift in Manual Mode"
❏ CVT-172, "Vehicle Does Not Decelerate by Engine Brake"
❏ Perform self-diagnosis. Enter checks for detected items. CVT-47
❏ CVT-53, "DTC U1000 CAN COMMUNICATION LINE"
❏ CVT-56, "DTC P0615 START SIGNAL CIRCUIT"
❏ CVT-60, "DTC P0703 STOP LAMP SWITCH CIRCUIT"
❏ CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
❏ CVT-69, "DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT"
❏ CVT-74, "DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)"
❏ CVT-79, "DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SEN-
SOR)"
❏ CVT-85, "DTC P0725 ENGINE SPEED SIGNAL"
❏ CVT-87, "DTC P0730 BELT DAMAGE"
❏ CVT-89, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
❏ CVT-94, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
❏ CVT-97, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
❏ CVT-102, "DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE
(LINE PRESSURE SOLENOID VALVE)"
❏ CVT-105, "DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE
(SEC PRESSURE SOLENOID VALVE)"
❏ CVT-108, "DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC
PRESSURE SOLENOID VALVE)"
❏ CVT-113, "DTC P0826 MANUAL MODE SWITCH CIRCUIT"
❏ CVT-118, "DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT
(SEC PRESSURE SENSOR)"
❏ CVT-123, "DTC P0841 PRESSURE SENSOR FUNCTION"
❏ CVT-126, "DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT
(PRI PRESSURE SENSOR)"
❏ CVT-131, "DTC P0868 SECONDARY PRESSURE DOWN"
❏ CVT-134, "DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)"
❏ CVT-139, "DTC P1705 THROTTLE POSITION SENSOR"
❏ CVT-141, "DTC P1722 ESTM VEHICLE SPEED SIGNAL"
❏ CVT-143, "DTC P1723 CVT SPEED SENSOR FUNCTION"
❏ CVT-145, "DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM"
❏ CVT-147, "DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT"
❏ CVT-153, "DTC P1777 STEP MOTOR - CIRCUIT"
❏ CVT-157, "DTC P1778 STEP MOTOR - FUNCTION"
5❏ Inspect each system for items found to be NG in the self-diagnosis and repair or replace the malfunctioning parts
6❏ Perform all road tests and enter the checks again for the required itemsCVT-35
7❏ For any remaining NG items, perform the “diagnosis procedure” and repair or replace the malfunctioning parts
8❏ Erase the results of the self-diagnosis from the TCMCVT-49

CVT-32
TROUBLE DIAGNOSIS

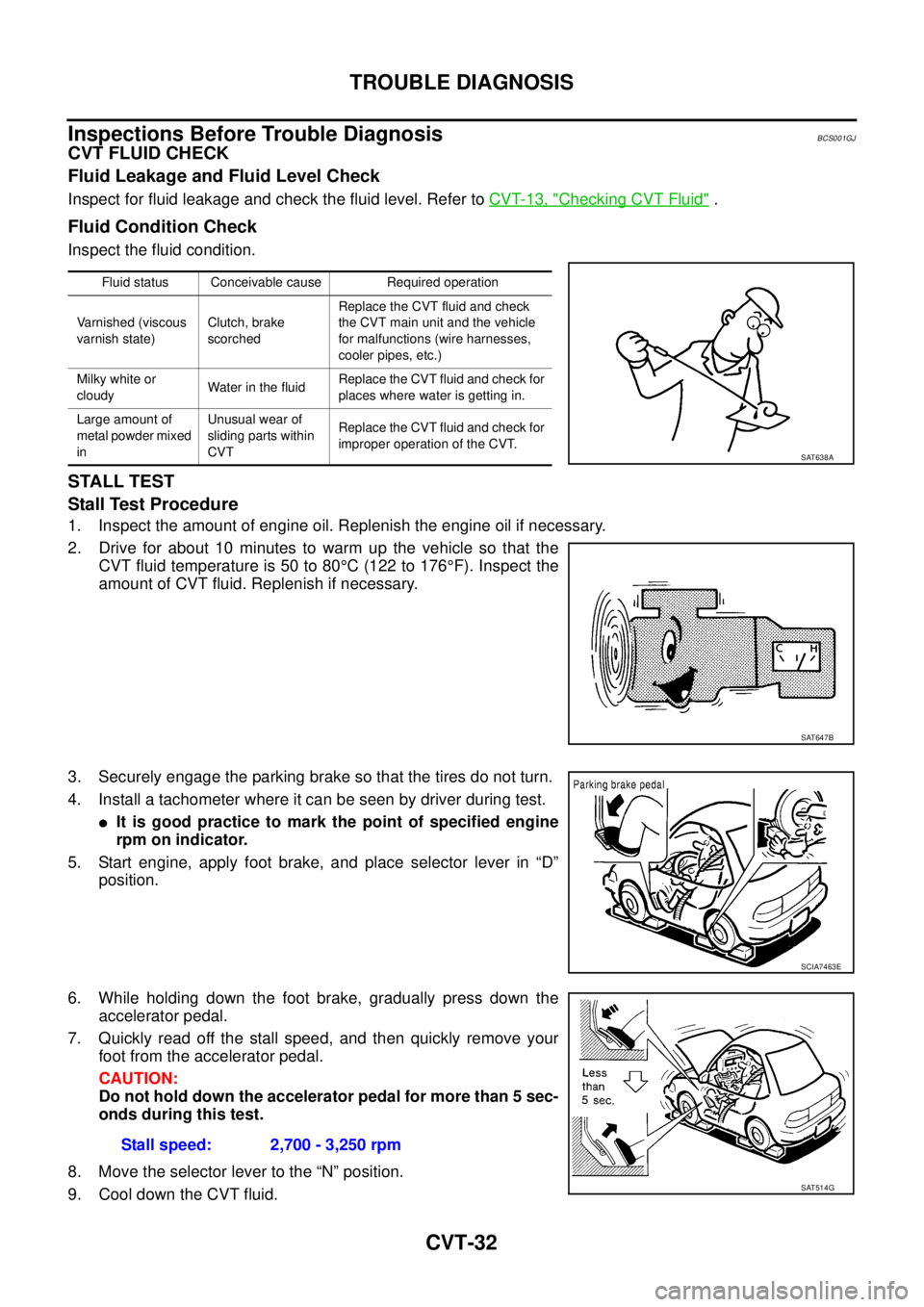

Inspections Before Trouble DiagnosisBCS001GJ
CVT FLUID CHECK
Fluid Leakage and Fluid Level Check
Inspect for fluid leakage and check the fluid level. Refer to CVT-13, "Checking CVT Fluid" .
Fluid Condition Check
Inspect the fluid condition.
STALL TEST
Stall Test Procedure
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the
CVT fluid temperature is 50 to 80°C (122 to 176°F). Inspect the
amount of CVT fluid. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.
4. Install a tachometer where it can be seen by driver during test.

It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in “D”
position.
6. While holding down the foot brake, gradually press down the
accelerator pedal.
7. Quickly read off the stall speed, and then quickly remove your
foot from the accelerator pedal.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.
8. Move the selector lever to the “N” position.
9. Cool down the CVT fluid.
Fluid status Conceivable cause Required operation
Varnished (viscous
varnish state)Clutch, brake
scorchedReplace the CVT fluid and check
the CVT main unit and the vehicle
for malfunctions (wire harnesses,
cooler pipes, etc.)
Milky white or
cloudyWater in the fluidReplace the CVT fluid and check for
places where water is getting in.
Large amount of
metal powder mixed
inUnusual wear of
sliding parts within
CVTReplace the CVT fluid and check for
improper operation of the CVT.
SAT638A
SAT647B
SCIA7463E
Stall speed: 2,700 - 3,250 rpm
SAT514G

TROUBLE DIAGNOSIS
CVT-35
D
E
F
G
H
I
J
K
L
MA
B
CVT

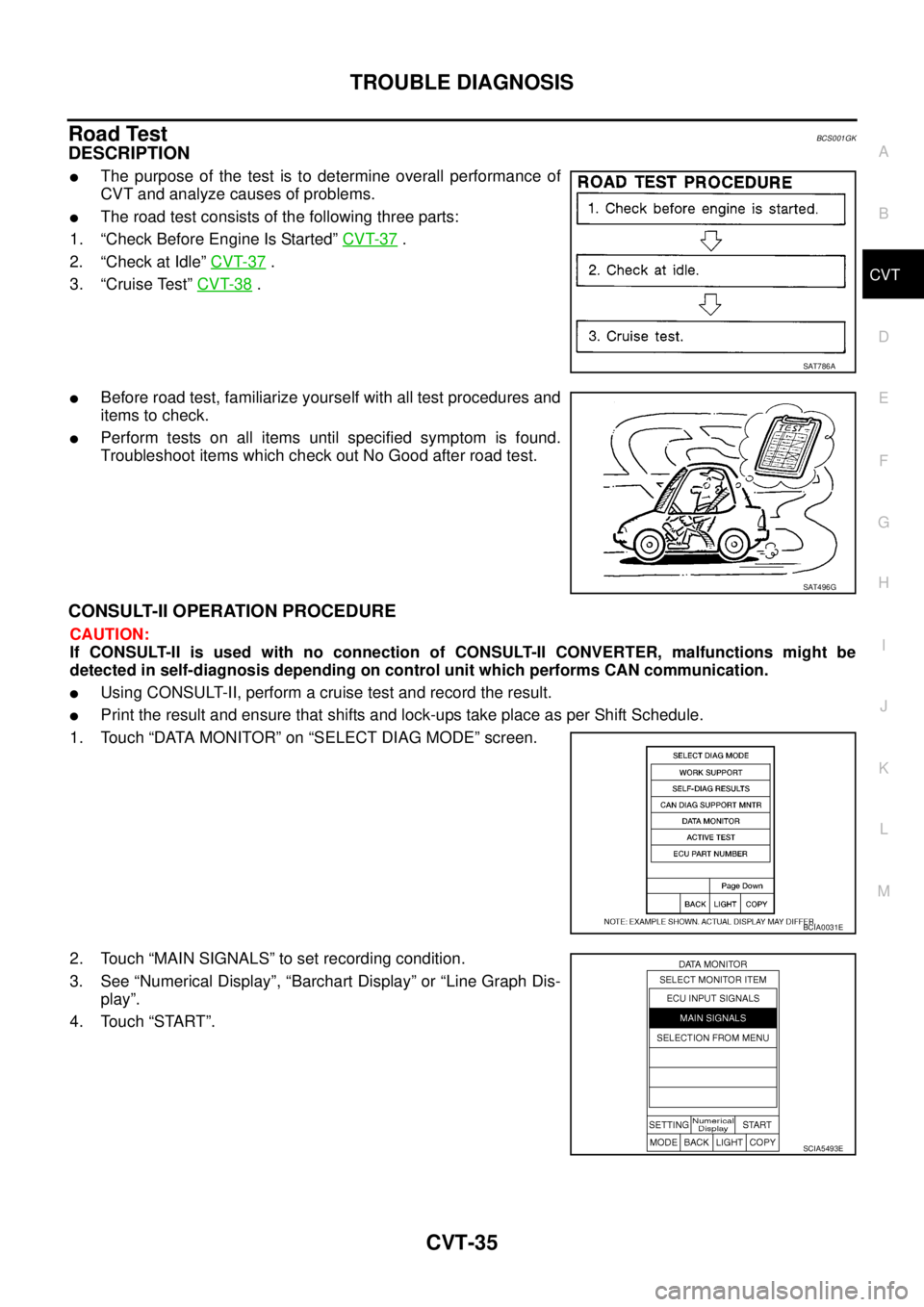

Road TestBCS001GK
DESCRIPTION

The purpose of the test is to determine overall performance of
CVT and analyze causes of problems.

The road test consists of the following three parts:
1. “Check Before Engine Is Started” CVT-37
.
2. “Check at Idle” CVT-37
.
3. “Cruise Test” CVT-38
.

Before road test, familiarize yourself with all test procedures and
items to check.

Perform tests on all items until specified symptom is found.
Troubleshoot items which check out No Good after road test.
CONSULT-II OPERATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which performs CAN communication.

Using CONSULT-II, perform a cruise test and record the result.

Print the result and ensure that shifts and lock-ups take place as per Shift Schedule.
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch “MAIN SIGNALS” to set recording condition.
3. See “Numerical Display”, “Barchart Display” or “Line Graph Dis-
play”.
4. Touch “START”.
SAT786A
SAT496G
BCIA0031E
SCIA5493E

TROUBLE DIAGNOSIS
CVT-37
D
E
F
G
H
I
J
K
L
MA
B
CVT

Check Before Engine Is StartedBCS001GL
1. CHECK CVT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does CVT indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF.
2. Perform self-diagnosis and note NG items.
Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
3. Go to CVT-37, "
Check at Idle" .
NO >> Stop “Road Test”. Go to CVT-164, "
CVT Indicator Lamp Does Not Come On" .
Check at IdleBCS001GM
1. CHECK STARTING THE ENGINE
1. Park vehicle on flat surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch OFF.
4. Turn ignition switch to START position.
Is engine started?
YES >> GO TO 2.
NO >> Stop “Road Test”. Mark the box on the CVT-27, "
DIAGNOSTIC WORKSHEET" . Go to CVT-165,
"Engine Cannot Be Started in “P” or “N” Position" .
2. CHECK STARTING THE ENGINE
1. Turn ignition switch ON.
2. Move selector lever to “D”, “M” or “R” position.
3. Turn ignition switch to START position.
Is engine started?
YES >> Stop “Road Test”. Mark the box on the CVT-27, "DIAGNOSTIC WORKSHEET" . Go to CVT-165,
"Engine Cannot Be Started in “P” or “N” Position" .
NO >> GO TO 3.
3. CHECK “P” POSITION FUNCTION
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
5. Apply parking brake.
Does vehicle move when it is pushed forward or backward?
YES >> Mark the box CVT-166, "In “P” Position, Vehicle Moves Forward or Backward When Pushed" on
the CVT-27, "
DIAGNOSTIC WORKSHEET" . Continue “Road Test”.
NO >> GO TO 4.
