VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-85
D
E
F
G
H
I
J
K
L
MA
B
AT

6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminals and revolu-
tion sensor harness connector terminal. Refer to AT- 4 2 , "
Circuit
Diagram" and AT- 1 5 8 , "Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminal and revolu-
tion sensor harness connector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform AT- 8 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector Terminal Continuity
TCM connector F104 10
Ye s
Revolution sensor harness
connectorF15 1
TCM connector F104 19
Ye s
Revolution sensor harness
connectorF15 1
SCIA2617E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s
Revolution sensor harness
connectorF15 3
SCIA2618E

AT-124
TURBINE REVOLUTION SENSOR

5. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
6. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal. Refer to AT- 4 2 , "
Circuit Diagram" and AT- 1 5 8 ,
"Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Continuity
TCM connector F104 10
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
TCM connector F104 19
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
SCIA2773E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 3
SCIA2774E

PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
AT-163
D
E
F
G
H
I
J
K
L
MA
B
AT

3. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector F105 terminals and
ground while moving selector lever through each position. Refer
to AT- 1 6 8 , "
Wiring Diagram — AT — NONDTC" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
4. CHECK PNP SWITCH
Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and PNP switch.

Harness for short or open between PNP switch and TCM.

Harness for short or open between unified meter and A/C amp and PNP switch.

Harness for short or open between unified meter and A/C amp and TCM.

10A fuse (No.14, located in the fuse block)

Unified meter and A/C amp. Refer to DI-27, "UNIFIED METER AND A/C AMP" .

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Lever positionTerminal
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0 B 0 0 0
“D”·“3” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA4343E

BRAKE SIGNAL CIRCUIT
AT-167
D
E
F
G
H
I
J
K
L
MA
B
AT

BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueBCS0026P
Diagnostic ProcedureBCS0026Q
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 7 6 , "Diagnostic Proce-
dure Without CONSULT-II" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer toAT- 1 3 3 , "CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector termi-
nals. Refer to AT- 1 6 8 , "
Wiring Diagram — AT — NONDTC" .
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> Check the following. If NG, repair or replace damaged
parts.

Harness for short or open between battery and stop lamp switch.

Harness for short or open between stop lamp switch and unified meter and A/C amp.

10A fuse (No.20, located in fuse block).
NG >> Repair or replace the stop lamp switch.
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
SCIA7913E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2126E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-173
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T CHECK Indicator Lamp Does Not Come OnBCS00149
SYMPTOM:
A/T CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch ON.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 3 3 , "CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .
3. Turn ignition switch OFF.
4. Check voltage between TCM connector terminals and ground.
Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and TCM connector terminals 10, 19
Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .

Harness for short or open between battery and TCM connector terminal 28
Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .

15A fuse (No.17, located in the fuse block) and 10A fuse (No.83, located in the IPDM E/R)

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item Connector Terminal Judgement standard (Approx.)
TCM connectorF10410
Battery voltage 19
F105 28
SCIA2656E
ItemConnec-
torTerminal Judgement standard (Approx.)
TCM connectorF10410 0 V
19 0 V
F105 28 Battery voltage
SCIA2657E

AT-174
TROUBLE DIAGNOSIS FOR SYMPTOMS

4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between TCM connector terminals and ground.
Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness and fuse for short or open between ignition switch and A/T CHECK indicator lamp
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .

Harness for short or open between A/T CHECK indicator lamp and TCM
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. SYMPTOM CHECK
Check again. Refer to AT- 4 8 , "
Check Before Engine Is Started" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM connector F10525
Ye s
48
SCIA2671E

BCM (BODY CONTROL MODULE)
BCS-15
C
D
E
F
G
H
I
J
L
MA
B
BCS

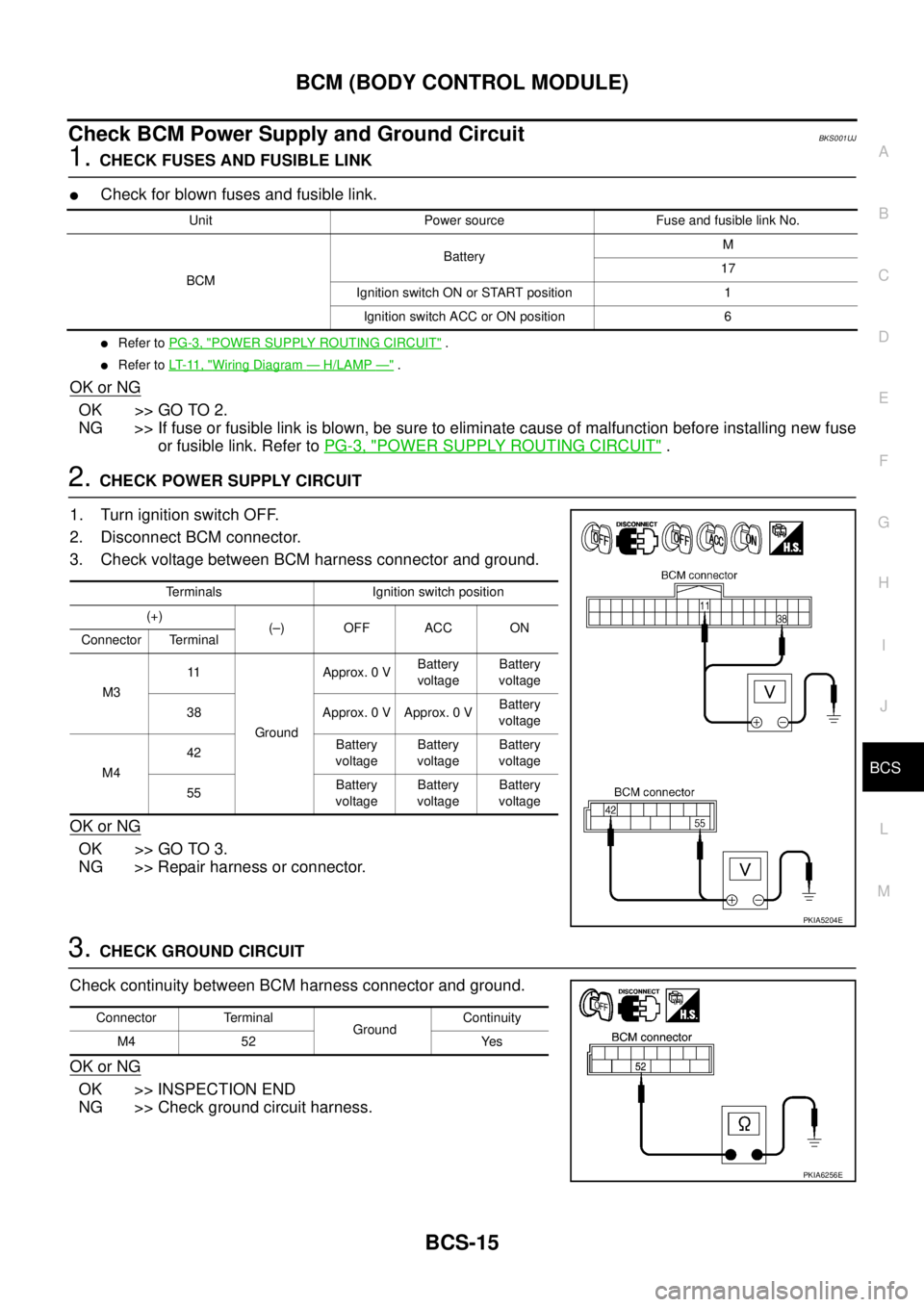

Check BCM Power Supply and Ground CircuitBKS001UJ
1. CHECK FUSES AND FUSIBLE LINK

Check for blown fuses and fusible link.

Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .

Refer to LT- 11 , "Wiring Diagram — H/LAMP —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Check ground circuit harness.
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6
Terminals Ignition switch position
(+)
(–) OFF ACC ON
Connector Terminal
M311
GroundApprox. 0 VBattery
voltageBattery
voltage
38 Approx. 0 V Approx. 0 VBattery
voltage
M442 Battery
voltageBattery
voltageBattery
voltage
55 Battery
voltageBattery
voltageBattery
voltage
PKIA5204E
Connector Terminal
GroundContinuity
M4 52 Yes
PKIA6256E

DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-83
D
E
F
G
H
I
J
K
L
MA
B
CVT

5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and them drive the vehi-
cle [more than 40 km/h (25 MPH)], perform self-diagnosis check. Refer to CVT-79, "
DTC Confirmation Proce-
dure" .
Is
“P0720 VEH SPD SEN/CIR AT” detected again?
YES >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NO >> Replace TCM. Refer to CVT-9, "
Precautions for TCM and CVT Assembly Replacement" .
6. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminals and output
speed sensor (secondary speed sensor) harness connector ter-
minal. Refer to CVT-31, "
Circuit Diagram" .
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No. 83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminal and output
speed sensor (secondary speed sensor) harness connector ter-
minal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Continuity
TCM F106 10
Ye s
Output speed sensor
(Secondary speed sensor) F48 3
TCM F106 19
Ye s
Output speed sensor
(Secondary speed sensor) F48 3
SCIA2369E
Item Connector Terminal Continuity
TCM F107 42
Ye s
Output speed sensor
(Secondary speed sensor) F48 1
SCIA2347E
