ASCD BRAKE SWITCH
EC-665
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

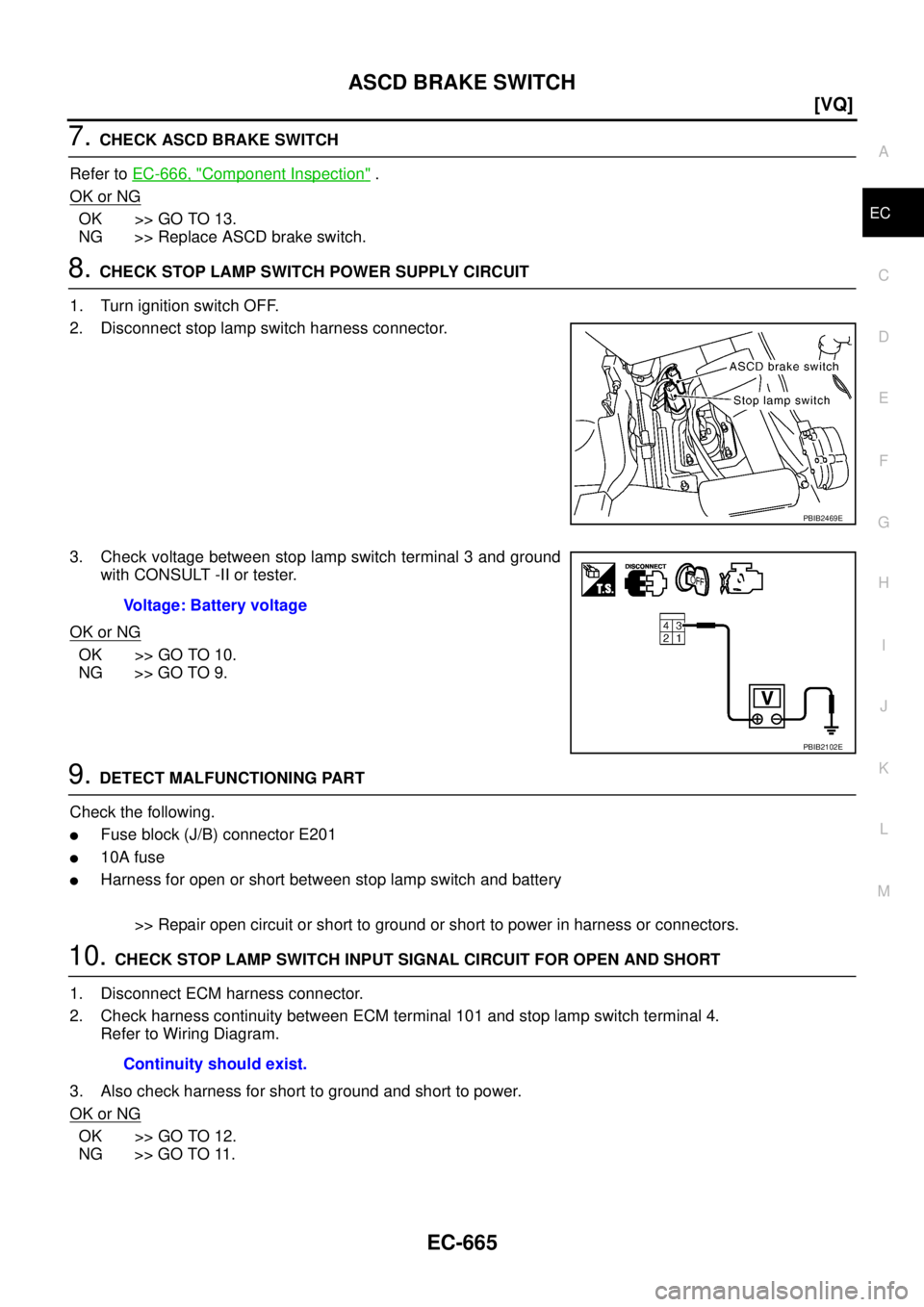

7. CHECK ASCD BRAKE SWITCH
Refer to EC-666, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace ASCD brake switch.
8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 3 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
PBIB2469E
Voltage: Battery voltage
PBIB2102E
Continuity should exist.

ELECTRONIC CONTROLLED ENGINE MOUNT
EC-675
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

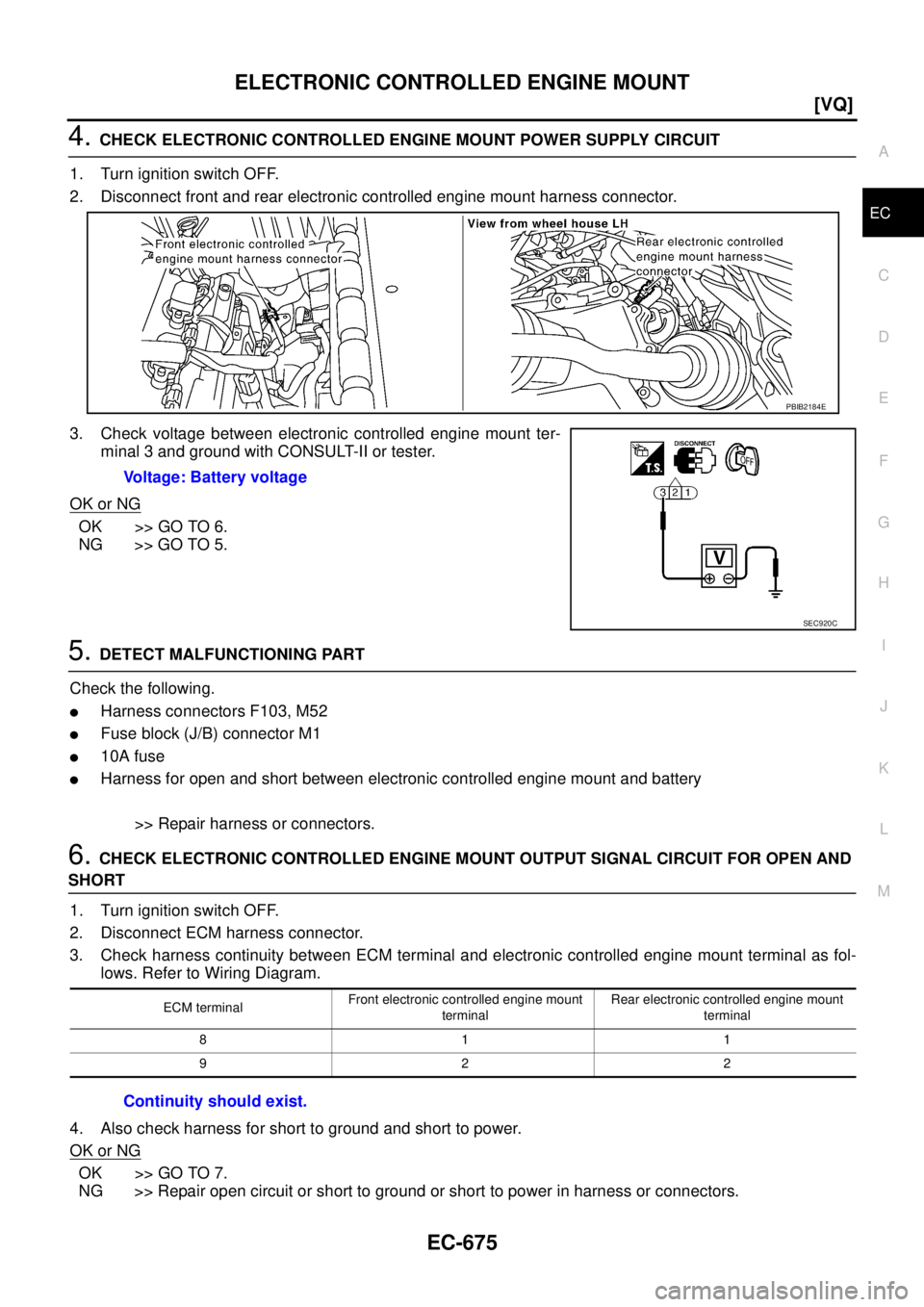

4. CHECK ELECTRONIC CONTROLLED ENGINE MOUNT POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front and rear electronic controlled engine mount harness connector.
3. Check voltage between electronic controlled engine mount ter-
minal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F103, M52

Fuse block (J/B) connector M1

10A fuse

Harness for open and short between electronic controlled engine mount and battery
>> Repair harness or connectors.
6. CHECK ELECTRONIC CONTROLLED ENGINE MOUNT OUTPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and electronic controlled engine mount terminal as fol-
lows. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2184E
Voltage: Battery voltage
SEC920C
ECM terminalFront electronic controlled engine mount
terminalRear electronic controlled engine mount
terminal
811
922
Continuity should exist.

FUEL INJECTOR
EC-687
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

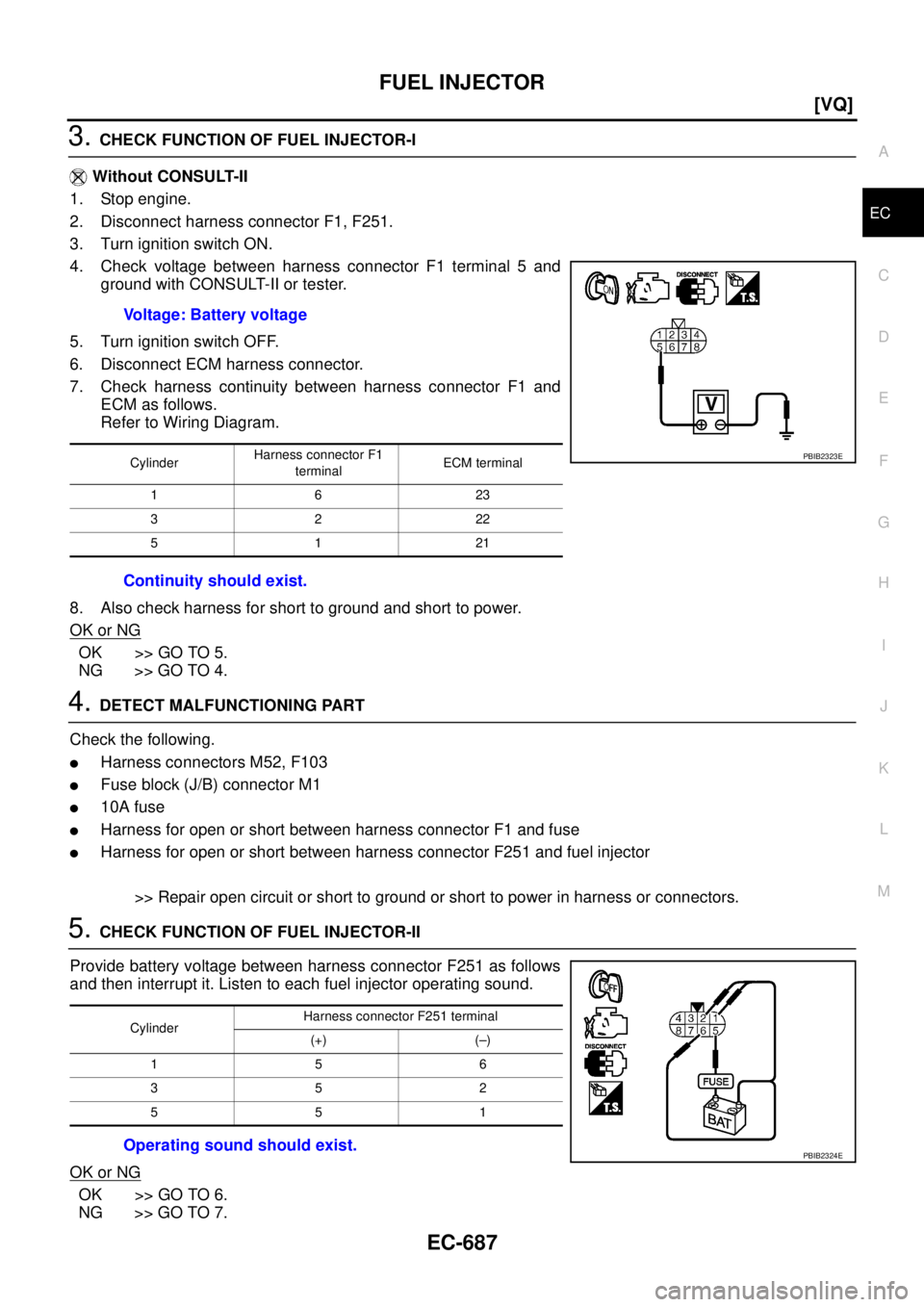

3. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II
1. Stop engine.
2. Disconnect harness connector F1, F251.
3. Turn ignition switch ON.
4. Check voltage between harness connector F1 terminal 5 and
ground with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between harness connector F1 and
ECM as follows.
Refer to Wiring Diagram.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M52, F103

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between harness connector F1 and fuse

Harness for open or short between harness connector F251 and fuel injector
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between harness connector F251 as follows
and then interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 6.
NG >> GO TO 7.Voltage: Battery voltage
CylinderHarness connector F1
terminalECM terminal
1623
3222
5121
Continuity should exist.
PBIB2323E
CylinderHarness connector F251 terminal
(+) (–)
156
352
551
Operating sound should exist.PBIB2324E

EC-712
[VQ]
HO2S1 HEATER

2. CHECK HO2S1 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 1 harness connector.
3. Turn ignition switch ON.
4. Check voltage between HO2S1 terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E39, F41

IPDM E/R connector E7

15A fuse

Harness for open or short between heated oxygen sensor 1 and fuse
>> Repair harness or connectors.
4. CHECK HO2S1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S1 terminal as follows.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Voltage: Battery voltage
PBIB2468E
PBIB0112E
Terminals
Bank
ECM Sensor
221
24 2 2
Continuity should exist.

EC-728
[VQ]
HO2S2 HEATER

2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Turn ignition switch ON.
4. Check voltage between HO2S2 terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E39, F41

IPDM E/R connector E7

15A fuse

Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair harness or connectors.
4. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2145E
Voltage: Battery voltage
PBIB0112E
Terminals
Bank
ECM Sensor
25 2 1
622
Continuity should exist.

GI-18
HOW TO USE THIS MANUAL

14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light GreenBR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details. Num-
berItem Description

IDX-4
ALPHABETICAL INDEX
Electric throttle control actuator (VQ23DE and VQ35DE)
EM-137
Electrical load signal circuit ................ EC-280, EC-670
Electrical unit ..................................................... PG-74
Electrical units location ...................................... PG-67
Electronic ignition (EI) system ............. EC-23, EC-360
EMNT - Wiring diagram ................................... EC-673
ENG SS - Wiring diagram ................................ AT-117
Engine control circuit diagram ............. EC-70, EC-413
Engine control component parts location .......... EC-64,
EC-406
Engine control module (ECM) ............ EC-190, EC-538
Engine control system diagram and chart ........ EC-20,
EC-357
Engine coolant temperature sensor (ECTS) ... EC-131,
EC-474
Engine coolant(QR20DE) ................................. CO-10
Engine coolant(VQ23DE and VQ35DE) ........... CO-34
Engine fail-safe system ........................ EC-59, EC-401
Engine mounting control (Front) ...................... EC-672
Engine oil filter replacement(QR20DE) ............. MA-21
Engine oil filter replacement(VQ23DE and VQ35DE) ...
MA-31
Engine oil precautions .......................................... GI-8
Engine oil replacement(QR20DE) .................... MA-20
Engine oil replacementVQ23DE and VQ35DE . MA-30
Engine oil(QR20DE) ............................................ LU-7
Engine oil(VQ23DE and VQ35DE) .................... LU-19
Engine removal(QR20DE) ................................ EM-77
Engine removal(VQ23DE and VQ35DE) ........ EM-223
Engine trouble diagnoses ................................ EC-394
ETC1 - Wiring diagram ...................... EC-201, EC-556
ETC2 - Wiring diagram ...................... EC-209, EC-564
ETC3 - Wiring diagram ...................... EC-214, EC-569
EVAP canister ...................................... EC-29, EC-369
EVAP canister purge volume control solenoid valve ....
EC-282
, EC-677
EVAP vapor lines inspection ............................. MA-23
EVAP vapor lines inspection(VQ23DE and VQ35DE) ..
MA-34
EVAP vapor lines inspectionVQ23DE and VQ35DE ....
MA-33
Evaporative emission (EVAP) system . EC-27, EC-366
Evaporator ..................................................... ATC-144
Exhaust manifold(QR20DE) ............................. EM-23
Exhaust manifold(VQ23DE and VQ35DE) ..... EM-140
Exhaust system ................................................... EX-2
Exhaust system inspection ..................... EX-2, MA-35
Expansion valve ............................................. ATC-145
F
F/FOG - Wiring diagram ................................... LT-129
F/LID - Wiring diagram ....................................... BL-45
F/PUMP - Wiring diagram .................. EC-296, EC-691
Floor trim ............................................................. EI-52
Flow charts ......................................................... GI-24
Fluid temparature sensor (CVT) ...................... CVT-69
Fluids ................................................................ MA-14
Fluorescent leak detector ............................. ATC-146
Fog lamp, front ................................................. LT-126
Freeze frame data .............................. EC-35, EC-376
FRO2 - Wiring diagram ..................... EC-302, EC-309
FRO2B1 - Wiring diagram ................ EC-697, EC-707
FRO2B2 - Wiring diagram ................ EC-699, EC-709
Front bumper ...................................................... EI-14
Front door ............................. BL-119, BL-123, GW-46
Front fog lamp .................................................. LT-126
Front passenger air bag .................................. SRS-39
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-46
Front side air bag ............................................ SRS-40
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram ...................................... CVT-70
Fuel cut control (at no load high engine speed) EC-24,
EC-361
Fuel gauge ............................................................ DI-4
Fuel injector and fuel tube(QR20DE) ................ EM-34
Fuel injector and fuel tube(VQ23DE and VQ35DE) ......
EM-155
Fuel lid opener, electric ...................................... BL-44
Fuel line inspection .............................................. FL-3
Fuel line inspection(QR20DE) .......................... MA-20
Fuel line inspectionVQ23DE and VQ35DE ....... MA-30
Fuel pressure check ........................... EC-49, EC-392
Fuel pressure release ......................... EC-49, EC-392
Fuel pump ......................................... EC-295, EC-690
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank .............................................................. FL-8
Fuel tank vacuum relief valve ............. EC-29, EC-369
Fuse .................................................................. PG-16
Fuse and fusible link box .................................. PG-80
Fusible link ........................................................ PG-16
G
Gauges ................................................................. DI-4
Glass ...................................... GW-11, GW-46, GW-50
Grease .............................................................. MA-14
Grille - See Exterior ............................................ EI-20
Ground distribution ........................................... PG-29
H
H/AIM - Wiring diagram ................................... LT-122
H/LAMP - Wiring diagram .................................. LT-42
Harness connector ............................................ PG-71
Harness layout .................................................. PG-42
Hazard warning lamp ....................................... LT-152
Headlamp aiming control ...................... LT-99, LT-122
Headlamp leveler - See Headlamp aiming control ........
LT-122
Headlining - See Roof trim .................................. EI-54
Heated oxygen sensor 1 ..... EC-143, EC-150, EC-301
Heated oxygen sensor 1 (bank 1) .... EC-486, EC-496,
EC-696

HEADLAMP - XENON TYPE -
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT

Terminals and Reference Values for IPDM E/RBKS001N1
How to Perform Trouble DiagnosisBKS001N2
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 6 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 1 7 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001N3
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to LT- 11 , "Wiring Diagram — H/LAMP —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/Y Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 L/W Headlamp high (RH) ONLighting switch HIGH BEAM
or PASSING positionOFF Approx. 0 V
ON Battery voltage
28 G Headlamp high (LH) ONLighting switch HIGH BEAM
or PASSING positionOFF Approx. 0 V
ON Battery voltage
30 L Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN− H— — —
49 P CAN− L— — —
60 B Ground ON — Approx. 0 V
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ACC or ON position 6
Ignition switch ON or START position 1
IPDM E/R Battery72
74
76
86
