2003 NISSAN PICK-UP Repair Manual

GHA058A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/LHD Models
with KA, YD and ZD Engines (Cont'd)
HA-4008

Wiring Diagram Ð A/C, M Ð/RHD Models
with KA Engine
GHA077A
TROUBLE DIAGNOSESMANUAL
HA-4009

GHA078A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/RHD Models
with KA Engine (Cont'd)
HA-4010

GHA079A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/RHD Models
with KA Engine (Cont'd)
HA-4011

Wiring Diagram Ð A/C, M Ð/RHD Models
with VG, YD and ZD Engines
GHA080A
TROUBLE DIAGNOSESMANUAL
HA-4012

GHA081A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/RHD Models
with VG, YD and ZD Engines (Cont'd)
HA-4013

GHA082A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/RHD Models
with VG, YD and ZD Engines (Cont'd)
HA-4014

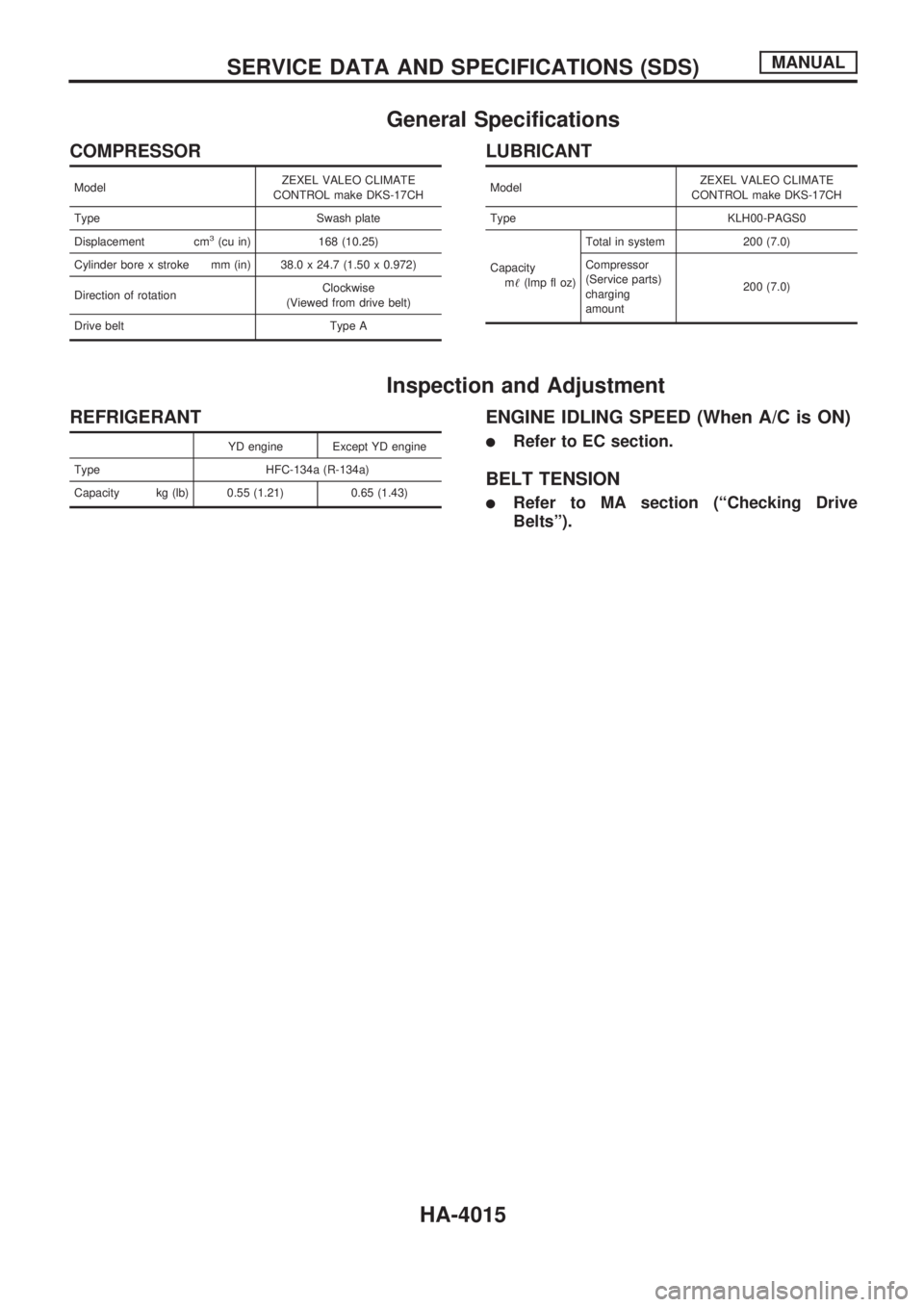

General Specifications
COMPRESSOR
ModelZEXEL VALEO CLIMATE
CONTROL make DKS-17CH
Type Swash plate
Displacement cm
3(cu in) 168 (10.25)
Cylinder bore x stroke mm (in) 38.0 x 24.7 (1.50 x 0.972)
Direction of rotationClockwise
(Viewed from drive belt)
Drive belt Type A
LUBRICANT
ModelZEXEL VALEO CLIMATE
CONTROL make DKS-17CH
Type KLH00-PAGS0
Capacity
m!(lmp fl oz)Total in system 200 (7.0)
Compressor
(Service parts)
charging
amount200 (7.0)
Inspection and Adjustment
REFRIGERANT
YD engine Except YD engine
Type HFC-134a (R-134a)
Capacity kg (lb) 0.55 (1.21) 0.65 (1.43)
ENGINE IDLING SPEED (When A/C is ON)
lRefer to EC section.
BELT TENSION
lRefer to MA section (ªChecking Drive
Beltsº).
SERVICE DATA AND SPECIFICATIONS (SDS)MANUAL
HA-4015
