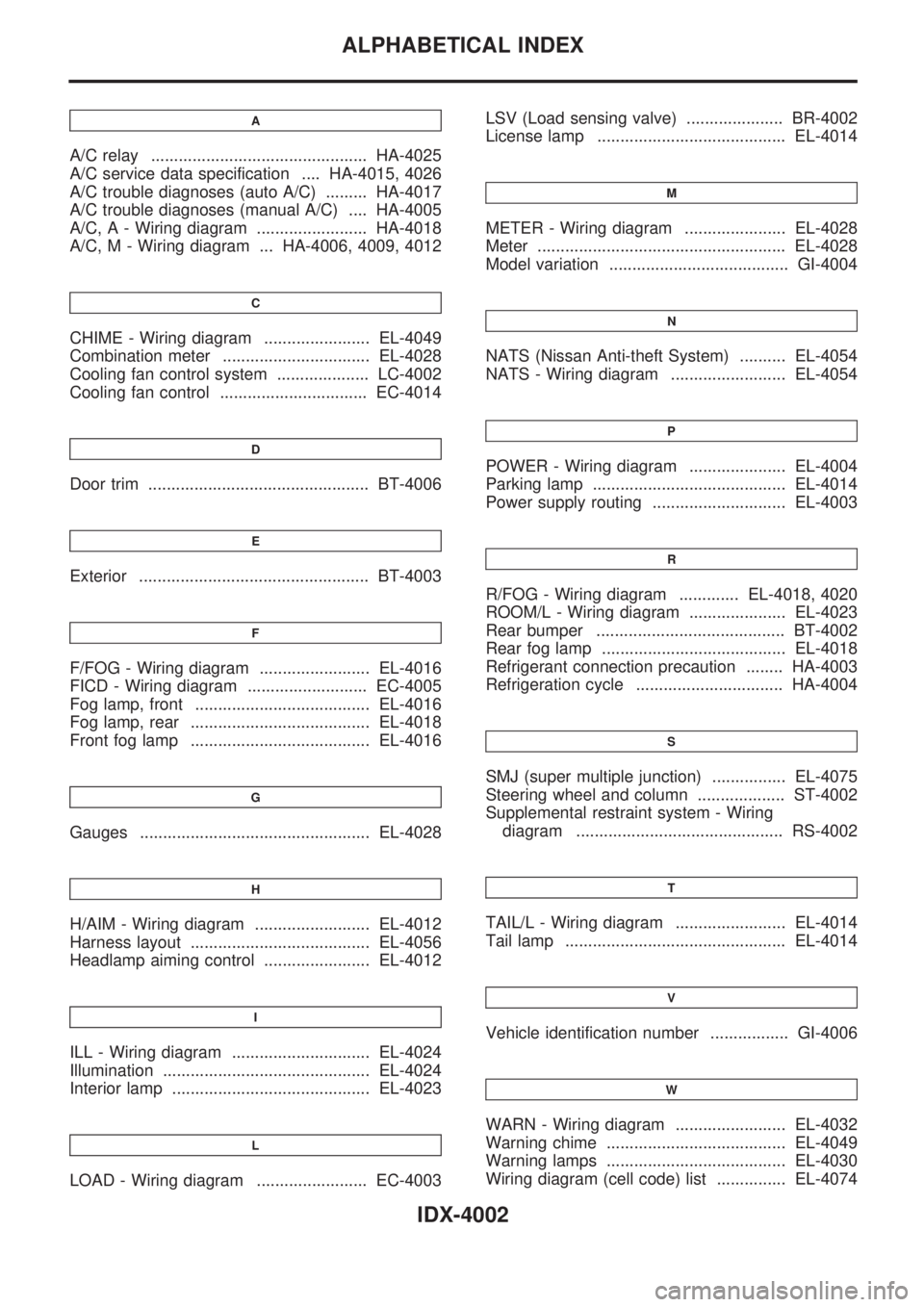

ALPHABETICAL INDEX
IDX-4002

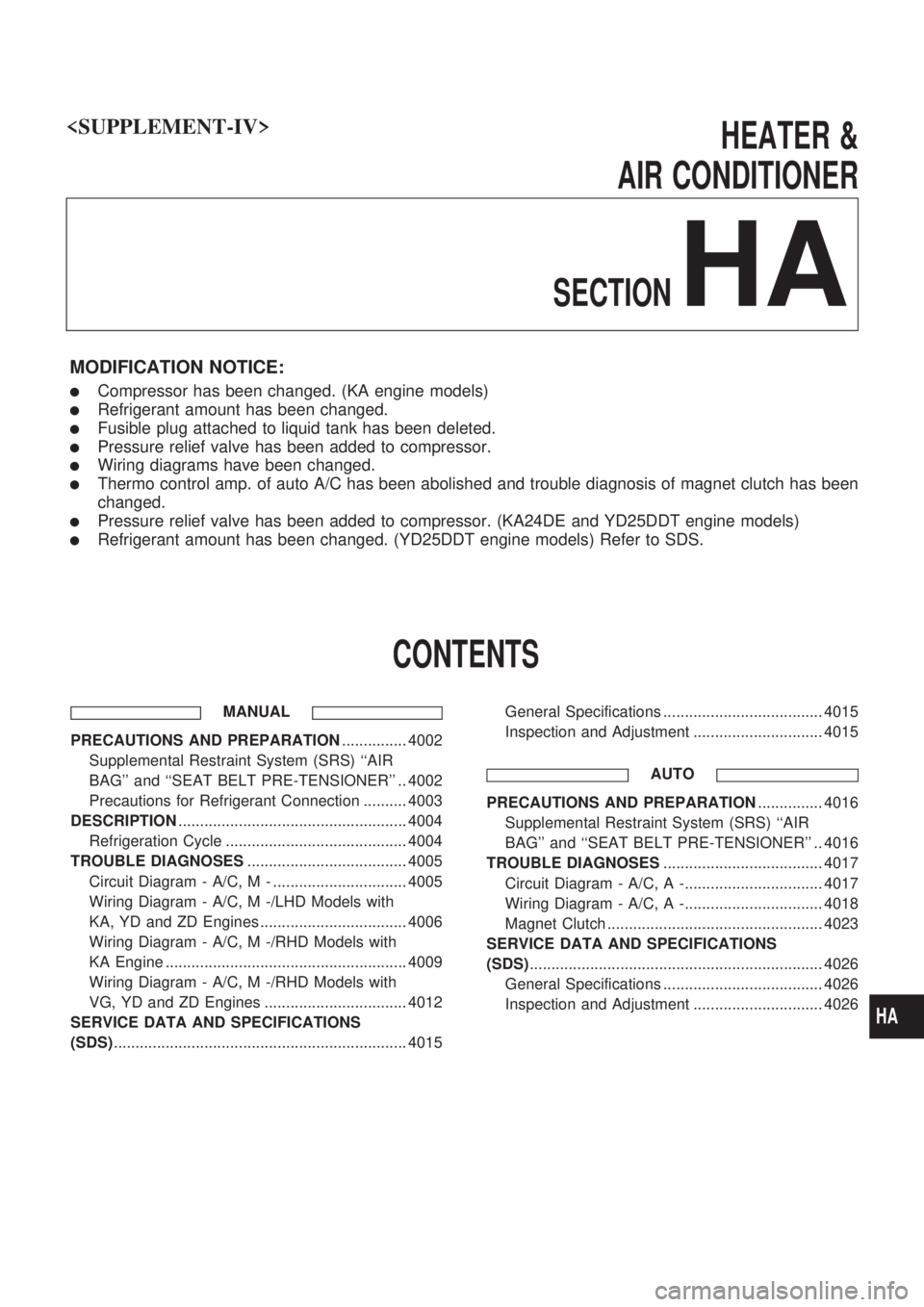

HEATER &
AIR CONDITIONER
SECTION
HA
MODIFICATION NOTICE:
lCompressor has been changed. (KA engine models)
lRefrigerant amount has been changed.
lFusible plug attached to liquid tank has been deleted.
lPressure relief valve has been added to compressor.
lWiring diagrams have been changed.
lThermo control amp. of auto A/C has been abolished and trouble diagnosis of magnet clutch has been
changed.
lPressure relief valve has been added to compressor. (KA24DE and YD25DDT engine models)
lRefrigerant amount has been changed. (YD25DDT engine models) Refer to SDS.
CONTENTS
MANUAL
PRECAUTIONS AND PREPARATION............... 4002
Supplemental Restraint System (SRS) ``AIR
BAG'' and ``SEAT BELT PRE-TENSIONER'' .. 4002
Precautions for Refrigerant Connection .......... 4003
DESCRIPTION..................................................... 4004
Refrigeration Cycle .......................................... 4004
TROUBLE DIAGNOSES..................................... 4005
Circuit Diagram - A/C, M - ............................... 4005
Wiring Diagram - A/C, M -/LHD Models with
KA, YD and ZD Engines .................................. 4006
Wiring Diagram - A/C, M -/RHD Models with
KA Engine ........................................................ 4009
Wiring Diagram - A/C, M -/RHD Models with
VG, YD and ZD Engines ................................. 4012
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 4015General Specifications ..................................... 4015
Inspection and Adjustment .............................. 4015
AUTO
PRECAUTIONS AND PREPARATION............... 4016
Supplemental Restraint System (SRS) ``AIR
BAG'' and ``SEAT BELT PRE-TENSIONER'' .. 4016
TROUBLE DIAGNOSES..................................... 4017
Circuit Diagram - A/C, A -................................ 4017
Wiring Diagram - A/C, A -................................ 4018
Magnet Clutch .................................................. 4023
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 4026
General Specifications ..................................... 4026
Inspection and Adjustment .............................. 4026

HA

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal
collision. The SRS composition which is available to NISSAN MODEL D22 is as follows (The composition
varies according to the destination and optional equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), seat belt pre-tensioner, a diagnosis sensor unit, warning lamp,
wiring harness and spiral cable.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
PRECAUTIONS AND PREPARATIONMANUAL
HA-4002

Precautions for Refrigerant Connection
A new type refrigerant connection has been introduced to all refrigerant lines except the following location.
lExpansion valve to cooling unit
FEATURES OF NEW TYPE REFRIGERANT CONNECTION
lThe O-ring has been relocated. It has also been provided with a groove for proper installation. This elimi-
nates the chance of the O-ring being caught in, or damaged by, the mating part. The sealing direction of the
O-ring is now set vertically in relation to the contacting surface of the mating part to improve sealing char-
acteristics.
lThe reaction force of the O-ring will not occur in the direction that causes the joint to pull out, thereby
facilitating piping connections.
CAUTION:
The new and former refrigerant connections use different O-ring configurations. Do not confuse
O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at, or
around, the connection.
O-ring part numbers and specifications
Connection
typeO-ring
sizePart number D mm (in) W mm (in)
New
892471 N8210 6.8 (0.268) 1.87 (0.0736)
Former 92470 N8200 6.07 (0.2390) 1.78 (0.0701)
New
1292472 N8210 10.9 (0.429) 2.43 (0.0957)
Former 92475 71L00 11.0 (0.433) 2.4 (0.094)
New
1692473 N8210 13.6 (0.535) 2.43 (0.0957)
Former 92475 72L00 14.3 (0.563) 2.3 (0.091)
New
1992474 N8210 16.5 (0.650) 2.43 (0.0957)
Former 92477 N8200 17.12 (0.6740) 1.78 (0.0701)
SHA815E
SHA814E
PRECAUTIONS AND PREPARATIONMANUAL
HA-4003

Refrigeration Cycle
REFRIGERANT SYSTEM PROTECTION
The refrigerant system is also protected by a pressure relief valve located on the compressor (Except VG
engine models) or high-pressure flexible hose (VG engine models). When the pressure of refrigerant in the
system increases to an unusual level [more than 3,727 kPa (37.3 bar, 38 kg/cm
2, 540 psi)], the release port
on the pressure relief valve automatically opens and releases refrigerant into the atmosphere.
RHA286I
DESCRIPTIONMANUAL
HA-4004

Circuit Diagram Ð A/C, M Ð
GHA076A
TROUBLE DIAGNOSESMANUAL
HA-4005

Wiring Diagram Ð A/C, M Ð/LHD Models
with KA, YD and ZD Engines
GHA056A
TROUBLE DIAGNOSESMANUAL
HA-4006

GHA057A
TROUBLE DIAGNOSESMANUAL
Wiring Diagram Ð A/C, M Ð/LHD Models
with KA, YD and ZD Engines (Cont'd)
HA-4007
