2003 NISSAN PICK-UP Repair Manual

Stylish Guard Bar
REMOVAL Ð Stylish guard bar assembly
V1Remove nuts of guard bar (left).
V2Remove nuts of guard bar (right).
V3Remove bolt of guard bar (right).
V4Remove stylish guard bar assembly.
PIIA6340E
EXTERIOR
BT-4004

Side Step
REMOVAL Ð Side step assembly
V1Remove front kicking plate (left/right).
V2Remove rear kicking plate (left/right).
V3Remove dash side finisher (left/right).
V4Remove front seat (left/right).
V5Disconnect front seat belt harness connector (right).
V6Remove bolts of side step (front).
V7Remove bolts of side step (rear).
V8Remove bolts of side step (center).
V9Remove side step assembly.
PIIA6339E
EXTERIOR
BT-4005

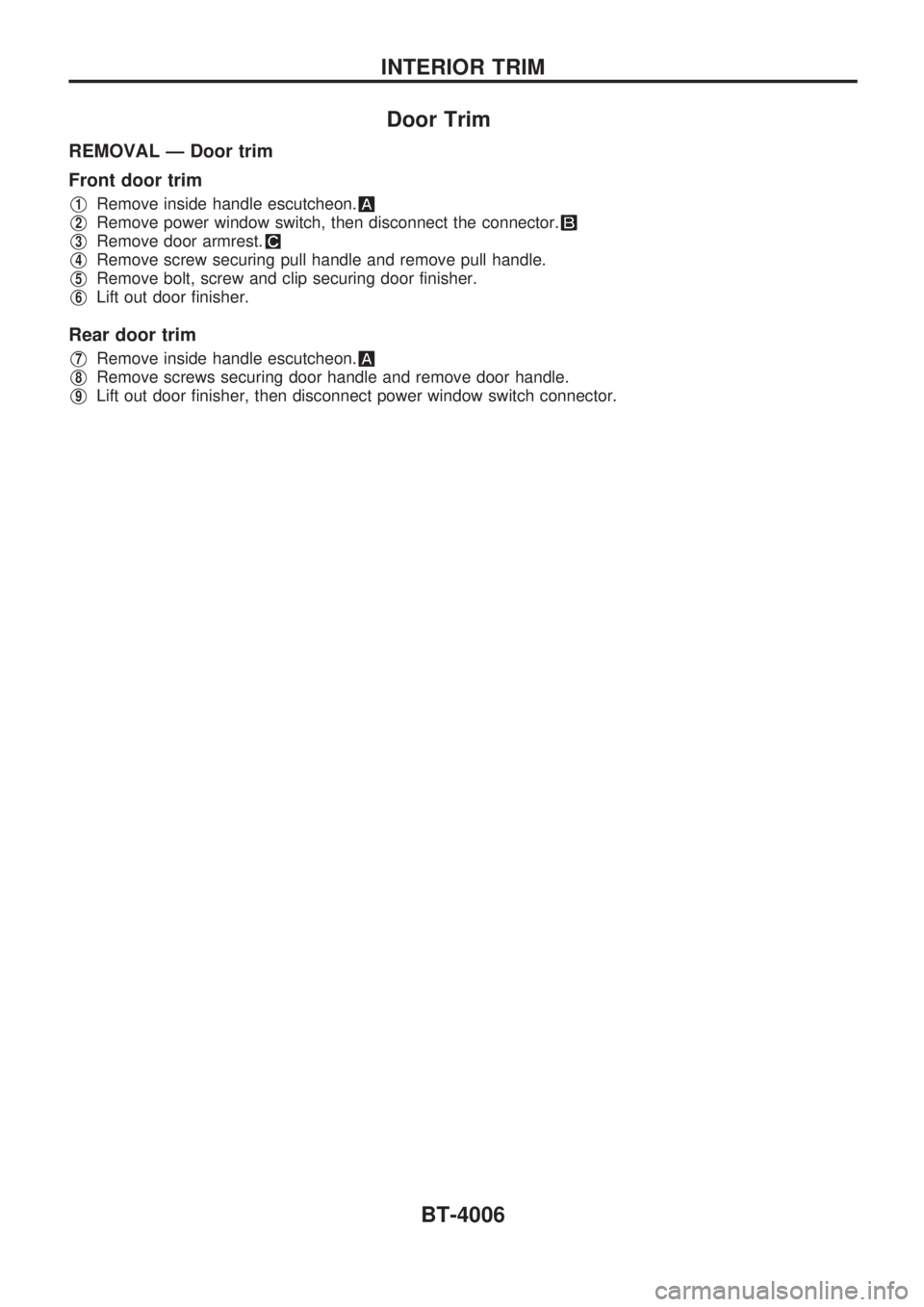

Door Trim
REMOVAL Ð Door trim
Front door trim
V1Remove inside handle escutcheon.
V2Remove power window switch, then disconnect the connector.
V3Remove door armrest.
V4Remove screw securing pull handle and remove pull handle.
V5Remove bolt, screw and clip securing door finisher.
V6Lift out door finisher.
Rear door trim
V7Remove inside handle escutcheon.
V8Remove screws securing door handle and remove door handle.
V9Lift out door finisher, then disconnect power window switch connector.
INTERIOR TRIM
BT-4006

SBT437
INTERIOR TRIM

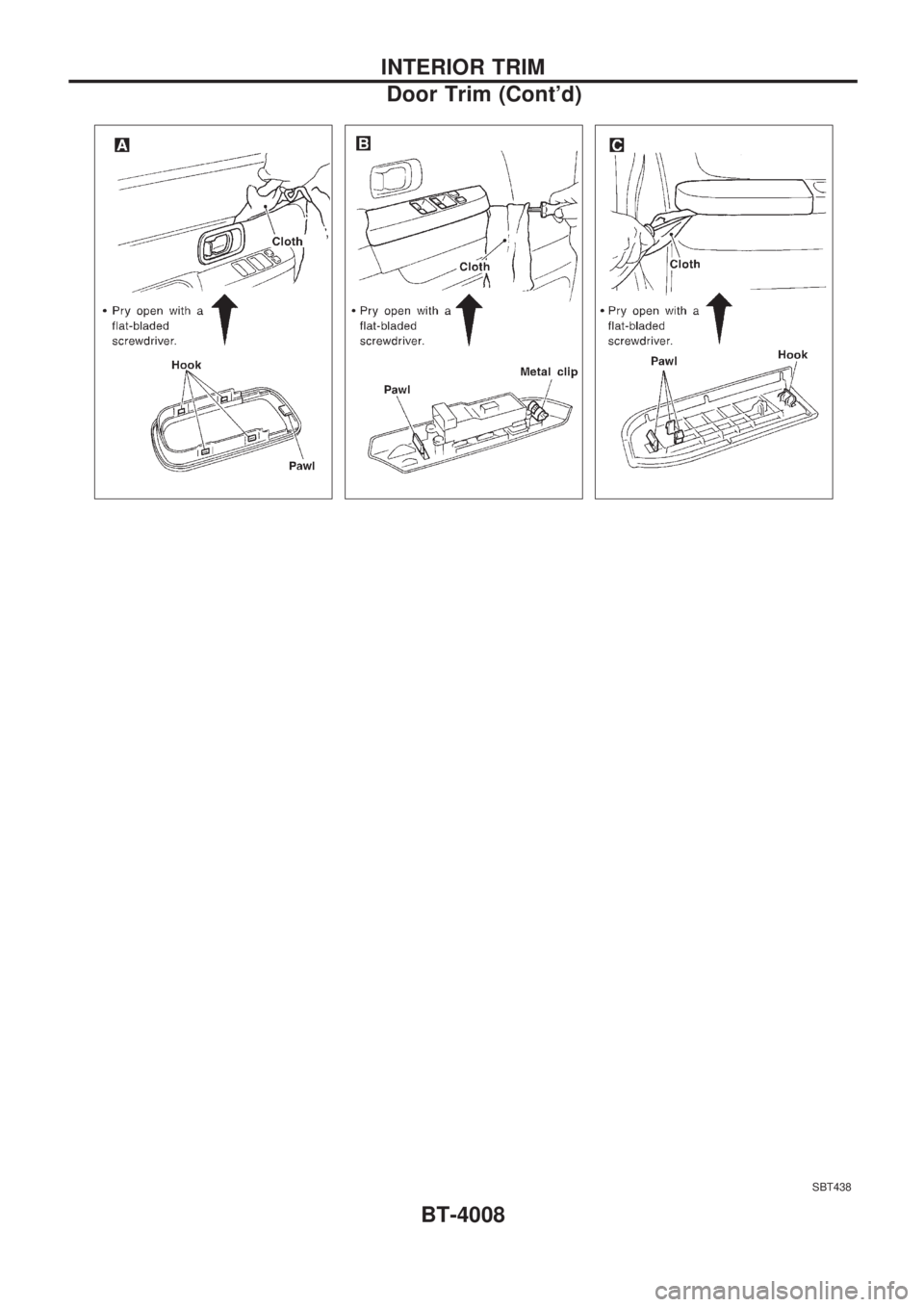

Door Trim (Cont'd)
BT-4007

SBT438
INTERIOR TRIM

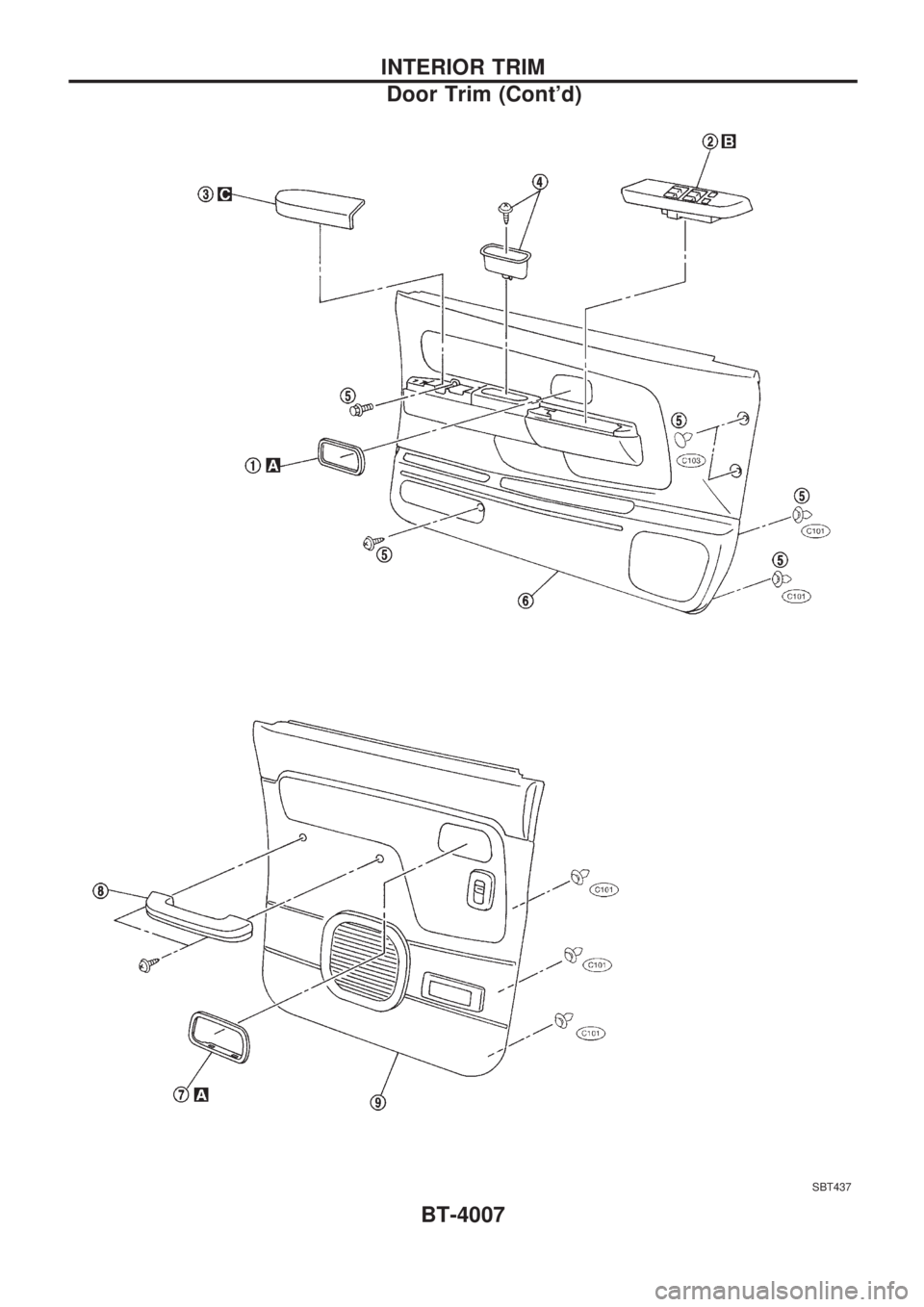

Door Trim (Cont'd)
BT-4008

ELECTRICAL SYSTEM
SECTION
EL
MODIFICATION NOTICE:
lWiring diagrams have been changed.
lHarness layouts have been changed.
lFog lamp system has been changed.
lCD auto-changer has been added.
CONTENTS
PRECAUTIONS................................................... 4002
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER².. 4002
POWER SUPPLY ROUTING............................... 4003
Schematic ........................................................ 4003
Wiring Diagram - POWER -............................. 4004
COMBINATION SWITCH.................................... 4011
HEADLAMP - Headlamp Aiming Control -....... 4012
Wiring Diagram - H/AIM - ................................ 4012
PARKING, LICENSE AND TAIL LAMPS........... 4014
Wiring Diagram - TAIL/L -/LHD Models........... 4014
FRONT FOG LAMP............................................. 4016
Wiring Diagram - F/FOG -/LHD Models .......... 4016
Wiring Diagram - F/FOG -/RHD Models.......... 4017
REAR FOG LAMP............................................... 4018
Wiring Diagram - R/FOG -/LHD Models
without Front Fog Lamp................................... 4018
Wiring Diagram - R/FOG -/RHD Models
without Front Fog Lamp................................... 4019
Wiring Diagram - R/FOG -/LHD Models with
Front Fog Lamp ............................................... 4020
Wiring Diagram - R/FOG -/RHD Models with
Front Fog Lamp ............................................... 4022
INTERIOR ROOM LAMP..................................... 4023
Wiring Diagram - ROOM/L - ............................ 4023
ILLUMINATION.................................................... 4024
Wiring Diagram - ILL -/LHD Models ................ 4024
Wiring Diagram - ILL -/RHD Models................ 4026
METER AND GAUGES....................................... 4028
Wiring Diagram - METER -/Gasoline Engine
with Tachometer .............................................. 4028WARNING LAMPS.............................................. 4030
Schematic/With Tachometer ............................ 4030
Schematic/Without Tachometer ....................... 4031
Wiring Diagram - WARN -/Gasoline Engine
with Tachometer .............................................. 4032
Wiring Diagram - WARN -/Gasoline Engine
without Tachometer ......................................... 4036
Wiring Diagram - WARN -/Diesel Engine with
Tachometer ...................................................... 4040
Wiring Diagram - WARN -/Diesel Engine
without Tachometer ......................................... 4044
WARNING CHIME............................................... 4049
Wiring Diagram - CHIME -/LHD Models.......... 4049
AUDIO.................................................................. 4050
Wiring Diagram - AUDIO -/LHD Models .......... 4050
Wiring Diagram - AUDIO -/RHD Models ......... 4052
NATS (Nissan Anti-Theft System).................... 4054
Wiring Diagram - NATS -/LHD Models............ 4054
Wiring Diagram - NATS -/RHD Models ........... 4055
HARNESS LAYOUT............................................ 4056
Main Harness ................................................... 4056
Engine Room Harness..................................... 4062
Engine Control Harness................................... 4068
Chassis Harness and Tail Harness ................. 4071
Room Lamp Harness/LHD Models .................. 4072
Room Lamp Harness/RHD Models ................. 4073
WIRING DIAGRAM CODES (CELL CODES)..... 4074
SUPER MULTIPLE JUNCTION (SMJ)............... 4075
Terminal Arrangement ..................................... 4075

EL

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal
collision. The SRS composition which is available to NISSAN MODEL D22 is as follows (The composition
varies according to the destination and optional equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), seat belt pre-tensioner, a diagnosis sensor unit, warning lamp,
wiring harness and spiral cable.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
PRECAUTIONS
EL-4002

Schematic
GEL661A
POWER SUPPLY ROUTING
EL-4003
