2003 NISSAN PICK-UP Repair Manual

Identification Number
VEHICLE IDENTIFICATION NUMBER
Prefix and suffix designations
JN1: Japan produced vehicle
For Europe
JN1BPUD22UOXXXXXX
Vehicle serial number
O: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
D: KA24DE engine P: YD25DDTi engine
A: Single Cab B: King Cab C: Double Cab
JN1: Japan produced vehicle
Dimensions
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single cab King cab Double cab Single cab King cab Double cab
Overall length*1 mm (in)5,020 (197.6)
5,180 (203.9)*15,045 (198.6)
5,180 (203.9)*14,955 (195.1)
5,090 (200.4)*15,020 (197.6)
5,180 (203.9)*15,045 (198.6)
5,180 (203.9)*14,955 (195.1)
5,090 (200.4)*1
Overall width mm (in) 1,690 (66.5)1,690 (66.5)
1,825 (71.9)*21,690 (66.5)
1,825 (71.9)*21,825 (71.9) 1,825 (71.9) 1,825 (71.9)
Overall height mm (in)1,610 (63.4)
1,620 (63.8)*41,610 (63.4)
1,620 (63.8)*4
1,700 (66.9)*21,620 (63.8)
1,630 (64.2)*4
1,710 (67.3)*2
1,810 (71.3)*2, *61,700 (66.9)1,700 (66.9)
1,705 (67.1)*3
1,695 (66.7)*51,715 (67.5)
1,815 (71.5)*6
1,720 (67.7)*3
1,820 (71.7)*6, *3
1,710 (67.3)*5
1,810 (71.3)*6, *5
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9)1,395 (54.9)
1,525 (60.0)*21,395 (54.9)
1,525 (60.0)*21,525 (60.0) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7)1,390 (54.7)
1,505 (59.3)*21,390 (54.7)
1,505 (59.3)*21,505 (59.3) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in)180 (7.1)
190 (7.5)*4180 (7.1)
190 (7.5)*4
240 (9.4)*2180 (7.1)
190 (7.5)*4
240 (9.4)*2230 (9.4)230 (9.4)
240 (9.4)*3
225 (8.9)*5230 (9.1)
240 (9.4)*3
225 (8.9)*5
*1: On step bumper equipped models
*2: 4WD appearance models
*3: With optional 255/70R16 tires
*4: With optional 195R15C tires
*5: With optional 255/60R17 tires
*6: Roof rail equipped models
IDENTIFICATION INFORMATION
GI-4006

Terminal Arrangement
GEL314A
SUPER MULTIPLE JUNCTION (SMJ)
EL-4075

FRONT AXLE &
FRONT SUSPENSION
SECTION
FA
MODIFICATION NOTICE:
The grease application capacity on the drive shaft has been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 4002Inspection and Adjustment .............................. 4002

FA

Inspection and Adjustment
DRIVE SHAFT (4WD)
Drive shaft joint type
Final drive side TS82F
Wheel side ZF100*
Fixed joint axial end play
limit mm (in)1 (0.04)
Diameter mm (in)
Wheel side (D
1) 29.0 (1.142)
Grease
QualityNissan genuine grease or
equivalent
Capacity g (oz)
Final drive side 95 - 105 (3.35 - 3.70)
Wheel side* 115 - 125 (4.06 - 4.41)
Boot length mm (in)
Final drive side (L
1) 95 - 97 (3.74 - 3.82)
Wheel side (L
2)* 96 - 98 (3.78 - 3.86)
SFA877A
*: ZF100 (Wheel side) joint type has two types of material boot; one is
made of rubber and the other is made of plastic. Do not disas-
semble joint assembly made of plastic boot. If the boot or joint is
damaged, replace the drive shaft assembly.
SERVICE DATA AND SPECIFICATIONS (SDS)
FA-4002

STEERING SYSTEM
SECTION
ST
MODIFICATION NOTICE:
Tightening torque for air bag module has been changed.
CONTENTS
STEERING WHEEL AND STEERING
COLUMN.............................................................. 4002

ST

SST014D
STEERING WHEEL AND STEERING COLUMN
ST-4002

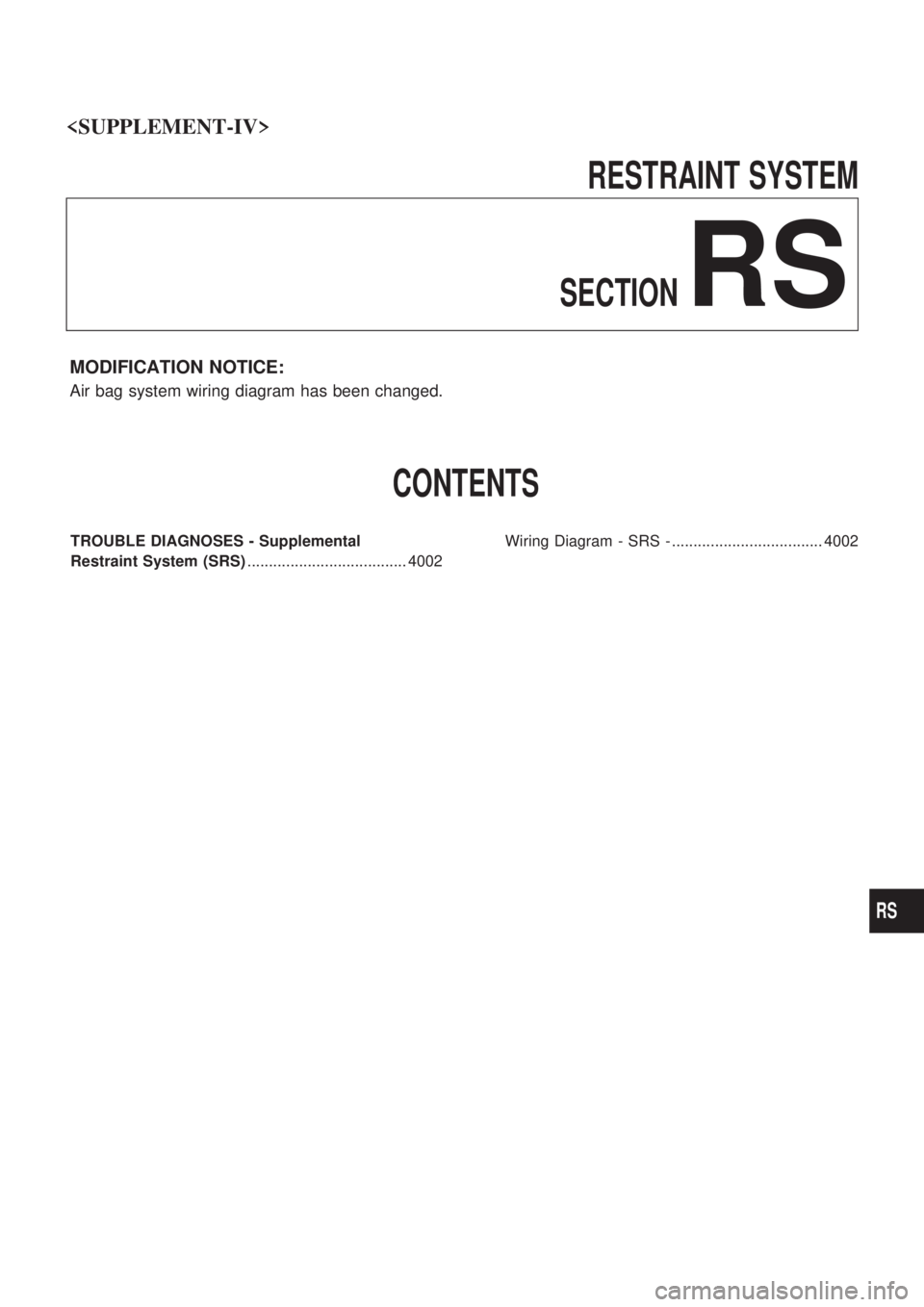

RESTRAINT SYSTEM
SECTION
RS
MODIFICATION NOTICE:
Air bag system wiring diagram has been changed.
CONTENTS
TROUBLE DIAGNOSES - Supplemental
Restraint System (SRS)..................................... 4002Wiring Diagram - SRS - ................................... 4002

RS

Wiring Diagram Ð SRS Ð
GRS006A
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-4002
