2003 NISSAN PICK-UP Repair Manual

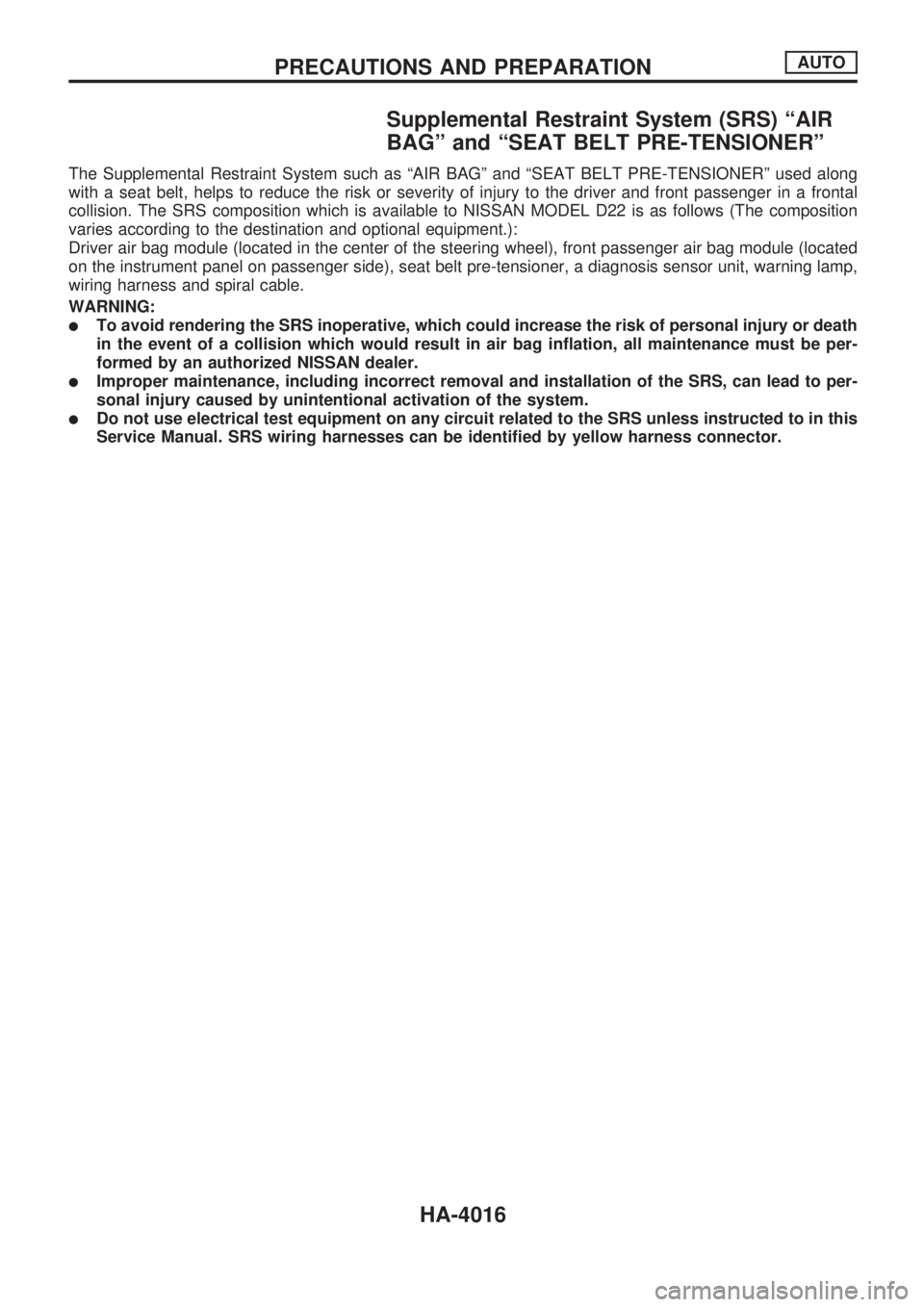

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal
collision. The SRS composition which is available to NISSAN MODEL D22 is as follows (The composition
varies according to the destination and optional equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), seat belt pre-tensioner, a diagnosis sensor unit, warning lamp,
wiring harness and spiral cable.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
PRECAUTIONS AND PREPARATIONAUTO
HA-4016

Circuit Diagram Ð A/C, A Ð
GHA096A
TROUBLE DIAGNOSESAUTO
HA-4017

Wiring Diagram Ð A/C, A Ð
GHA097A
TROUBLE DIAGNOSESAUTO
HA-4018

GHA047A
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð (Cont'd)
HA-4019

GHA048A
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð (Cont'd)
HA-4020

GHA100A
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð (Cont'd)
HA-4021

GHA050A
TROUBLE DIAGNOSESAUTO
Wiring Diagram Ð A/C, A Ð (Cont'd)
HA-4022

Magnet Clutch
TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
SYMPTOM:
lMagnet clutch does not engage.
Inspection flow
*1: HA-2035
*2: HA-2036
*3: HA-2038
*4: HA-4024*5: HA-2080
*6: HA-2082
*7: HA-2084
*8: HA-2087*9: HA-2052
*10: HA-2041
*11: HA-2040
*12: HA-27
SHA341FB
TROUBLE DIAGNOSESAUTO
HA-4023
