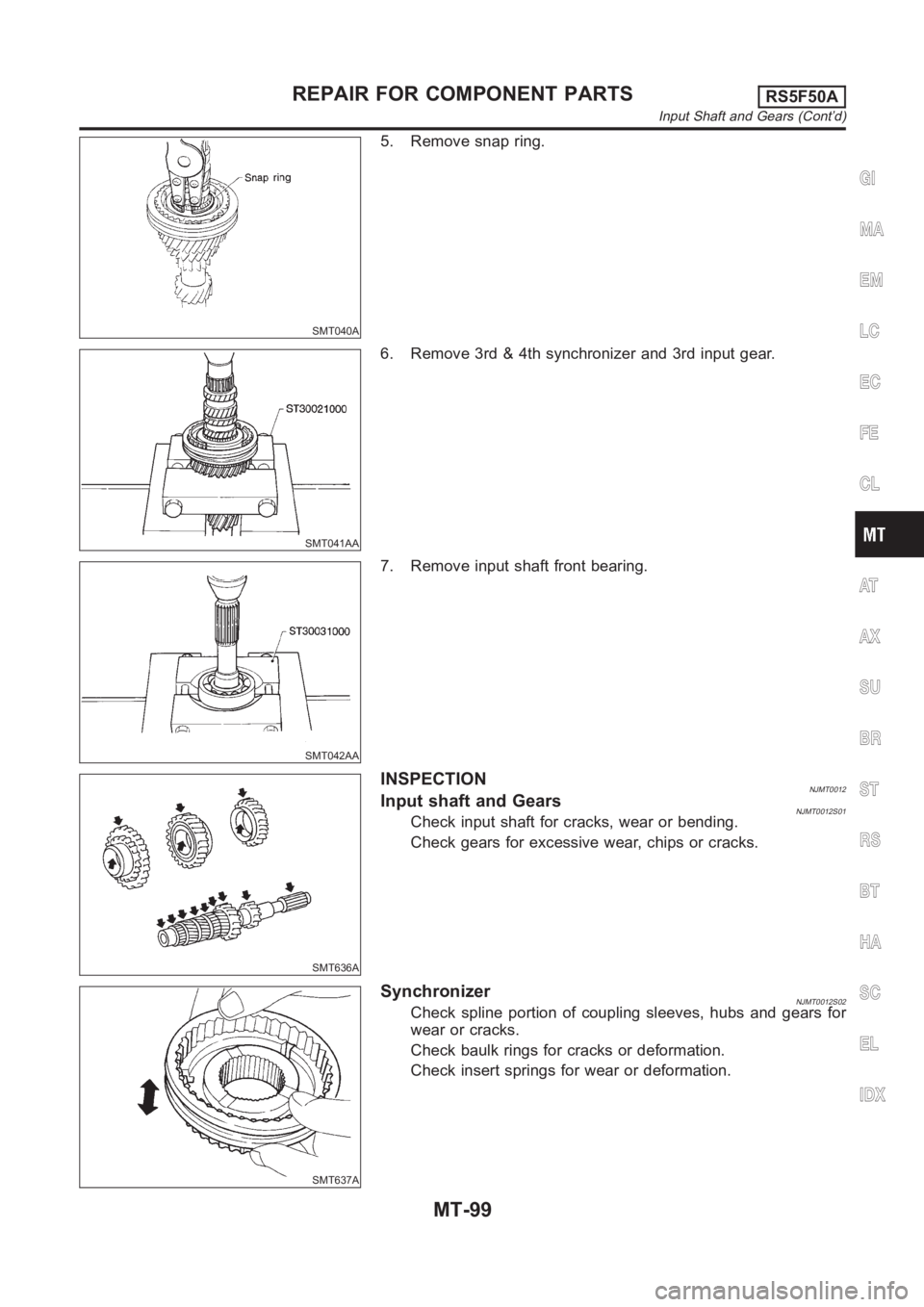

5. Remove snap ring.
SMT041AA
6. Remove 3rd & 4th synchronizer and 3rd input gear.
SMT042AA
7. Remove input shaft front bearing.
SMT636A
INSPECTIONNJMT0012Input shaft and GearsNJMT0012S01Check input shaft for cracks, wear or bending.
Check gears for excessive wear, chips or cracks.
SMT637A
SynchronizerNJMT0012S02Check spline portion of coupling sleeves, hubs and gears for
wear or cracks.
Check baulk rings for cracks or deformation.
Check insert springs for wear or deformation.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTSRS5F50A
Input Shaft and Gears (Cont’d)
MT-99

SMT140

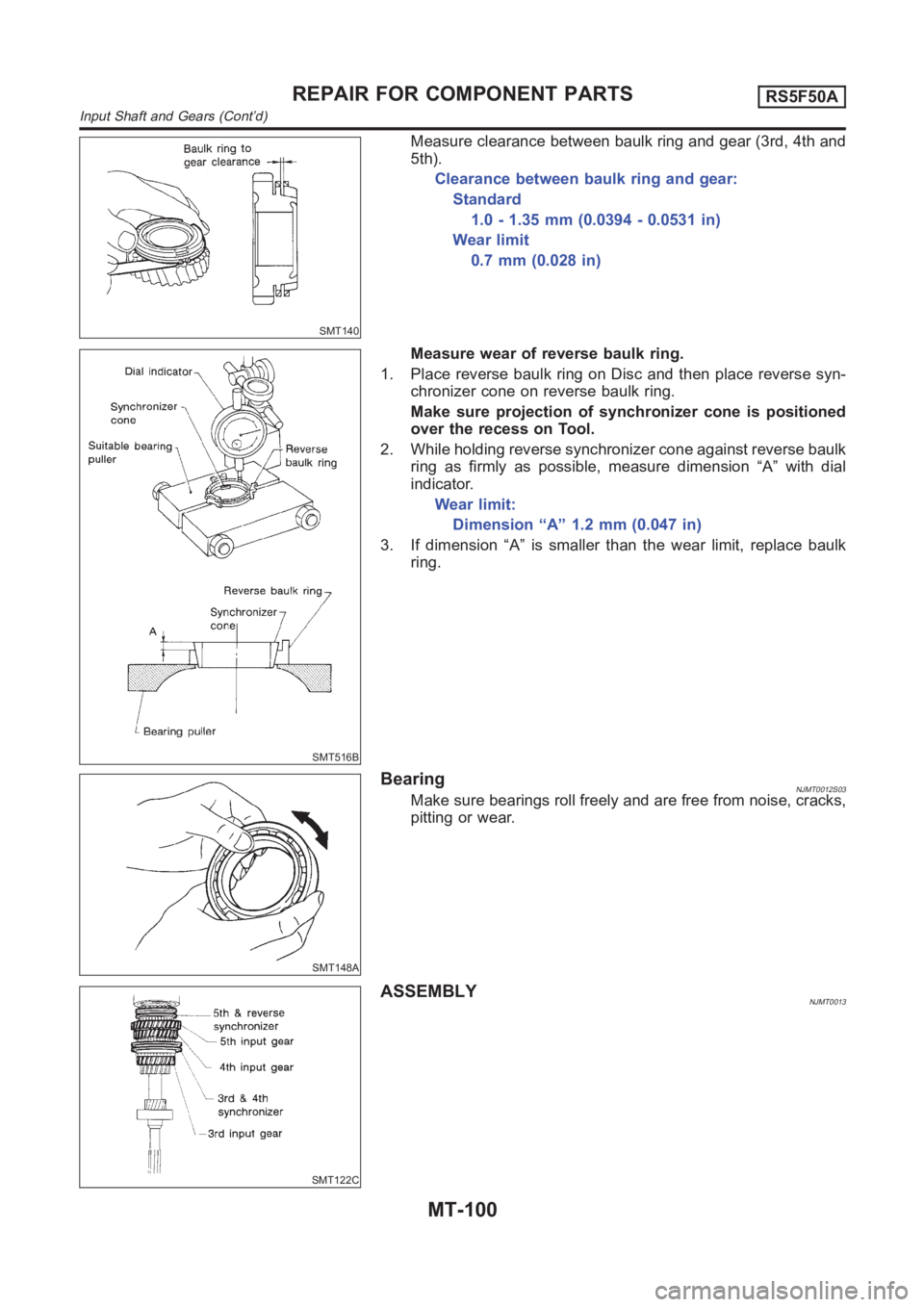

Measure clearance between baulk ring and gear (3rd, 4th and
5th).
Clearance between baulk ring and gear:
Standard
1.0 - 1.35 mm (0.0394 - 0.0531 in)
Wear limit
0.7 mm (0.028 in)
SMT516B
Measure wear of reverse baulk ring.
1. Place reverse baulk ring on Disc and then place reverse syn-
chronizer cone on reverse baulk ring.
Make sure projection of synchronizer cone is positioned
over the recess on Tool.
2. While holding reverse synchronizer cone against reverse baulk
ring as firmly as possible, measure dimension “A” with dial
indicator.
Wear limit:
Dimension “A” 1.2 mm (0.047 in)
3. If dimension “A” is smaller than the wear limit, replace baulk
ring.
SMT148A
BearingNJMT0012S03Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
SMT122C
ASSEMBLYNJMT0013
REPAIR FOR COMPONENT PARTSRS5F50A
Input Shaft and Gears (Cont’d)
MT-100

SMT441C

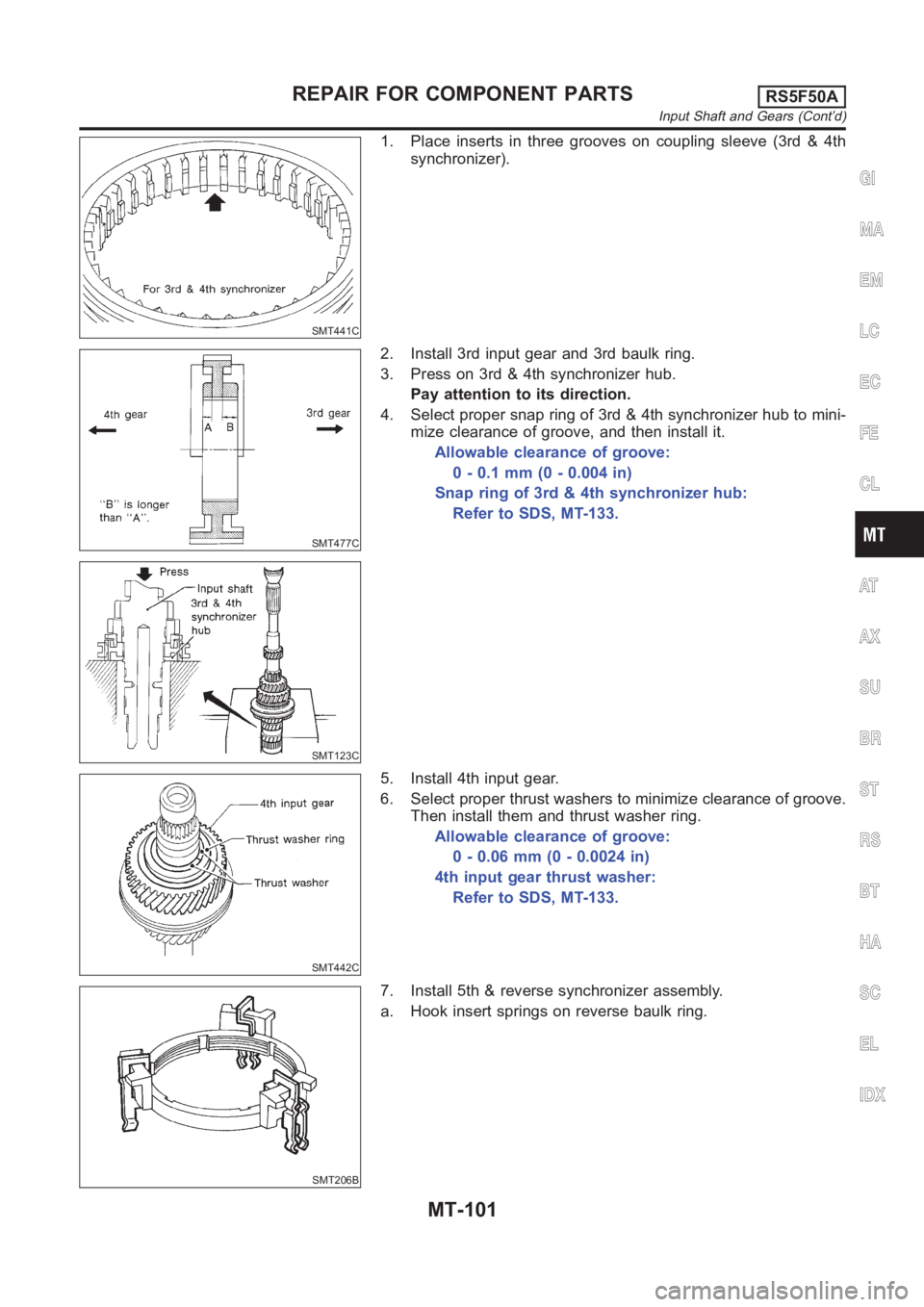

1. Place inserts in three grooves on coupling sleeve (3rd & 4th
synchronizer).
SMT477C
SMT123C
2. Install 3rd input gear and 3rd baulk ring.
3. Press on 3rd & 4th synchronizer hub.
Pay attention to its direction.
4. Select proper snap ring of 3rd & 4th synchronizer hub to mini-
mize clearance of groove, and then install it.
Allowable clearance of groove:
0-0.1mm(0-0.004in)
Snap ring of 3rd & 4th synchronizer hub:
Refer to SDS, MT-133.
SMT442C
5. Install 4th input gear.
6. Select proper thrust washers to minimize clearance of groove.
Then install them and thrust washer ring.
Allowable clearance of groove:
0 - 0.06 mm (0 - 0.0024 in)
4th input gear thrust washer:
Refer to SDS, MT-133.
SMT206B
7. Install 5th & reverse synchronizer assembly.
a. Hook insert springs on reverse baulk ring.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTSRS5F50A
Input Shaft and Gears (Cont’d)
MT-101

SMT752C

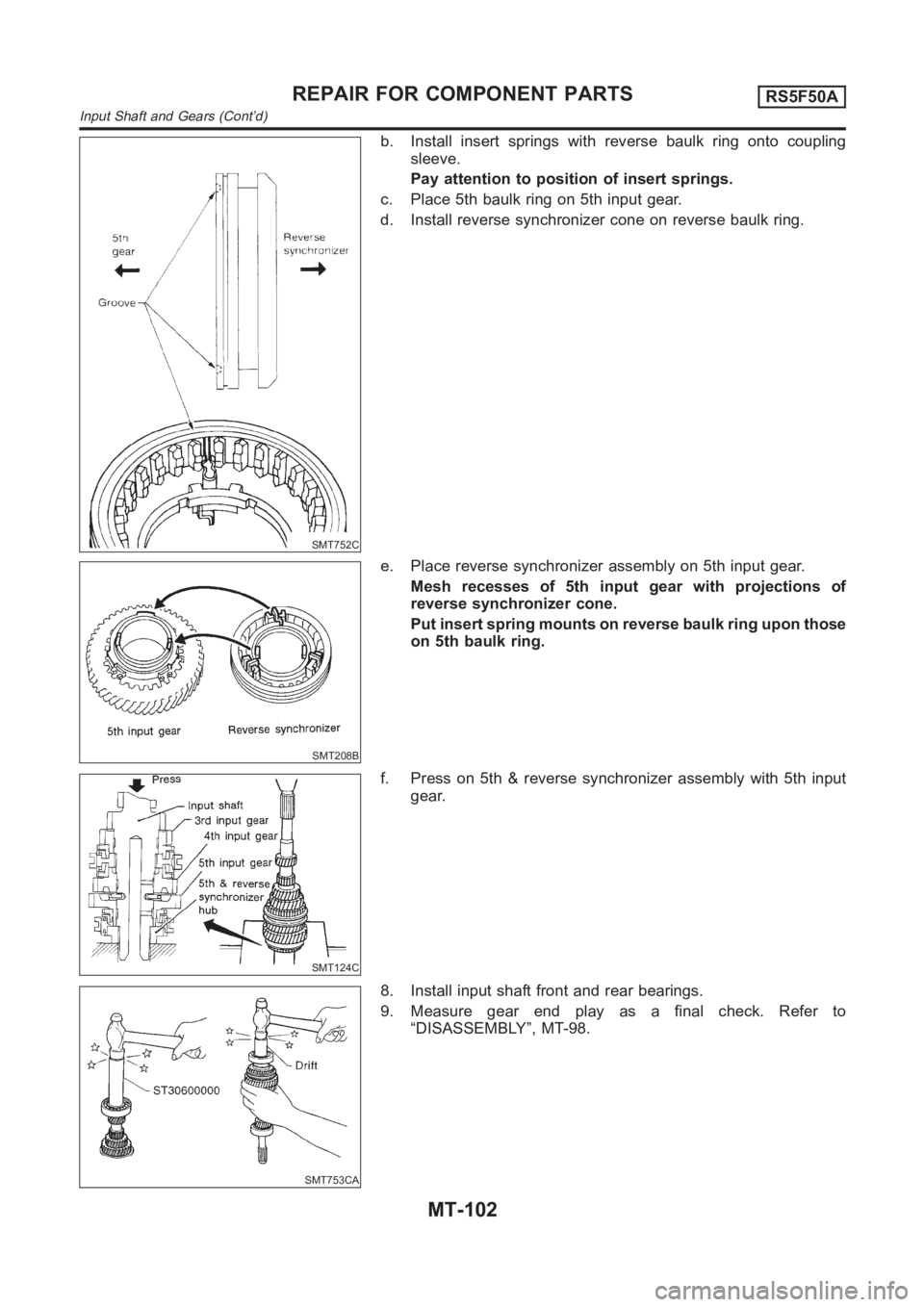

b. Install insert springs with reverse baulk ring onto coupling
sleeve.
Pay attention to position of insert springs.
c. Place 5th baulk ring on 5th input gear.
d. Install reverse synchronizer cone on reverse baulk ring.
SMT208B
e. Place reverse synchronizer assembly on 5th input gear.
Mesh recesses of 5th input gear with projections of
reverse synchronizer cone.
Put insert spring mounts on reverse baulk ring upon those
on 5th baulk ring.
SMT124C
f. Press on 5th & reverse synchronizer assembly with 5th input
gear.
SMT753CA
8. Install input shaft front and rear bearings.
9. Measure gear end play as a final check. Refer to
“DISASSEMBLY”, MT-98.
REPAIR FOR COMPONENT PARTSRS5F50A
Input Shaft and Gears (Cont’d)
MT-102

SMT191A
Mainshaft and Gears

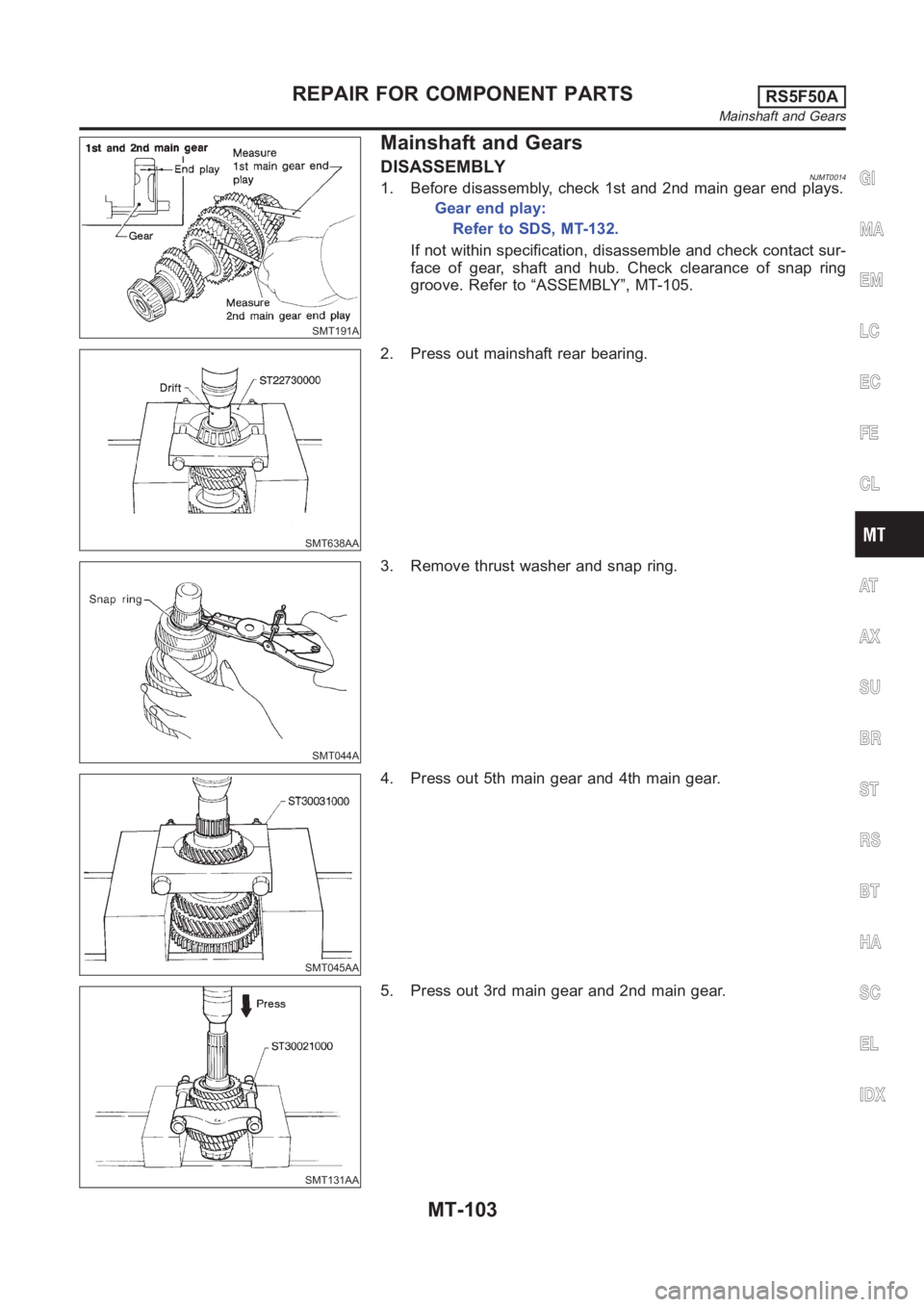

DISASSEMBLYNJMT00141. Before disassembly, check 1st and 2nd main gear end plays.
Gear end play:
Refer to SDS, MT-132.
If not within specification, disassemble and check contact sur-
face of gear, shaft and hub. Check clearance of snap ring
groove. Refer to “ASSEMBLY”, MT-105.
SMT638AA
2. Press out mainshaft rear bearing.
SMT044A
3. Remove thrust washer and snap ring.
SMT045AA
4. Press out 5th main gear and 4th main gear.
SMT131AA
5. Press out 3rd main gear and 2nd main gear.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTSRS5F50A
Mainshaft and Gears
MT-103

SMT047A

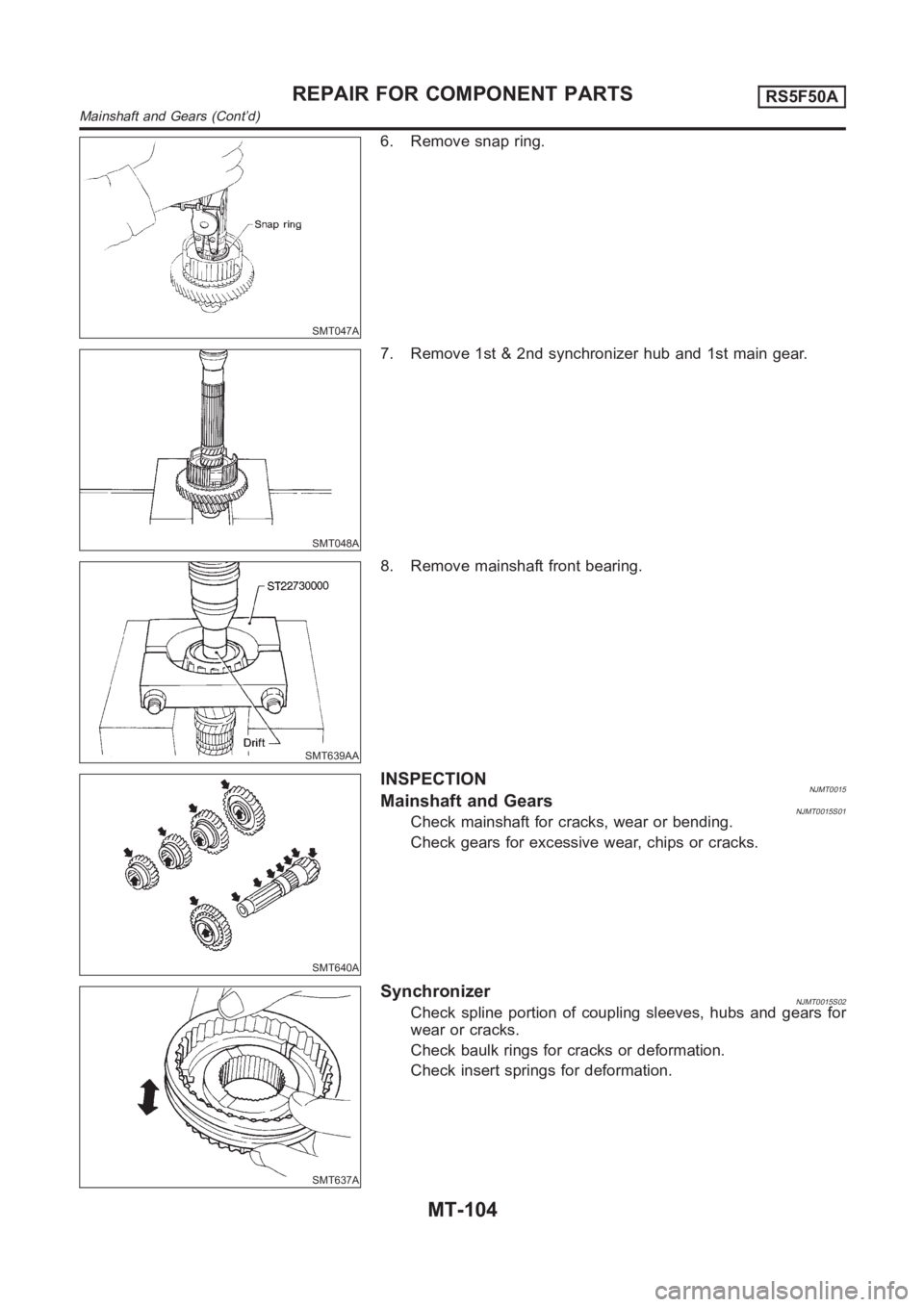

6. Remove snap ring.
SMT048A
7. Remove 1st & 2nd synchronizer hub and 1st main gear.
SMT639AA
8. Remove mainshaft front bearing.
SMT640A
INSPECTIONNJMT0015Mainshaft and GearsNJMT0015S01Check mainshaft for cracks, wear or bending.
Check gears for excessive wear, chips or cracks.
SMT637A
SynchronizerNJMT0015S02Check spline portion of coupling sleeves, hubs and gears for
wear or cracks.
Check baulk rings for cracks or deformation.
Check insert springs for deformation.
REPAIR FOR COMPONENT PARTSRS5F50A
Mainshaft and Gears (Cont’d)
MT-104

SMT420CA

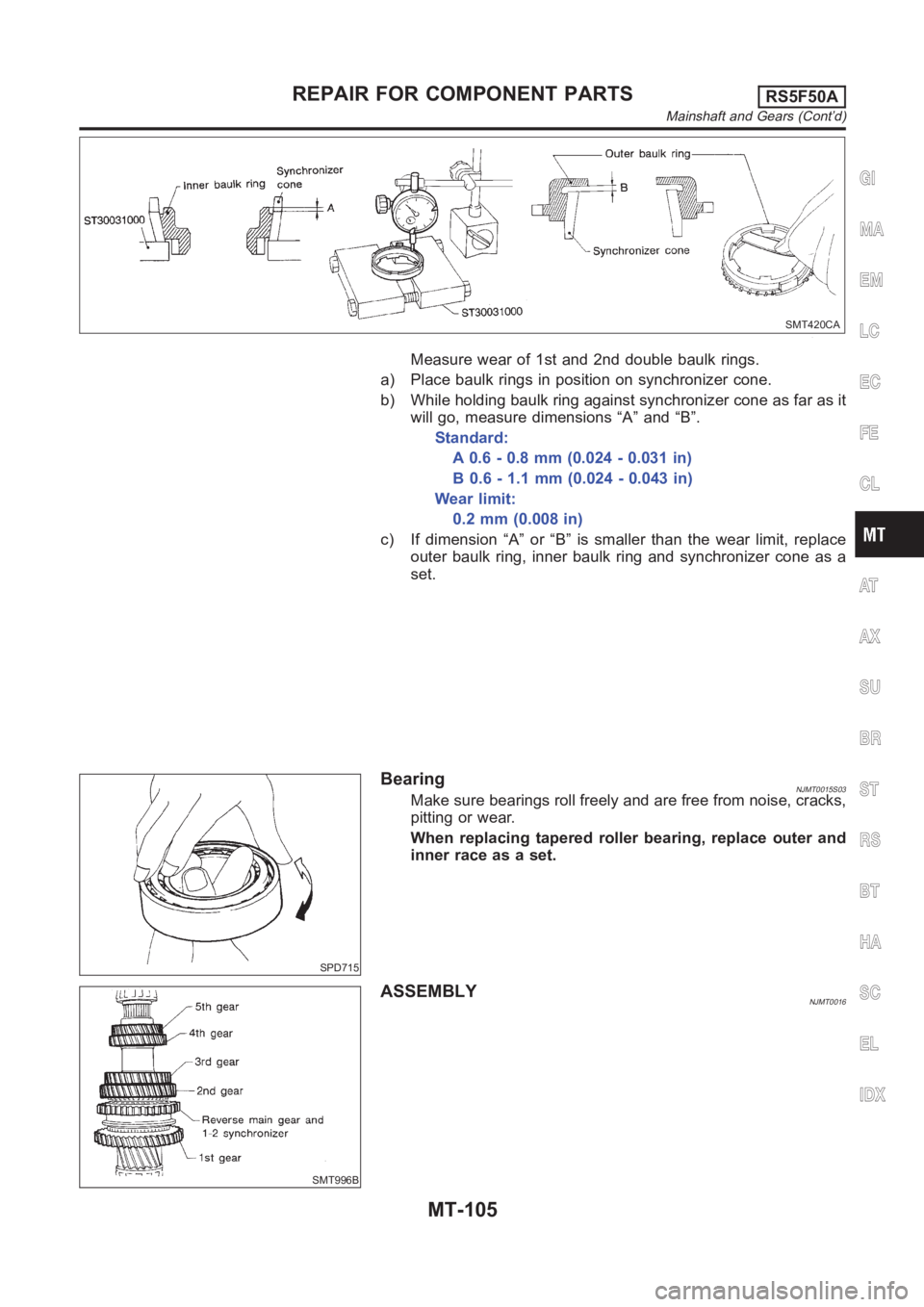

Measure wear of 1st and 2nd double baulk rings.
a) Place baulk rings in position on synchronizer cone.
b) While holding baulk ring against synchronizer cone as far as it
will go, measure dimensions “A” and “B”.
Standard:
A 0.6 - 0.8 mm (0.024 - 0.031 in)
B 0.6 - 1.1 mm (0.024 - 0.043 in)
Wear limit:
0.2mm(0.008in)
c) If dimension “A” or “B” is smaller than the wear limit, replace
outer baulk ring, inner baulk ring and synchronizer cone as a
set.
SPD715
BearingNJMT0015S03Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
When replacing tapered roller bearing, replace outer and
inner race as a set.
SMT996B
ASSEMBLYNJMT0016
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTSRS5F50A
Mainshaft and Gears (Cont’d)
MT-105

SMT804BA
SMT472C

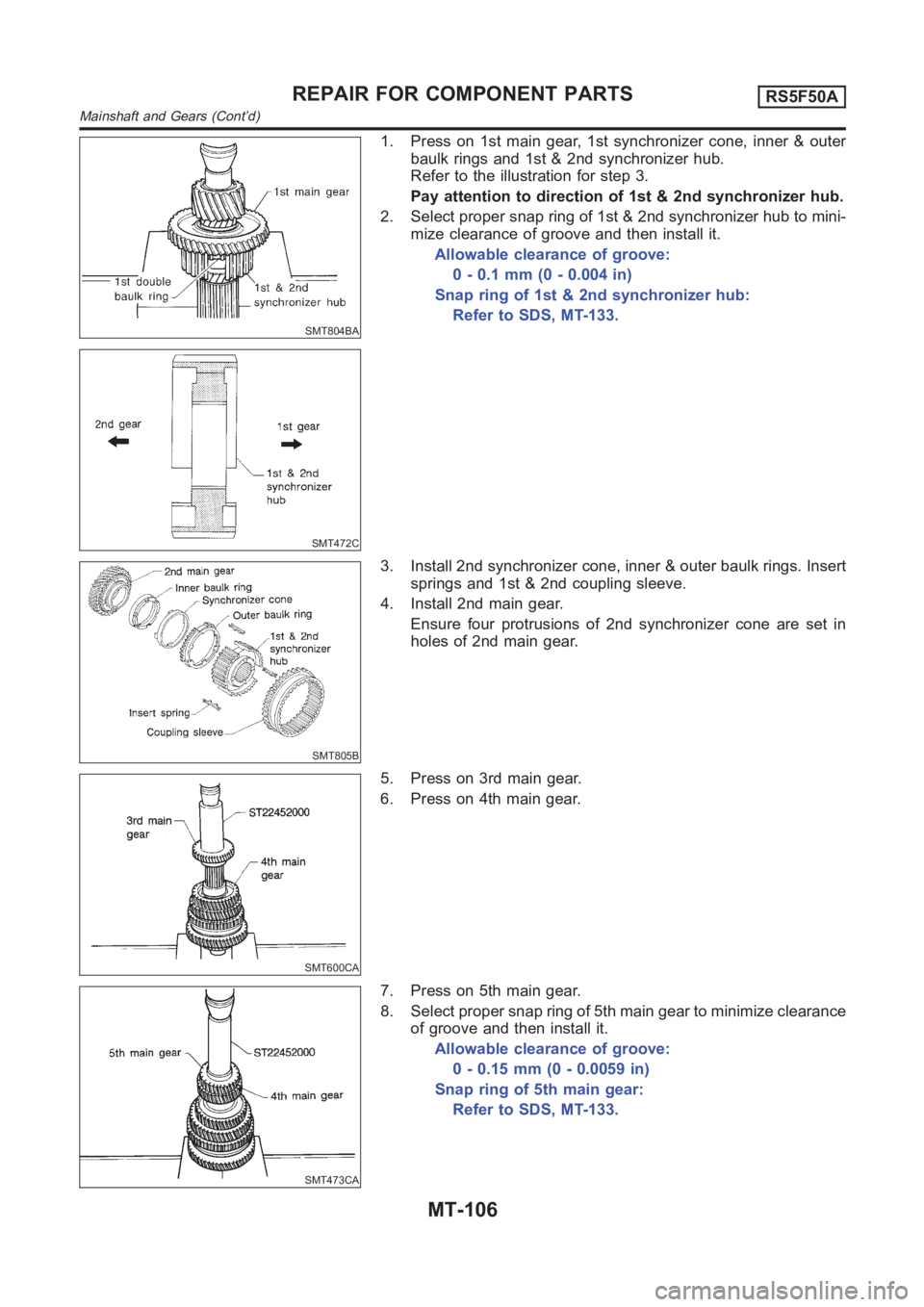

1. Press on 1st main gear, 1st synchronizer cone, inner & outer
baulk rings and 1st & 2nd synchronizer hub.
Refer to the illustration for step 3.
Pay attention to direction of 1st & 2nd synchronizer hub.
2. Select proper snap ring of 1st & 2nd synchronizer hub to mini-
mize clearance of groove and then install it.
Allowable clearance of groove:
0-0.1mm(0-0.004in)
Snap ring of 1st & 2nd synchronizer hub:
Refer to SDS, MT-133.
SMT805B
3. Install 2nd synchronizer cone, inner & outer baulk rings. Insert
springs and 1st & 2nd coupling sleeve.
4. Install 2nd main gear.
Ensure four protrusions of 2nd synchronizer cone are set in
holes of 2nd main gear.
SMT600CA
5. Press on 3rd main gear.
6. Press on 4th main gear.
SMT473CA
7. Press on 5th main gear.
8. Select proper snap ring of 5th main gear to minimize clearance
of groove and then install it.
Allowable clearance of groove:
0 - 0.15 mm (0 - 0.0059 in)
Snap ring of 5th main gear:
Refer to SDS, MT-133.
