2003 NISSAN ALMERA N16 DIAGRAM

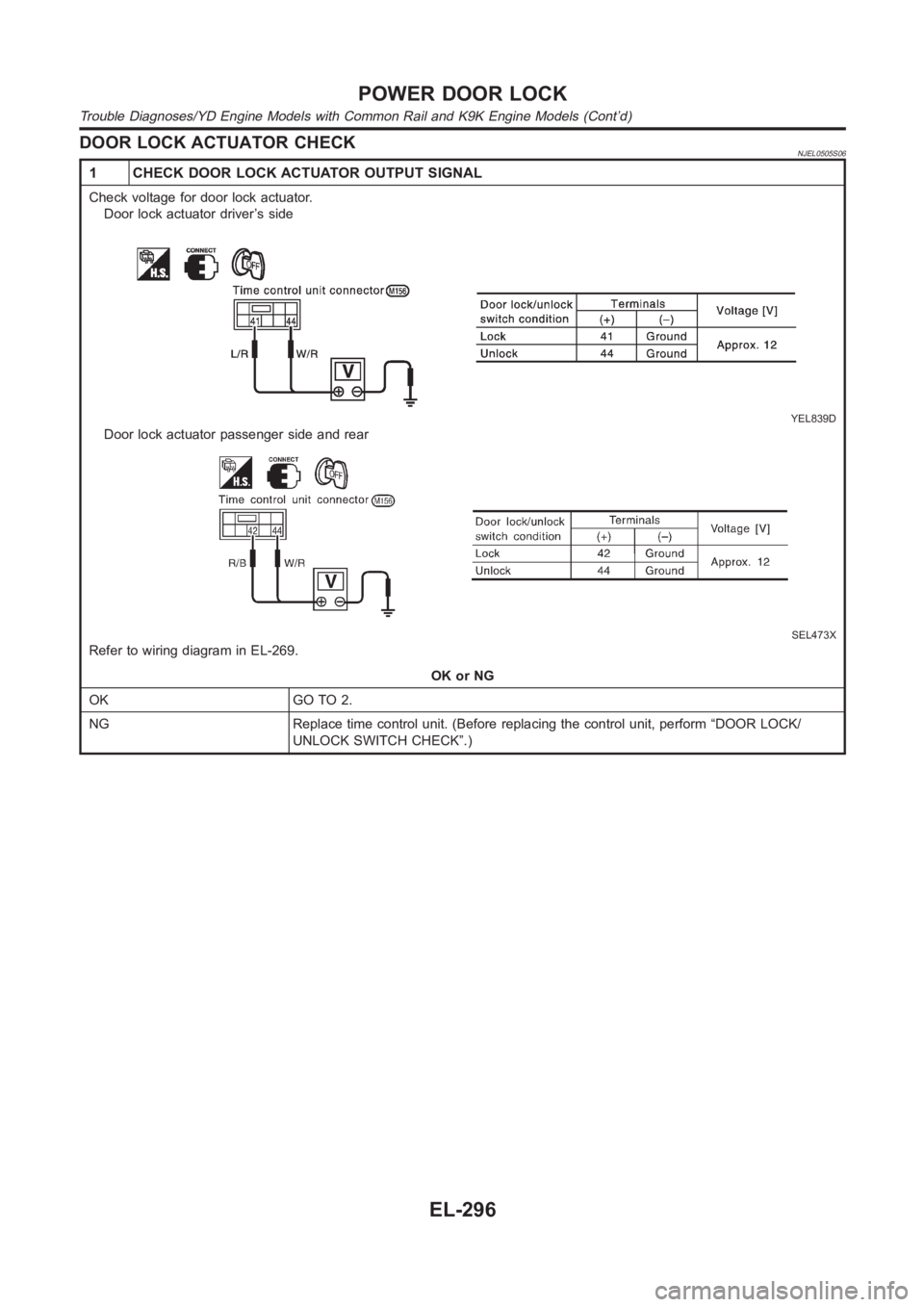

DOOR LOCK ACTUATOR CHECKNJEL0505S06
1 CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL
Check voltage for door lock actuator.
Door lock actuator driver’s side
YEL839D
Door lock actuator passenger side and rear
SEL473X
Refer to wiring diagram in EL-269.
OK or NG
OK GO TO 2.
NG Replace time control unit. (Before replacing the control unit, perform“DOOR LOCK/
UNLOCK SWITCH CHECK”.)
POWER DOOR LOCK
Trouble Diagnoses/YD Engine Models with Common Rail and K9K Engine Models(Cont’d)
EL-296

DOOR SWITCH CHECK=NJEL0505S08
1 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminal 6 and ground.
SEL475X
Refer to wiring diagram in EL-265.
OK or NG
OK Door switch is OK.
NG GO TO 2.
2 CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.
SEL325WA
OK or NG
OKCheck the following.
Door switch ground circuit or door switch ground condition
Harness for open or short between smart entrance control unit and door switch
NG Replace door switch.
POWER DOOR LOCK
Trouble Diagnoses/YD Engine Models with Common Rail and K9K Engine Models(Cont’d)
EL-298

DOOR UNLOCK SENSOR CHECK=NJEL0505S09
1 CHECK DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit terminal 35 or 36 and ground.
SEL476X
Refer to wiring diagram in EL-268.
OK or NG
OK Door unlock sensor is OK.
NG GO TO 2.
2 CHECK DOOR UNLOCK SENSOR
1. Disconnect door unlock sensor connector.
2. Check continuity between door unlock sensor terminals 2 and 4.
YEL847D
OK or NG
OKCheck the following.
Door unlock sensor ground circuit
Harness for open or short between time control unit and door unlock sensor
NG Replace door unlock sensor.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnoses/YD Engine Models with Common Rail and K9K Engine Models(Cont’d)
EL-299

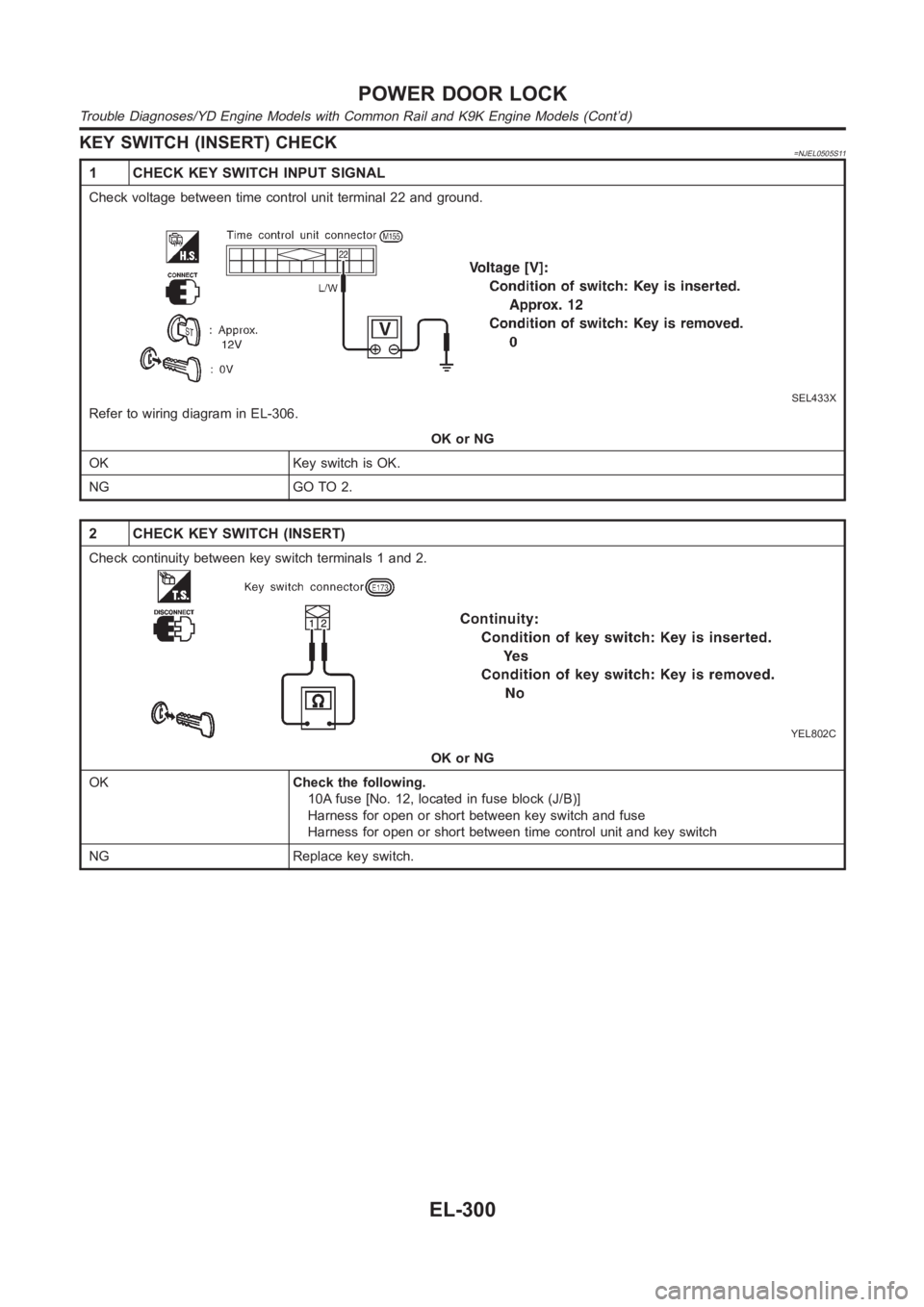

KEY SWITCH (INSERT) CHECK=NJEL0505S11
1 CHECK KEY SWITCH INPUT SIGNAL
Check voltage between time control unit terminal 22 and ground.
SEL433X
Refer to wiring diagram in EL-306.
OK or NG
OK Key switch is OK.
NG GO TO 2.
2 CHECK KEY SWITCH (INSERT)
Check continuity between key switch terminals 1 and 2.
YEL802C
OK or NG
OKCheck the following.
10A fuse [No. 12, located in fuse block (J/B)]
Harness for open or short between key switch and fuse
Harness for open or short between time control unit and key switch
NG Replace key switch.
POWER DOOR LOCK
Trouble Diagnoses/YD Engine Models with Common Rail and K9K Engine Models(Cont’d)
EL-300

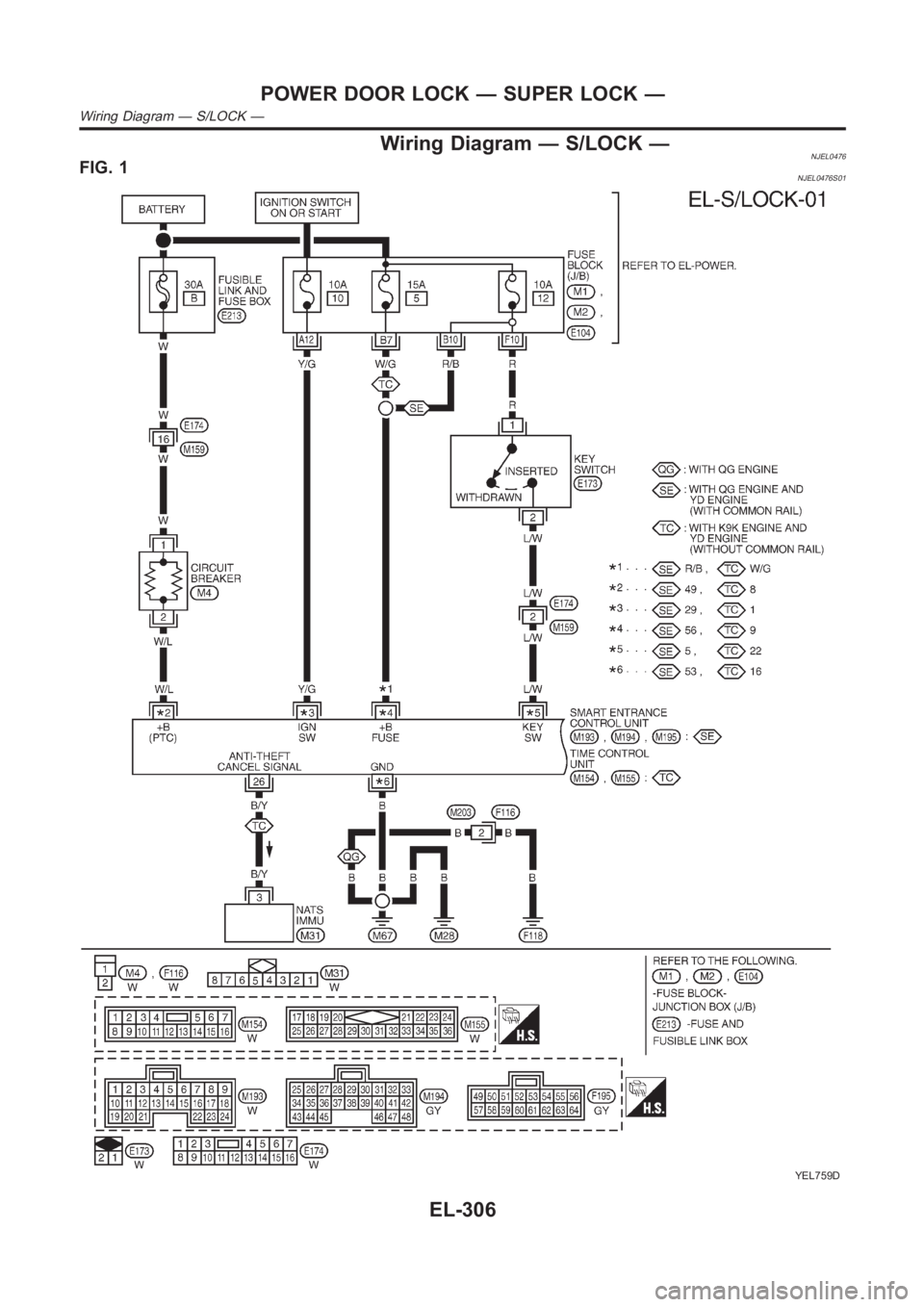

Wiring Diagram — S/LOCK —NJEL0476FIG. 1NJEL0476S01
YEL759D
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK —
EL-306

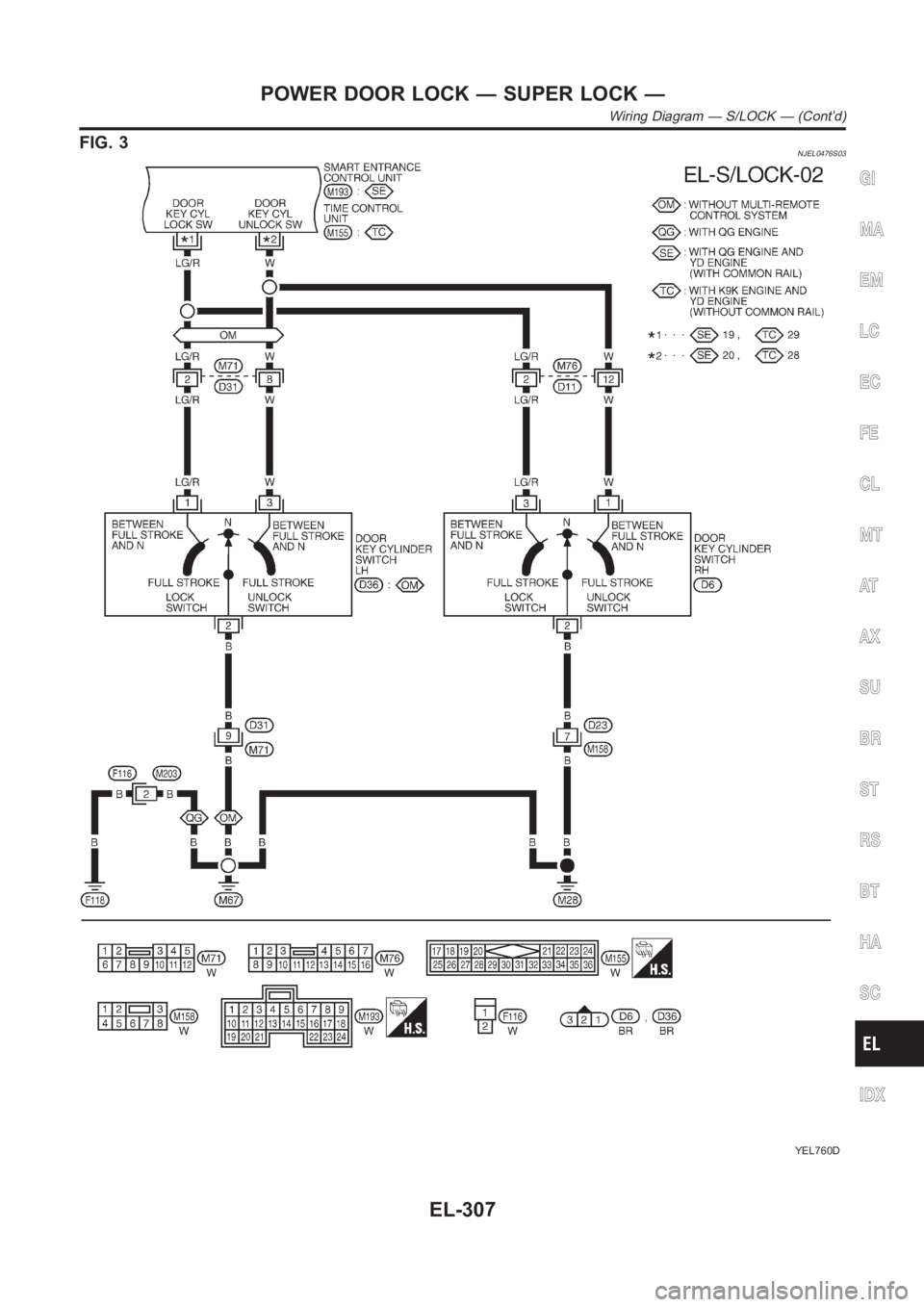

FIG. 3NJEL0476S03
YEL760D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-307

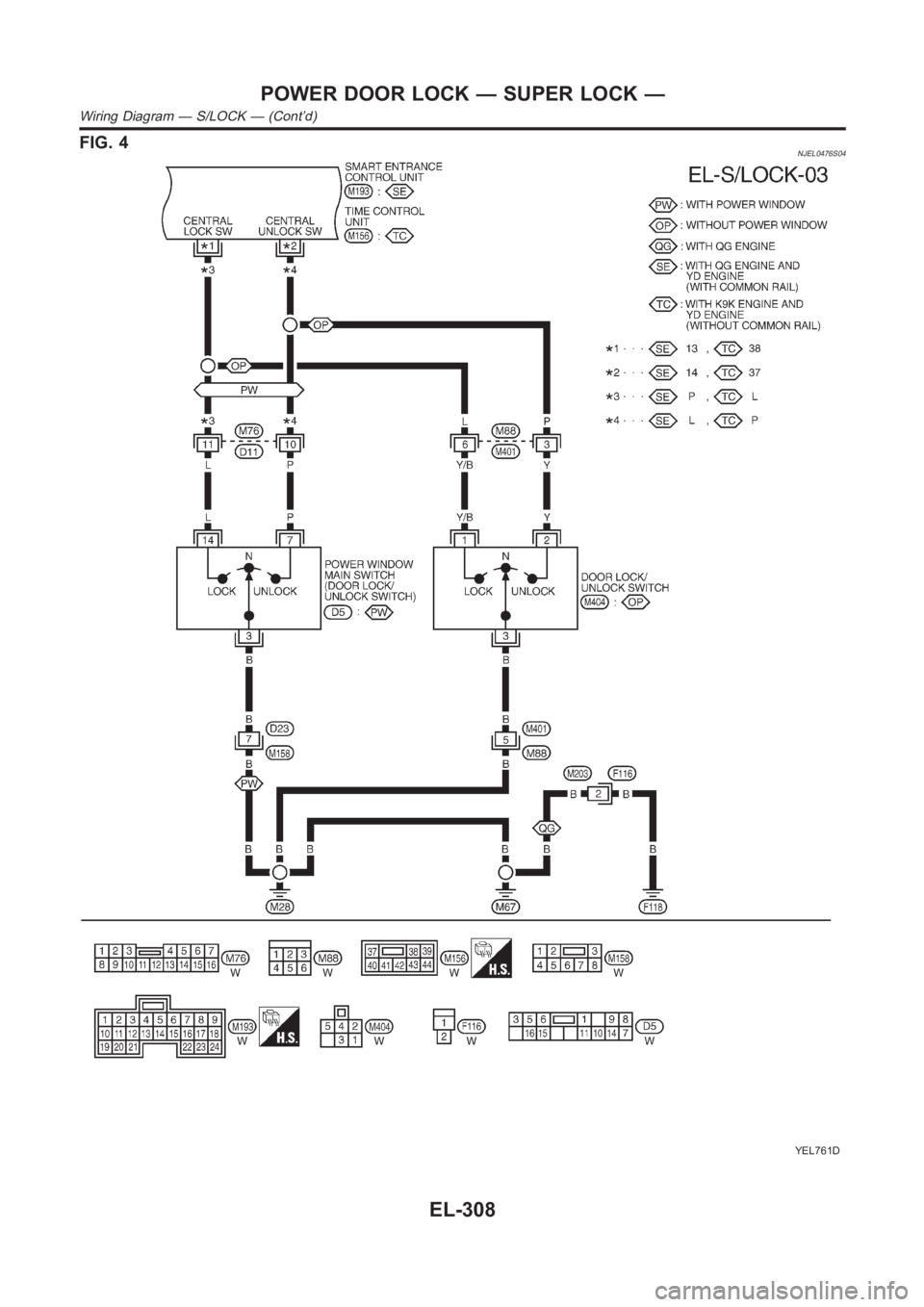

FIG. 4NJEL0476S04
YEL761D
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-308

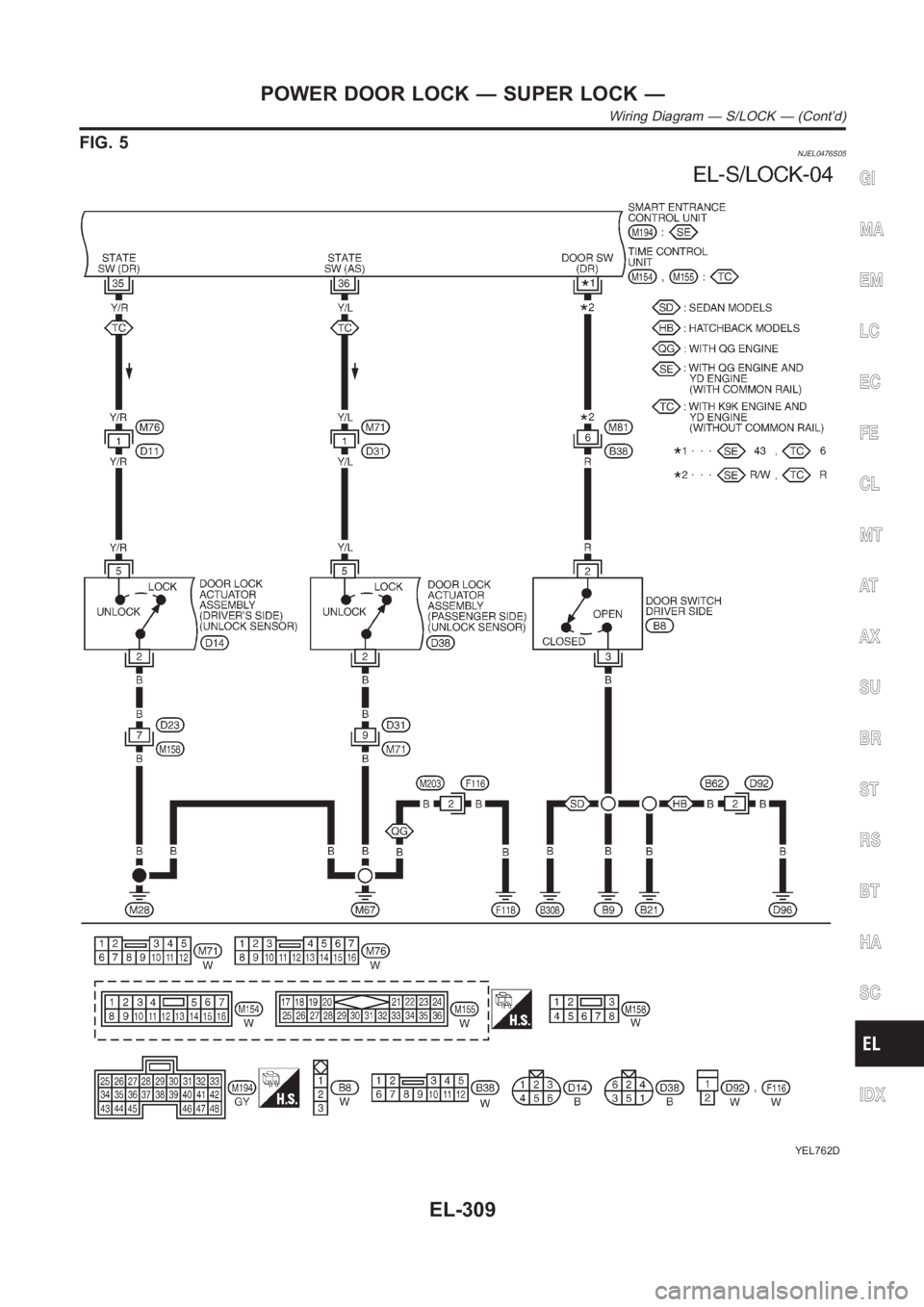

FIG. 5NJEL0476S05
YEL762D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-309
