Page 2540 of 3189

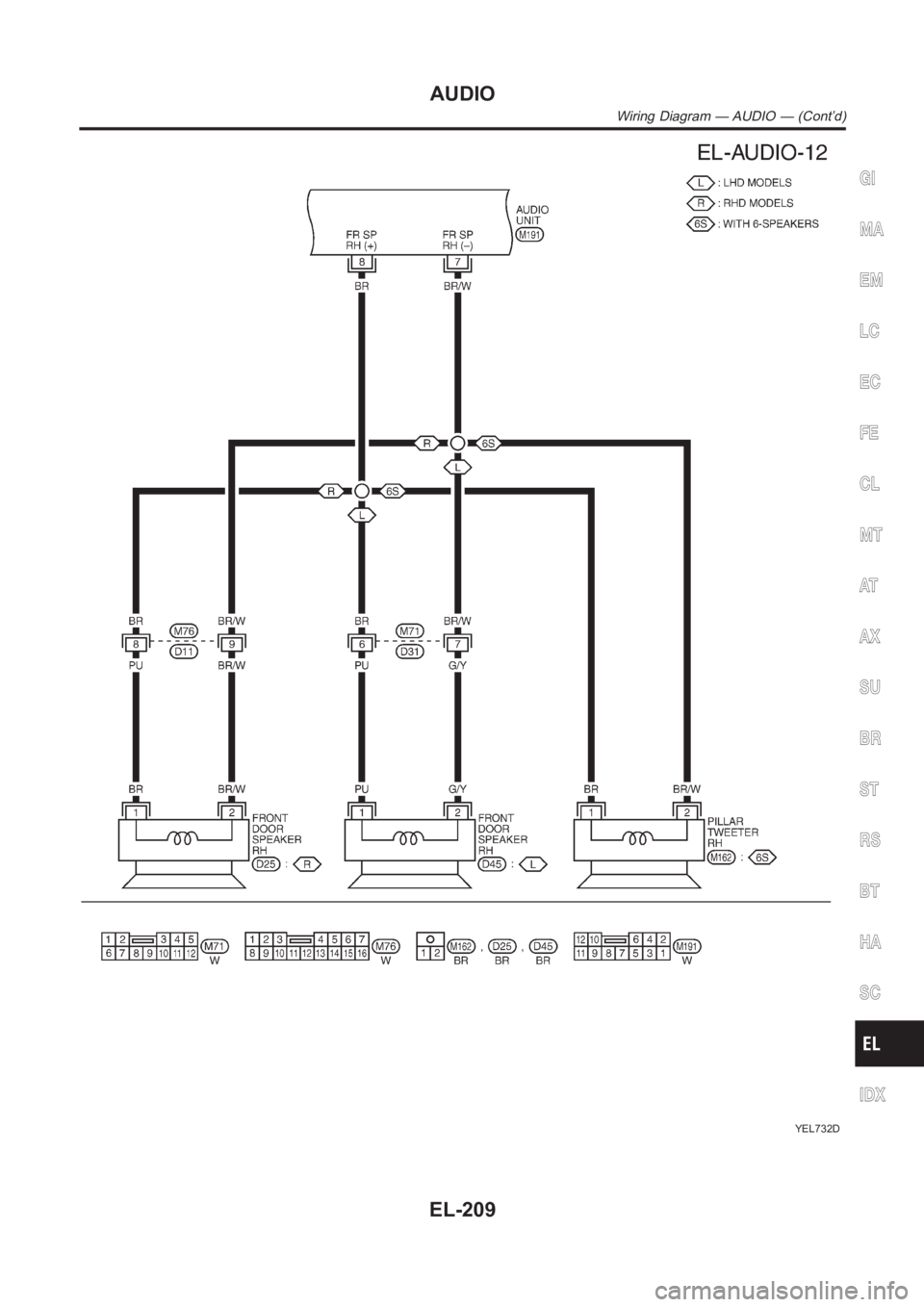

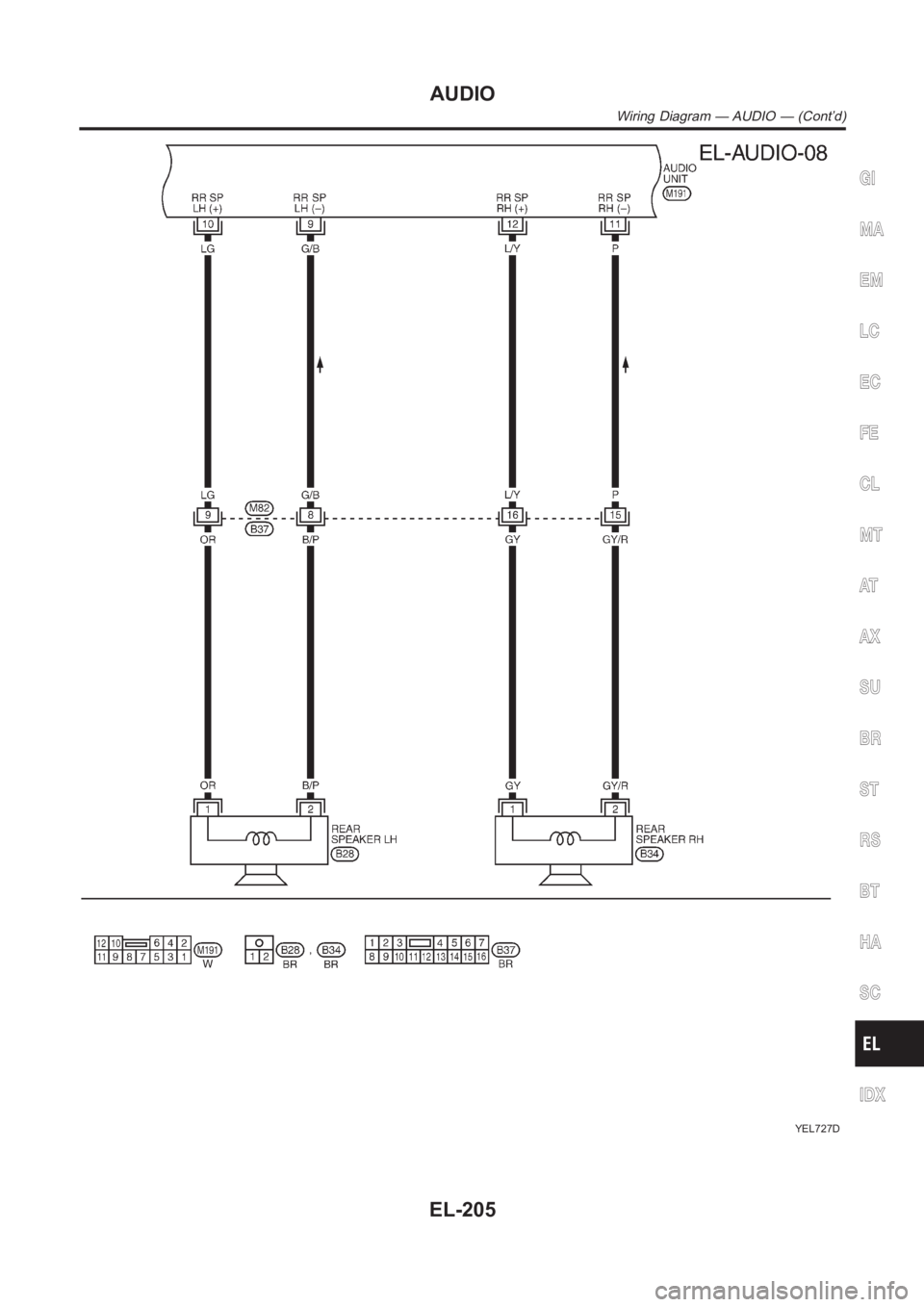

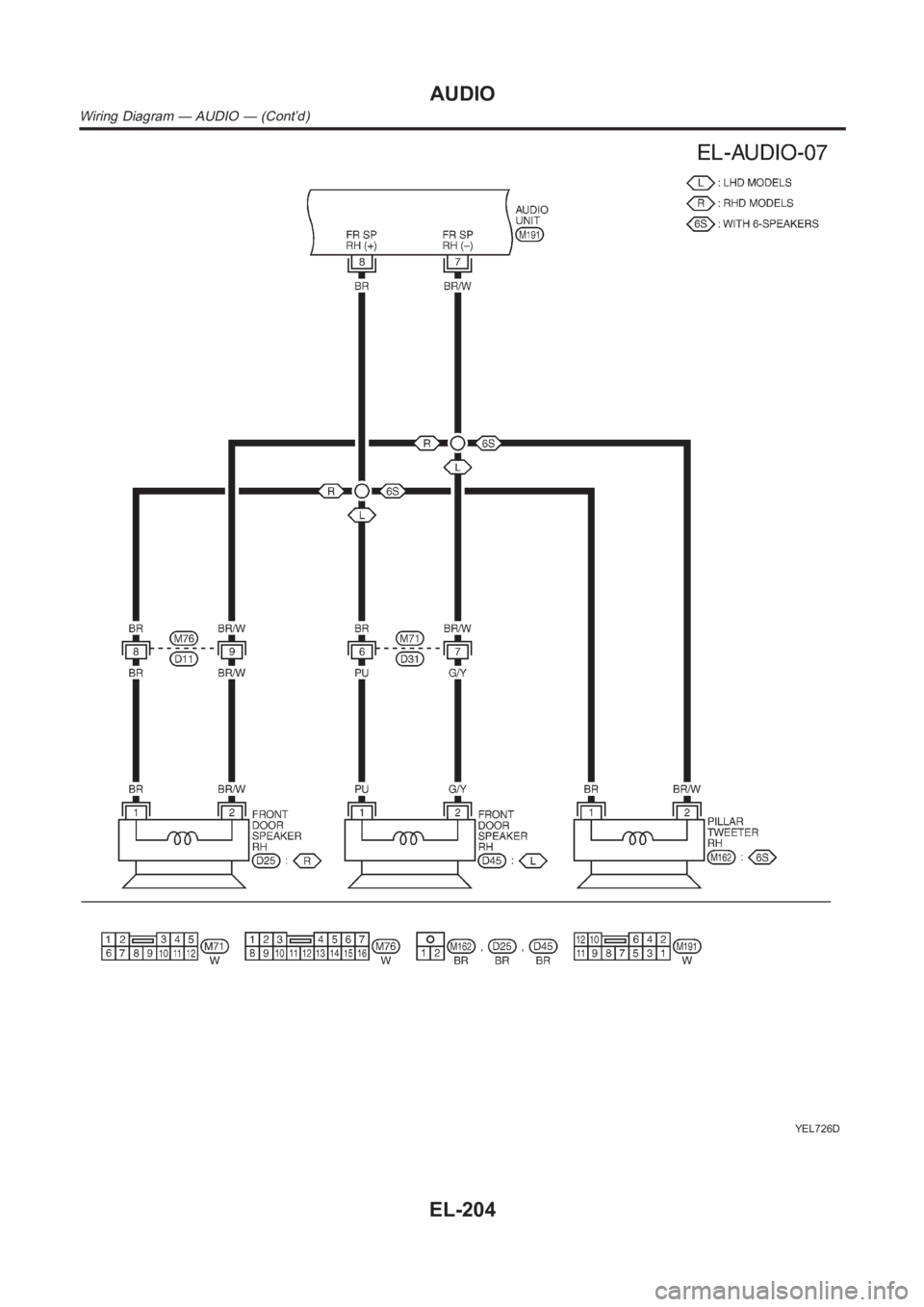

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL726D AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-204

Page 2541 of 3189

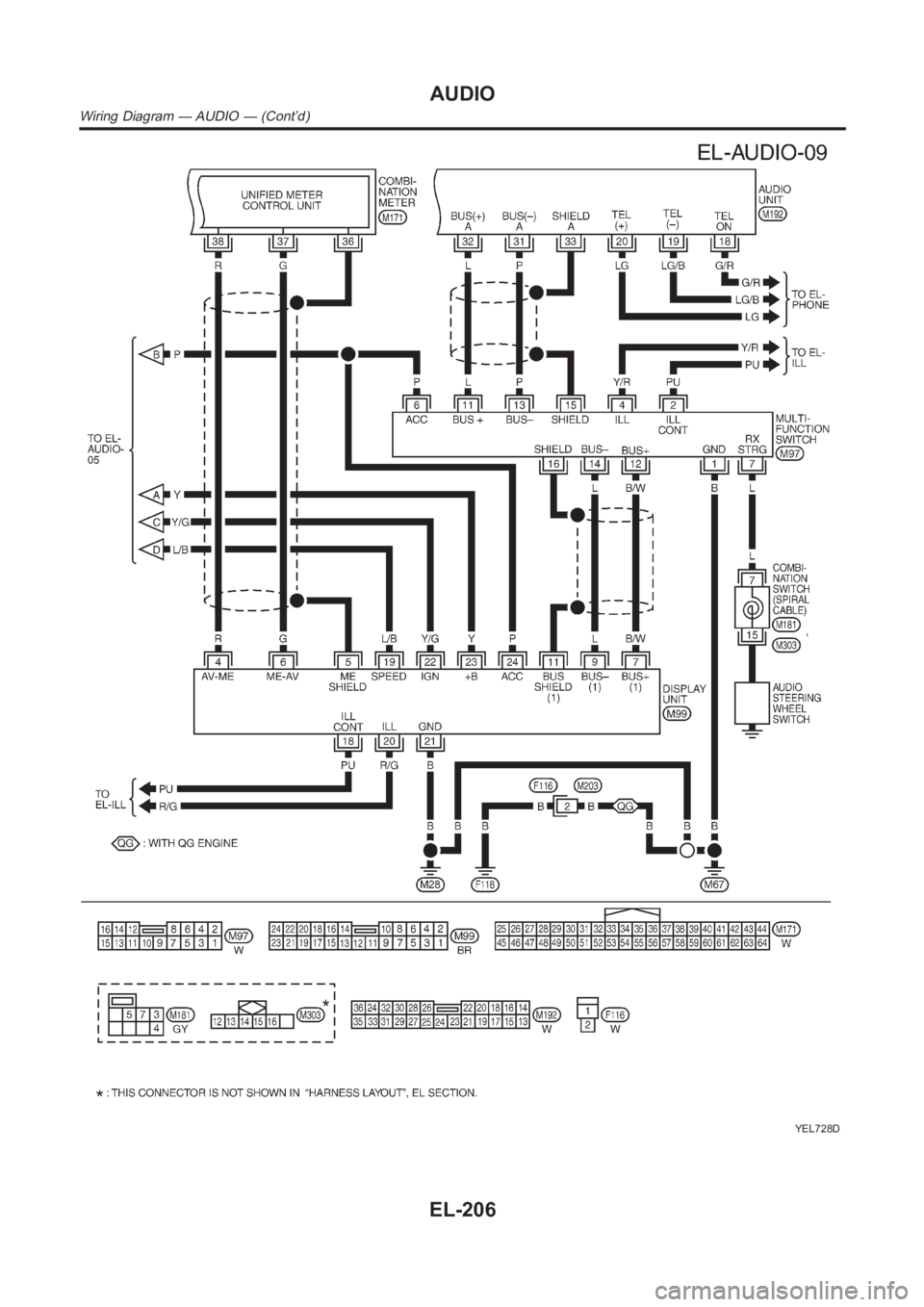

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL727D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-205

Page 2542 of 3189

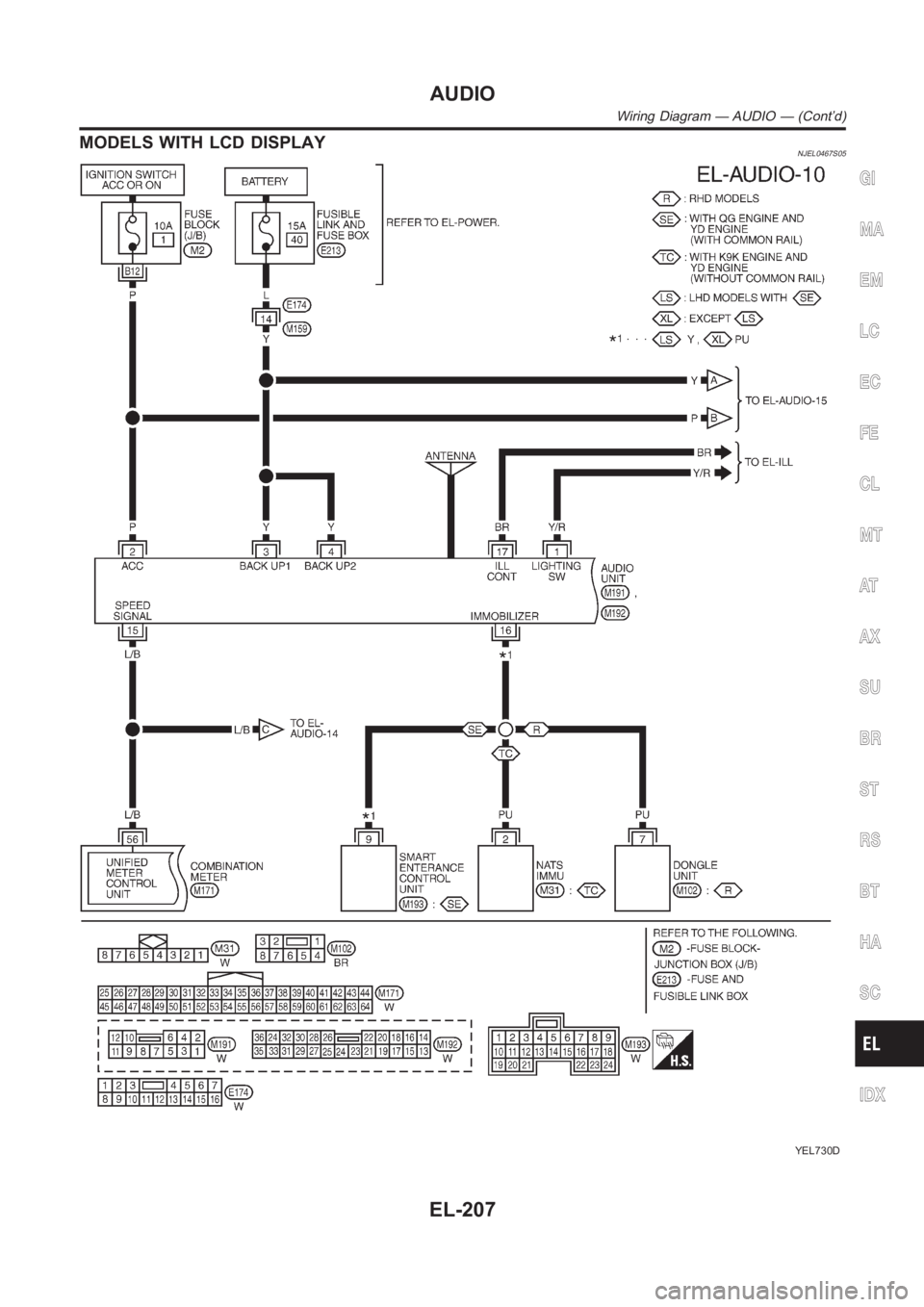

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL728D AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-206

Page 2543 of 3189

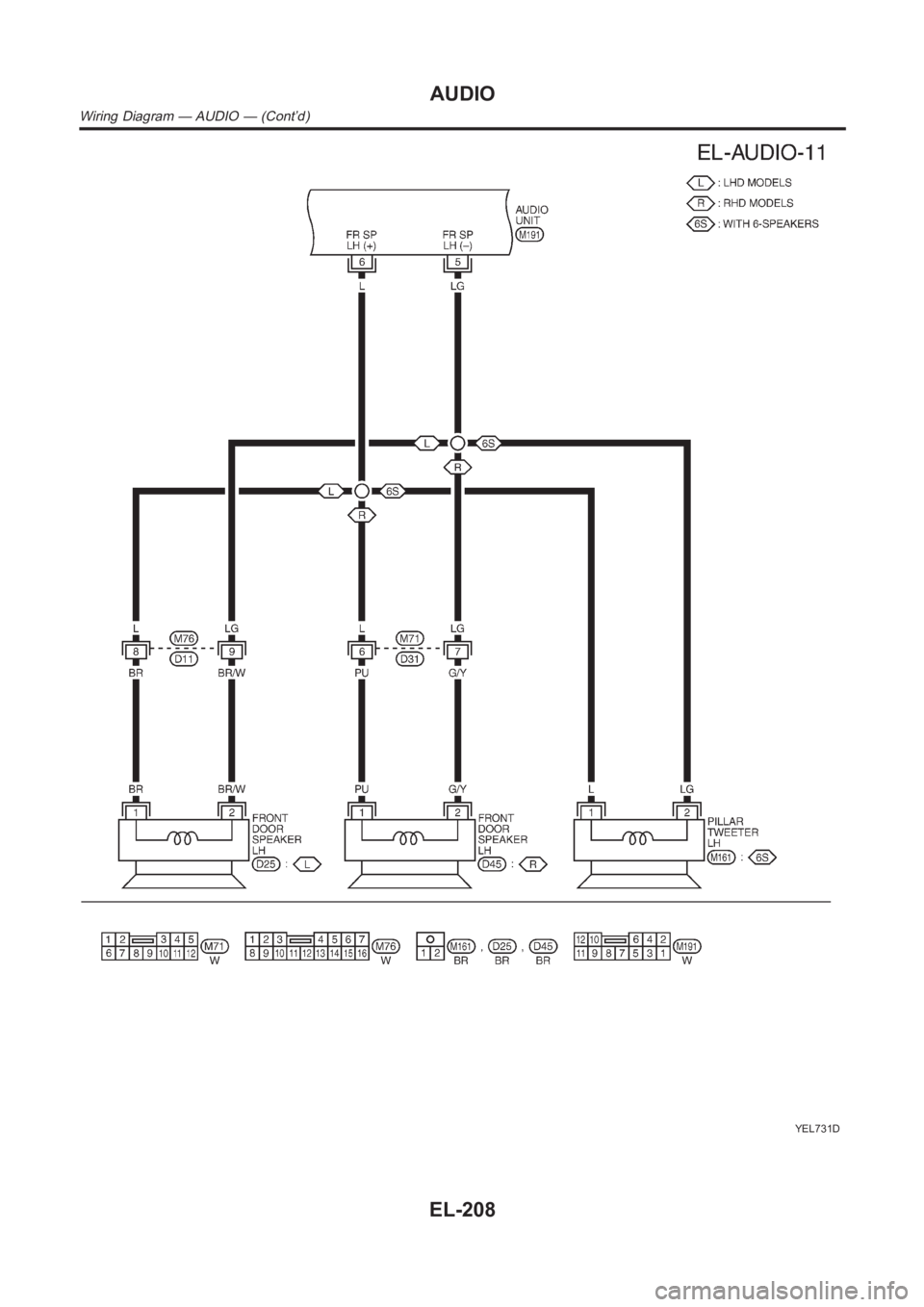

NISSAN ALMERA N16 2003 Electronic Repair Manual MODELS WITH LCD DISPLAYNJEL0467S05 YEL730D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-207

Page 2544 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL731D AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-208

Page 2545 of 3189

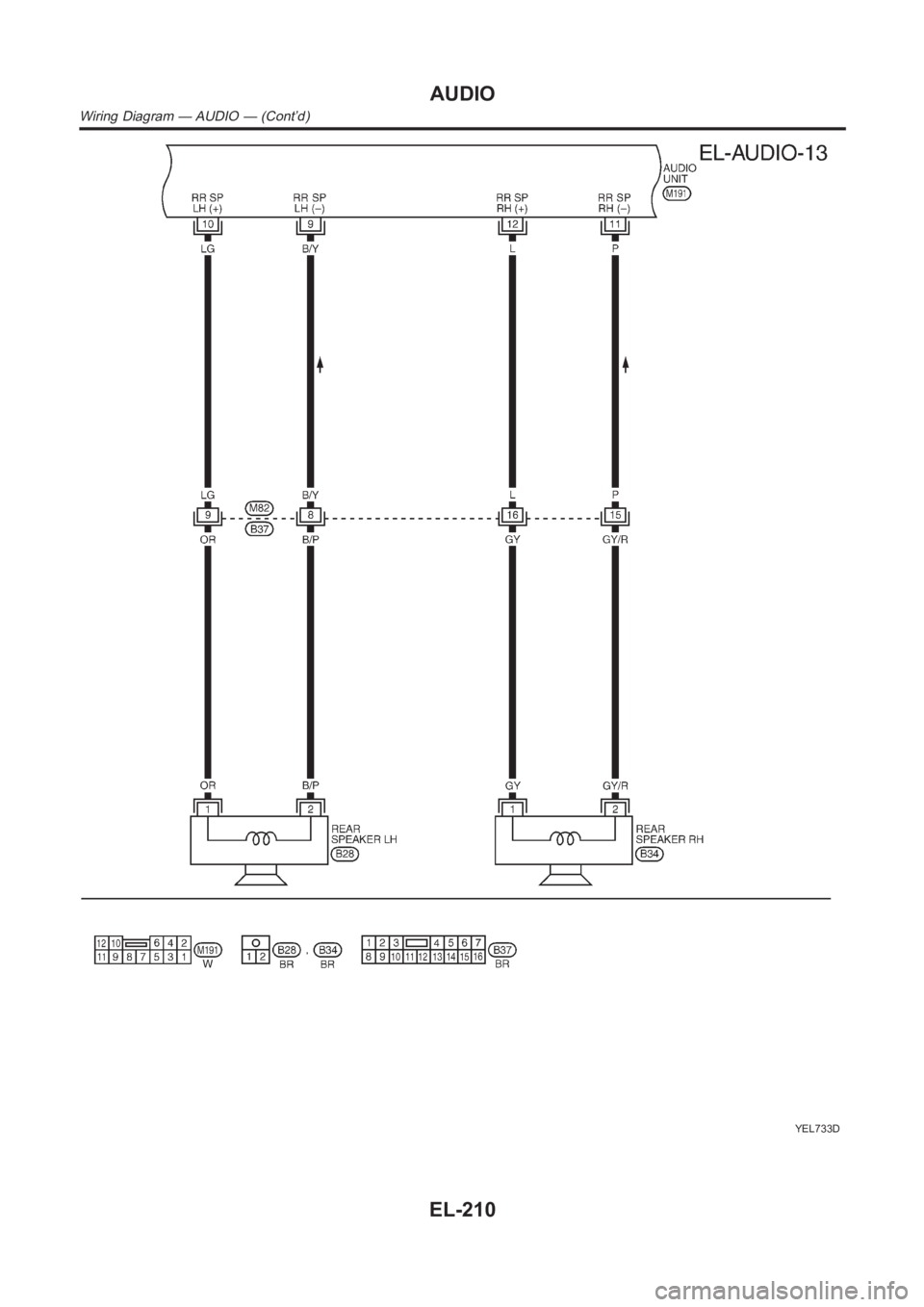

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL732D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-209

Page 2546 of 3189

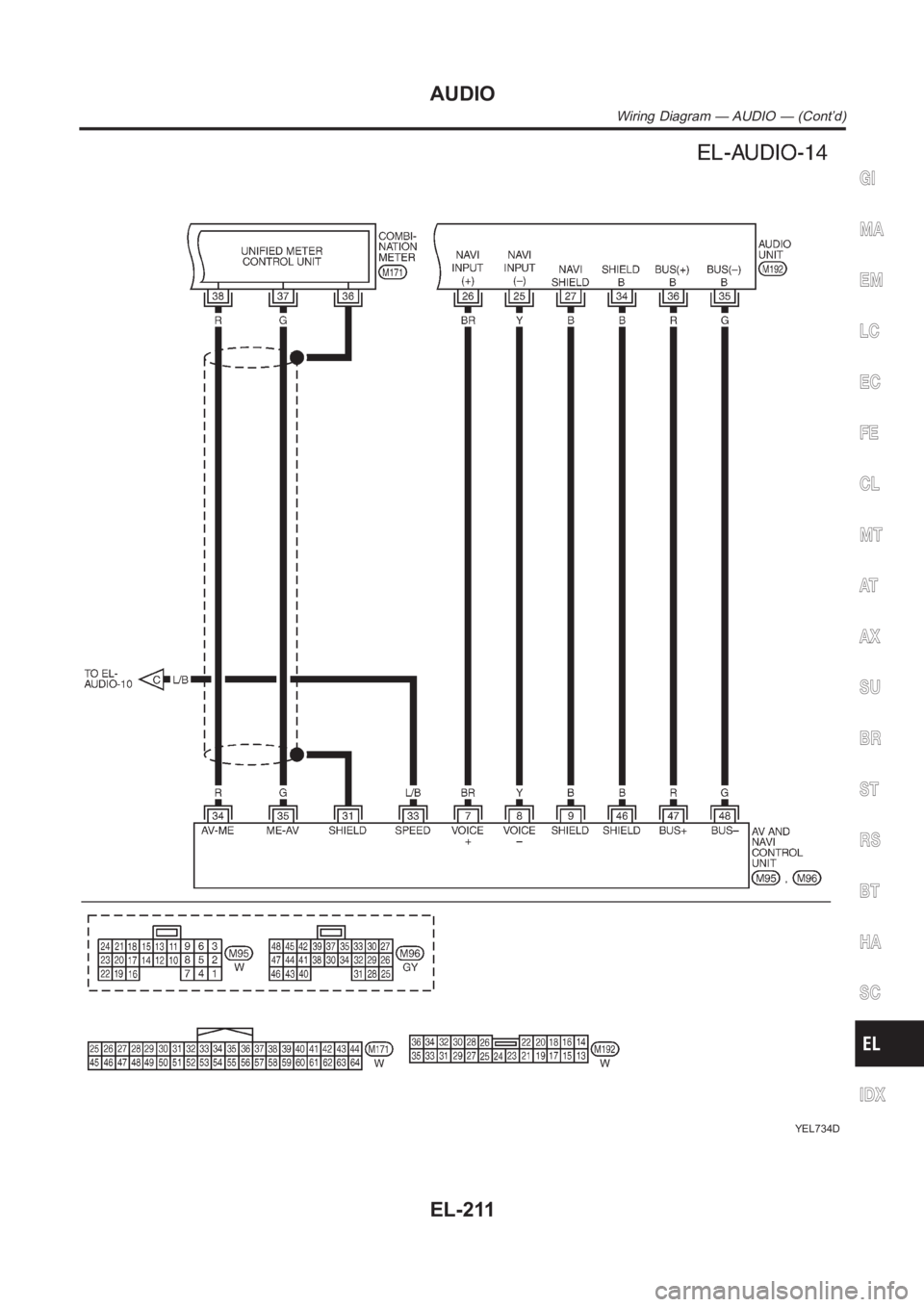

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL733D AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-210

Page 2547 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL734D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX AUDIO Wiring Diagram — AUDIO — (Cont’d) EL-211
Load next 8 pages
