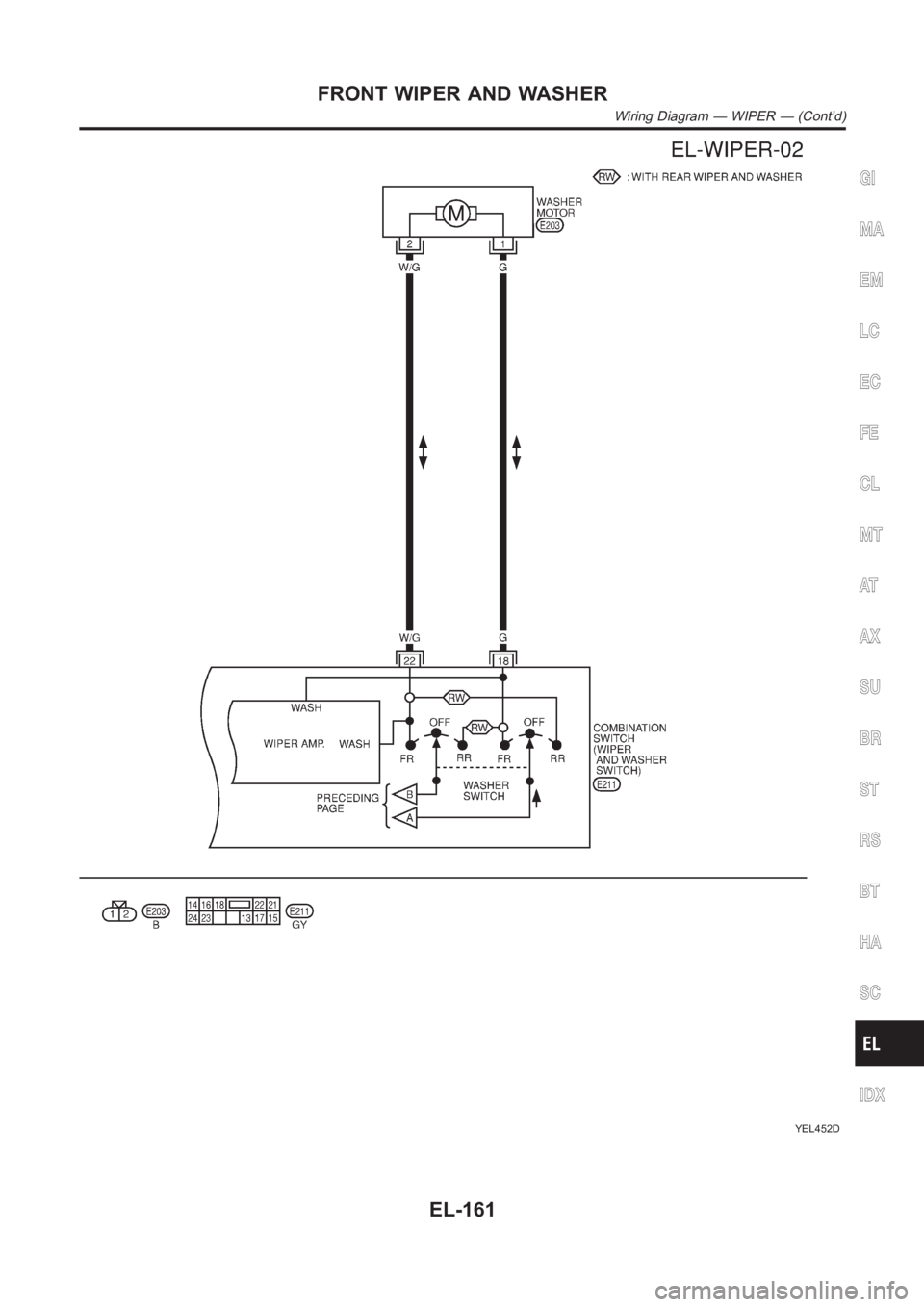

FRONT WIPER AND WASHER
Wiring Diagram — WIPER — (Cont’d)
EL-161

Wiring Diagram — WIP/R —NJEL0458
YEL710D

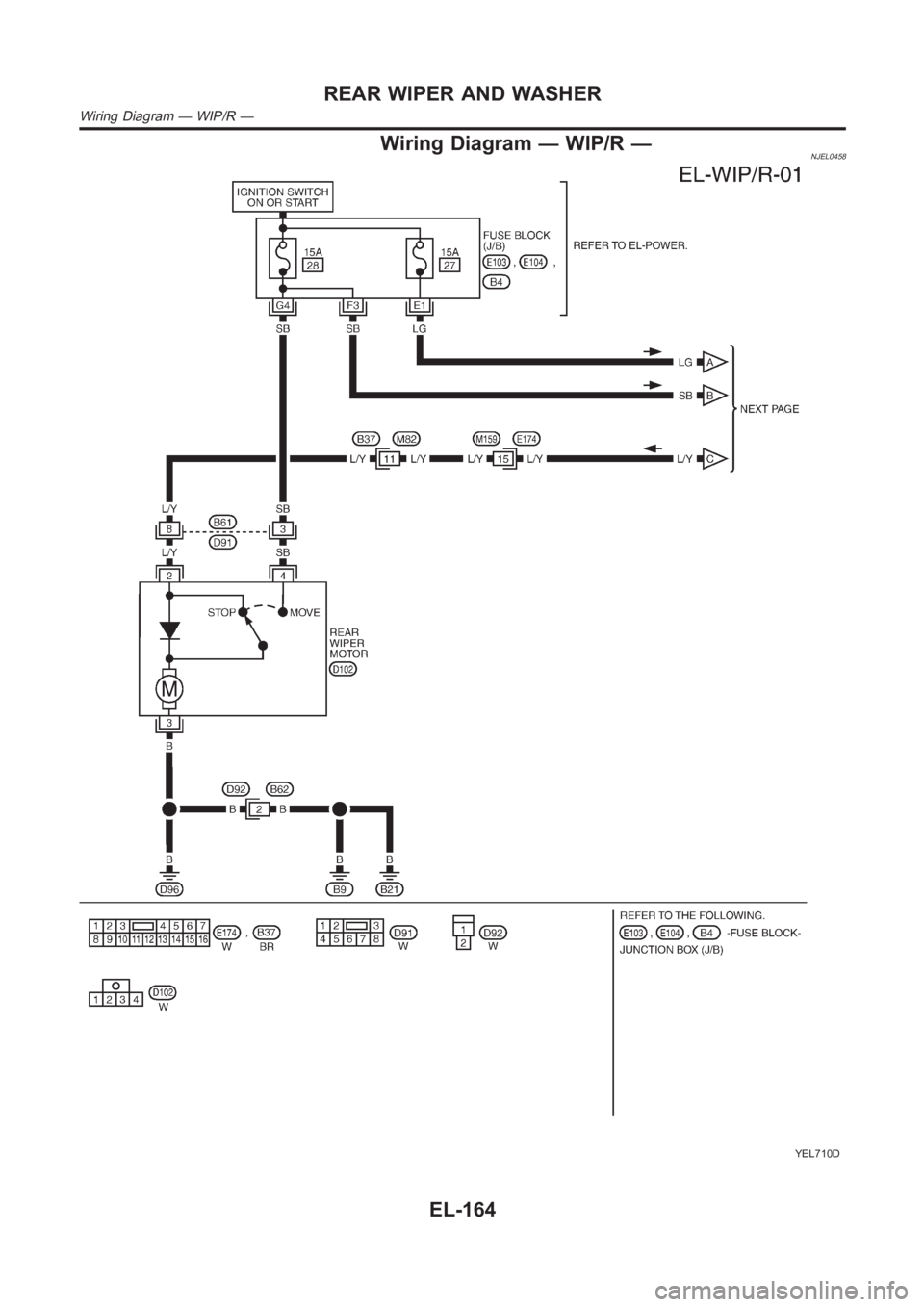

REAR WIPER AND WASHER
Wiring Diagram — WIP/R —
EL-164

YEL454D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

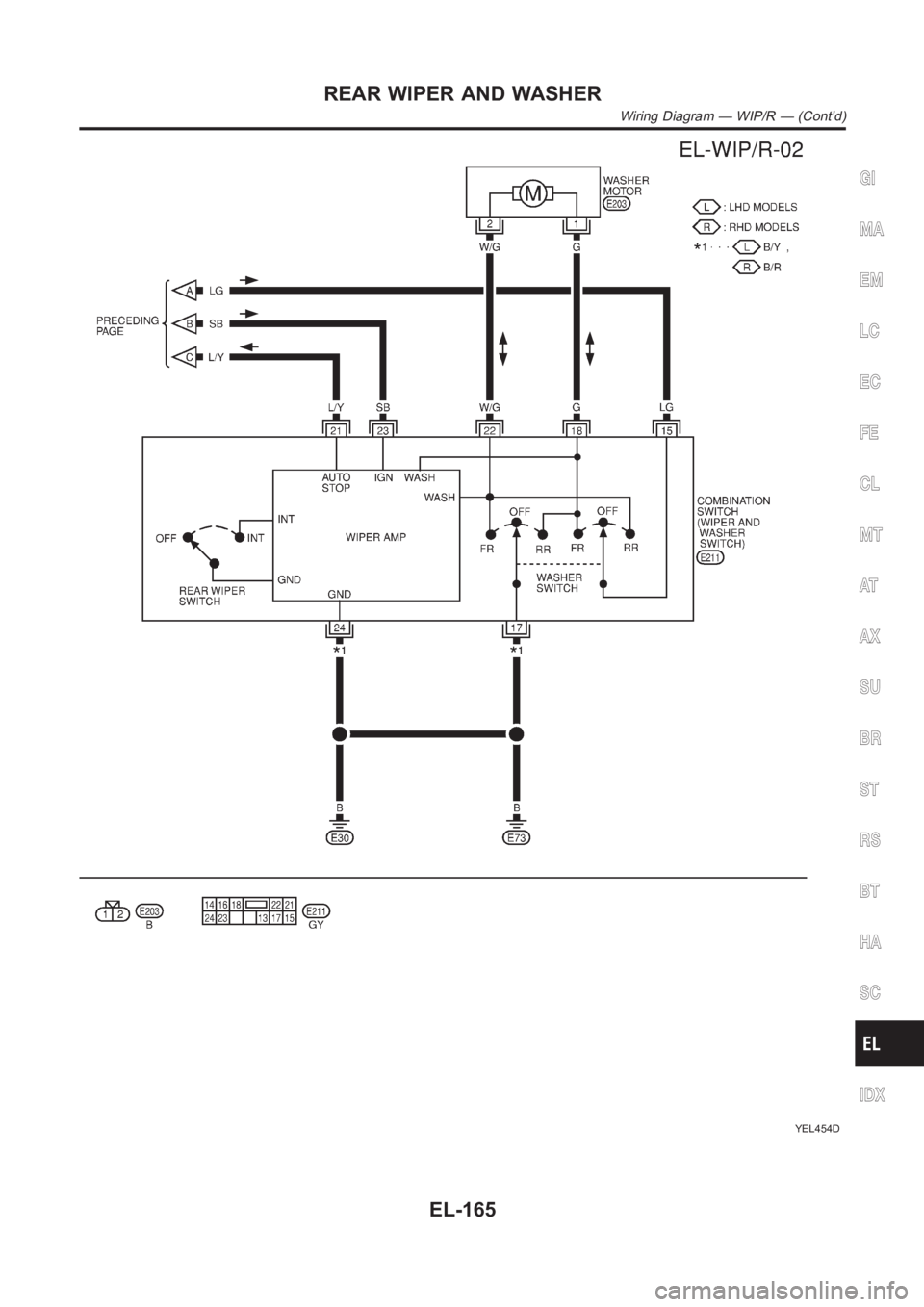

REAR WIPER AND WASHER
Wiring Diagram — WIP/R — (Cont’d)
EL-165

Wiring Diagram — HLC —NJEL0459
YEL455D

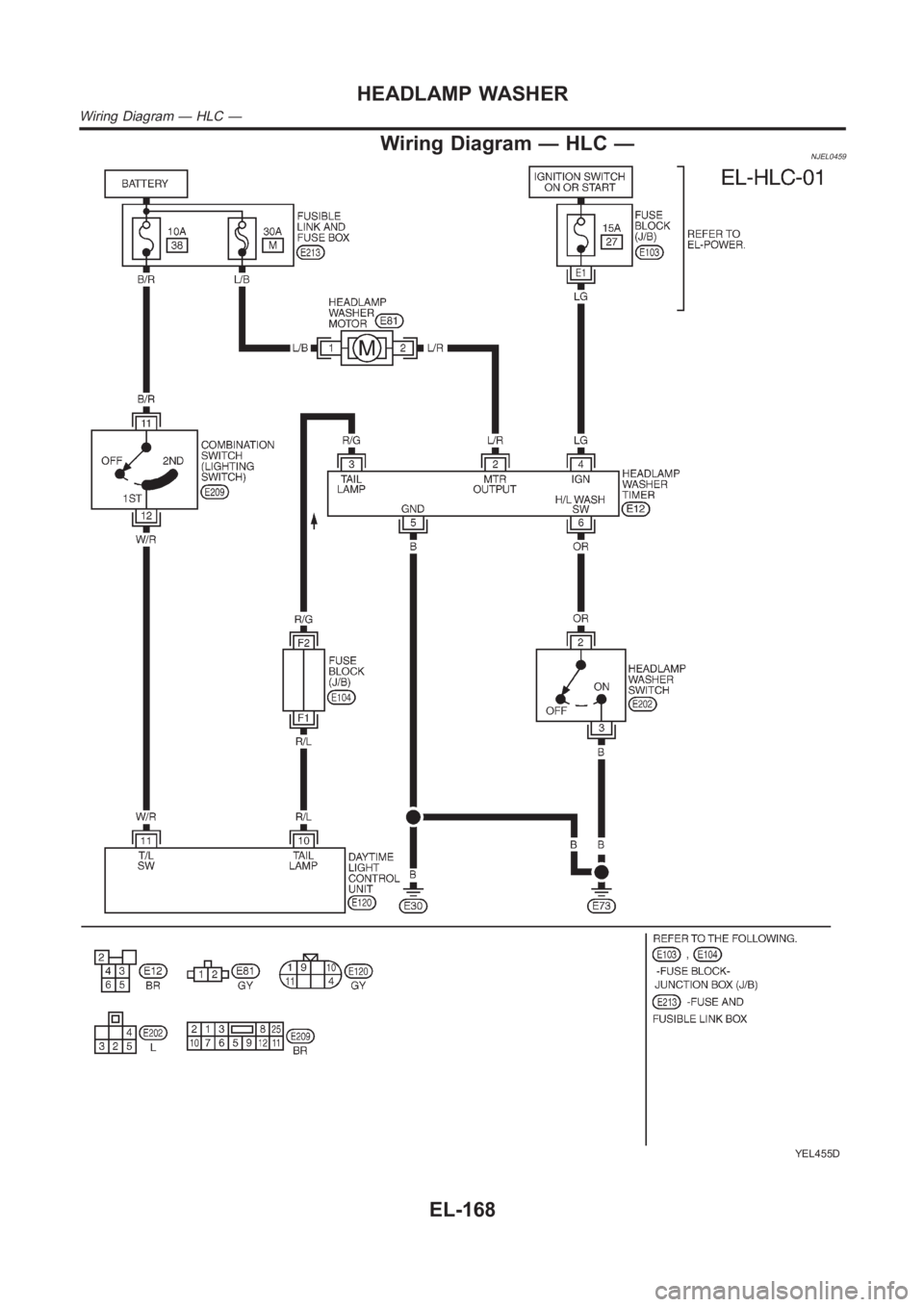

HEADLAMP WASHER
Wiring Diagram — HLC —
EL-168

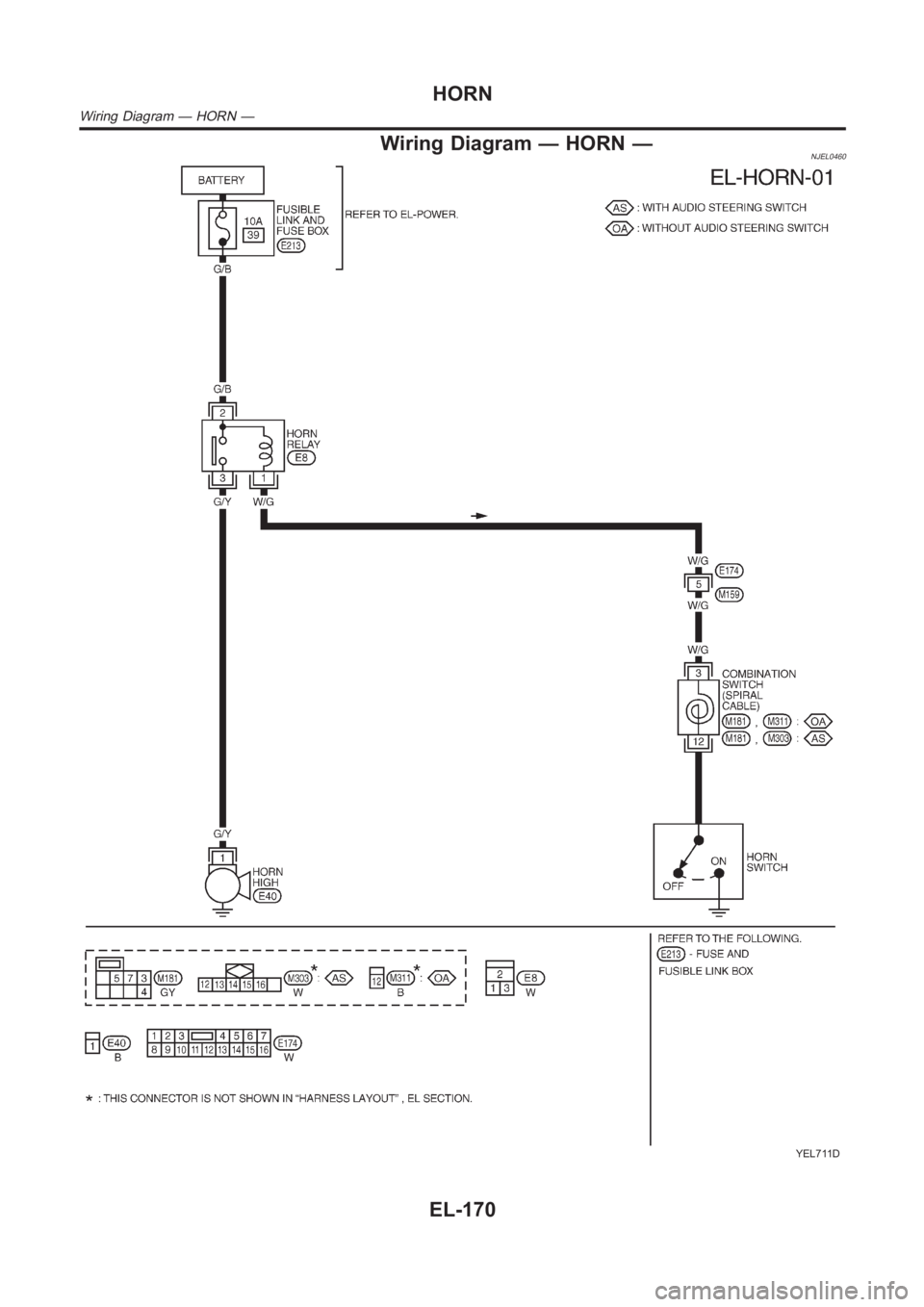

Wiring Diagram — HORN —NJEL0460
YEL711D
HORN
Wiring Diagram — HORN —
EL-170

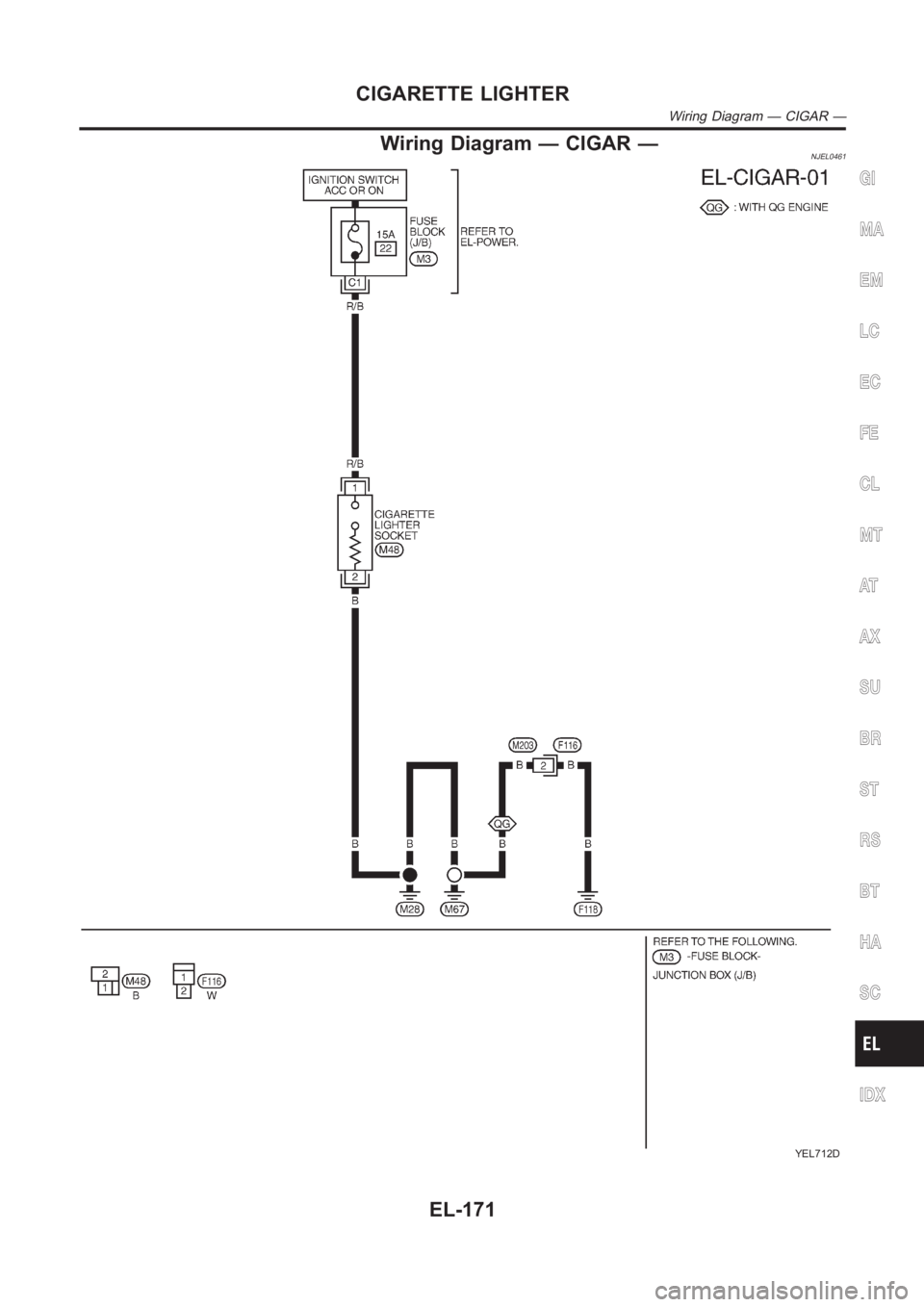

Wiring Diagram — CIGAR —NJEL0461
YEL712D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
CIGARETTE LIGHTER
Wiring Diagram — CIGAR —
EL-171

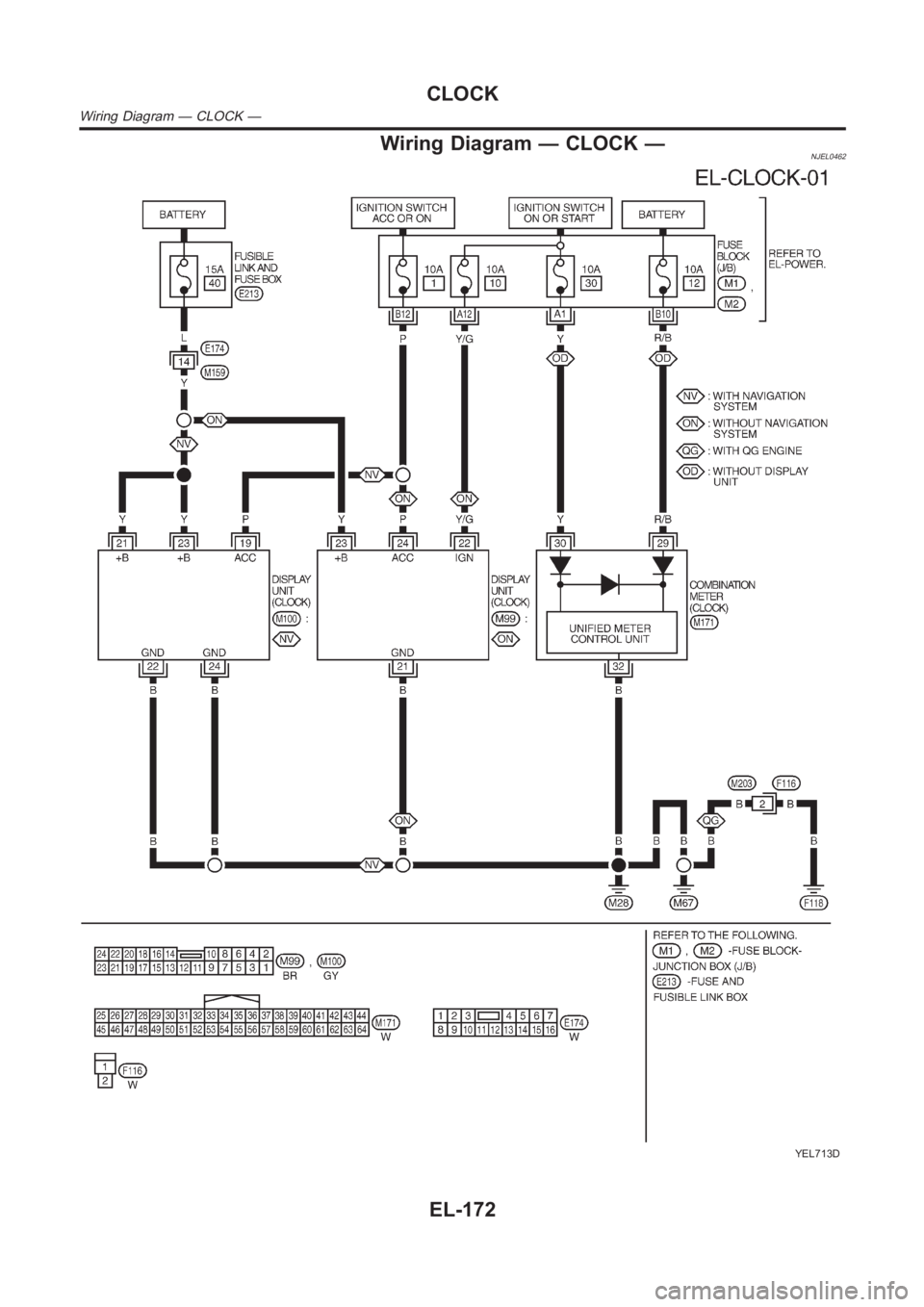

Wiring Diagram — CLOCK —NJEL0462
YEL713D
CLOCK
Wiring Diagram — CLOCK —
EL-172

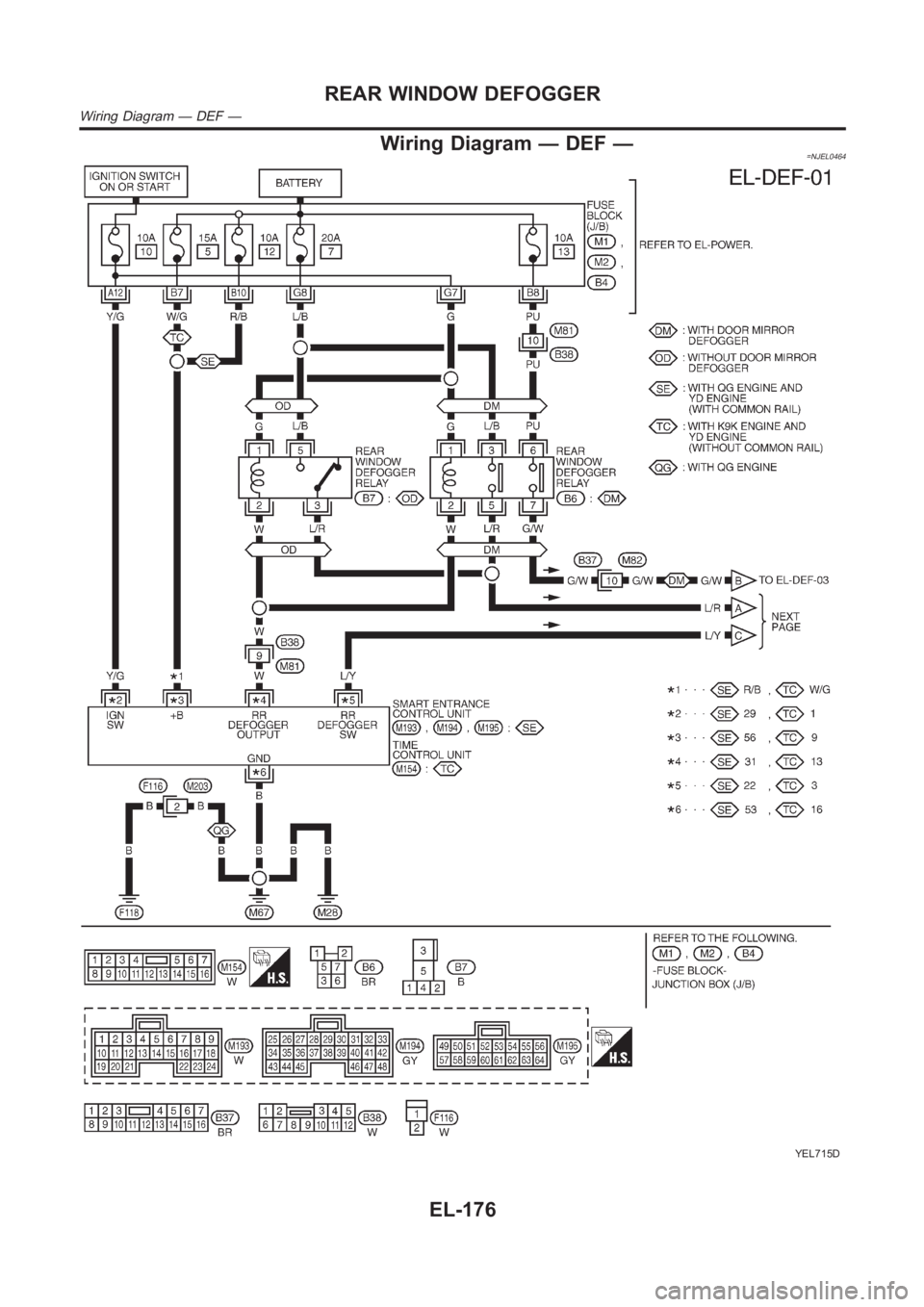

Wiring Diagram — DEF —=NJEL0464
YEL715D
REAR WINDOW DEFOGGER
Wiring Diagram — DEF —
EL-176
