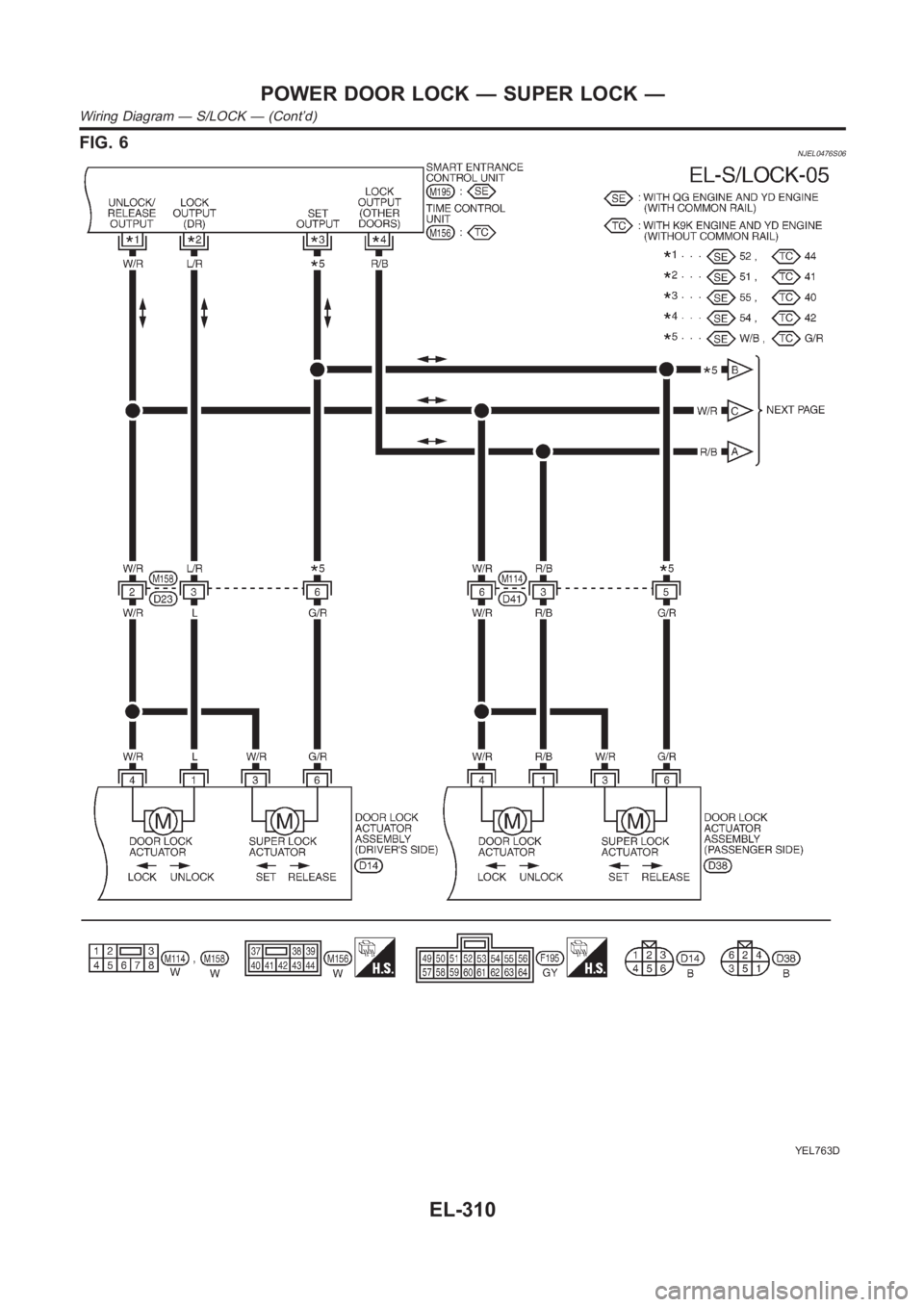

POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-310

Page 2647 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual FIG. 7NJEL0476S07
YEL764D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-311

Page 2648 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual FIG. 8NJEL0476S10
YEL707C
POWER DOOR LOCK — SUPER LOCK —
Wiring Diagram — S/LOCK — (Cont’d)
EL-312

Page 2678 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DOOR LOCK/UNLOCK SWITCH CHECK=NJEL0477S04
1 CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
1. Disconnect time control unit harness connector.
2. Check continuity between time control unit harness connecto

Page 2679 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DOOR KEY CYLINDER SWITCH CHECKNJEL0477S05
1 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL)
Check voltage between time control unit harness connector terminals 28 or29 and ground.
SEL

Page 2680 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DOOR LOCK ACTUATOR CHECKNJEL0477S06
1 CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL
Check voltage for door lock actuator.
Door lock actuator driver’s side
SEL472X
Door lock actuator passenger side and rear

Page 2682 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual SUPER LOCK ACTUATOR CHECK=NJEL0477S07
1 CHECK OUTPUT SIGNAL FOR SUPER LOCK ACTUATOR
Check voltage for super lock actuator.
SEL474X
Refer to wiring diagram in EL-310.
OK or NG
OK GO TO 2.
NG Replace ti

Page 2683 of 3189

NISSAN ALMERA N16 2003  Electronic Repair Manual DOOR SWITCH CHECK=NJEL0477S08
1 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminals 6 or 7and ground.
SEL475X
Refer to wiring diagram in EL-309.
OK or NG
