2003 NISSAN ALMERA N16 Engine control circuit

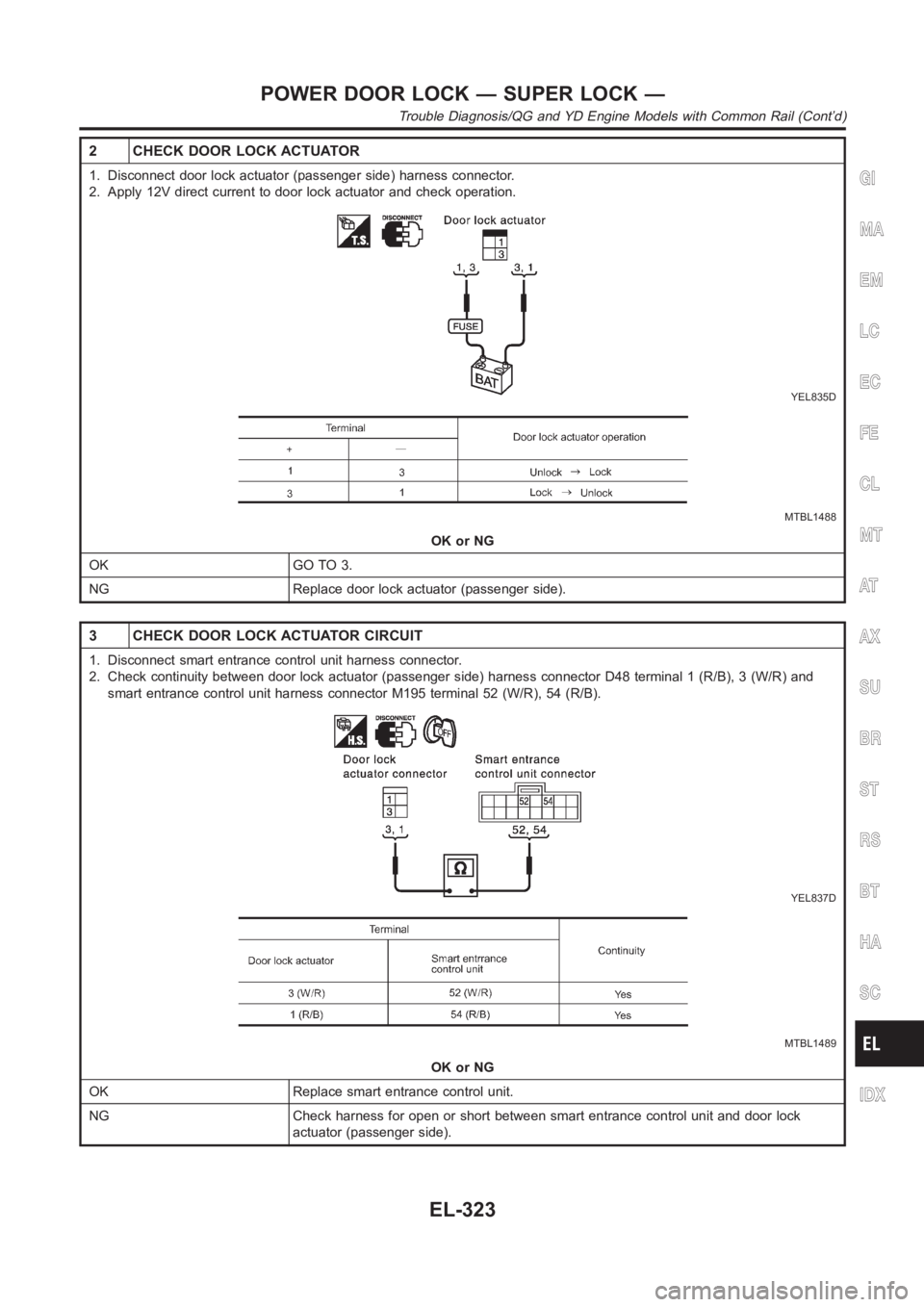

2 CHECK DOOR LOCK ACTUATOR
1. Disconnect door lock actuator (passenger side) harness connector.
2. Apply 12V direct current to door lock actuator and check operation.
YEL835D
MTBL1488
OK or NG
OK GO TO 3.
NG Replace door lock actuator (passenger side).
3 CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between door lock actuator (passenger side) harness connector D48 terminal 1 (R/B), 3 (W/R) and
smart entrance control unit harness connector M195 terminal 52 (W/R), 54 (R/B).
YEL837D
MTBL1489
OK or NG
OK Replace smart entrance control unit.
NG Check harness for open or short between smart entrance control unit and door lock
actuator (passenger side).
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-323

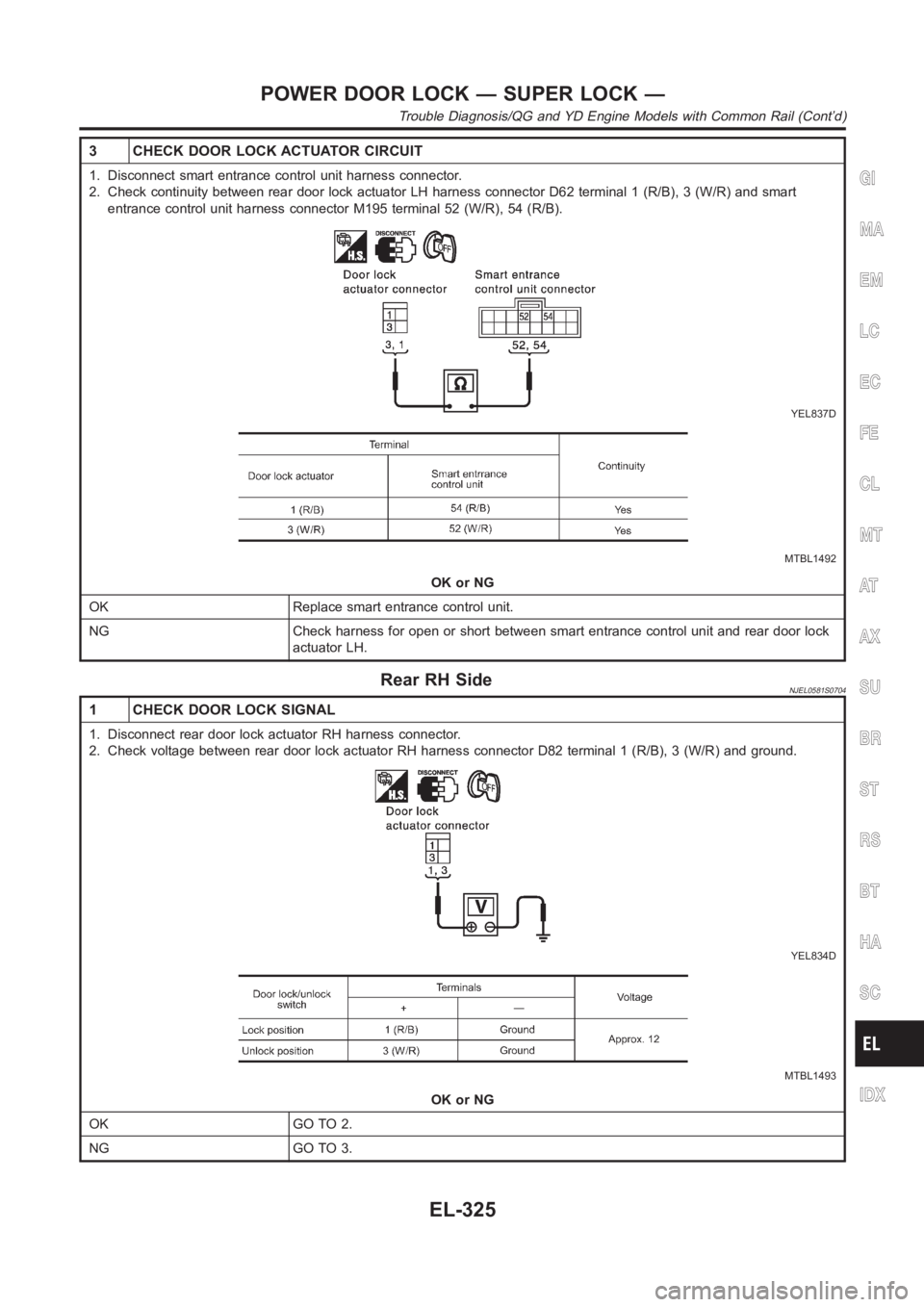

3 CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between rear door lock actuator LH harness connector D62 terminal 1 (R/B), 3 (W/R) and smart
entrance control unit harness connector M195 terminal 52 (W/R), 54 (R/B).
YEL837D
MTBL1492
OK or NG
OK Replace smart entrance control unit.
NG Check harness for open or short between smart entrance control unit and rear door lock
actuator LH.
Rear RH SideNJEL0581S0704
1 CHECK DOOR LOCK SIGNAL
1. Disconnect rear door lock actuator RH harness connector.
2. Check voltage between rear door lock actuator RH harness connector D82 terminal 1 (R/B), 3 (W/R) and ground.
YEL834D
MTBL1493
OK or NG
OK GO TO 2.
NG GO TO 3.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-325

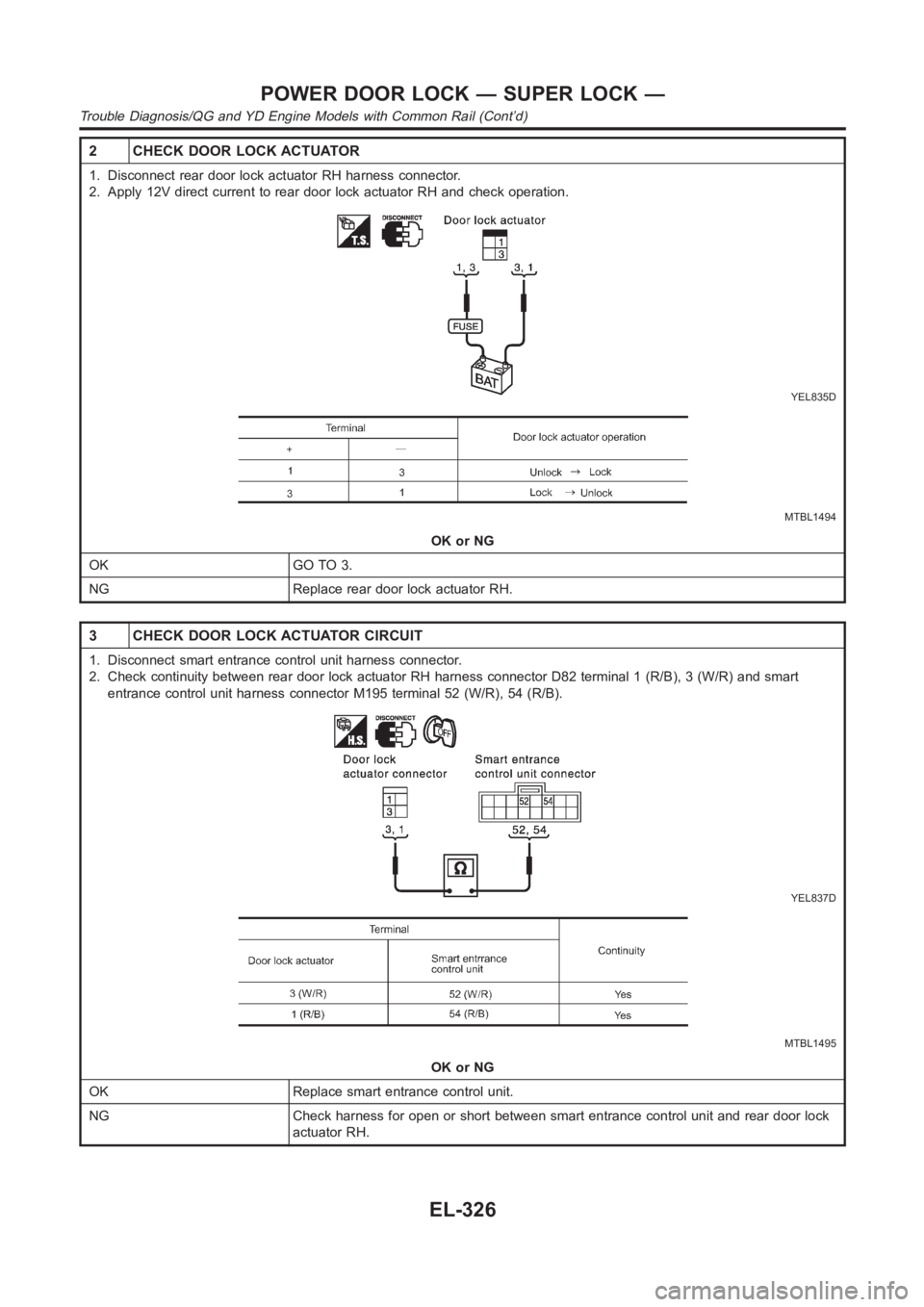

2 CHECK DOOR LOCK ACTUATOR
1. Disconnect rear door lock actuator RH harness connector.
2. Apply 12V direct current to rear door lock actuator RH and check operation.
YEL835D
MTBL1494
OK or NG
OK GO TO 3.
NG Replace rear door lock actuator RH.
3 CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between rear door lock actuator RH harness connector D82 terminal 1 (R/B), 3 (W/R) and smart
entrance control unit harness connector M195 terminal 52 (W/R), 54 (R/B).
YEL837D
MTBL1495
OK or NG
OK Replace smart entrance control unit.
NG Check harness for open or short between smart entrance control unit and rear door lock
actuator RH.
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-326

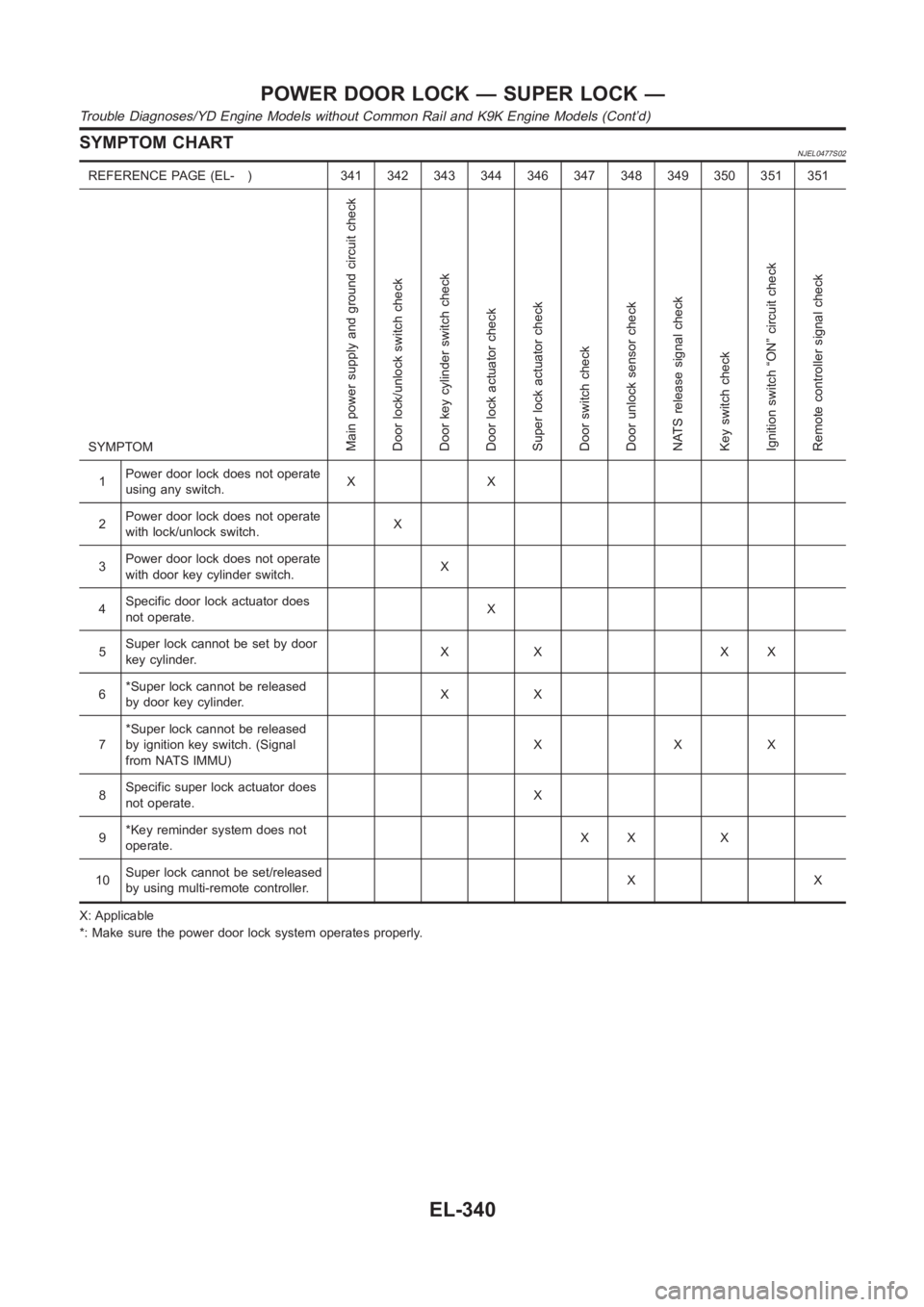

SYMPTOM CHARTNJEL0477S02
REFERENCE PAGE (EL- ) 341 342 343 344 346 347 348 349 350 351 351
SYMPTOM
Main power supply and ground circuit check
Door lock/unlock switch check
Door key cylinder switch check
Door lock actuator check
Super lock actuator check
Door switch check
Door unlock sensor check
NATS release signal check
Key switch check
Ignition switch “ON” circuit check
Remote controller signal check
1Power door lock does not operate
using any switch.XX
2Power door lock does not operate
with lock/unlock switch.X
3Power door lock does not operate
with door key cylinder switch.X
4Specific door lock actuator does
not operate.X
5Super lock cannot be set by door
key cylinder.XX XX
6*Super lock cannot be released
by door key cylinder.XX
7*Super lock cannot be released
by ignition key switch. (Signal
from NATS IMMU)XXX
8Specific super lock actuator does
not operate.X
9*Key reminder system does not
operate.XX X
10Super lock cannot be set/released
by using multi-remote controller.XX
X: Applicable
*: Make sure the power door lock system operates properly.
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-340

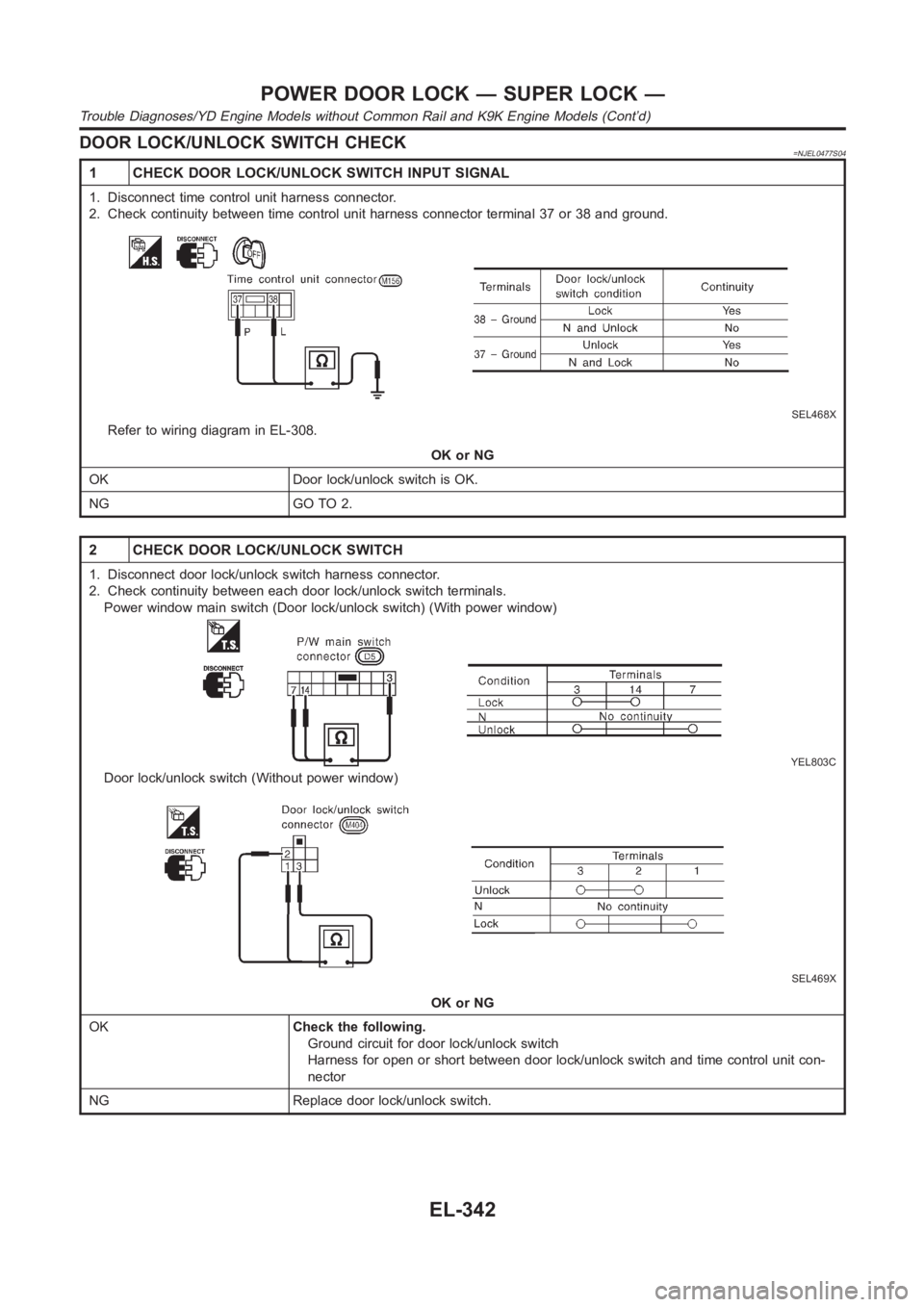

DOOR LOCK/UNLOCK SWITCH CHECK=NJEL0477S04
1 CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
1. Disconnect time control unit harness connector.
2. Check continuity between time control unit harness connector terminal37 or 38 and ground.
SEL468X
Refer to wiring diagram in EL-308.
OK or NG
OK Door lock/unlock switch is OK.
NG GO TO 2.
2 CHECK DOOR LOCK/UNLOCK SWITCH
1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between each door lock/unlock switch terminals.
Power window main switch (Door lock/unlock switch) (With power window)
YEL803C
Door lock/unlock switch (Without power window)
SEL469X
OK or NG
OKCheck the following.
Ground circuit for door lock/unlock switch
Harness for open or short between door lock/unlock switch and time controlunit con-
nector
NG Replace door lock/unlock switch.
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-342

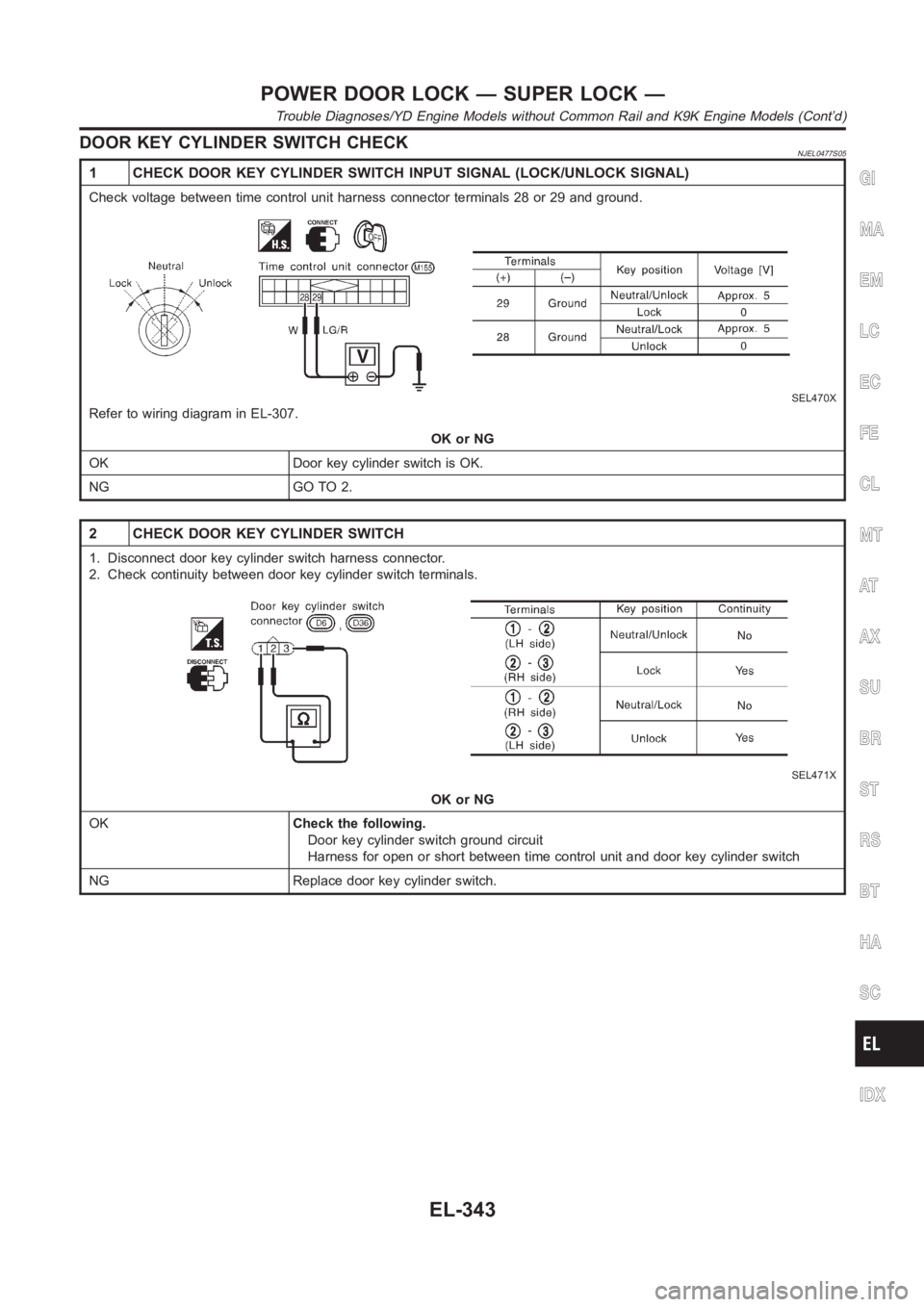

DOOR KEY CYLINDER SWITCH CHECKNJEL0477S05
1 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL)
Check voltage between time control unit harness connector terminals 28 or29 and ground.
SEL470X
Refer to wiring diagram in EL-307.
OK or NG
OK Door key cylinder switch is OK.
NG GO TO 2.
2 CHECK DOOR KEY CYLINDER SWITCH
1. Disconnect door key cylinder switch harness connector.
2. Check continuity between door key cylinder switch terminals.
SEL471X
OK or NG
OKCheck the following.
Door key cylinder switch ground circuit
Harness for open or short between time control unit and door key cylinder switch
NG Replace door key cylinder switch.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-343

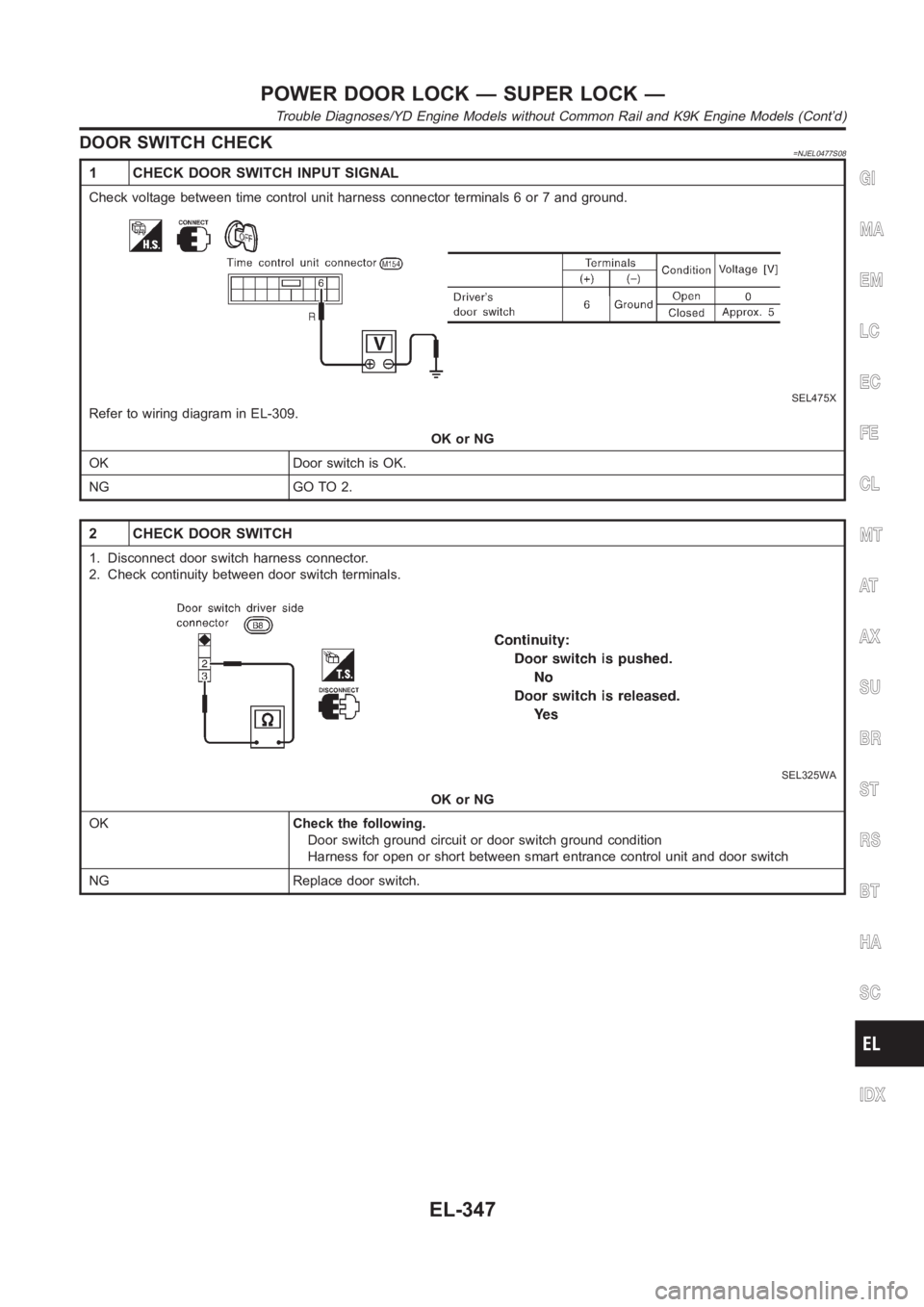

DOOR SWITCH CHECK=NJEL0477S08
1 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminals 6 or 7and ground.
SEL475X
Refer to wiring diagram in EL-309.
OK or NG
OK Door switch is OK.
NG GO TO 2.
2 CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.
SEL325WA
OK or NG
OKCheck the following.
Door switch ground circuit or door switch ground condition
Harness for open or short between smart entrance control unit and door switch
NG Replace door switch.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-347

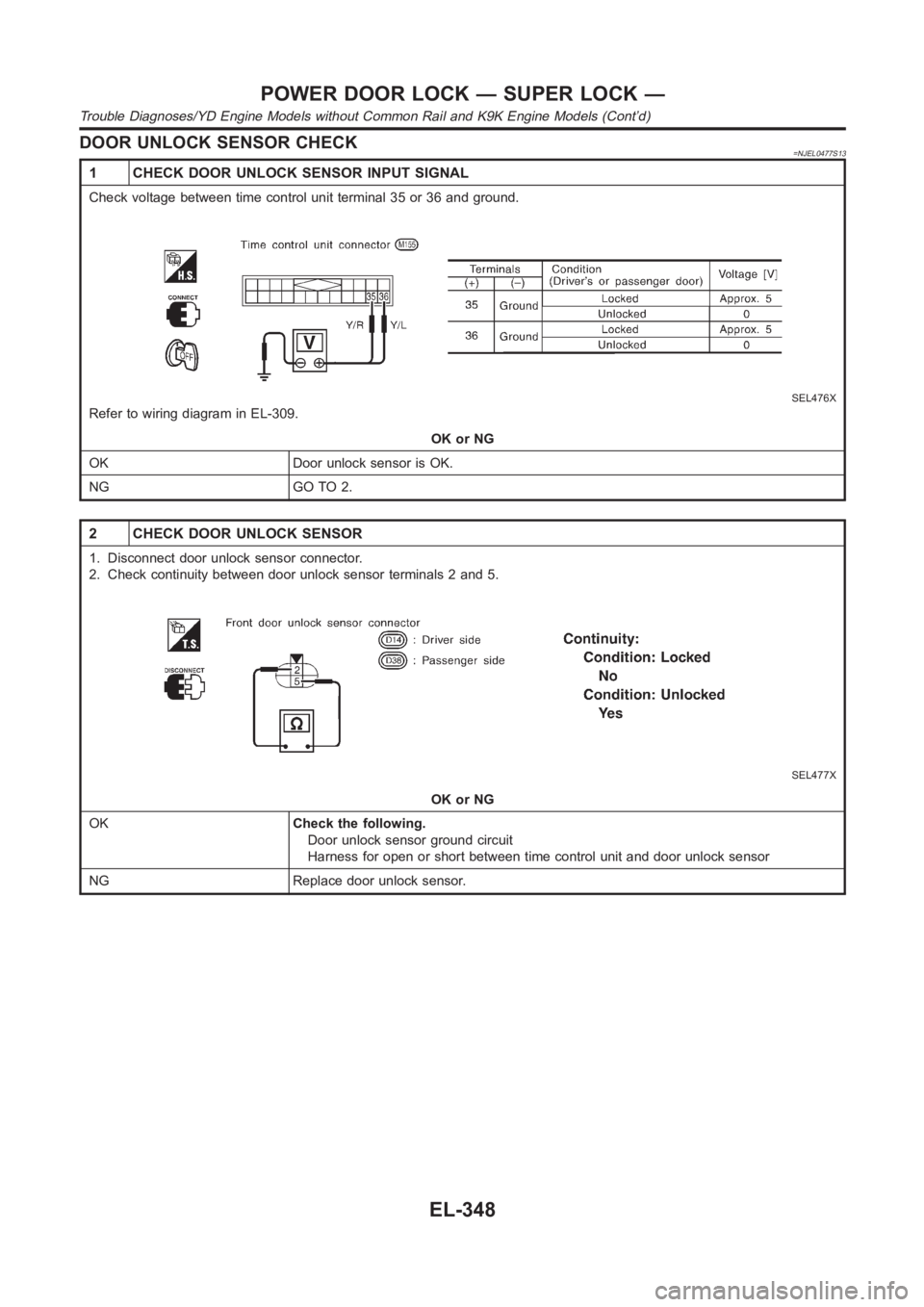

DOOR UNLOCK SENSOR CHECK=NJEL0477S13
1 CHECK DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit terminal 35 or 36 and ground.
SEL476X
Refer to wiring diagram in EL-309.
OK or NG
OK Door unlock sensor is OK.
NG GO TO 2.
2 CHECK DOOR UNLOCK SENSOR
1. Disconnect door unlock sensor connector.
2. Check continuity between door unlock sensor terminals 2 and 5.
SEL477X
OK or NG
OKCheck the following.
Door unlock sensor ground circuit
Harness for open or short between time control unit and door unlock sensor
NG Replace door unlock sensor.
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-348
