TORQUE CONVERTER CLUTCH SOLENOID VALVE
Wiring Diagram — AT — TCV
ECS007S9
YAT 2 3 9

TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-375
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS007SA
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 5 and ground.
OK or NG
OK >> GO TO 2
NG >> 1. Remove oil pan. Refer to AT- 4 0 6 , "
Control Valve
Assembly and Accumulators" .
2. Check the following items:
Torque converter clutch solenoid valve
Refer to AT- 3 7 5 , "
Component Inspection" .
Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform AT- 3 7 3 , "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Component InspectionECS007SB
TORQUE CONVERTER CLUTCH SOLENOID VALVE
●For removal, refer to AT-406, "Control Valve Assembly and Accumulators" . Resistance: 5 - 20Ω
SAT889JB
Continuity should exist.
SAT890JB

AT-376
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve5 Ground 5 - 20Ω
SAT053KA
SAT054KA

AT-410
[ALL]
REMOVAL AND INSTALLATION
REMOVAL AND INSTALLATION
PFP:00000
RemovalECS007T4
CAUTION:
Before separating transaxle from engine, remove the crankshaft
position sensor (OBD) from transaxle. Be careful not to damage
sensor.
1. Remove battery and bracket.
2. Remove air duct between throttle body and air cleaner.
3. Disconnect A/T solenoid harness connector, PNP switch har-
ness connector and revolution sensor harness connector.
4. Remove crankshaft position sensor (OBD) from transaxle.
5. Drain ATF from transaxle.
6. Disconnect control cable from transaxle.
7. Disconnect fluid cooler hoses.
8. Remove drive shafts. Refer to AX-10, "FRONT DRIVE SHAFT".
9. Remove the intake manifold support bracket. Refer to EM-16,
"INTAKE MANIFOLD" .
10. Remove starter motor from transaxle.
11. Remove upper bolts fixing transaxle to engine.
12. Support transaxle with a jack.
13. Remove center member.
●Tighten center member fixing bolts to specified torque, Refer
to EM-67, "
ENGINE ASSEMBLY" .
14. Remove center member, engine insulator and engine mounting bracket.
●Tighten center member fixing bolts to specified torque, Refer to EM-67, "ENGINE ASSEMBLY" .
SAT501HA
Tighten bolts to specified torque.
: 41 - 52 N-m (4.2 - 5.3 kg-m, 30 - 38 ft-lb)
SAT304G
AAT469

REMOVAL AND INSTALLATION
AT-411
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
15. Remove suspension member. Refer to SU-5, "FRONTSUSPEN-
SION MEMBER".
16. Remove dust cover from converter housing.
Rotate crankshaft to gain access to securing bolts.
17. Remove securing bolts between drive plate and torque con-
verter. when crank shaft rotates, turn to right at the front side of
engine.
18. Support engine with a jack.
19. Remove bolts fixing transaxle to engine.
20. Lower transaxle while supporting it with a jack.
InstallationECS007T5
1. Check drive plate runout.
CAUTION:
Do not allow any magnetic materials to contact the ring
gear teeth.
●If this runout is out of allowance, replace drive plate with ring
gear.
2. When connecting torque converter to transaxle, measure dis-
tance “A” to be certain that they are correctly assembled.
3. Install torque converter to drive plate.
●With converter installed, rotate crankshaft several turns
to check that transaxle rotates freely without binding.
AAT259A
Maximum allowable runout :
Refer to EM-92, "
FLYWHEEL RUNOUT" .
SAT977H
Distance “A”: 21.1 mm (0.831 in) or more
SAT573D
AAT266A

AT-412
[ALL]
REMOVAL AND INSTALLATION

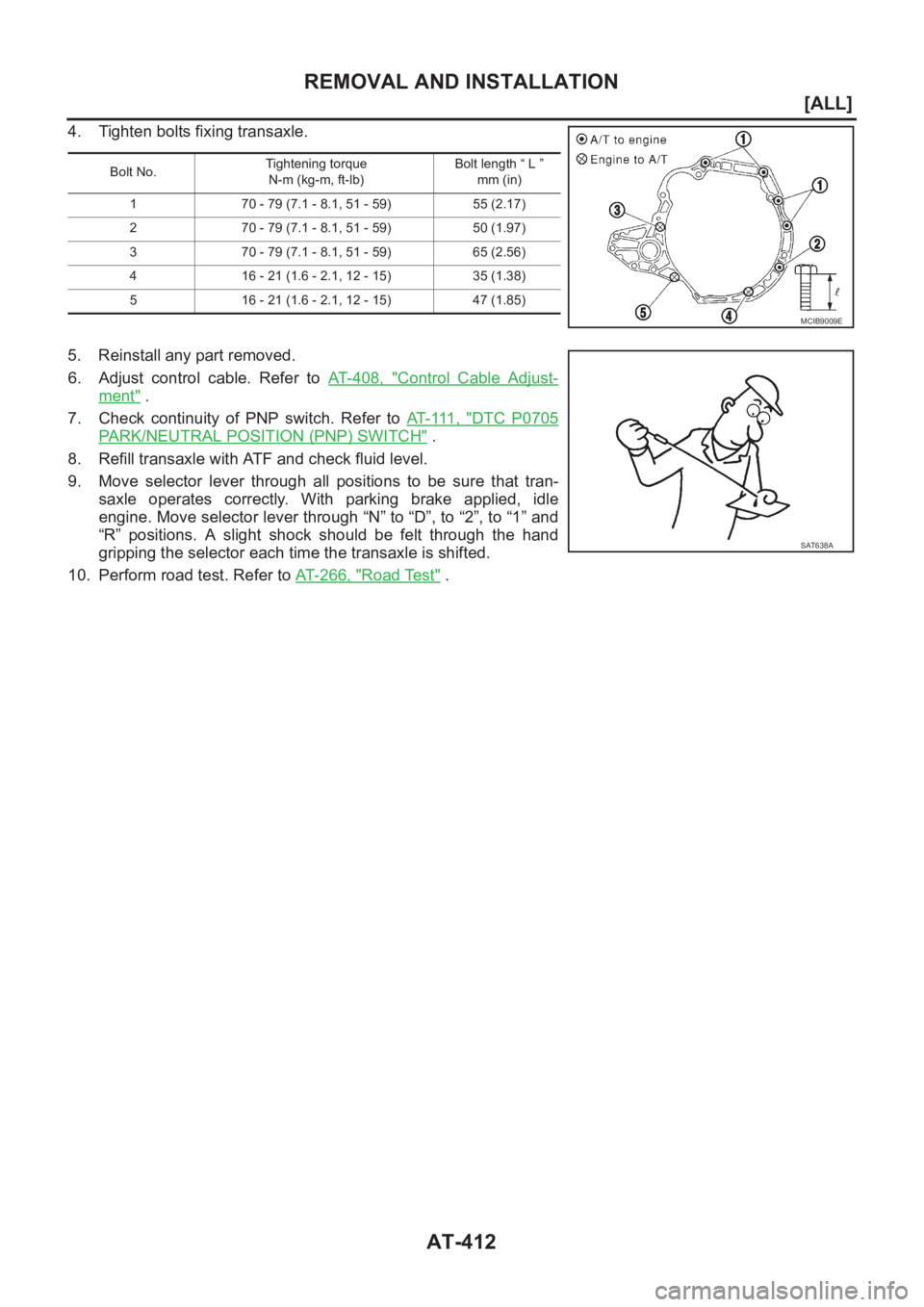

4. Tighten bolts fixing transaxle.
5. Reinstall any part removed.
6. Adjust control cable. Refer to AT- 4 0 8 , "
Control Cable Adjust-
ment" .
7. Check continuity of PNP switch. Refer to AT- 111 , "
DTC P0705
PARK/NEUTRAL POSITION (PNP) SWITCH" .
8. Refill transaxle with ATF and check fluid level.
9. Move selector lever through all positions to be sure that tran-
saxle operates correctly. With parking brake applied, idle
engine. Move selector lever through “N” to “D”, to “2”, to “1” and
“R” positions. A slight shock should be felt through the hand
gripping the selector each time the transaxle is shifted.
10. Perform road test. Refer to AT- 2 6 6 , "
Road Test" .
Bolt No.Tightening torque
N-m (kg-m, ft-lb)Bolt length “ L ”
mm (in)
1 70 - 79 (7.1 - 8.1, 51 - 59) 55 (2.17)
2 70 - 79 (7.1 - 8.1, 51 - 59) 50 (1.97)
3 70 - 79 (7.1 - 8.1, 51 - 59) 65 (2.56)
4 16 - 21 (1.6 - 2.1, 12 - 15) 35 (1.38)
5 16 - 21 (1.6 - 2.1, 12 - 15) 47 (1.85)
MCIB9009E
SAT638A

AT-418
[ALL]
DISASSEMBLY
DISASSEMBLY
PFP:31020

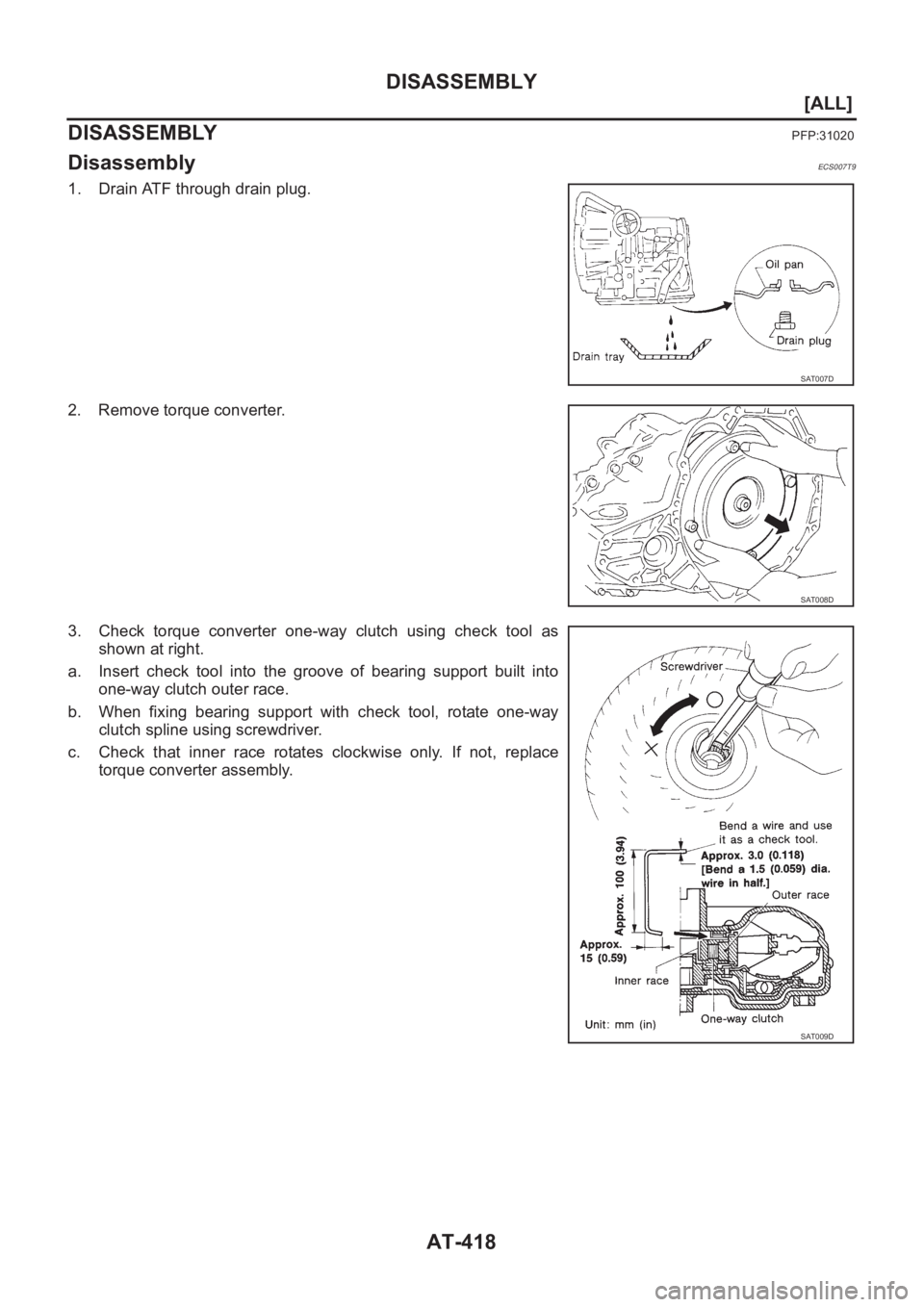

DisassemblyECS007T9
1. Drain ATF through drain plug.
2. Remove torque converter.
3. Check torque converter one-way clutch using check tool as
shown at right.
a. Insert check tool into the groove of bearing support built into
one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one-way
clutch spline using screwdriver.
c. Check that inner race rotates clockwise only. If not, replace
torque converter assembly.
SAT007D
SAT008D
SAT009D

AT-438
[ALL]
REPAIR FOR COMPONENT PARTS
3. Install inner and outer gears on oil pump housing.
●Take care with the direction of inner gear.
4. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten bolts in a crisscross pattern. Tighten oil pump cover
bolts to the specified torque. Refer to AT- 4 3 5 , "
COMPONENTS"
.
5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
●Do not spread gap of seal ring excessively while install-
ing. The ring may be deformed.
SAT092D
SAT101D
SAT699H
