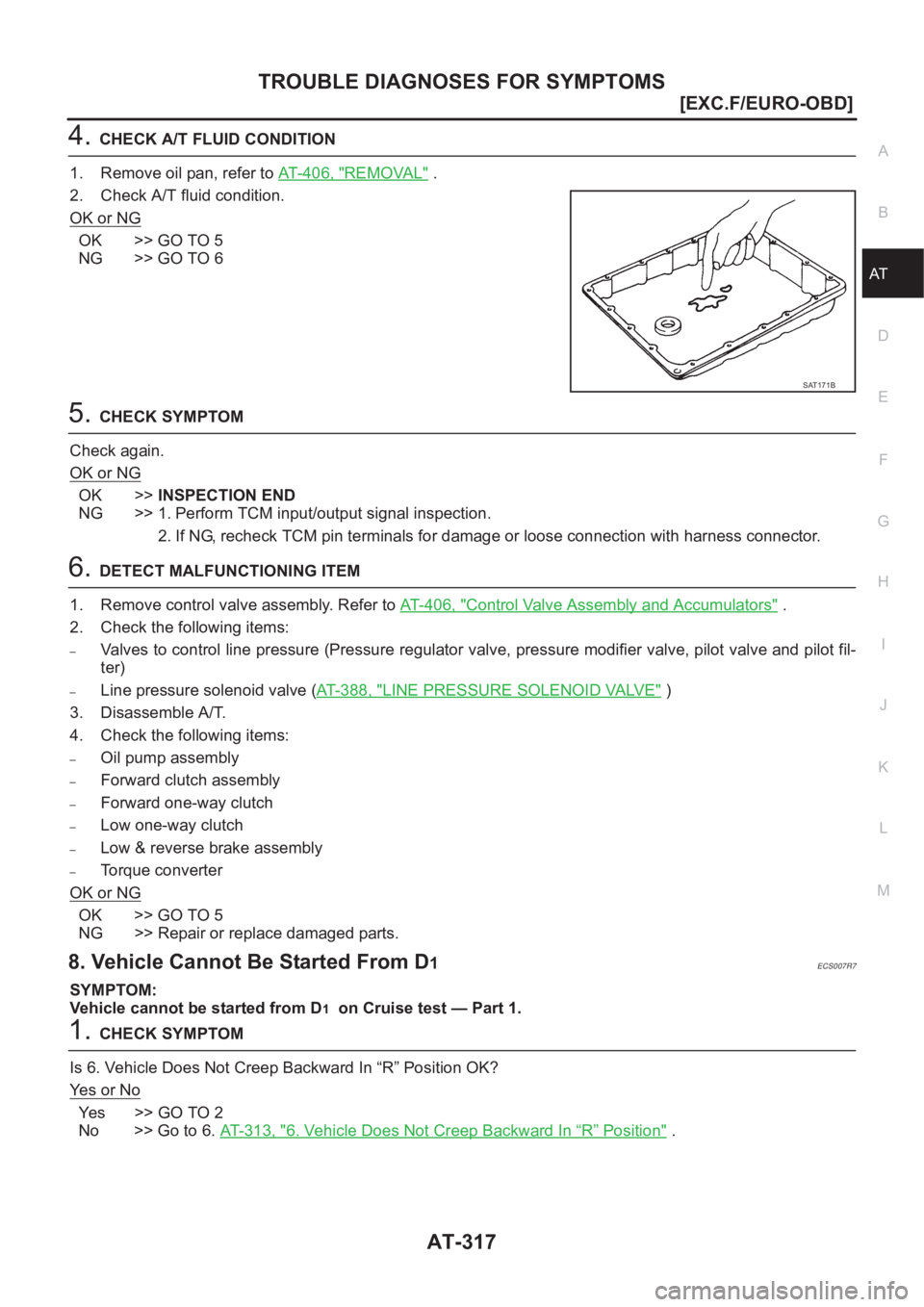

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5
NG >> GO TO 6
5.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT-388, "LINE PRESSURE SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following items:
–Oil pump assembly
–Forward clutch assembly
–Forward one-way clutch
–Low one-way clutch
–Low & reverse brake assembly
–Torque converter
OK or NG
OK >> GO TO 5
NG >> Repair or replace damaged parts.
8. Vehicle Cannot Be Started From D1ECS007R7
SYMPTOM:
Vehicle cannot be started from D
1 on Cruise test — Part 1.
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Ye s > > G O T O 2
No >> Go to 6. AT-313, "
6. Vehicle Does Not Creep Backward In “R” Position" .
SAT171B

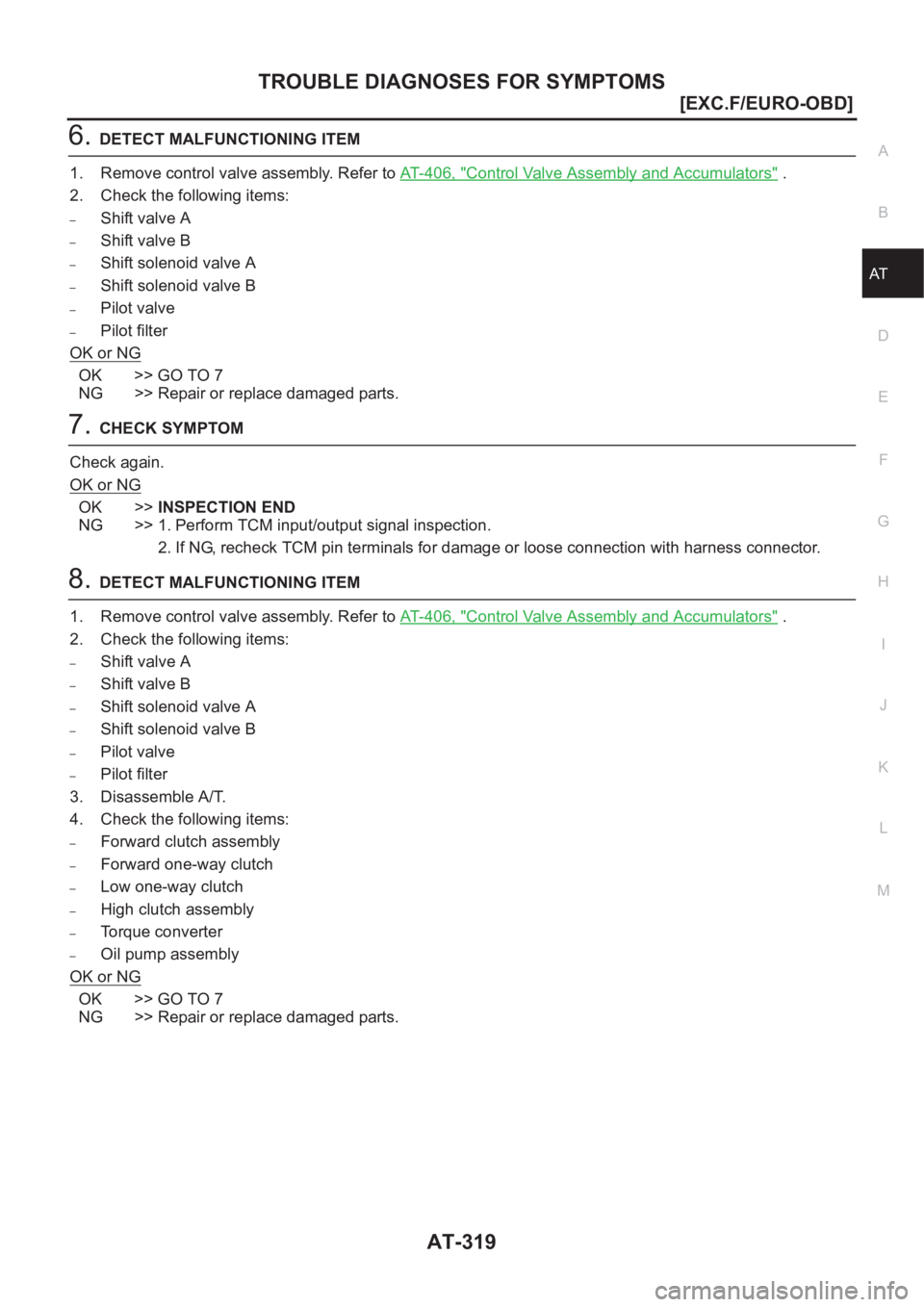

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 7
NG >> Repair or replace damaged parts.
7.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
8.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Forward clutch assembly
–Forward one-way clutch
–Low one-way clutch
–High clutch assembly
–Torque converter
–Oil pump assembly
OK or NG
OK >> GO TO 7
NG >> Repair or replace damaged parts.

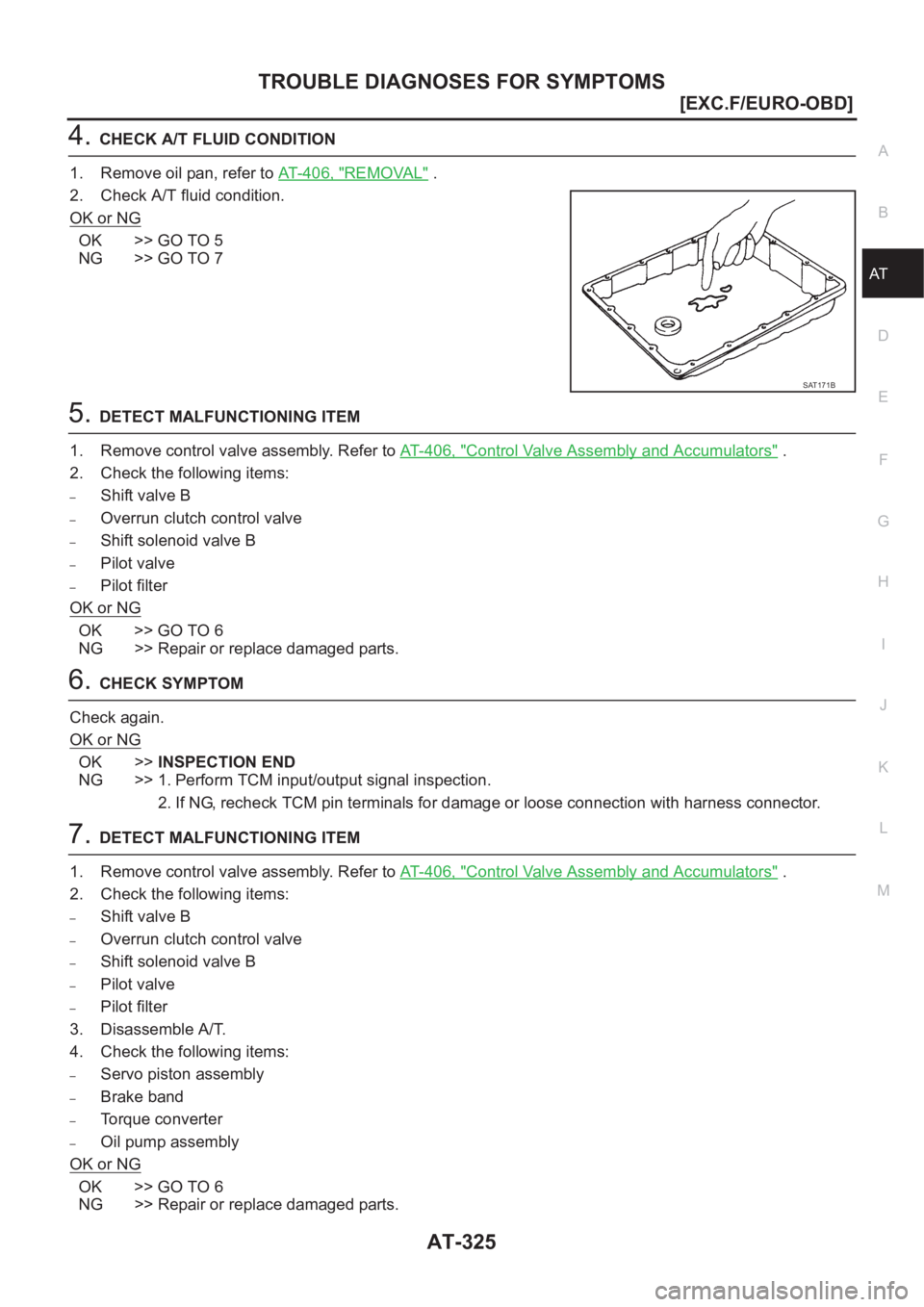

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-325
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5
NG >> GO TO 7
5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Overrun clutch control valve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
7.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Overrun clutch control valve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter
–Oil pump assembly
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.
SAT171B

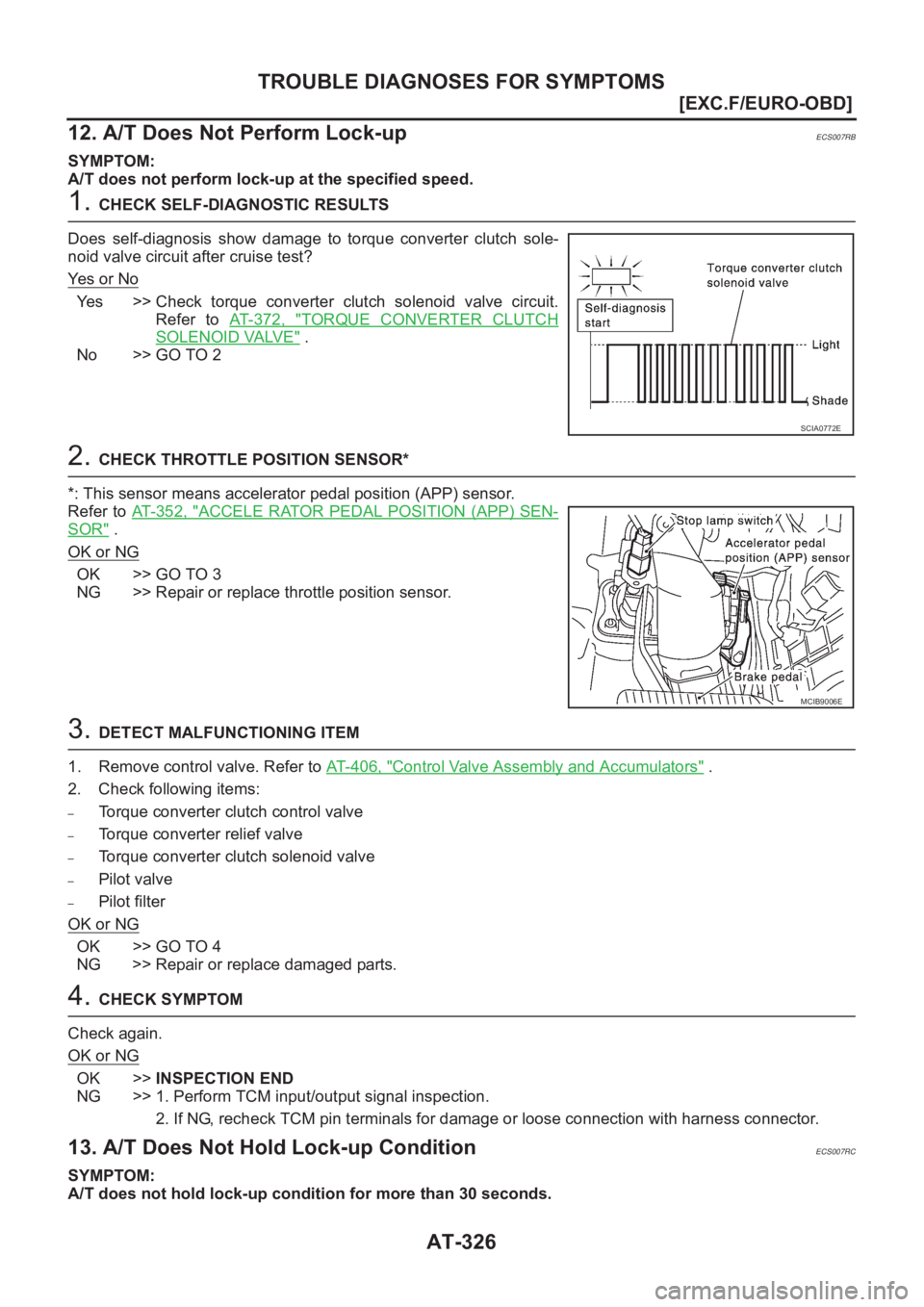

AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
12. A/T Does Not Perform Lock-up
ECS007RB
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch sole-
noid valve circuit after cruise test?
Ye s o r N o
Yes >> Check torque converter clutch solenoid valve circuit.
Refer to AT- 3 7 2 , "
TORQUE CONVERTER CLUTCH
SOLENOID VALVE" .
No >> GO TO 2
2. CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace throttle position sensor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
13. A/T Does Not Hold Lock-up ConditionECS007RC
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
SCIA0772E
MCIB9006E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-327
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1.CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit
after cruise test?
Ye s o r N o
Yes >> Check engine speed signal circuit. Refer to AT- 3 8 3 ,
"ENGINE SPEED SIGNAL" .
No >> GO TO 2
2.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 3
NG >> GO TO 5
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0773E
SAT171B

AT-328
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter and oil pump assembly.
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
14. Lock-up Is Not ReleasedECS007RD
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK THROTTLE POSITION SENSOR* CIRCUIT
*: This sensor means accelerator pedal position (APP) sensor.
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage throttle position sensor circuit?
Without CONSULT-II
Does self-diagnosis show damage to throttle position sensor circuit?
Ye s o r N o
Yes >> Check throttle position sensor circuit. Refer to AT- 3 3 3 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS007RE
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
SCIA0706E

AT-372
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
TORQUE CONVERTER CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS007S8
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
↓
Lock-up “ON”Approximately 4%
↓
Approximately 94%
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●T/C clutch solenoid valve
: 7th judgement flicker

TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-373
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle in D
1→ D2→ D3→ D4→ D4 lock-up position.
4. If DTC is detected, go to AT- 3 7 5 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle in D
1→ D2→ D3→ D4→ D4 lock-up position.
3. Perform self-diagnosis.
Refer to AT-250, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 7 5 , "
Diagnostic Procedure" .
SAT014K
SAT020K
