TROUBLE DIAGNOSES FOR SYMPTOMS
AT-223
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
8.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Forward clutch assembly
–Forward one-way clutch
–Low one-way clutch
–High clutch assembly
–Torque converter
–Oil pump assembly
OK or NG
OK >> GO TO 7
NG >> Repair or replace damaged parts.
9. A/T Does Not Shift: D1→ D2 Or Does Not Kickdown: D4→ D2ECS007QA
SYMPTOM:
A/T does not shift from D
1 to D2 at the specified speed.
A/T does not shift from D
4 to D2 when depressing accelerator pedal fully at the specified speed.
1.CHECK SYMPTOM
Are 7. Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and 8. Vehicle Cannot Be Started From D
1
OK?
Ye s o r N o
Ye s > > G O T O 2
No >> Go to AT- 2 1 9 , "
7. Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 1 , "8. Vehicle
Cannot Be Started From D1" .
2.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 3 7 , "21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)" .
No >> GO TO 3
SCIA0706E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-229
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
7.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Overrun clutch control valve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter
–Oil pump assembly
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.

AT-230
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

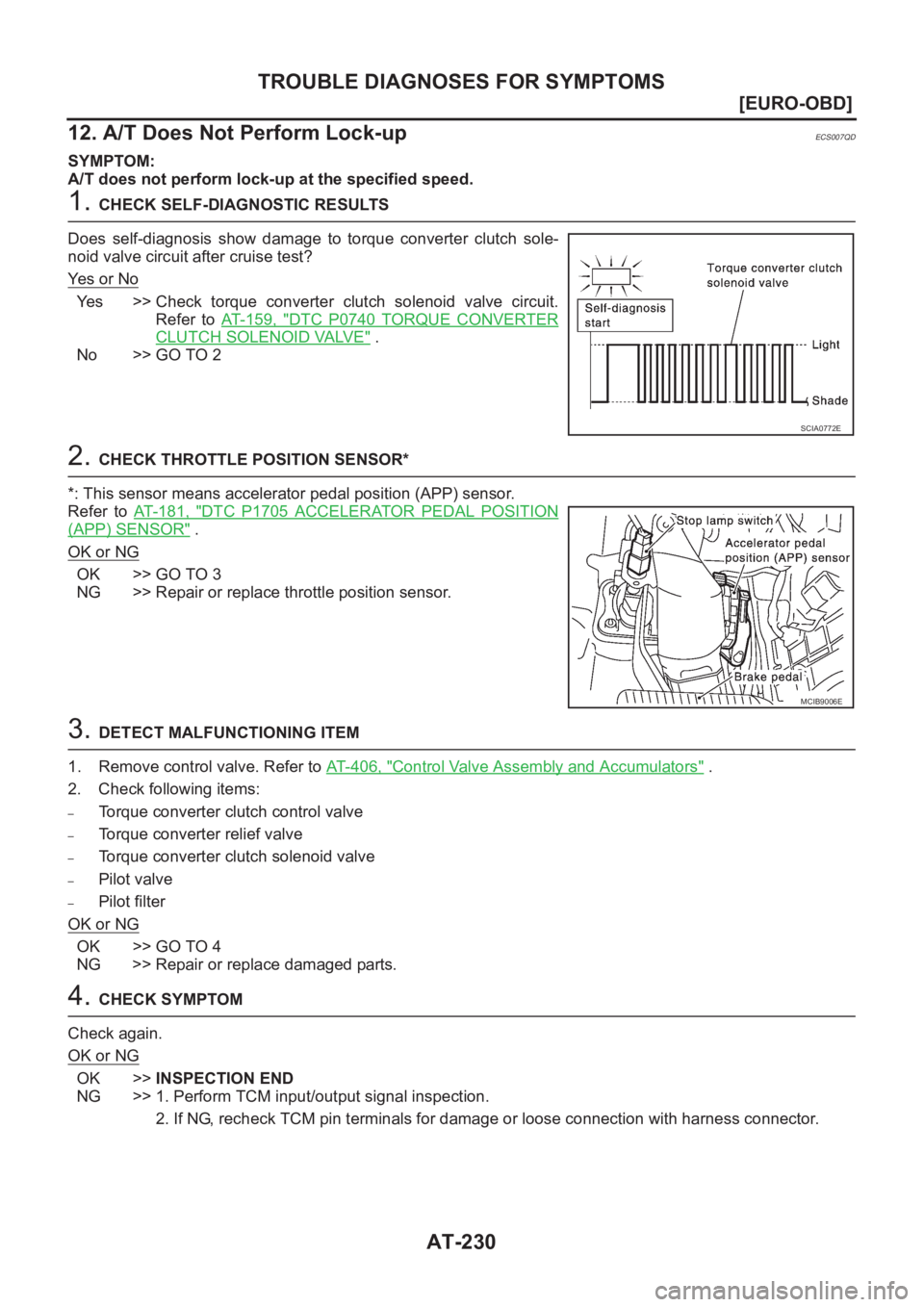

12. A/T Does Not Perform Lock-up
ECS007QD
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch sole-
noid valve circuit after cruise test?
Ye s o r N o
Yes >> Check torque converter clutch solenoid valve circuit.
Refer to AT- 1 5 9 , "
DTC P0740 TORQUE CONVERTER
CLUTCH SOLENOID VALVE" .
No >> GO TO 2
2. CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 1 8 1 , "
DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace throttle position sensor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0772E
MCIB9006E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-231
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
13. A/T Does Not Hold Lock-up ConditionECS007QE
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1.CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit
after cruise test?
Ye s o r N o
Yes >> Check engine speed signal circuit. Refer to AT- 1 2 9 ,
"DTC P0725 ENGINE SPEED SIGNAL" .
No >> GO TO 2
2.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 3
NG >> GO TO 5
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0773E
SAT171B

AT-232
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

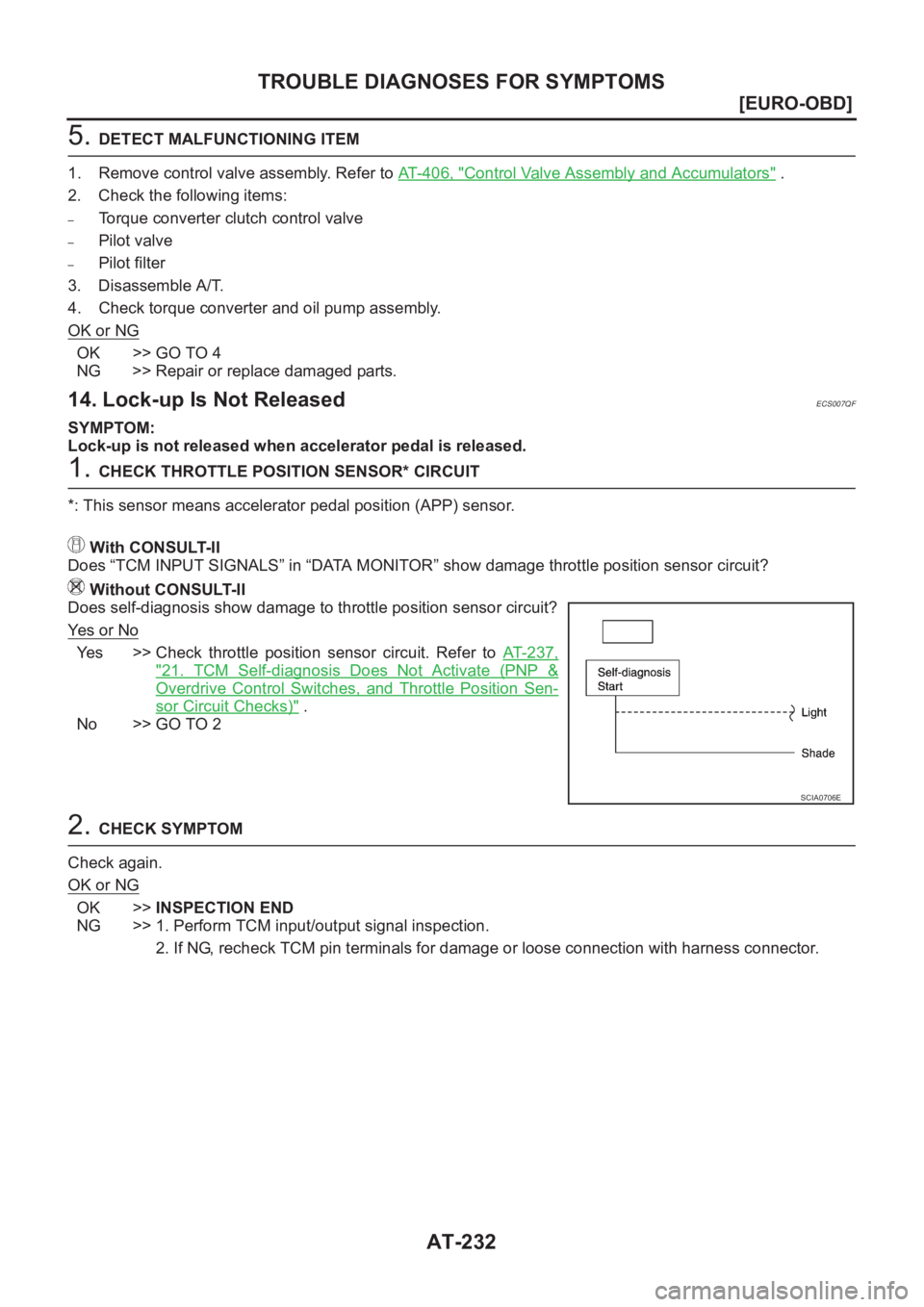

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter and oil pump assembly.
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
14. Lock-up Is Not ReleasedECS007QF
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK THROTTLE POSITION SENSOR* CIRCUIT
*: This sensor means accelerator pedal position (APP) sensor.
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage throttle position sensor circuit?
Without CONSULT-II
Does self-diagnosis show damage to throttle position sensor circuit?
Ye s o r N o
Yes >> Check throttle position sensor circuit. Refer to AT- 2 3 7 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0706E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——●ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.
PN position (PNP)
switchPN POSI SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of PN
position SW is dis-
played.
R position switch R POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of R
position SW is dis-
played.
D position switch D POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of D
position SW is dis-
played.
2 position switch 2 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.
1 position switch 1 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
can communica-
tionCAN COMM
[OK/UNKWN]—X—
can circuit 1CAN CIRC 1
[OK/UNKWN]—X— Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
can circuit 2CAN CIRC 2
[OK/UNKWN]—X—
can circuit 3CAN CIRC 3
[OK/UNKWN]—X—
can circuit 4CAN CIRC 4
[OK/UNKWN]—X—
can circuit 5CAN CIRC 5
[OK/UNKWN]—X—

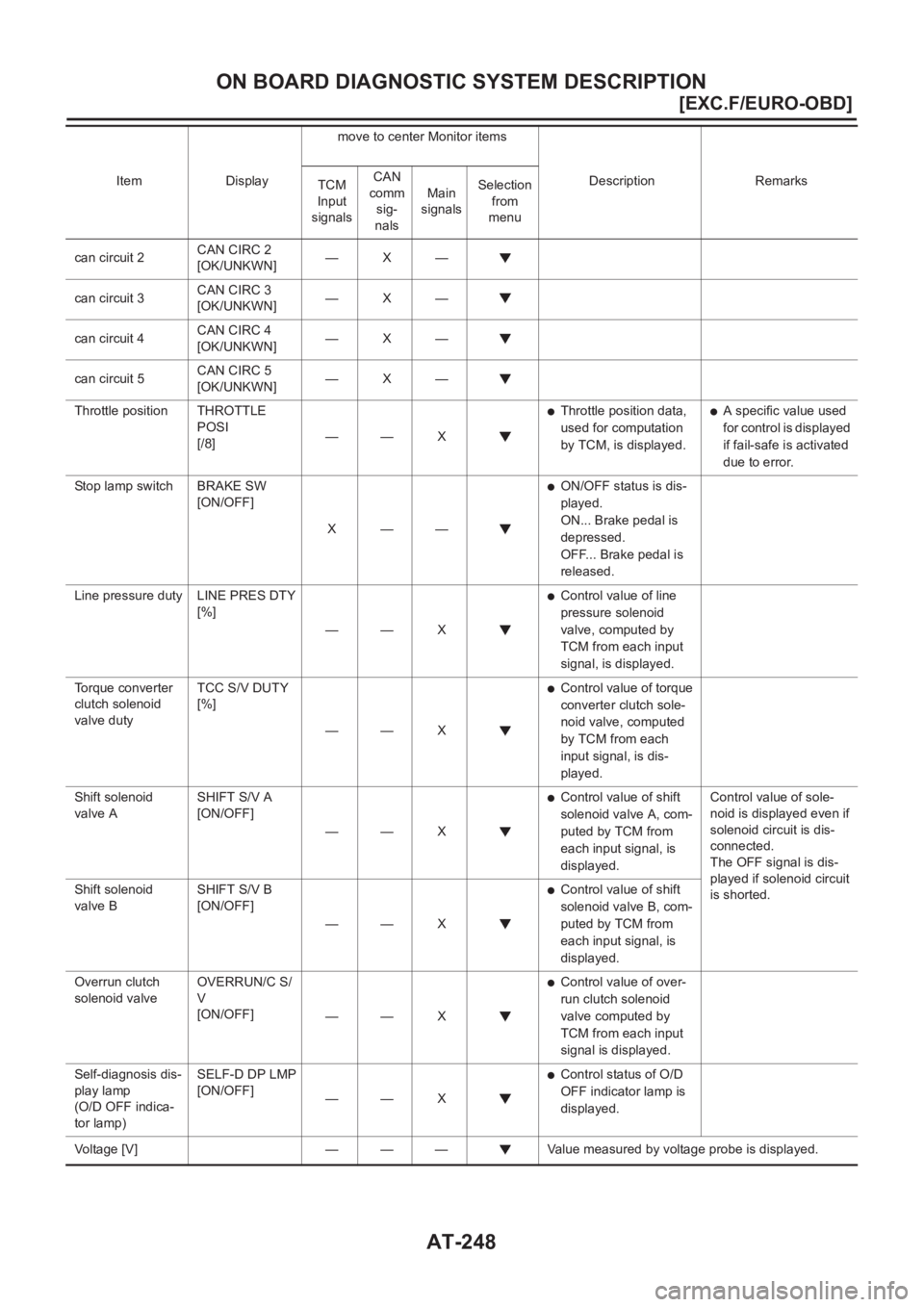

Throttle position THROTTLE
POSI
[/8]—— X
●Throttle position data,
used for computation
by TCM, is displayed.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Stop lamp switch BRAKE SW
[ON/OFF]
X——
●ON/OFF status is dis-
played.
ON... Brake pedal is
depressed.
OFF... Brake pedal is
released.
Line pressure duty LINE PRES DTY
[%]
—— X
●Control value of line
pressure solenoid
valve, computed by
TCM from each input
signal, is displayed.
Torque converter
clutch solenoid
valve dutyTCC S/V DUTY
[%]
—— X
●Control value of torque
converter clutch sole-
noid valve, computed
by TCM from each
input signal, is dis-
played.
Shift solenoid
valve ASHIFT S/V A
[ON/OFF]
—— X
●Control value of shift
solenoid valve A, com-
puted by TCM from
each input signal, is
displayed.Control value of sole-
noid is displayed even if
solenoid circuit is dis-
connected.
The OFF signal is dis-
played if solenoid circuit
is shorted. Shift solenoid
valve BSHIFT S/V B
[ON/OFF]
—— X
●Control value of shift
solenoid valve B, com-
puted by TCM from
each input signal, is
displayed.
Overrun clutch
solenoid valveOVERRUN/C S/
V
[ON/OFF]
—— X
●Control value of over-
run clutch solenoid
valve computed by
TCM from each input
signal is displayed.
Self-diagnosis dis-
play lamp
(O/D OFF indica-
tor lamp)SELF-D DP LMP
[ON/OFF]
—— X
●Control status of O/D
OFF indicator lamp is
displayed.
Voltage [V] — — — Value measured by voltage probe is displayed.Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-253
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

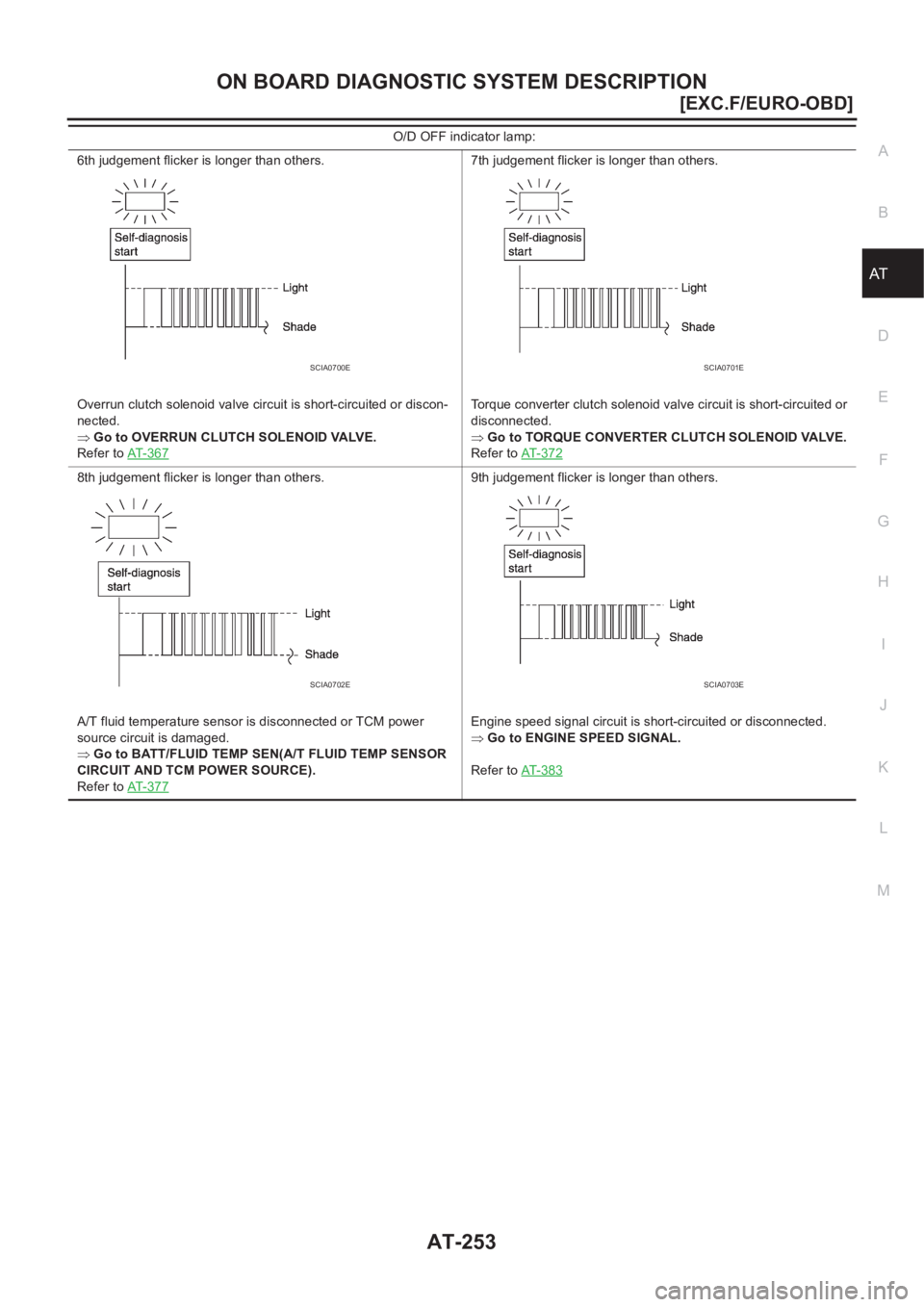

6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.
 Go to OVERRUN CLUTCH SOLENOID VALVE.
Refer to AT- 3 6 77th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.
 Go to TORQUE CONVERTER CLUTCH SOLENOID VALVE.
Refer to AT-372
8th judgement flicker is longer than others.
A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.
 Go to BATT/FLUID TEMP SEN(A/T FLUID TEMP SENSOR
CIRCUIT AND TCM POWER SOURCE).
Refer to AT- 3 7 79th judgement flicker is longer than others.
Engine speed signal circuit is short-circuited or disconnected.
 Go to ENGINE SPEED SIGNAL.
Refer to AT-383
O/D OFF indicator lamp:
SCIA0700ESCIA0701E
SCIA0702ESCIA0703E
