2003 LEXUS LS430 Diagram AC

Fig. 110: Checking Harness And Connector (Cool Air Bypass Servomotor - Air Conditioning
Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
The air inlet servomotor is controlled by the A/C amplifier and moves the air inlet servomotor to the desired
position.
Fig. 111: DTC Detection Item Trouble Area Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
CIRCUIT DESCRIPTION
In this circuit, the compressor assembly receives a signal on refrigerant compression required by the air
conditioning amplifier. Based on the signal, the compressor assembly changes the degree of refrigerant
compression.
Fig. 116: DTC Detection Item Trouble Area Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Fig. 117: Compressor Solenoid Circuit

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This sensor detects the exhaust gas (NOx) outside the vehicle and sends a signal to the A/C amplifier.
Fig. 121: DTC Detection Item Trouble Area Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
CIRCUIT DESCRIPTION

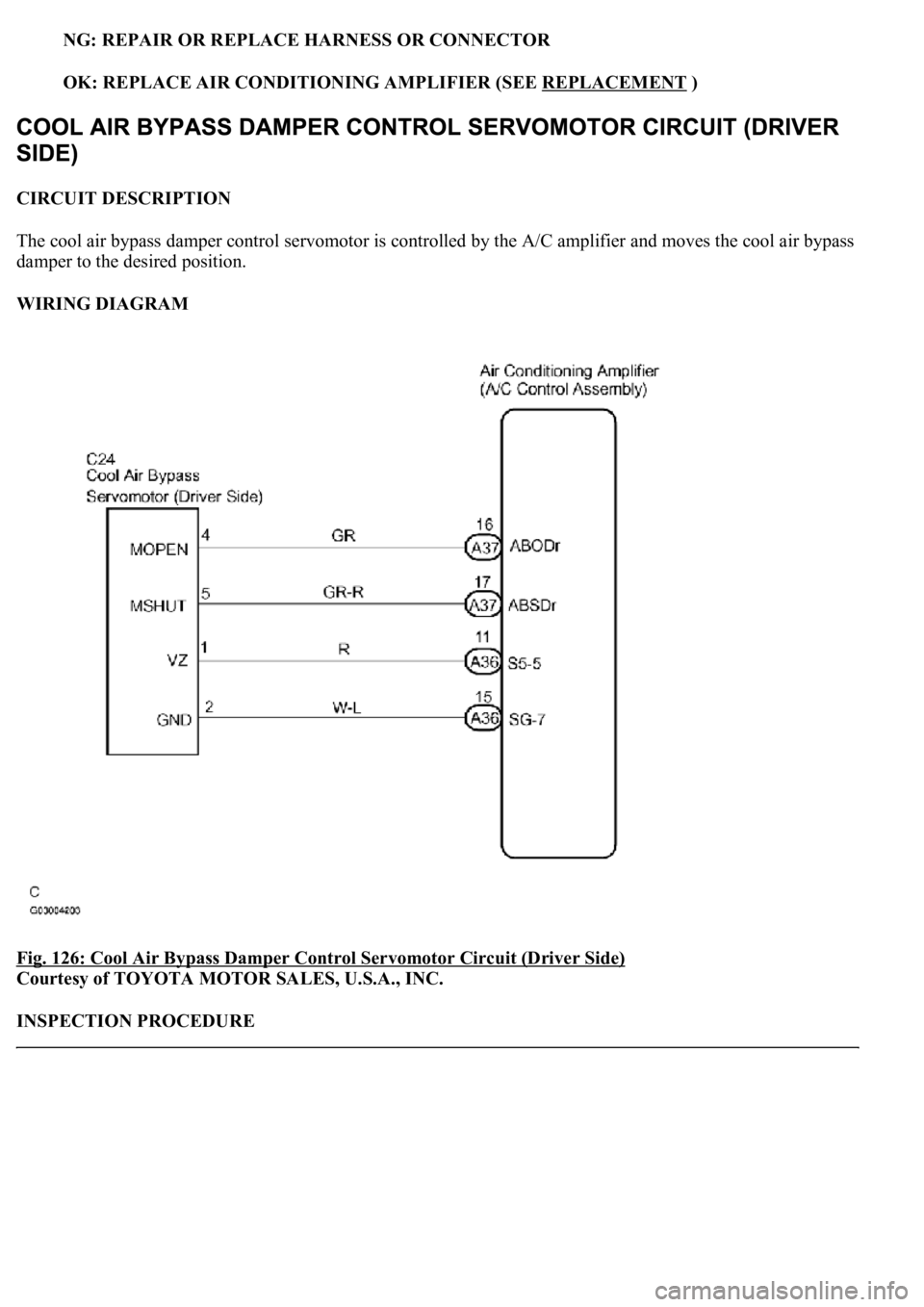

The cool air bypass damper control servomotor is controlled by the A/C amplifier and moves the cool air bypass
damper to the desired position.
WIRING DIAGRAM
Fig. 126: Cool Air Bypass Damper Control Servomotor Circuit (Driver Side)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE

Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
The cool air bypass servomotor is controlled by the A/C amplifier and moves the cool air bypass damper to the
desired position.
WIRING DIAGRAM

Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION

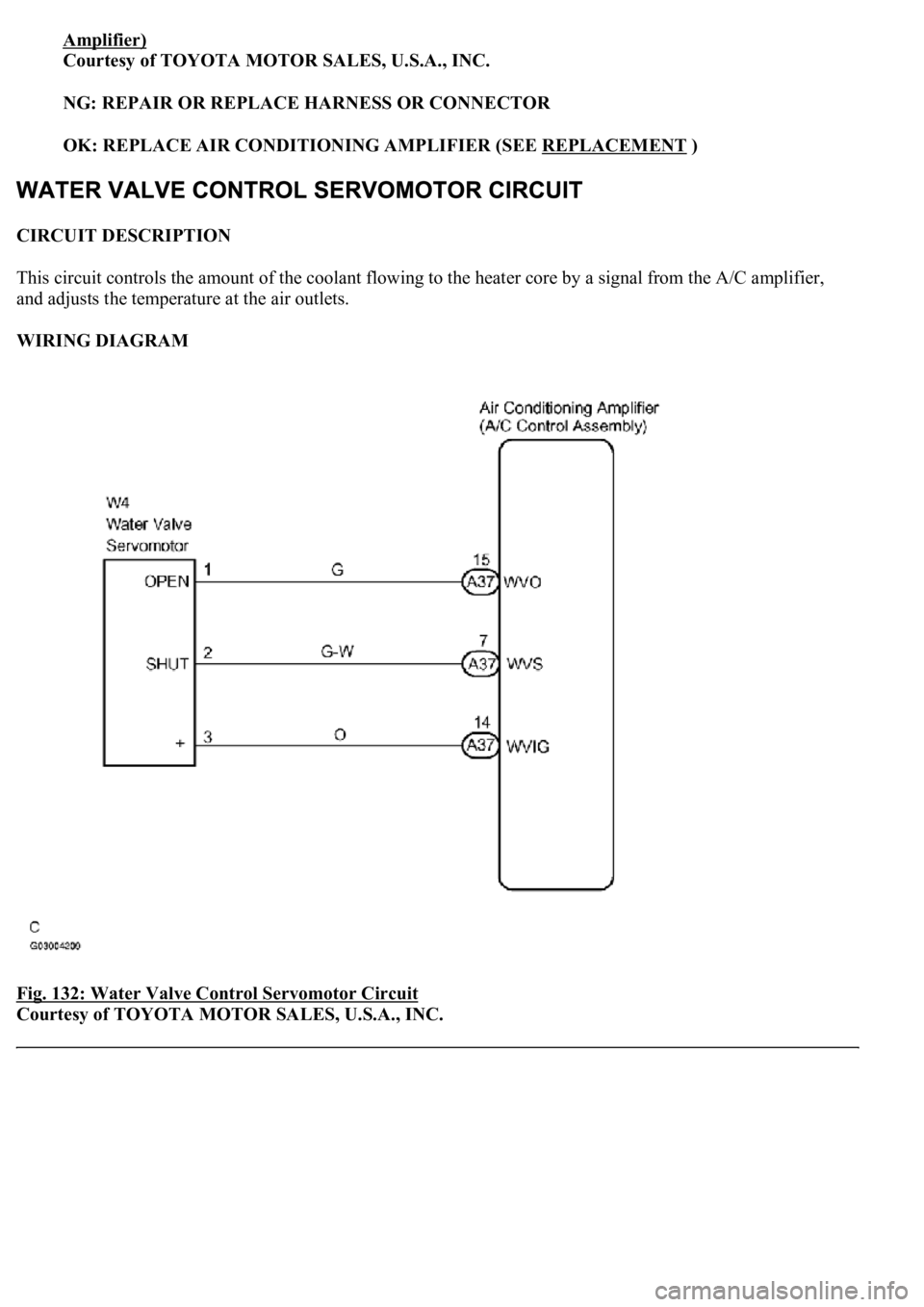

This circuit controls the amount of the coolant flowing to the heater core by a signal from the A/C amplifier,
and adjusts the temperature at the air outlets.
WIRING DIAGRAM
Fig. 132: Water Valve Control Servomotor Circuit

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION

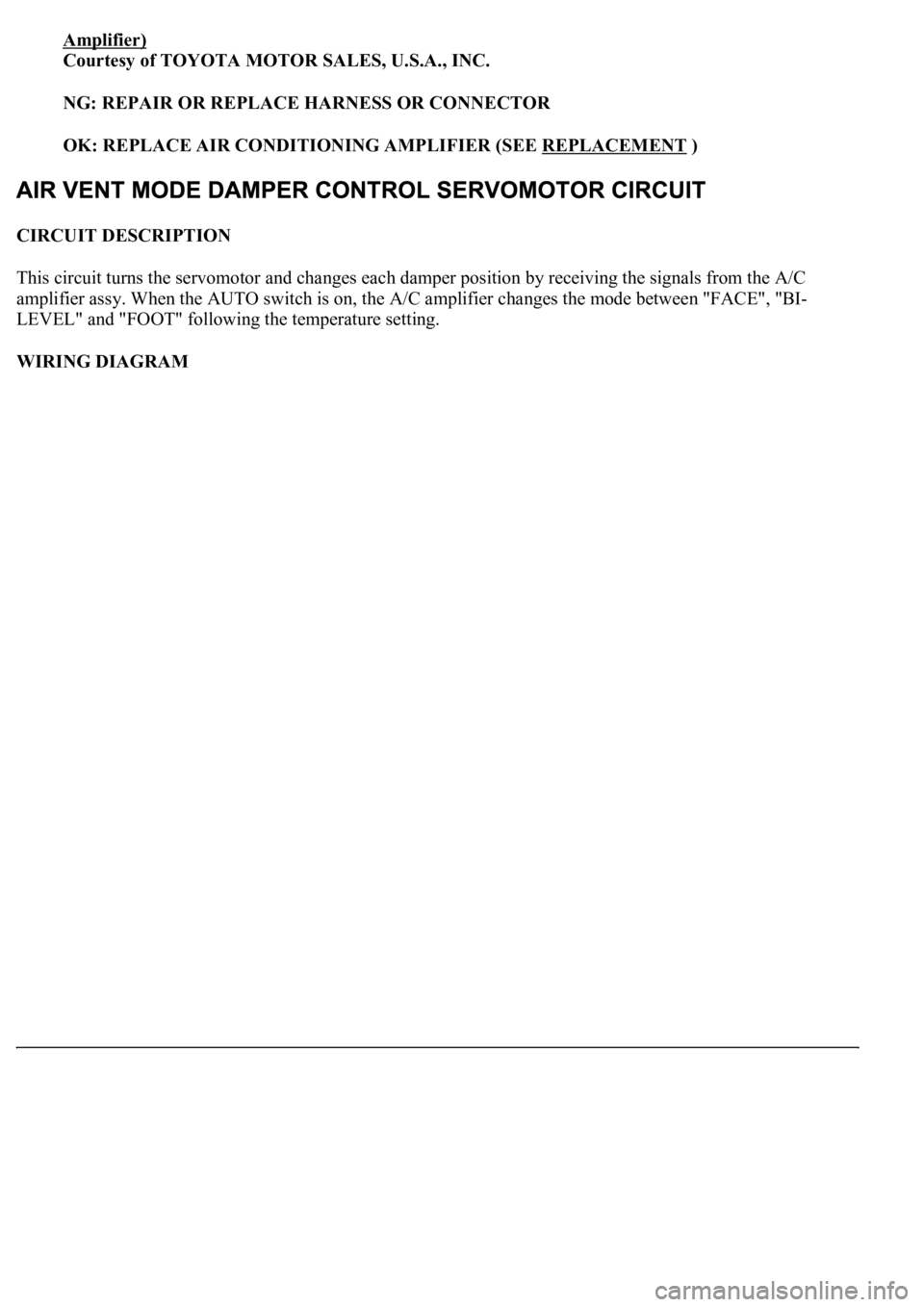

This circuit turns the servomotor and changes each damper position by receiving the signals from the A/C
amplifier assy. When the AUTO switch is on, the A/C amplifier changes the mode between "FACE", "BI-
LEVEL" and "FOOT" following the temperature setting.
WIRING DIAGRAM

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This servomotor is controlled by the A/C amplifier. Air flow temperature changes when moving the air mix
damper to the target point. The target point can be detected with the air mix damper position sensor.
WIRING DIAGRAM
