2003 LEXUS LS430 Identifying ac

OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE REPLACEMENT )
NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
36.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).
37.CHECK CAN BUS LINE FOR SHORT TO GND (YAW RATE SENSOR SUB BUS LINE)
Fig. 246: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the
yaw rate sensor connector (Y1).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

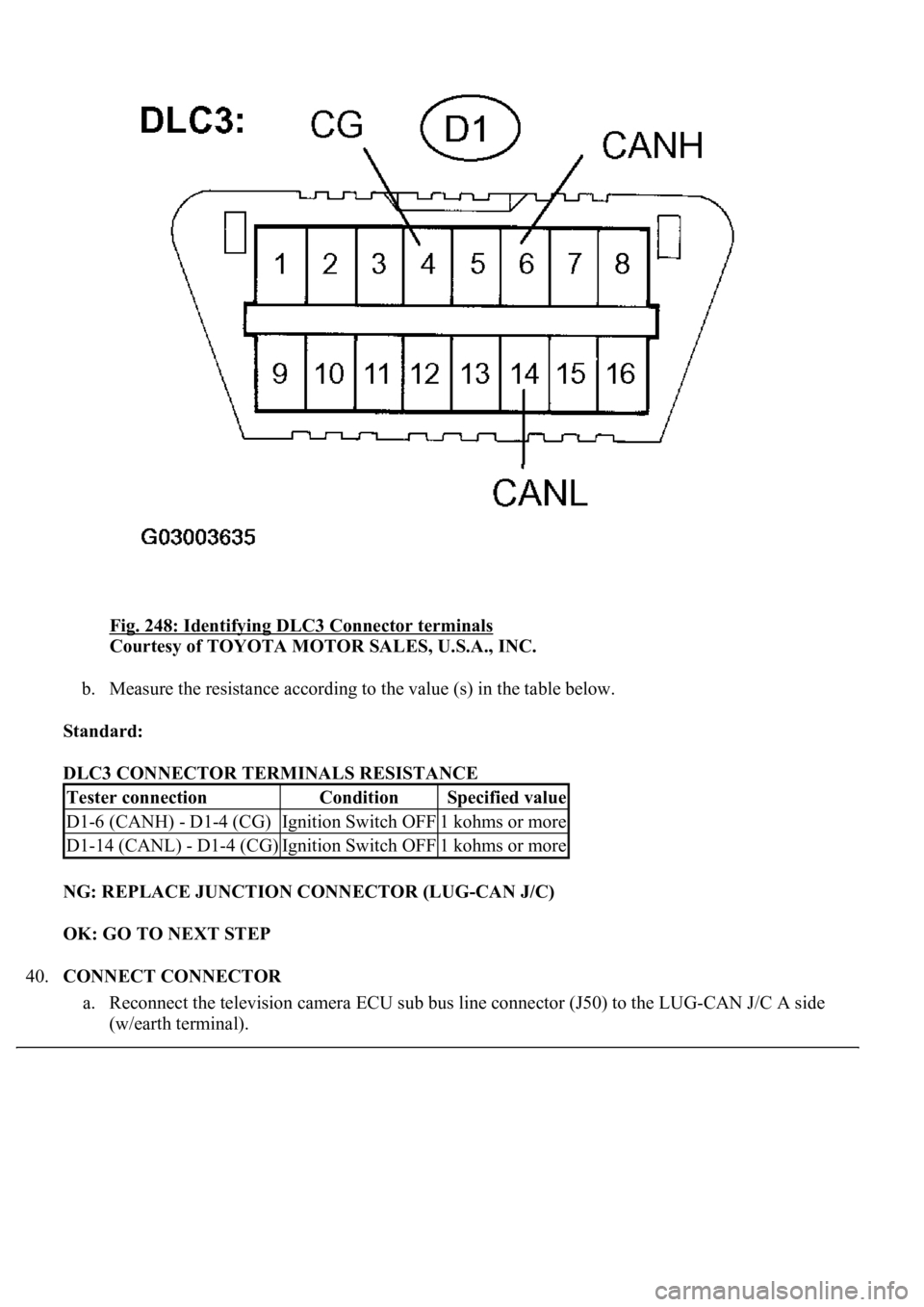

Fig. 248: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPLACE JUNCTION CONNECTOR (LUG-CAN J/C)
OK: GO TO NEXT STEP
40.CONNECT CONNECTOR
a. Reconnect the television camera ECU sub bus line connector (J50) to the LUG-CAN J/C A side
(w/earth terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

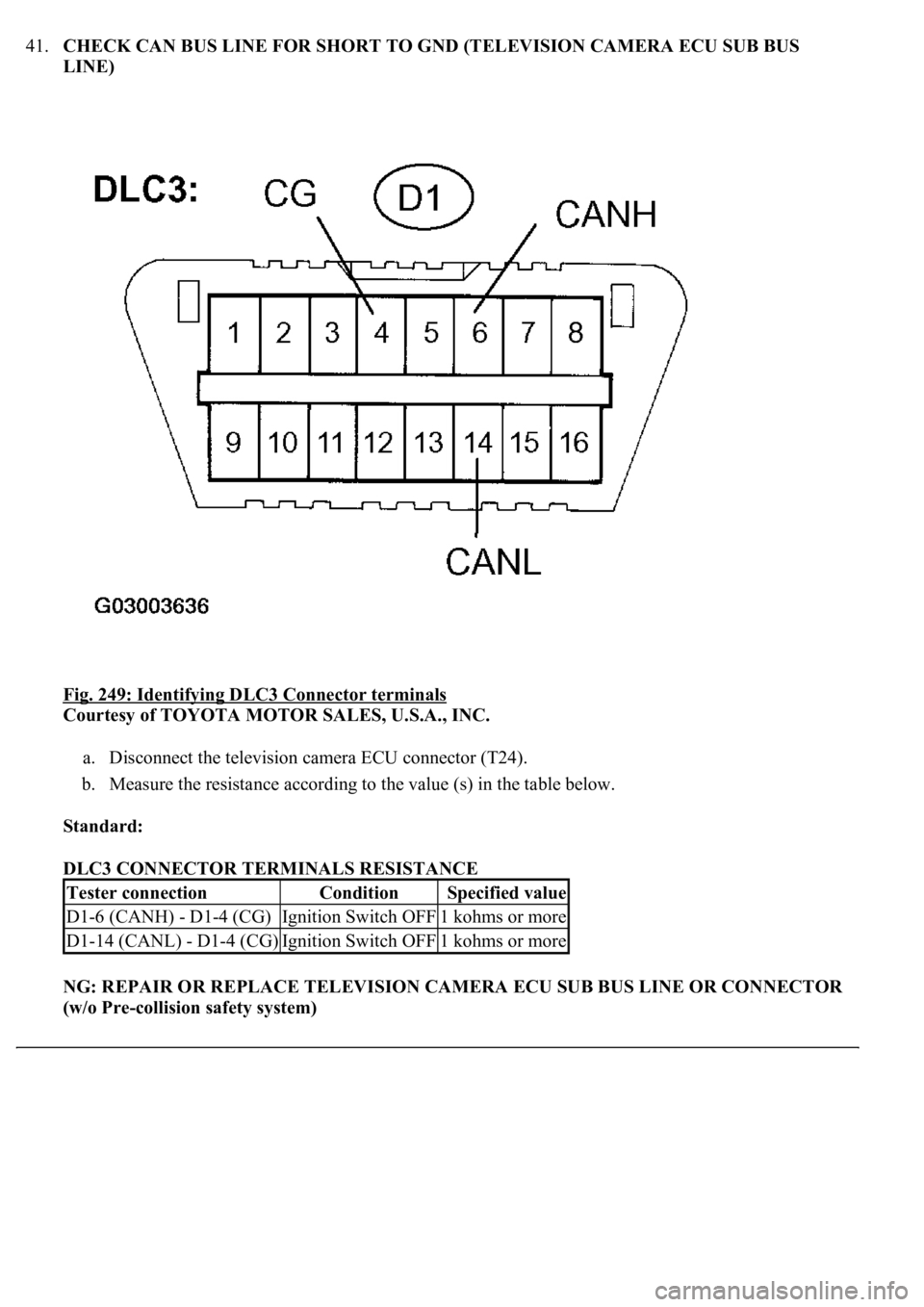

41.CHECK CAN BUS LINE FOR SHORT TO GND (TELEVISION CAMERA ECU SUB BUS
LINE)
Fig. 249: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the television camera ECU connector (T24).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE TELEVISION CAMERA ECU SUB BUS LINE OR CONNECTOR
(w/o Pre-collision safety system)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

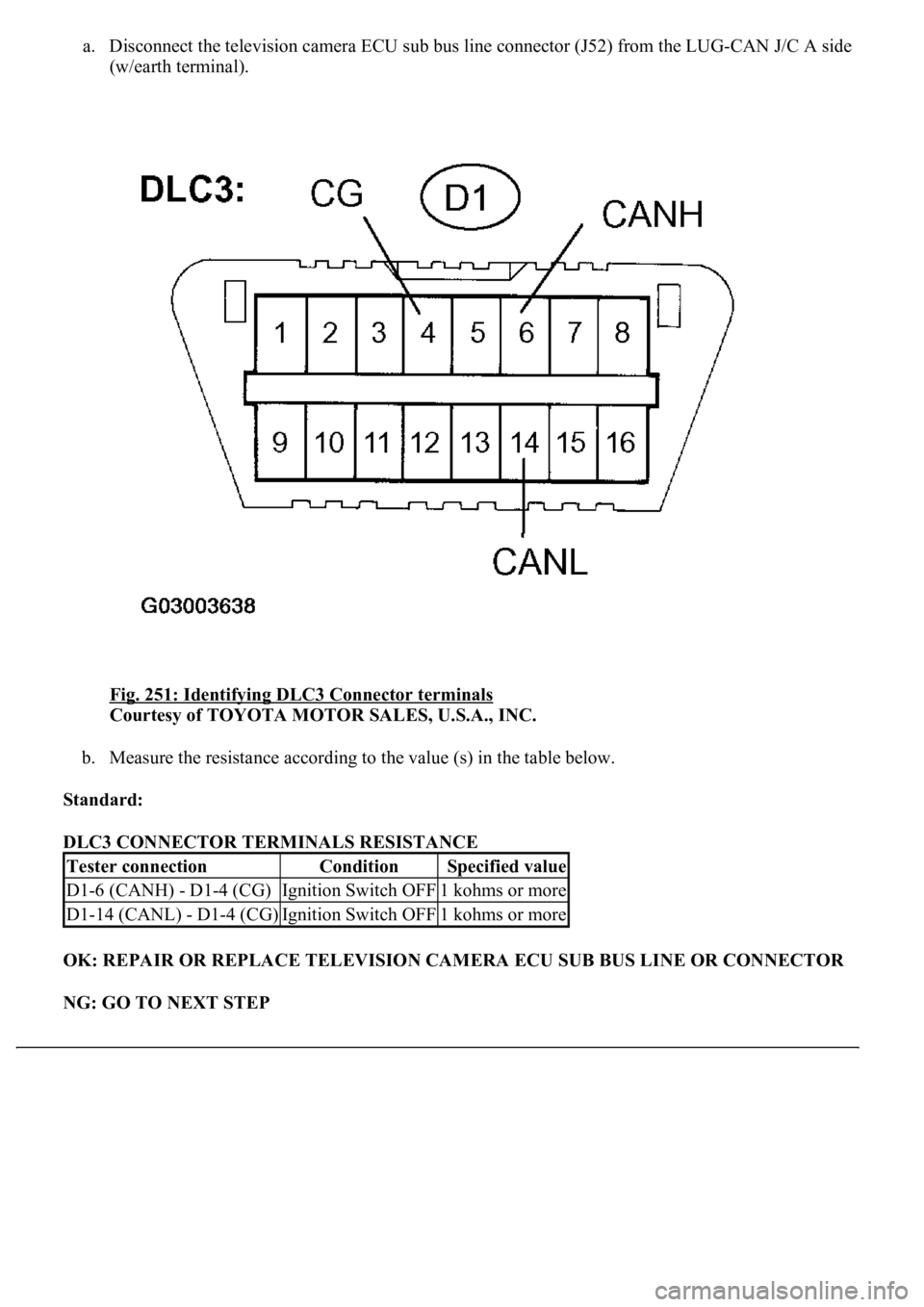

a. Disconnect the television camera ECU sub bus line connector (J52) from the LUG-CAN J/C A side
(w/earth terminal).
Fig. 251: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPAIR OR REPLACE TELEVISION CAMERA ECU SUB BUS LINE OR CONNECTOR
NG: GO TO NEXT STEP
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

44.CONNECT CONNECTOR
a. Reconnect the television camera ECU sub bus line connector (J52) to the LUG-CAN J/C A side
(w/earth terminal).
45.CHECK CAN BUS LINE FOR SHORT TO GND
Fig. 252: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the seat belt control ECU connector (S63).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

Fig. 256: Identifying DLC3 Sub Bus Line Connector (J42)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the DLC3 sub bus line connector (J42) from the D-CAN J/C B side (w/o earth
terminal).

Fig. 257: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINE FOR SHORT TO GND (CAN BUSES TO P-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 Mohms or more

Fig. 259: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 26
NG: GO TO NEXT STEP
4.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
5.CHECK CAN BUS LINE FOR SHORT TO GND (SUSPENSION CONTROL ECU SUB BUS
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more
