2003 LEXUS LS430 sensor

a. Disconnect the yaw rate sensor sub bus line connector (J44) from the P-CAN J/C A side (w/earth
terminal).
Fig. 242: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

OK: Go to step 36
NG: GO TO NEXT STEP
32.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).

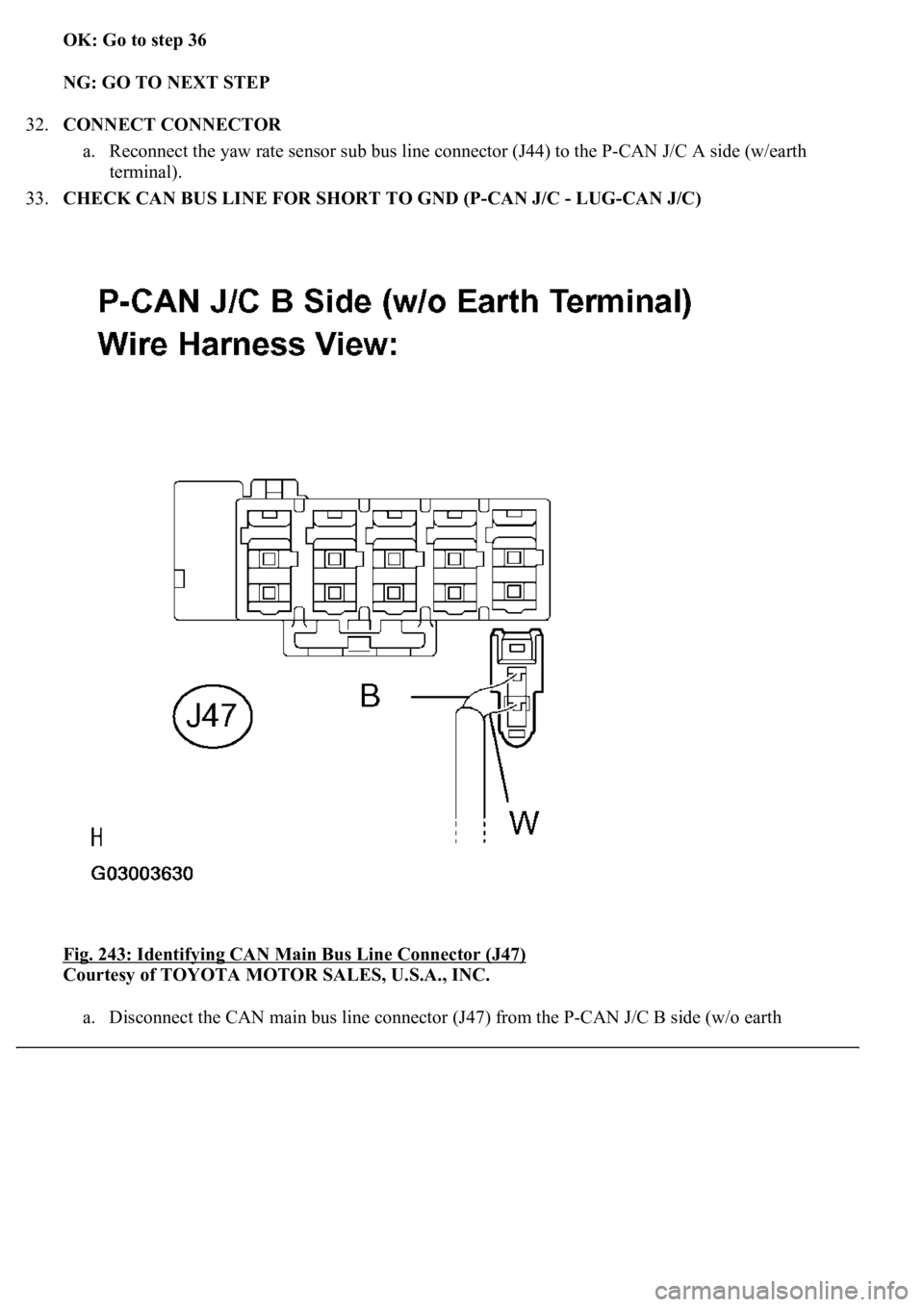

33.CHECK CAN BUS LINE FOR SHORT TO GND (P-CAN J/C - LUG-CAN J/C)
Fig. 243: Identifying CAN Main Bus Line Connector (J47)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J47) from the P-CAN J/C B side (w/o earth

OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE REPLACEMENT )
NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
36.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).

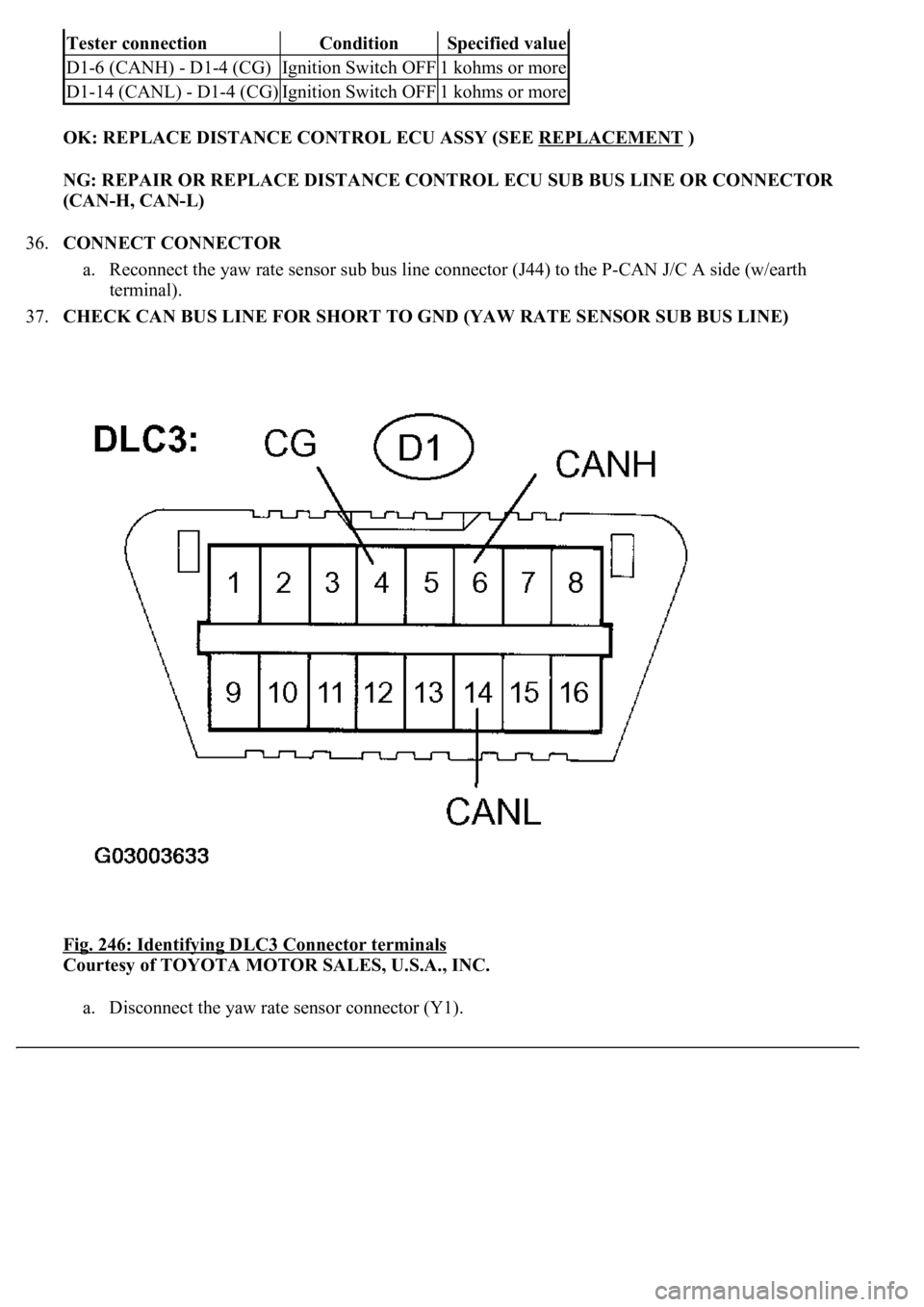

37.CHECK CAN BUS LINE FOR SHORT TO GND (YAW RATE SENSOR SUB BUS LINE)
Fig. 246: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the
yaw rate sensor connector (Y1).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

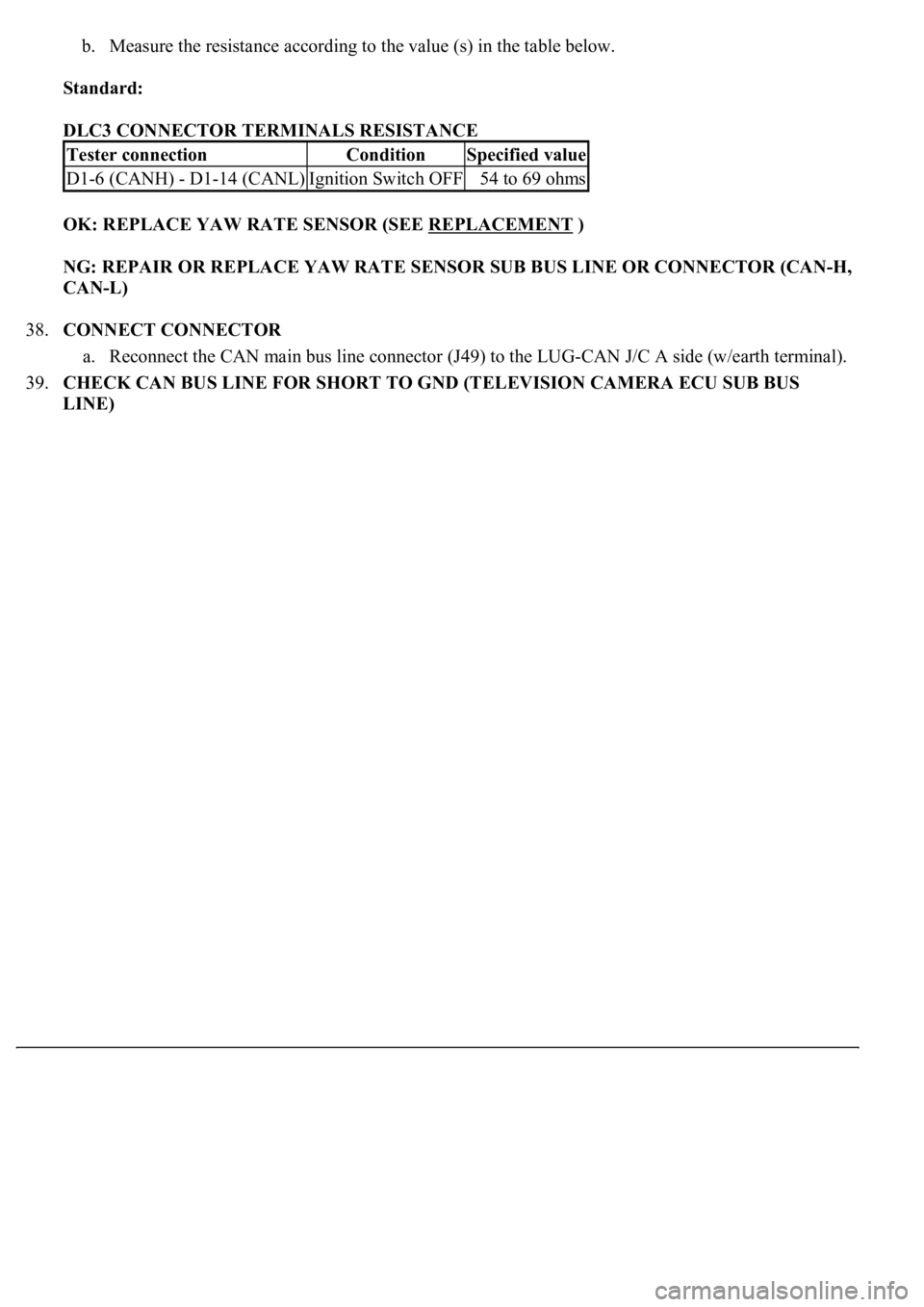

b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT
)
NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
38.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J49) to the LUG-CAN J/C A side (w/earth terminal).
39.CHECK CAN BUS LINE FOR SHORT TO GND (TELEVISION CAMERA ECU SUB BUS
LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

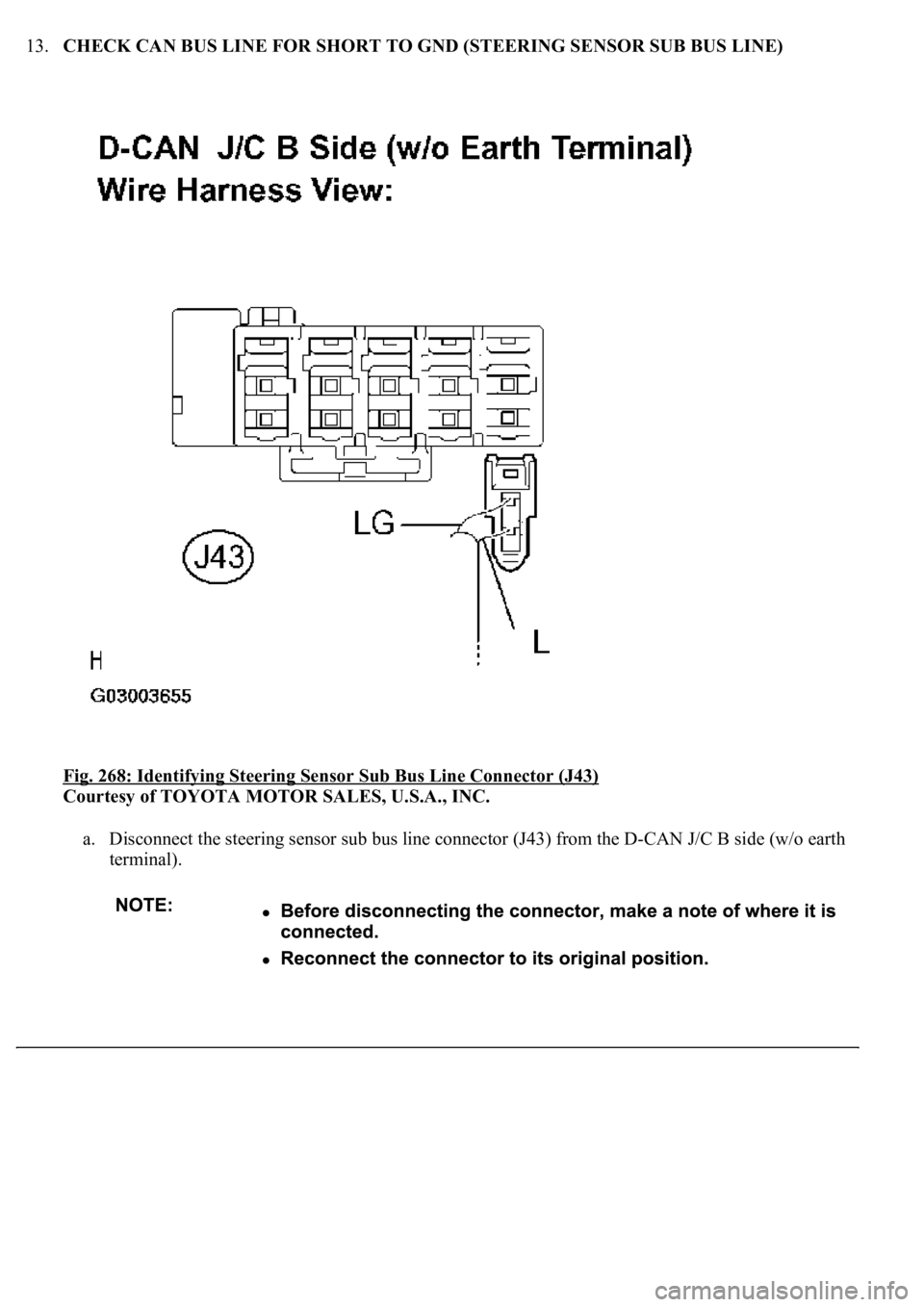

13.CHECK CAN BUS LINE FOR SHORT TO GND (STEERING SENSOR SUB BUS LINE)
Fig. 268: Identifying Steering Sensor Sub Bus Line Connector (J43)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the steering sensor sub bus line connector (J43) from the D-CAN J/C B side (w/o earth
terminal).

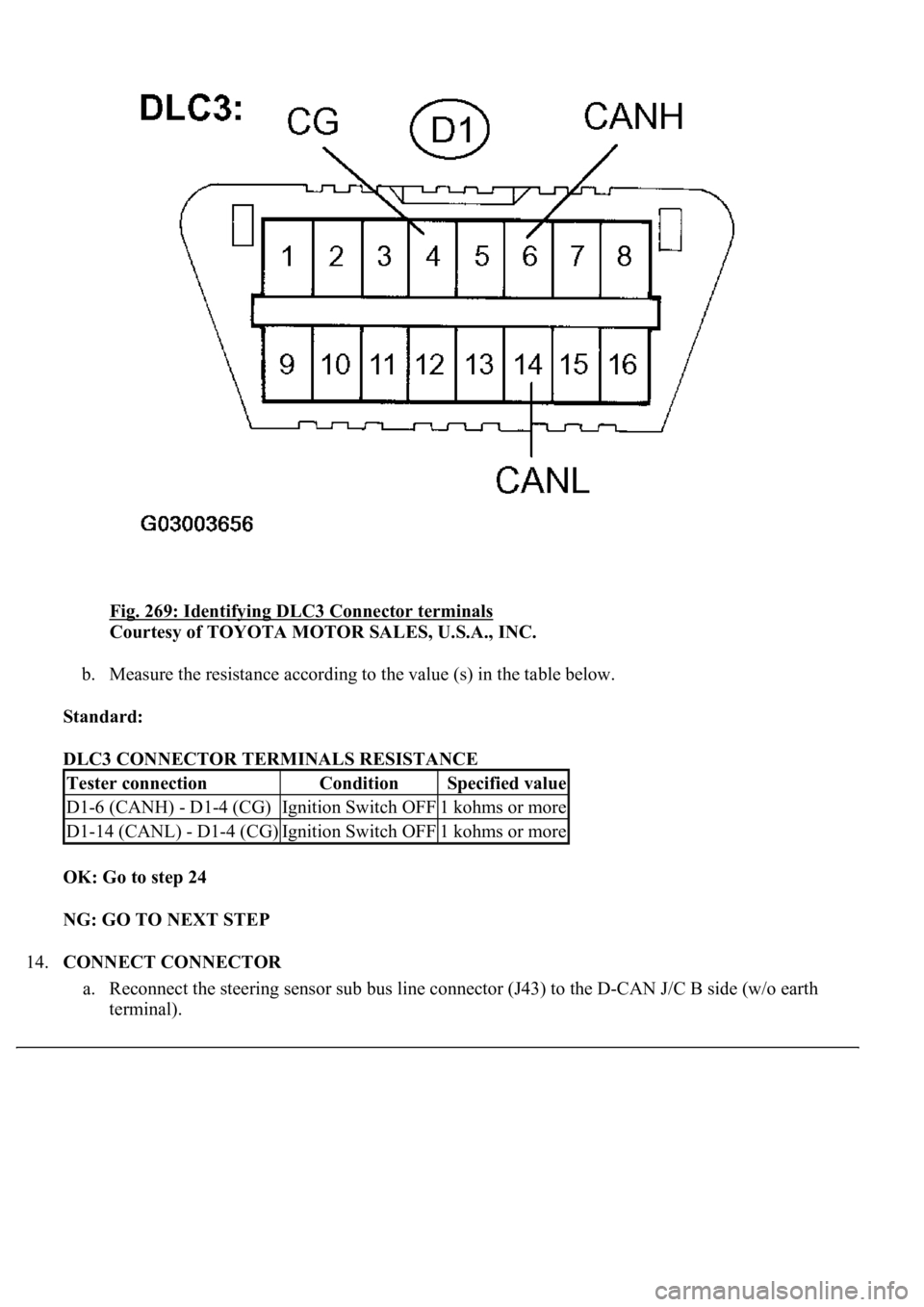

Fig. 269: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 24
NG: GO TO NEXT STEP
14.CONNECT CONNECTOR
a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE SKID CONTROL ECU WITH ACTUATOR (SEE REPLACEMENT
)
NG: REPAIR OR REPLACE SKID CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-
H, CAN-L)
24.CONNECT CONNECTOR
a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
25.CHECK CAN BUS LINE FOR SHORT TO GND (STEERING SENSOR SUB BUS LINE)
Fig. 276: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified value
D1-6 (CANH) D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) D1-4 (CG)Ignition Switch OFF1 kohms or more

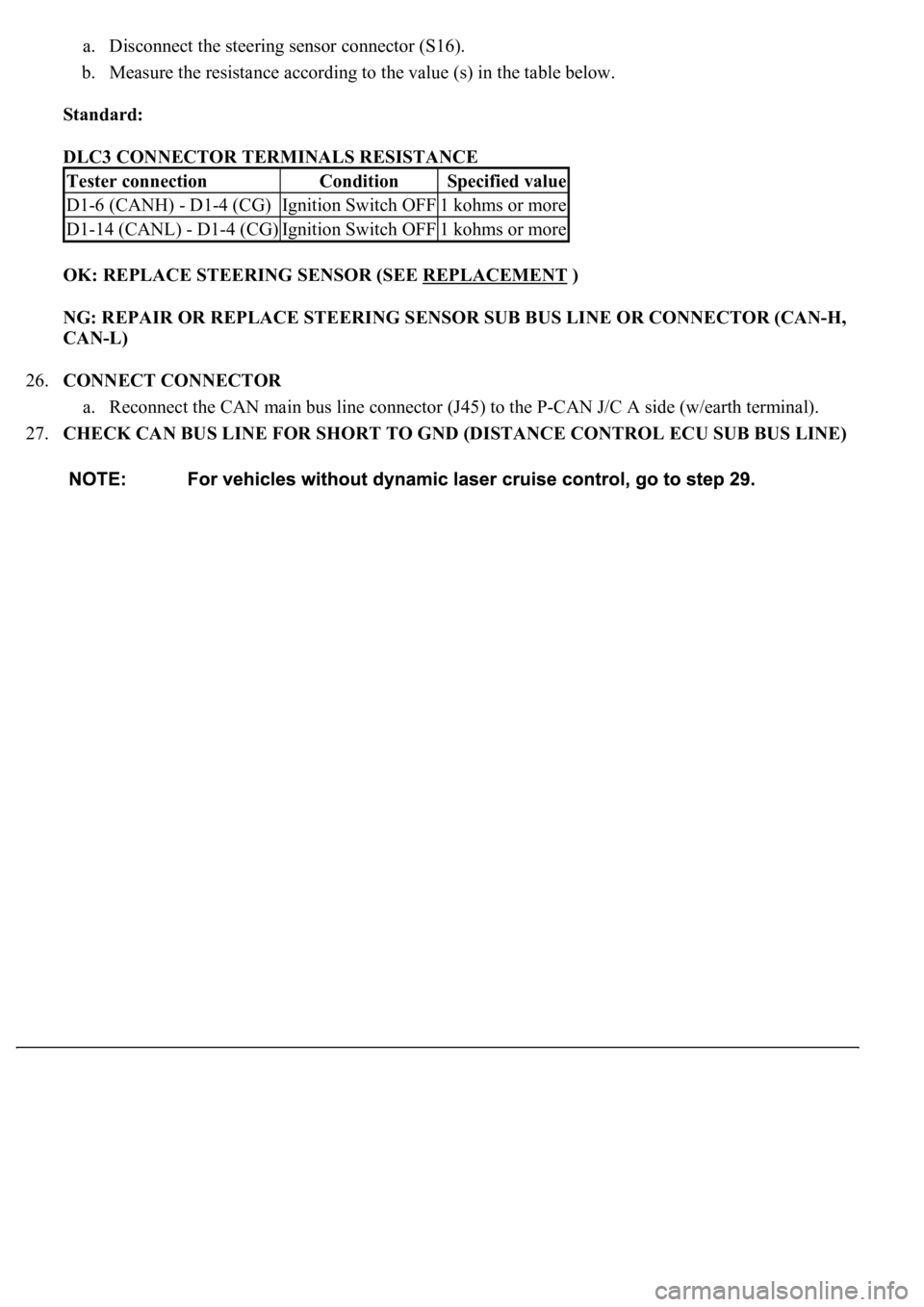

a. Disconnect the steering sensor connector (S16).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE STEERING SENSOR (SEE REPLACEMENT
)
NG: REPAIR OR REPLACE STEERING SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
26.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
27.CHECK CAN BUS LINE FOR SHORT TO GND (DISTANCE CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more
