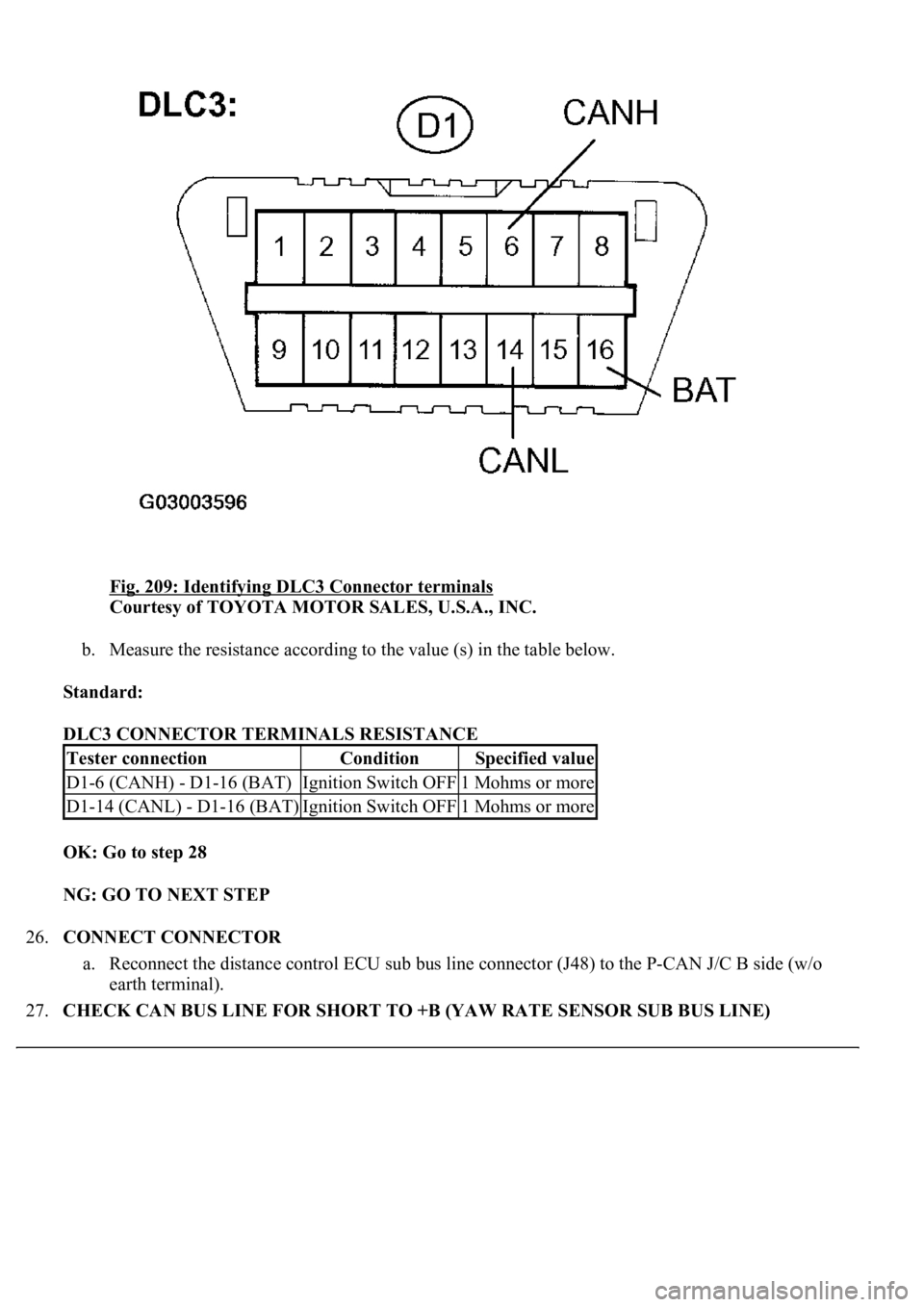

Fig. 209: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 28
NG: GO TO NEXT STEP
26.CONNECT CONNECTOR
a. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/o
earth terminal).
27.CHECK CAN BUS LINE FOR SHORT TO +B (YAW RATE SENSOR SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

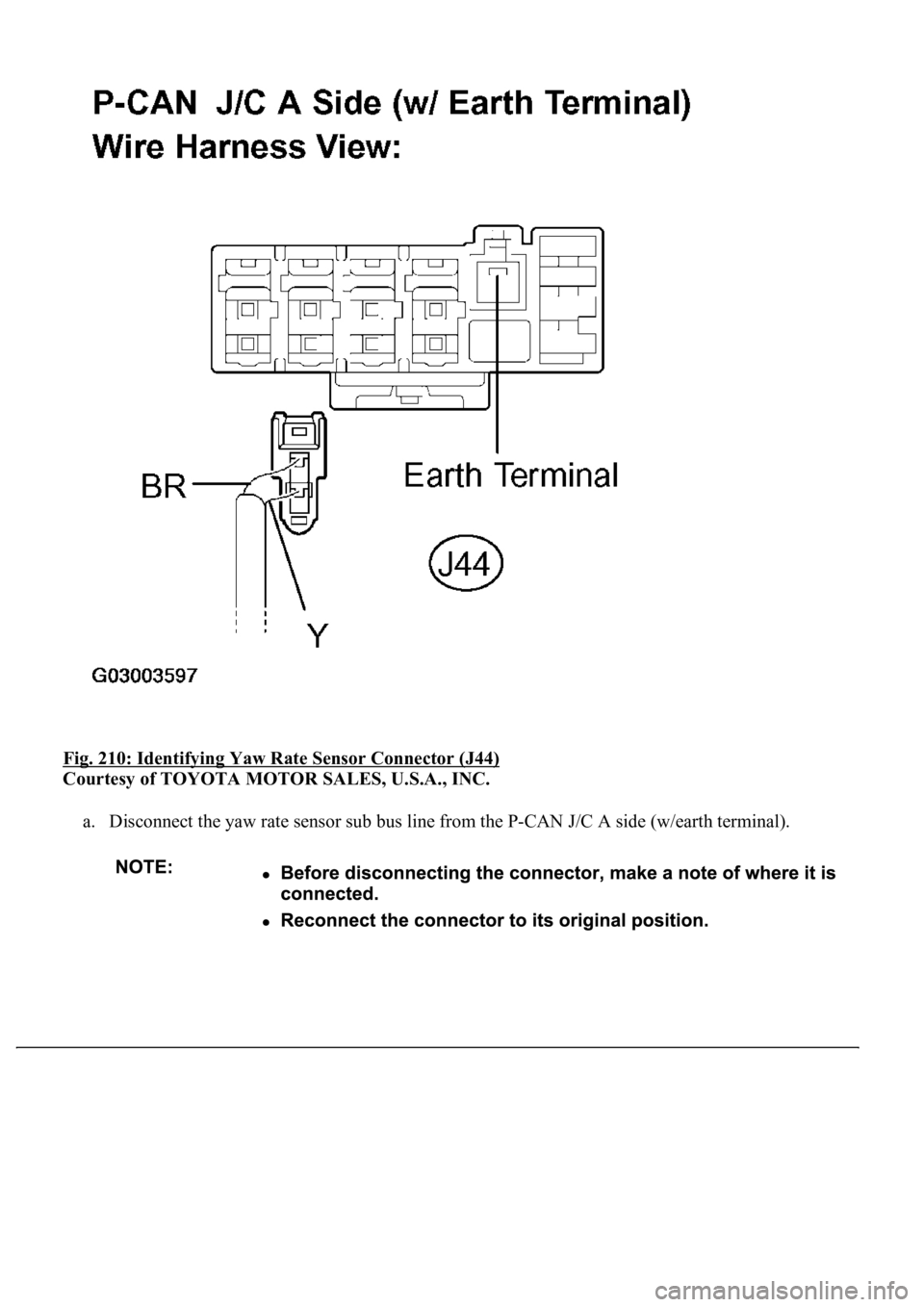

Fig. 210: Identifying Yaw Rate Sensor Connector (J44)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the yaw rate sensor sub bus line from the P-CAN J/C A side (w/earth terminal).

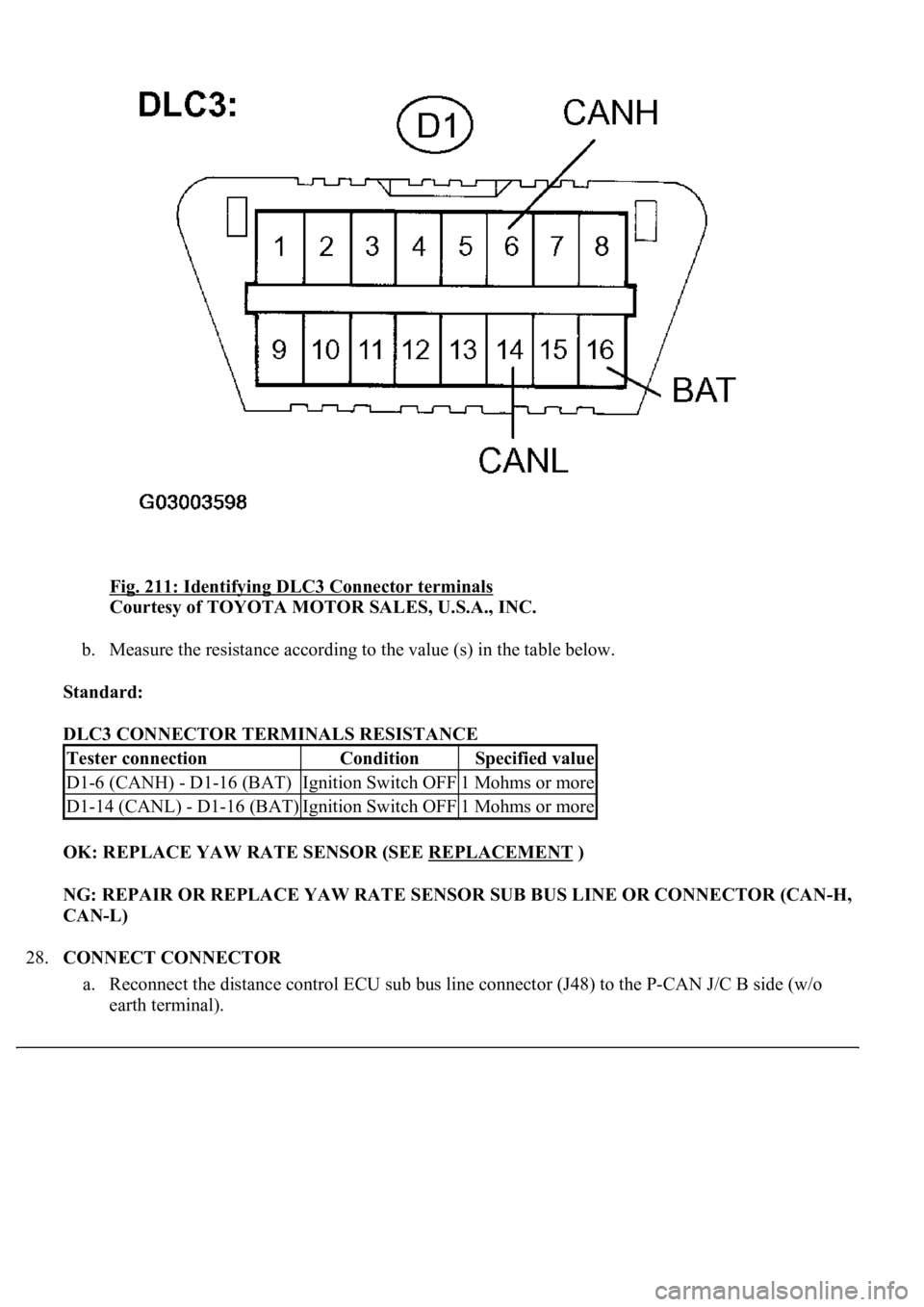

Fig. 211: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT
)
NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
28.CONNECT CONNECTOR
a. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/o
earth terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

NG: GO TO NEXT STEP
12.CONNECT CONNECTOR
a. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth
terminal).
13.CHECK CAN BUS LINE FOR SHORT TO GND (STEERING SENSOR SUB BUS LINE)

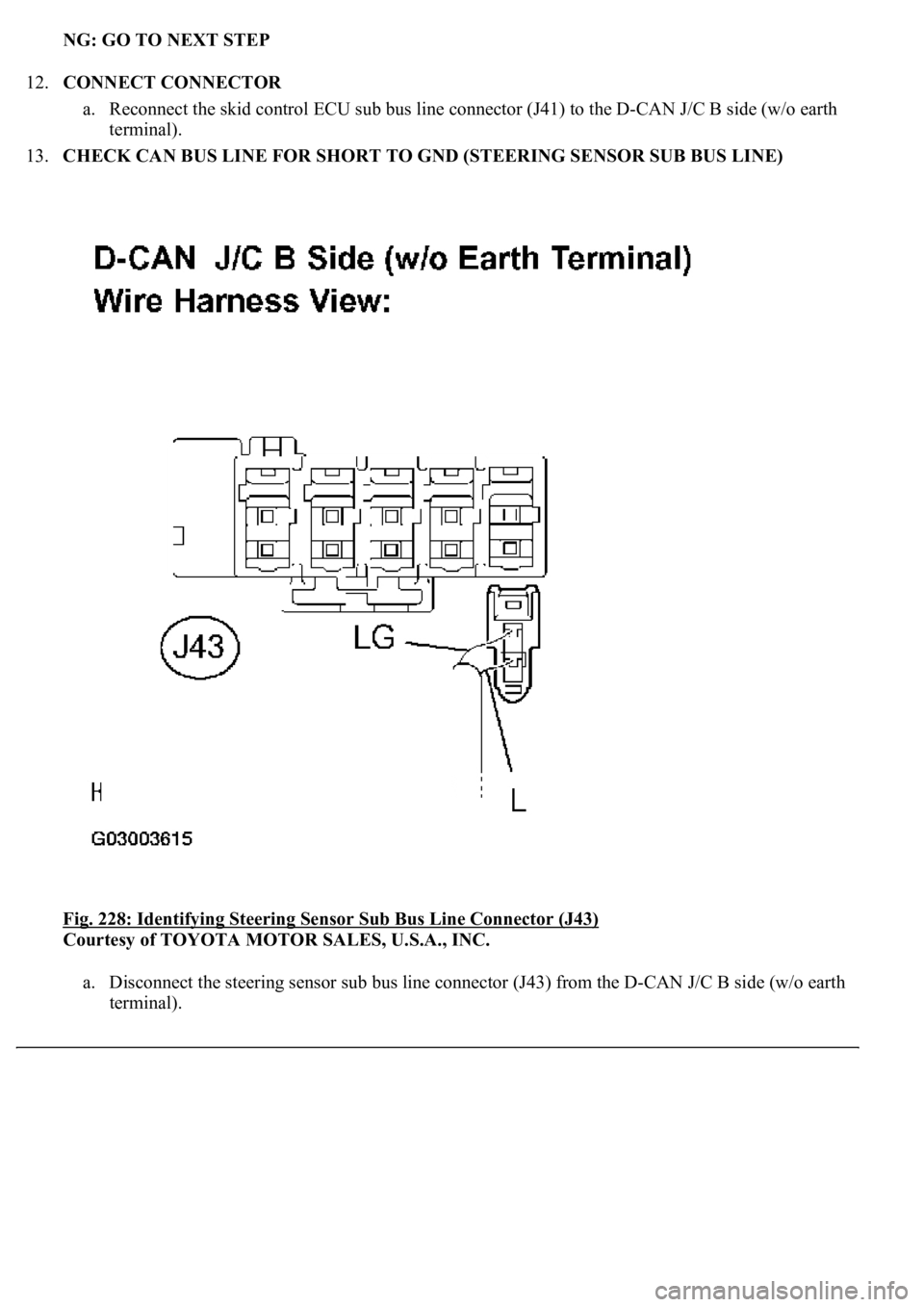

Fig. 228: Identifying Steering Sensor Sub Bus Line Connector (J43)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the steering sensor sub bus line connector (J43) from the D-CAN J/C B side (w/o earth
terminal).

NG: GO TO NEXT STEP
14.CONNECT CONNECTOR
a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
15.CHECK CAN BUS LINE FOR SHORT TO GND (D-CAN J/C)
Fig. 230: Disconnecting CAN Main Bus Line Connector (J37) From D
-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J37) from the D-CAN J/C A side (w/earth terminal).

a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
25.CHECK CAN BUS LINE FOR SHORT TO GND (STEERING SENSOR SUB BUS LINE)

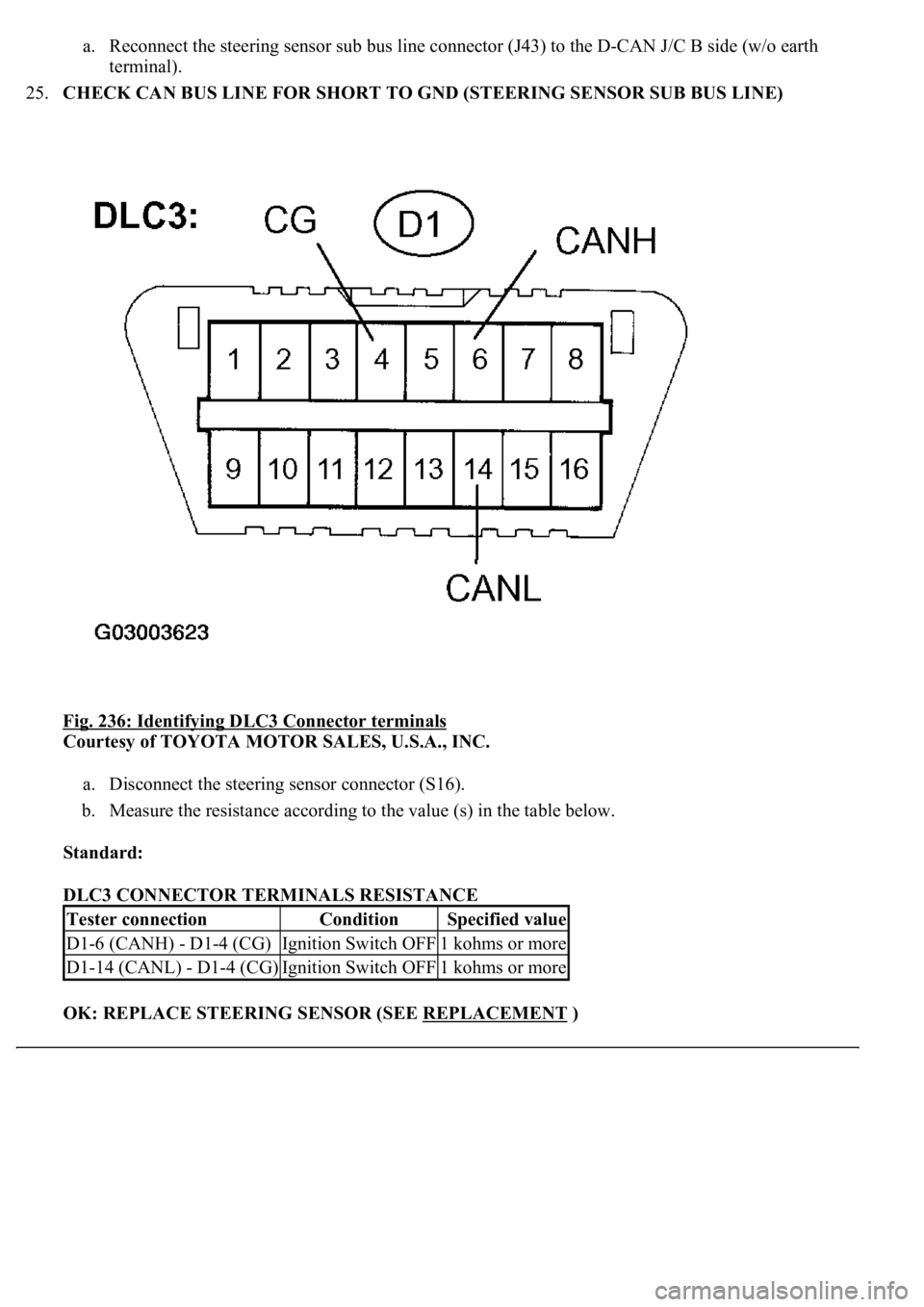

Fig. 236: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the steering sensor connector (S16).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE STEERING SENSOR (SEE REPLACEMENT
)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-4 (CG)Ignition Switch OFF1 kohms or more
D1-14 (CANL) - D1-4 (CG)Ignition Switch OFF1 kohms or more

NG: REPAIR OR REPLACE STEERING SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
26.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
27.CHECK CAN BUS LINE FOR SHORT TO GND (CAN BUSES TO LUG-CAN J/C)

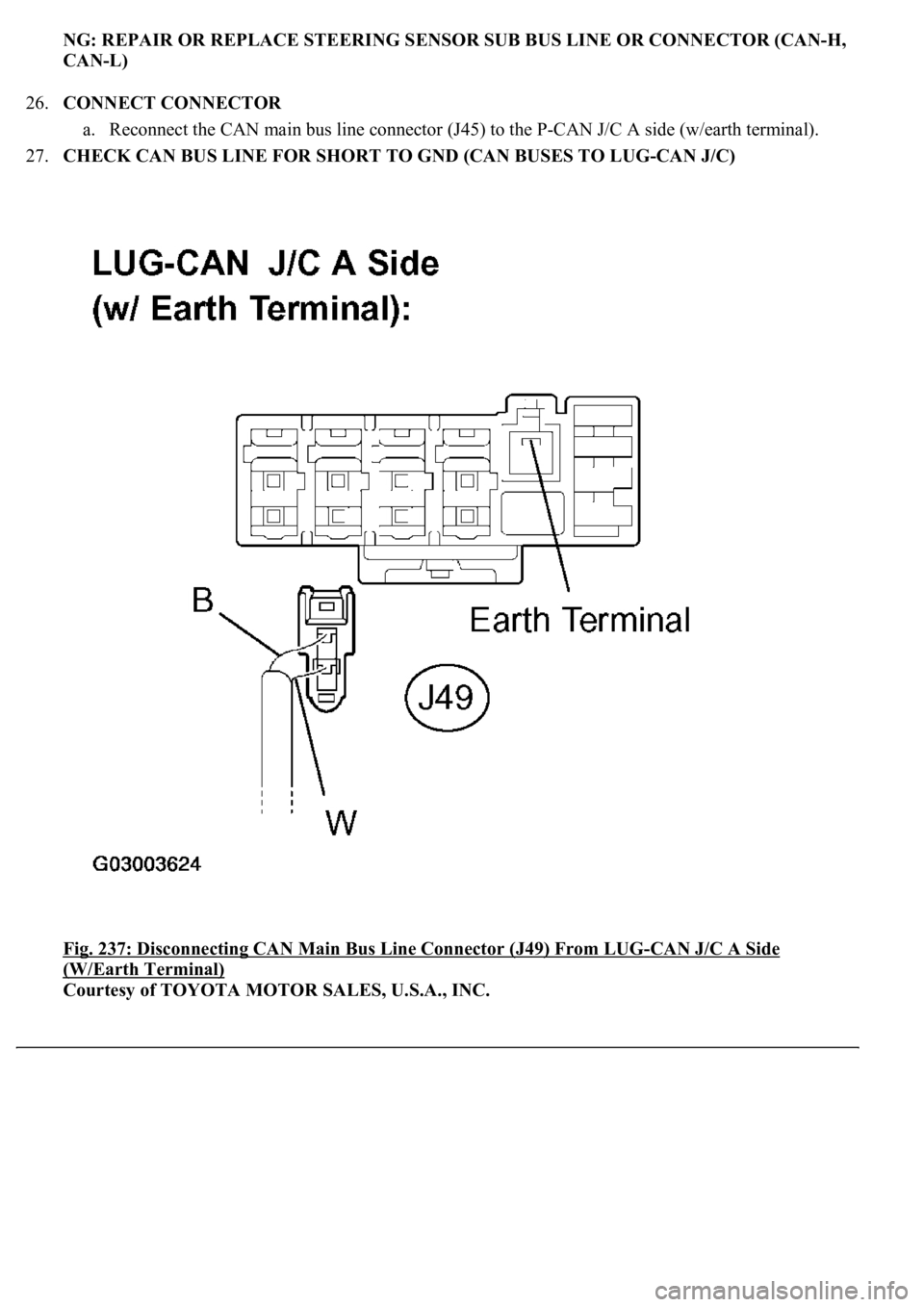

Fig. 237: Disconnecting CAN Main Bus Line Connector (J49) From LUG
-CAN J/C A Side
(W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK: Go to step 34
NG: GO TO NEXT STEP
30.CONNECT CONNECTOR
a. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/o
earth terminal).
31.CHECK CAN BUS LINE FOR SHORT TO GND (YAW RATE SENSOR SUB BUS LINE)
Fig. 241: Disconnecting Yaw Rate Sensor Sub Bus Line Connector (J44) From P
-CAN J/C A Side
(W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
