2002 YAMAHA MAJESTY 250 Owners Manual

3-17
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03096*
Adjusting the rider seatRider seat, adjustingThe rider seat can be adjusted as fol-
lows to change the riding position.
1. Open the rider seat.
1
1. Rider seat
EAU03331
Storage compartmentsStorage compartmentsFront storage compartment A
To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and
then grasp the lock while pushing the
button in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.
1
2
a
1. Button
2. Lid
a. Lock.
2. Remove the bolts and collars.
3. Slide the rider seat forward or
backward to the desired position.
4. Install the collars and securely
tighten the bolts.
5. Close the rider seat.
11
2
2
1. Bolt (
×4)
2. Collar (×4)
Compartment A
5SJ-28199-E0 1/24/02 6:14 PM Page 32

3-18
INSTRUMENT AND CONTROL FUNCTIONS
3
To lock the storage compartment,
push the lid into the original position,
insert the key in the lock, turn it clock-
wise, and then remove it.
1
2
a
1. Button
2. Lid
a. Lock.
Front storage compartment B
To open the storage compartment,
slide the lever up, and then pull on
the lever.
To close the storage compartment,
push the lid into the original position.
EWA00034
wDo not store heavy items in this
compartment.
1
2
1. Lever
2. Lid
Rear storage compartment
Two helmets can be stored in the
storage compartment under the
seats. (See page 3-16 for rider seat
opening and closing procedures.)
1
1. Rider seat
Compartment B
Compartment A
5SJ-28199-E0 1/24/02 6:14 PM Page 33

3-19
INSTRUMENT AND CONTROL FUNCTIONS
3
ECA00051
cCDo not leave the rider seat open
for an extended period of time,
otherwise the light may cause the
battery to discharge.
EWA00035
wDo not exceed the following load-
ing limits:
8 8
Front storage compartment A:
2 kg
8 8
Rear storage compartment:
5 kg
8 8
Maximum load for the vehicle:
185 kg
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction a. To
decrease the spring preload and
thereby soften the suspension, turn
the adjusting ring on each shock
absorber assembly in direction b.a
b1
23
1. Spring preload adjusting ring
2. Position indicator
3. Spring preload adjusting tool
EAU04552
Adjusting the shock
absorber assembliesShock absorber assemblies, adjustingEach shock absorber assembly is
equipped with a spring preload
adjusting ring.
EC000015
cCNever attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
EW000040
wAlways adjust both shock
absorber assemblies equally, oth-
erwise poor handling and loss of
stability may result.
5SJ-28199-E0 1/24/02 6:14 PM Page 34

3-20
INSTRUMENT AND CONTROL FUNCTIONS
3
NOTE:
8Align the appropriate notch in the
adjusting ring with the position
indicator on the shock absorber.
8Use the spring preload adjusting
tool included in the owner’s tool
kit to make this adjustment.
EAU00330
SidestandSidestandThe sidestand is located on the left
side of the frame. Raise the side-
stand or lower it with your foot while
holding the scooter upright.NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situ-
ations. (See further down for an
explanation of the ignition circuit cut-
off system.)
1
1. Sidestand switch
EW000044
wThe scooter must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up),
otherwise the sidestand could con-
tact the ground and distract the
operator, resulting in a possible
loss of control. Yamaha’s ignition
circuit cut-off system has been
designed to assist the operator in
fulfilling the responsibility of rais-
ing the sidestand before starting
off. Therefore, check this system
regularly as described below and
have a Yamaha dealer repair it if it
does not function properly.
Setting
Minimum (soft) 1
Standard 4
Maximum (hard) 7
5SJ-28199-E0 1/24/02 6:14 PM Page 35

3-21
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00337
Ignition circuit cut-off
systemIgnition circuit cut-off systemThe ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the follow-
ing functions.
8It prevents starting when the
sidestand is up, but neither brake
is applied.
8It prevents starting when either
brake is applied, but the side-
stand is still down.
8It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
EW000045
wIf a malfunction is noted, have a
Yamaha dealer check the system
before riding.
5SJ-28199-E0 1/24/02 6:14 PM Page 36

3-22
INSTRUMENT AND CONTROL FUNCTIONS
3
The sidestand switch may be defective.The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “#”.
3. Turn the key to “ON”.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.NOTE:This check is most reliable if performed with
a warmed-up engine.
YES NO
The system is OK. The scooter can be ridden.
YES NO
5SJ-28199-E0 1/24/02 6:14 PM Page 37

5SJ-28199-E0 1/24/02 6:14 PM Page 38

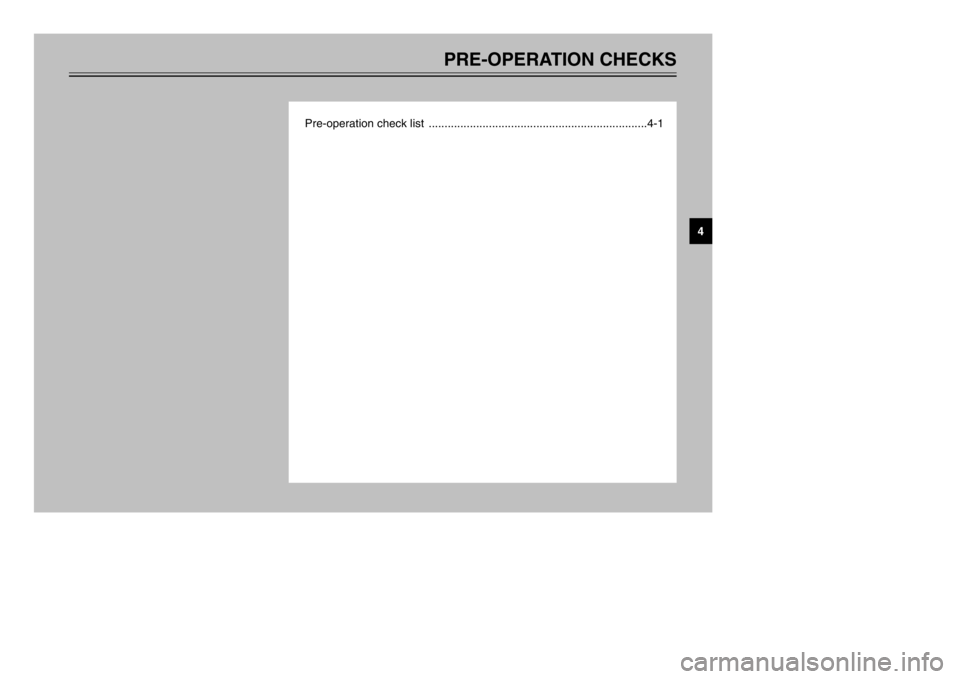

PRE-OPERATION CHECKS
Pre-operation check list .....................................................................4-1
4
5SJ-28199-E0 1/24/02 6:14 PM Page 39
