2002 YAMAHA MAJESTY 250 Owners Manual

4-1
EAU01114
PRE-OPERATION CHECKS
4The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpect-
edly, even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leak-
age or loss of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thor-
ough visual inspection, to check the following points before each ride.
EAU03439
Pre-operation check list
Pre-operation check list
ITEM CHECKS PAGE
Fuel•Check fuel level in fuel tank.
•Refuel if necessary.
•Check fuel line for leakage.3-4, 3-14–3-15
Engine oil•Check oil level in engine.
•If necessary, add recommended oil to specified level.
•Check vehicle for oil leakage.6-14–6-17
Final transmission oil•Check vehicle for oil leakage. 6-18–6-19
Coolant•Check coolant level in reservoir.
•If necessary, add recommended coolant to specified level.
•Check cooling system for leakage.3-5, 6-19–6-20
Front brake•Check operation.
•If soft or spongy, have Yamaha dealer bleed hydraulic system.
•Check lever free play.
•Adjust if necessary.
•Check fluid level in reservoir.
•If necessary, add recommended brake fluid to specified level.
•Check hydraulic system for leakage.3-12, 6-27–6-30
5SJ-28199-E0 1/24/02 6:14 PM Page 40

4-2
PRE-OPERATION CHECKS
4
Rear brake•Check operation.
•If soft or spongy, have Yamaha dealer bleed hydraulic system.
•Check fluid level in reservoir.
•If necessary, add recommended brake fluid to specified level.
•Check hydraulic system for leakage.3-13, 6-27–6-30
Throttle grip•Make sure that operation is smooth.
•Check cable free play.
•If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-23, 6-31
Wheels and tires•Check for damage.
•Check tire condition and tread depth.
•Check air pressure.
•Correct if necessary.6-24–6-27
Brake levers•Make sure that operation is smooth.
•Lubricate lever pivoting points if necessary.3-12–3-13, 6-27, 6-31
Centerstand, sidestand•Make sure that operation is smooth.
•Lubricate pivots if necessary.6-31–6-32
Chassis fasteners•Make sure that all nuts, bolts and screws are properly tightened.
•Tighten if necessary.—
Instruments, lights, signals
and switches•Check operation.
•Correct if necessary.3-2–3-12, 6-37–6-42
Sidestand switch•Check operation of ignition circuit cut-off system.
•If system is defective, have Yamaha dealer check vehicle.3-20–3-22 ITEM CHECKS PAGE
5SJ-28199-E0 1/24/02 6:14 PM Page 41

4-3
PRE-OPERATION CHECKS
4
NOTE:
Pre-operation checks should be made each time the scooter is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
EWA00033
wIf any item in the Pre-operation check list is not working properly, have it inspected and repaired before operat-
ing the scooter.
5SJ-28199-E0 1/24/02 6:14 PM Page 42

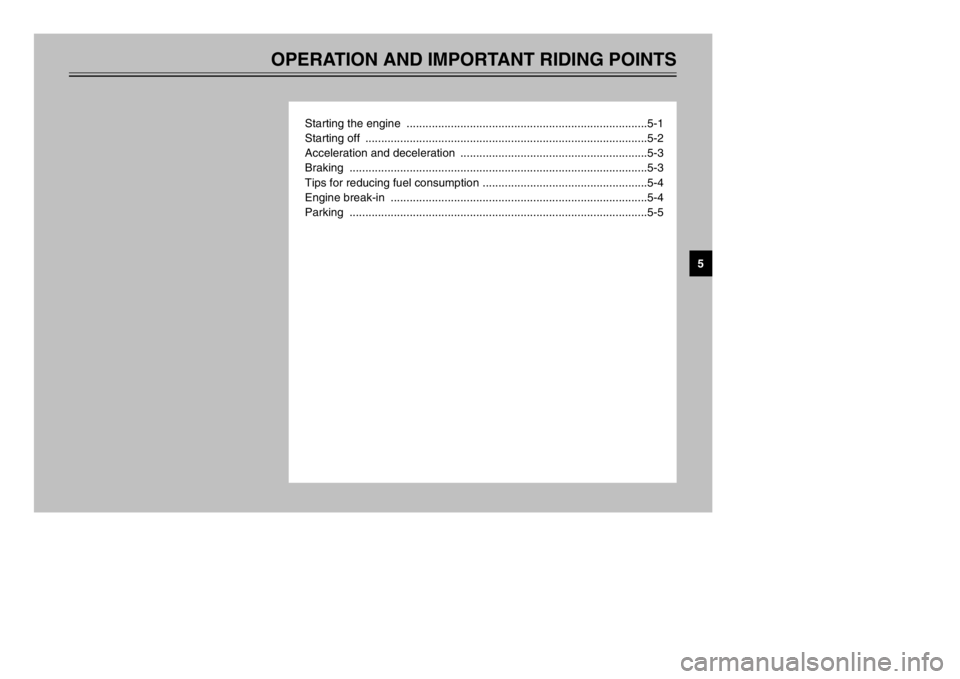

OPERATION AND IMPORTANT RIDING POINTS
Starting the engine ............................................................................5-1
Starting off .........................................................................................5-2
Acceleration and deceleration ...........................................................5-3
Braking ..............................................................................................5-3
Tips for reducing fuel consumption ....................................................5-4
Engine break-in .................................................................................5-4
Parking ..............................................................................................5-5
5
5SJ-28199-E0 1/24/02 6:14 PM Page 43

5-1
EAU00372
OPERATION AND IMPORTANT RIDING POINTS
5
EAU01118
w8Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thorough-
ly understand.
8Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
8For safety, always start the
engine with the centerstand
down.
EAU03843
Starting the engineStarting the engine
EC000046
cCSee page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up.
EW000054
w8Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-22.
8Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch
is set to “#”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
3
2
1
1. Start switch
2. Front brake lever
3. Rear brake lever
5SJ-28199-E0 1/24/02 6:14 PM Page 44

5-2
OPERATION AND IMPORTANT RIDING POINTS
5
NOTE:
If the engine does not start, release
the start switch, wait a few seconds,
and then try again. Each starting
attempt should be as short as possi-
ble to preserve the battery. Do not
crank the engine more than 10 sec-
onds on any one attempt. If the
engine does not start, try with the
throttle open 1/8 turn.
ECA00045
cCFor maximum engine life, never
accelerate hard when the engine is
cold!
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signal off.
EAU00433
Starting offStarting offNOTE:
Before starting off, allow the engine
to warm up.1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the center-
stand.
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signal on.
1
1. Grab bar
5SJ-28199-E0 1/24/02 6:14 PM Page 45

5-3
OPERATION AND IMPORTANT RIDING POINTS
5
EAU00434
Acceleration and
decelerationAcceleration and decelerationThe speed can be adjusted by open-
ing and closing the throttle. To
increase the speed, turn the throttle
grip in direction a. To reduce the
speed, turn the throttle grip in direc-
tion b.
EW000057
w8Avoid braking hard or sudden-
ly (especially when leaning
over to one side), otherwise
the scooter may skid or over-
turn.
8Railroad crossings, streetcar
rails, iron plates on road con-
struction sites, and manhole
covers become extremely slip-
pery when wet. Therefore,
slow down when approaching
such areas and cross them
with caution.
8Keep in mind that braking on a
wet road is much more diffi-
cult.
8Ride slowly down a hill, as
braking downhill can be very
difficult.
b
a
EAU00435
BrakingBraking1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
5SJ-28199-E0 1/24/02 6:14 PM Page 46

5-4
OPERATION AND IMPORTANT RIDING POINTS
5
EAU03093
Tips for reducing fuel
consumptionFuel consumption, tips for reducingFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
8Thoroughly warm up the engine.
8Avoid high engine speeds during
acceleration.
8Avoid high engine speeds with
no load on the engine.
8Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cross-
ings).
EAU01128
Engine break-inEngine break-inThere is never a more important peri-
od in the life of your engine than the
period between 0 and 1,600 km. For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do
not put an excessive load on it for the
first 1,600 km. The various parts in
the engine wear and polish them-
selves to the correct operating clear-
ances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overheat-
ing must be avoided.
EAU04590
0–1,000 km
Avoid prolonged operation above
4,000 r/min.
1,000–1,600 km
Avoid prolonged operation above
5,000 r/min.
ECA00138
cCAfter 1,000 km of operation, be
sure to replace the engine oil and
final transmission oil.1,600 km and beyond
The vehicle can now be operated
normally.
ECA00137
cC8Keep the engine speed below
8,500 r/min.
8If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehi-
cle.
5SJ-28199-E0 1/24/02 6:14 PM Page 47
