Page 105 of 114
8-3
SPECIFICATIONS
8
90 kg load–maximum load*
Front200 kPa (2.00 kgf/cm
2, 2.00 bar)
Rear 225 kPa (2.25 kgf/cm2, 2.25 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 12 ×MT2.75
Rear
Type Cast wheel
Size 12 ×MT3.50
Brakes
Front
Type Single disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Left hand
Fluid DOT 4Suspension
Front Telescopic fork
Rear Unit swing
Spring/shock absorbers
Front Coil spring/oil damper
Rear Coil spring/oil damper
Wheel travel
Front 100 mm
Rear 90 mm
Electrical
Ignition system Transistorized coil ignition
(digital)
Charging system
Type A.C. magneto
Standard output 14 V, 19.5 A @ 5,000 r/min
Battery
Type GT7B-4
Voltage, capacity 12 V, 6.5 AH
Headlight bulb typeHalogen bulb
5SJ-28199-E0 1/24/02 6:14 PM Page 104
Page 106 of 114
8-4
SPECIFICATIONS
8
Bulb voltage, wattage ×quantity
Headlight 12 V, 60/55 W ×1
12 V, 55 W ×1
Tail/brake light 12 V, 5/21 W ×2
Front turn signal light 12 V, 21 W ×2
Rear turn signal light 12 V, 18 W ×2
Auxiliary light 12 V, 5 W ×1
License plate light 12 V, 5 W ×1
Meter lighting 12 V, 1.7 W ×4
High beam indicator light 12 V, 1.7 W ×1
Turn signal indicator light 12 V, 3.4 W ×2
Oil change indicator light 12 V, 1.7 W ×1
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 7.5 A
Radiator fan fuse 4 A
Backup fuse (clock) 10 A
5SJ-28199-E0 1/24/02 6:14 PM Page 105
Page 107 of 114
8-5
SPECIFICATIONS
8
EAU04513
Conversion tableConversion tableAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°F
5SJ-28199-E0 1/24/02 6:14 PM Page 106
Page 108 of 114

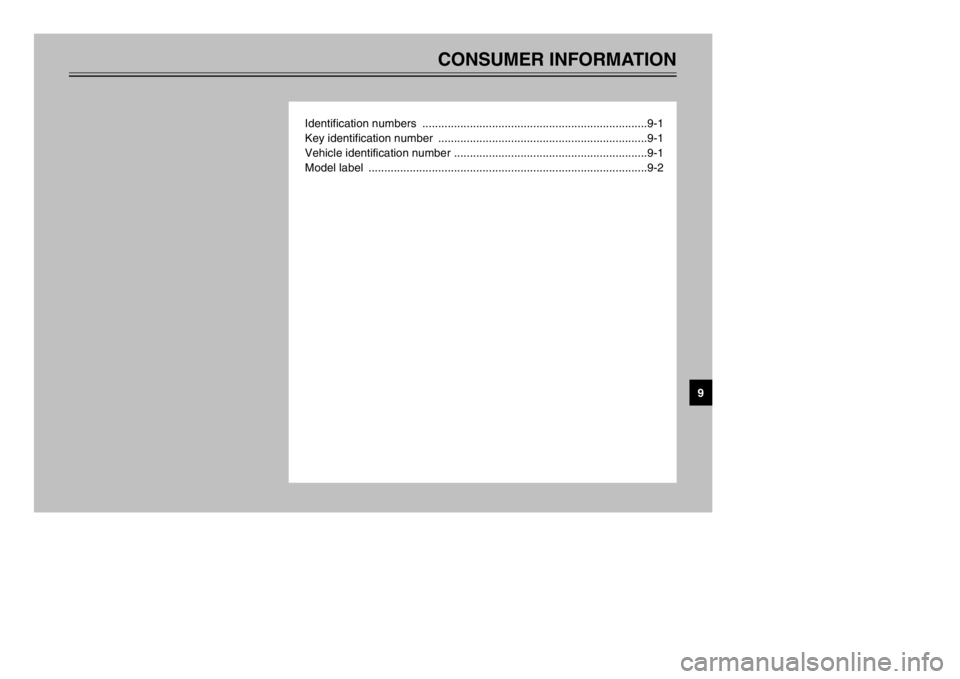

CONSUMER INFORMATION
Identification numbers .......................................................................9-1
Key identification number ..................................................................9-1
Vehicle identification number .............................................................9-1
Model label ........................................................................................9-2
9
5SJ-28199-E0 1/24/02 6:14 PM Page 107
Page 109 of 114
9-1
EAU01039
CONSUMER INFORMATION
9
EAU02944
Identification numbersIdentification numbersRecord the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
1. KEY IDENTIFICATION
NUMBER:
2. VEHICLE IDENTIFICATION
NUMBER:
3. MODEL LABEL INFORMATION:
EAU01044
Vehicle identification numberVehicle identification numberThe vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
1
1. Vehicle identification number
EAU01041
Key identification numberKey identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when
ordering a new key.
1
1. Key identification number
1
6
5SJ-28199-E0 1/24/02 6:14 PM Page 108
Page 110 of 114
9-2
CONSUMER INFORMATION
9
EAU03097
Model labelModel labelThe model label is affixed to the
inside of the rear storage compart-
ment. (See page 3-18 for rear stor-
age compartment opening and clos-
ing procedures.) Record the
information on this label in the space
provided. This information will be
needed when ordering spare parts
from a Yamaha dealer.
1
1. Model label
5SJ-28199-E0 1/24/02 6:14 PM Page 109
Page 111 of 114
INDEX
F
Final transmission oil ............................6-18
Front and rear brake lever free play,
adjusting ............................................6-27
Front fork, checking ..............................6-32
Fuel ......................................................3-14
Fuel consumption, tips for reducing .......5-4
Fuel gauge .............................................3-4
Fuel tank cap ........................................3-13
Fuses, replacing ...................................6-36
H
Handlebar switches ..............................3-10
Dimmer switch ...................................3-10
Engine stop switch .............................3-12
Headlight variations ...........................3-11
Horn switch ........................................3-10
Pass switch ........................................3-10
Start switch ........................................3-12
Turn signal switch ..............................3-10
Headlight bulb, replacing ......................6-37
I
Identification numbers ............................9-1
Ignition circuit cut-off system ................3-21
Indicator lights ........................................3-2
High beam indicator light .....................3-2
Oil change indicator light .....................3-2
Turn signal indicator lights ...................3-2
K
Key identification number .......................9-1
L
License plate light bulb, replacing ........6-41
M
Main switch/steering lock .......................3-1
Model label .............................................9-2
P
Parking ...................................................5-5
Part locations ..........................................2-1
Periodic maintenance and lubrication
chart .....................................................6-3
Pre-operation check list ..........................4-1
R
Rider seat .............................................3-16
Rider seat, adjusting .............................3-17
S
Safe-riding points ...................................1-2
Shock absorber assemblies,
adjusting ............................................3-19
Sidestand .............................................3-20
Spark plug, checking ............................6-12
Specifications .........................................8-1
Speedometer ..........................................3-3
Starting off ..............................................5-2
Starting the engine .................................5-1
Steering, checking ................................6-33
Storage ...................................................7-4
Storage compartments .........................3-17
A
Acceleration and deceleration ................5-3
Air filter and V-belt case air filter
elements, cleaning .............................6-21
Air flow louver .......................................6-23
Anti-theft alarm (optional) .......................3-9
B
Battery ..................................................6-34
Battery cover removal ..........................6-34
Brake fluid level, checking ....................6-29
Brake fluid, changing ............................6-30
Brake lever, front ..................................3-12
Brake lever, rear ...................................3-13
Brake levers, lubricating .......................6-31
Braking ...................................................5-3
C
Cables, checking and lubricating ..........6-30
Care ........................................................7-1
Catalytic converter ................................3-15
Centerstand and sidestand, checking
and lubricating ...................................6-31
Conversion table ....................................8-5
Coolant .................................................6-19
Coolant temperature gauge ....................3-5
Cowlings and panel, removing and
installing ...............................................6-6
E
Engine break-in ......................................5-4
Engine oil ..............................................6-14
5SJ-28199-E0 1/24/02 6:14 PM Page 110
Page 112 of 114

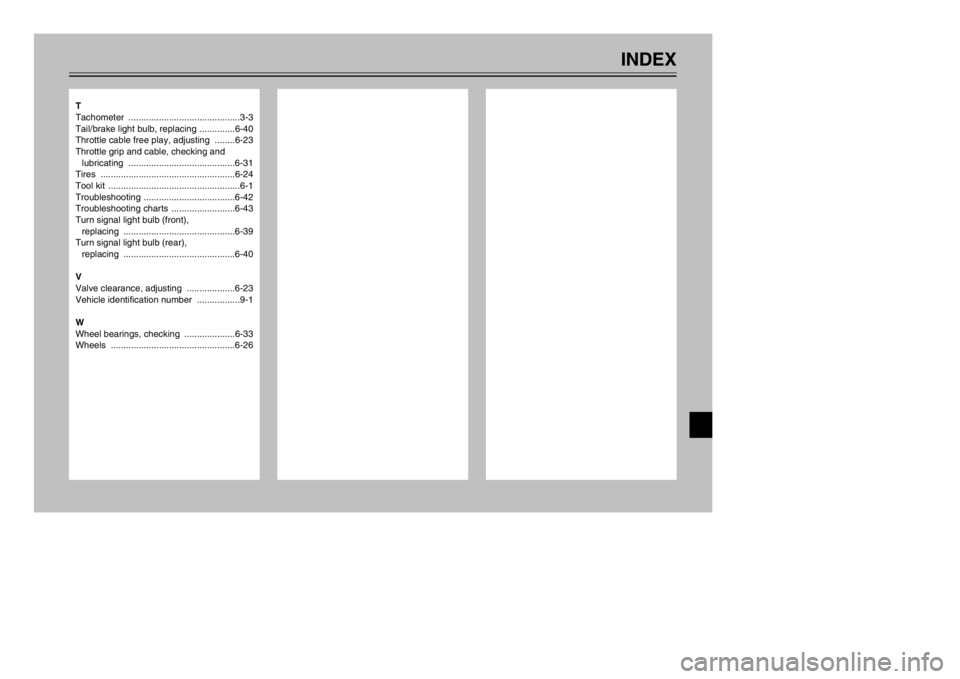

T
Tachometer ............................................3-3
Tail/brake light bulb, replacing ..............6-40
Throttle cable free play, adjusting ........6-23
Throttle grip and cable, checking and
lubricating ..........................................6-31
Tires .....................................................6-24
Tool kit ....................................................6-1
Troubleshooting ....................................6-42
Troubleshooting charts .........................6-43
Turn signal light bulb (front),
replacing ............................................6-39
Turn signal light bulb (rear),
replacing ............................................6-40
V
Valve clearance, adjusting ...................6-23
Vehicle identification number .................9-1
W
Wheel bearings, checking ....................6-33
Wheels .................................................6-26
INDEX
5SJ-28199-E0 1/24/02 6:14 PM Page 111
