4. To remove the convertible seat, press
the bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.
CAUTION
A forwardfacing child restraint sys-
tem which belongs to a passenger
risk group should never be put on
the right front seat with the passen-
ger airbag manual onoff switch in
the “ON” position, because the force
of the deploying airbag could cause
death or serious injury to the child in
forward seating position. (For details,
see “SRS driver and front passenger
airbags” in this section.)

’02 TUNDRA_U (L/O 0108)
672002 MY TUNDRA_U (OM 34417U)
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.

’02 TUNDRA_U (L/O 0108)
682002 MY TUNDRA_U (OM 34417U)
2. To remove the child restraint system,
press the bucklerelease button and al-
low the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Symbol
Anchor bracket
Separate seat
Symbol
Anchor brackets
Bench seat
— U sin g a to p st rap
(standard cab models)

’02 TUNDRA_U (L/O 0108)
692002 MY TUNDRA_U (OM 34417U)
Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for (each)
passenger seating position.
This symbol indicates the locations of
user ready anchor brackets.
TO USE THE ANCHOR BRACKET:

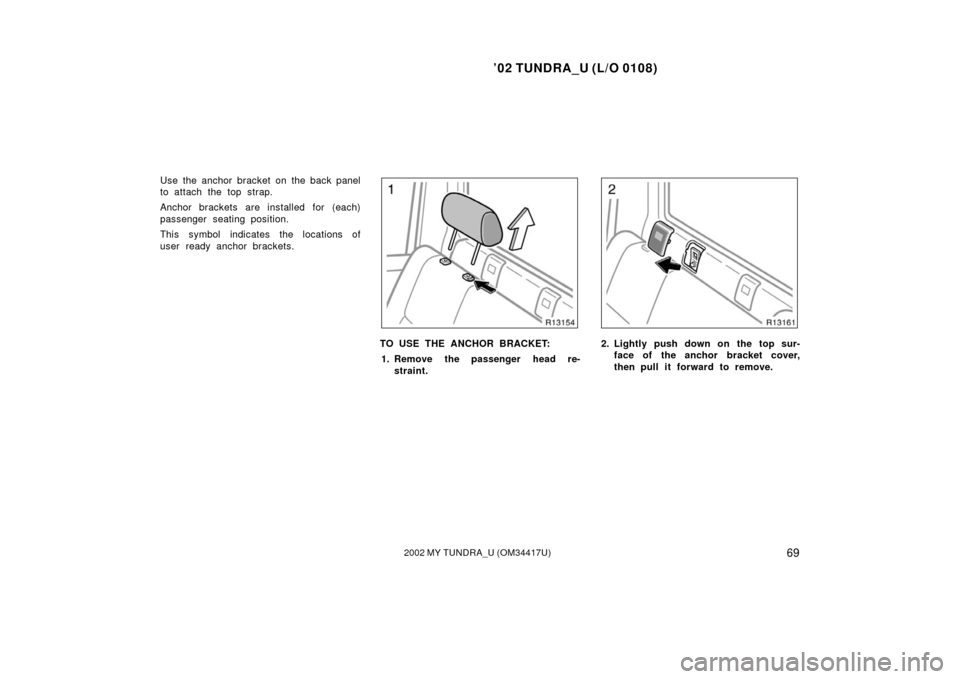

1. Remove the passenger head re- straint.2. Lightly push down on the top sur-face of the anchor bracket cover,
then pull it forward to remove.

’02 TUNDRA_U (L/O 0108)
702002 MY TUNDRA_U (OM 34417U)

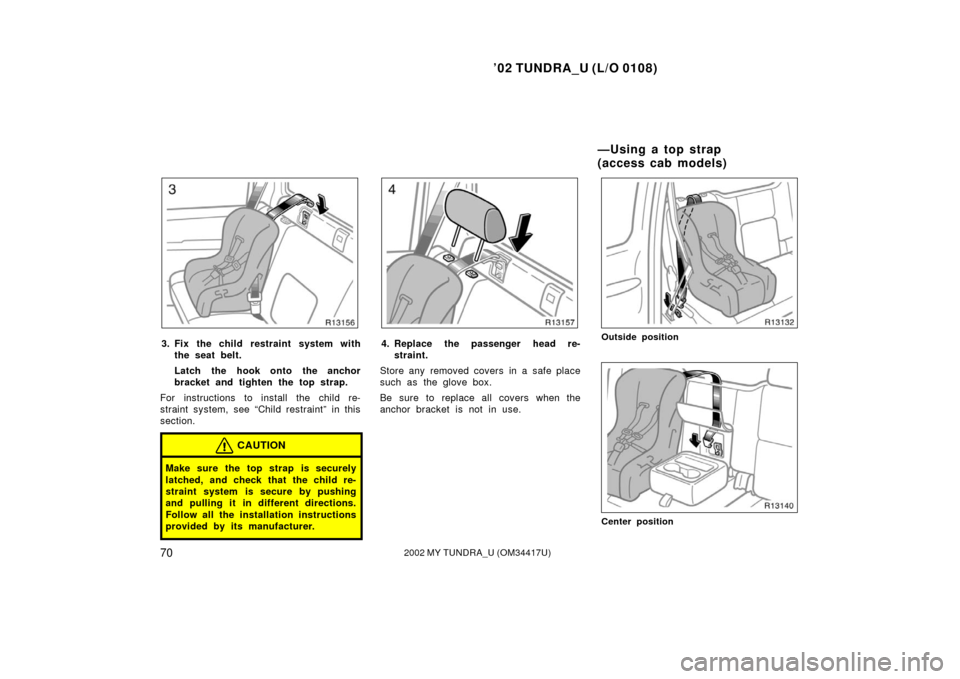

3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the passenger head re- straint.
Store any removed covers in a safe place
such as the glove box.
Be sure to replace all covers when the
anchor bracket is not in use.Outside position
Center position
— U sin g a to p st rap
(access cab models)

’02 TUNDRA_U (L/O 0108)
712002 MY TUNDRA_U (OM 34417U)
Follow the procedure below for a child
restraint system that requires the use
of a top strap.Symbol Routing devices
Anchor brackets

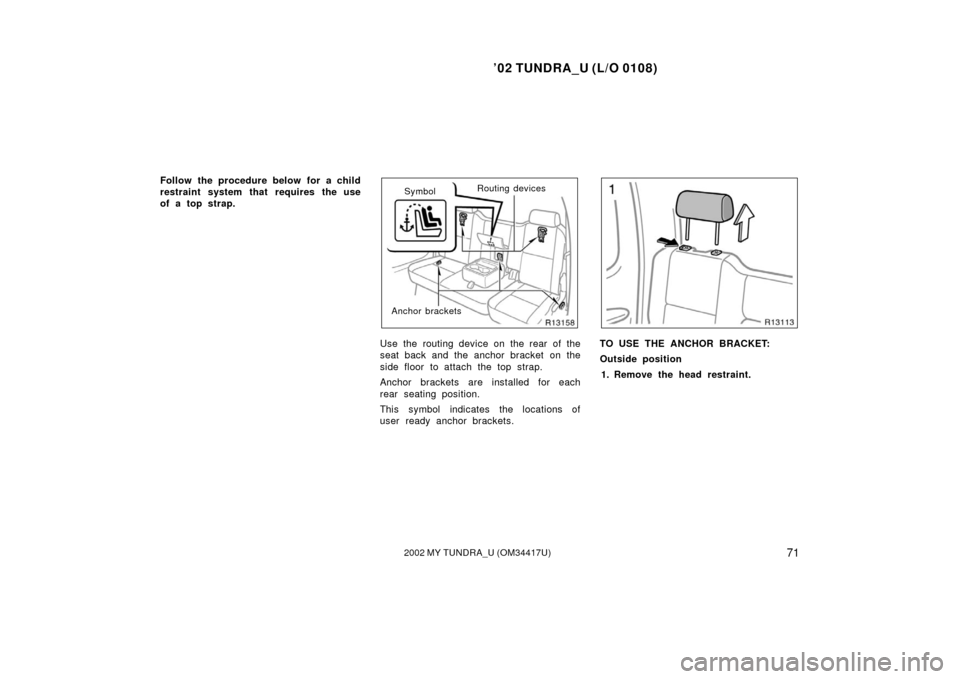

Use the routing device on the rear of the
seat back and the anchor bracket on the
side floor to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET:
Outside position 1. Remove the head restraint.

’02 TUNDRA_U (L/O 0108)
722002 MY TUNDRA_U (OM 34417U)
Routing
device

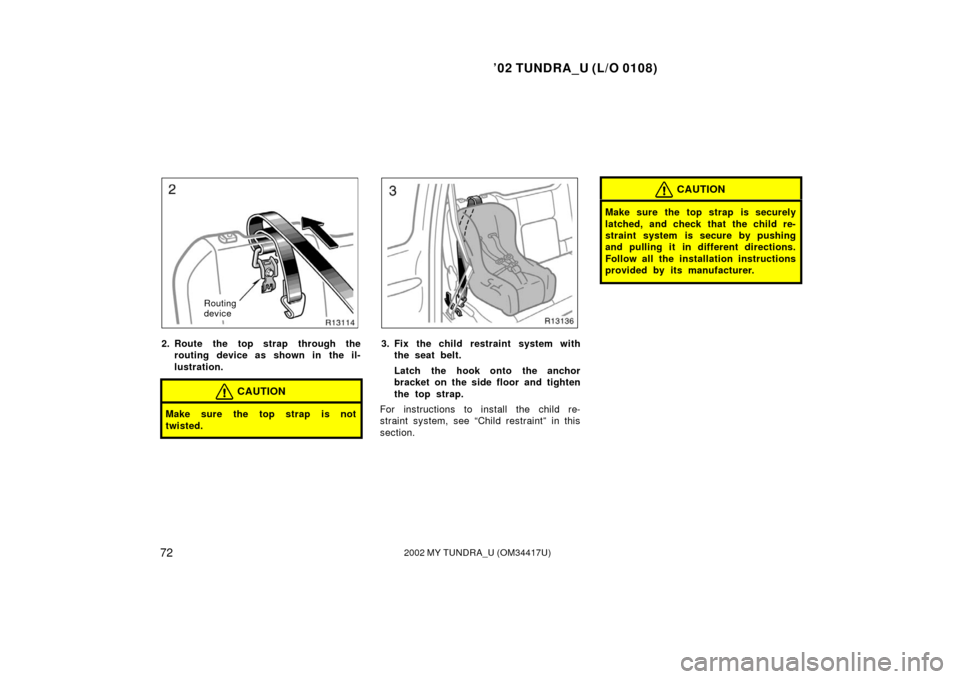

2. Route the top strap through the
routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’02 TUNDRA_U (L/O 0108)
732002 MY TUNDRA_U (OM 34417U)
4. Replace the head restraint.Center position

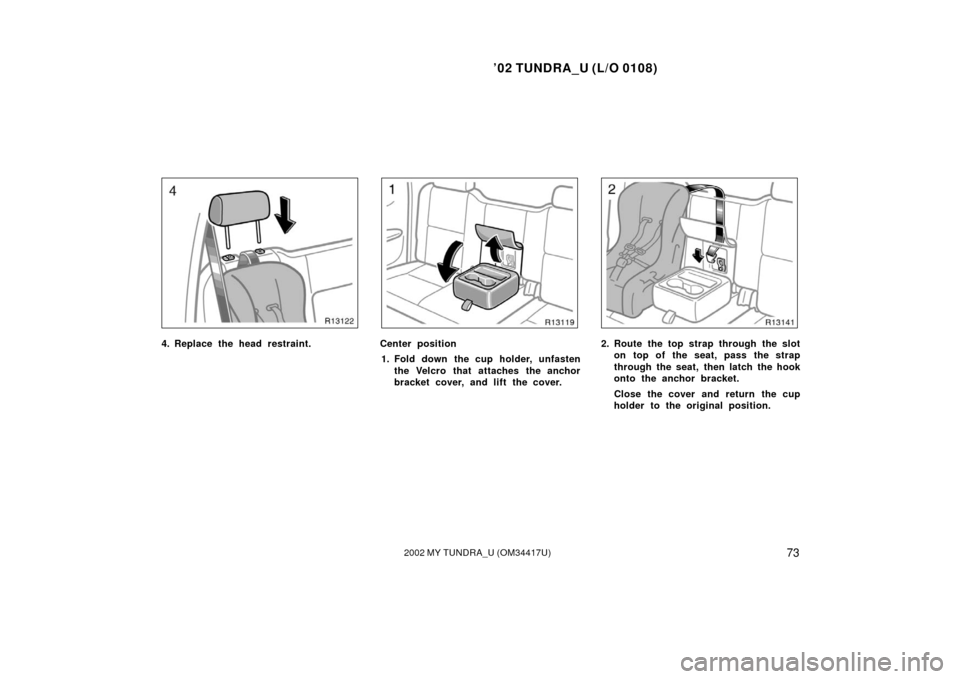

1. Fold down the cup holder, unfasten the Velcro that attaches the anchor
bracket cover, and lift the cover.2. Route the top strap through the sloton top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.
