If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one at a time as
shown above.
Do not remove the cover forcibly.

’02 TUNDRA_U (L/O 0108)
1632002 MY TUNDRA_U (OM 34417U)
Installing the cover—
Align the hinges to the pivots, and press
each hinge until you hear a click.
Make sure that the cover opens and
closes smoothly. To use the auxiliary bo
xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A only—As this holder is de-
signed for holding a light object
such as an eyeglass, do not place
any heavy objects in it. Heavy ob-
jects may cause the holder to open
and contents to fly out resulting in
injuries.
NOTICE
Type A only—During hot weather, the
interior of the vehicle becomes very
hot. Do not leave anything flammable
or deformable such as a lighter,
glasses, etc. inside.
Type A (on the ceiling)
Auxiliary boxes

’02 TUNDRA_U (L/O 0108)
1642002 MY TUNDRA_U (OM 34417U)
Type B (front split bench seat—only when
the armrest is down)
Type B auxiliary box is equipped with
a coin holder and cassette tape holder.
1. Coin holder: To use it, push coins down into the holder. The coin hold-
er is detachable.
2. Cassette tape holder: The plate for the cassette tape holder is detach-
able.
Type C (console)

’02 TUNDRA_U (L/O 0108)
1652002 MY TUNDRA_U (OM 34417U)
Type C auxiliary box is equipped with
a coin holder and cassette tape/com-
pact disc holder.
1. Coin holder: To use it, push coins down into the holder.
2. Cassette tape/compact disc holder: To use it, raise the upper tray.
The plates for the cassette tape/com-
pact disc are detachable.
Type D (under the rear seat—only when
the bottom cushion is up)
The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
NOTICE
Type A only—As this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drinkcan
or bottle in it.
C u p ho ld ers

’02 TUNDRA_U (L/O 0108)
1662002 MY TUNDRA_U (OM 34417U)
Type A (instrument panel)
To fold down the armrest
with the cup holder
To return the armrest with the cup
holder to the original position
Type B (front split bench seat—only when
the armrest is down)
Type C (console)

’02 TUNDRA_U (L/O 0108)
1672002 MY TUNDRA_U (OM 34417U)
Type C cup holders are equipped with
a detachable adapter for each holder.
When you remove the adapter, a bigger
cup can be held in the holder.
Type D (rear seat)The note pad holder is designed to
hold small paper such as note pads.
To use the holder, pull the holder out
completely.
Note pad holder

’02 TUNDRA_U (L/O 0108)
1682002 MY TUNDRA_U (OM 34417U)
You can move the paper holders to ac-
commodate the size of paper as shown in
the illustration.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the note
pad holder closed when it is not in
use.
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.
Floor mat

’02 TUNDRA_U (L/O 0108)
1692002 MY TUNDRA_U (OM 34417U)

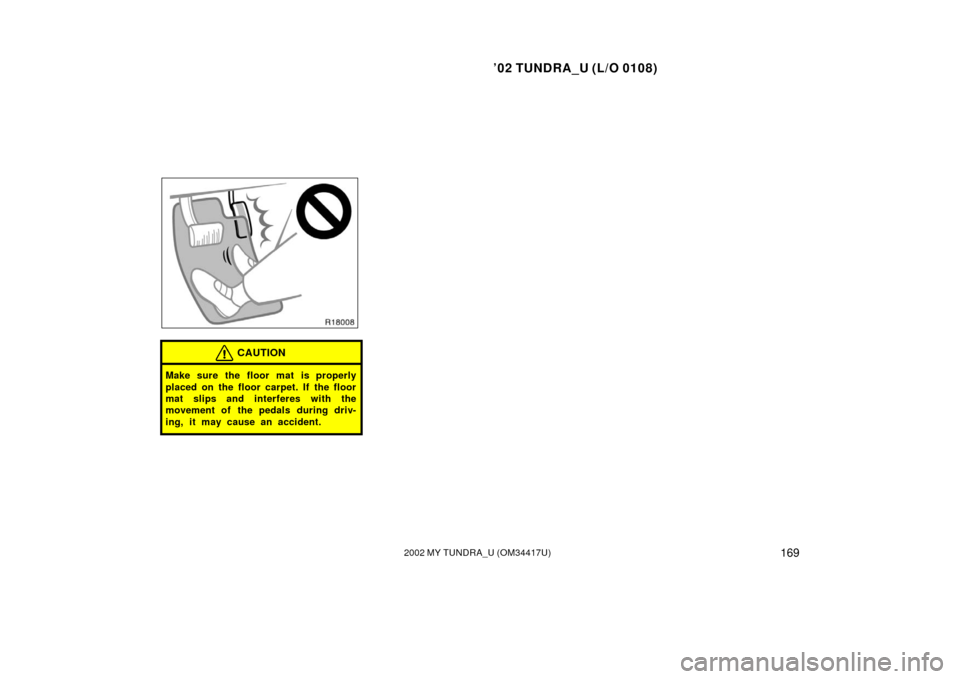

CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
