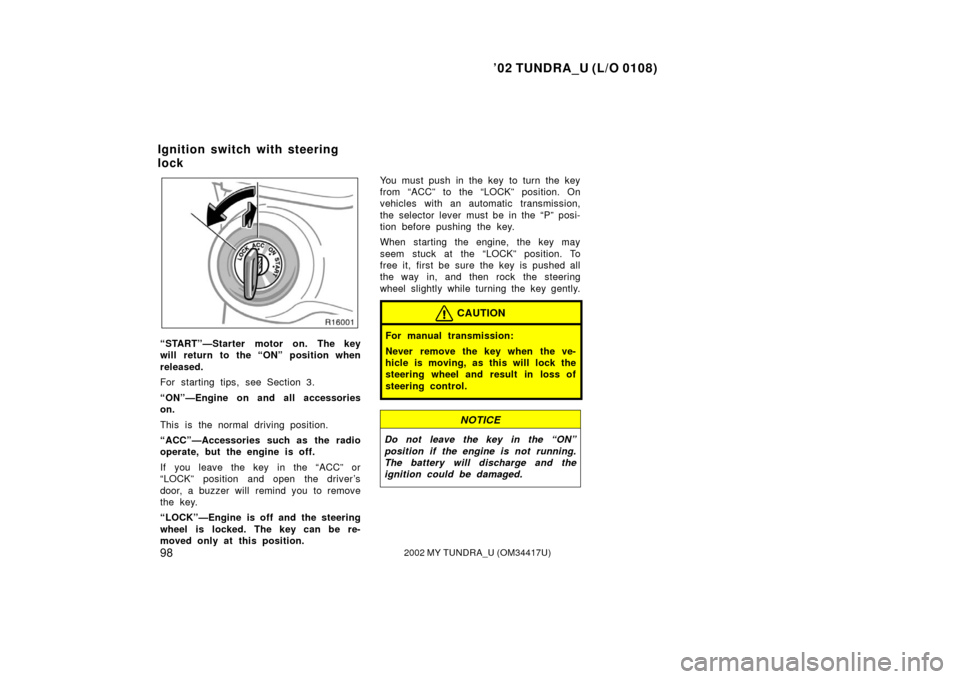

“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see Section 3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position. You must push in the key to turn the key
from “ACC” to the “LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be in the “P” posi-
tion before pushing the key.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

’02 TUNDRA_U (L/O 0108)
992002 MY TUNDRA_U (OM 34417U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” or “ACC” position and the
selector lever pulled toward you).

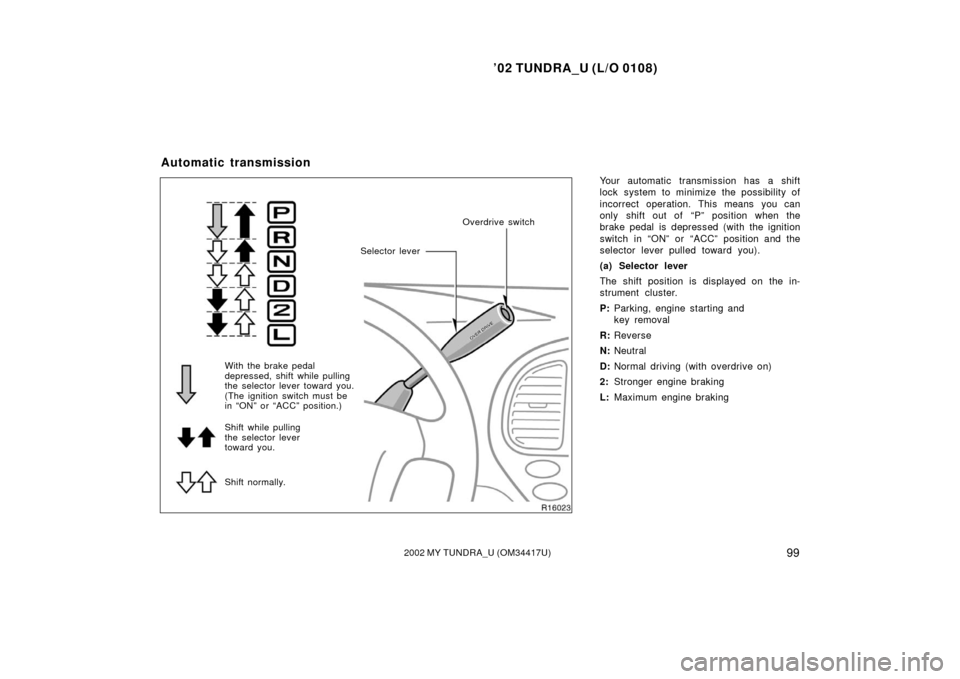

(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
Selector lever Overdrive switch
With the brake pedal
depressed, shift while pulling
the selector lever toward you.
(The ignition switch must be
in “ON” or “ACC” position.)
Shift while pulling
the selector lever
toward you.
Shift normally.

’02 TUNDRA_U (L/O 0108)
1002002 MY TUNDRA_U (OM 34417U)

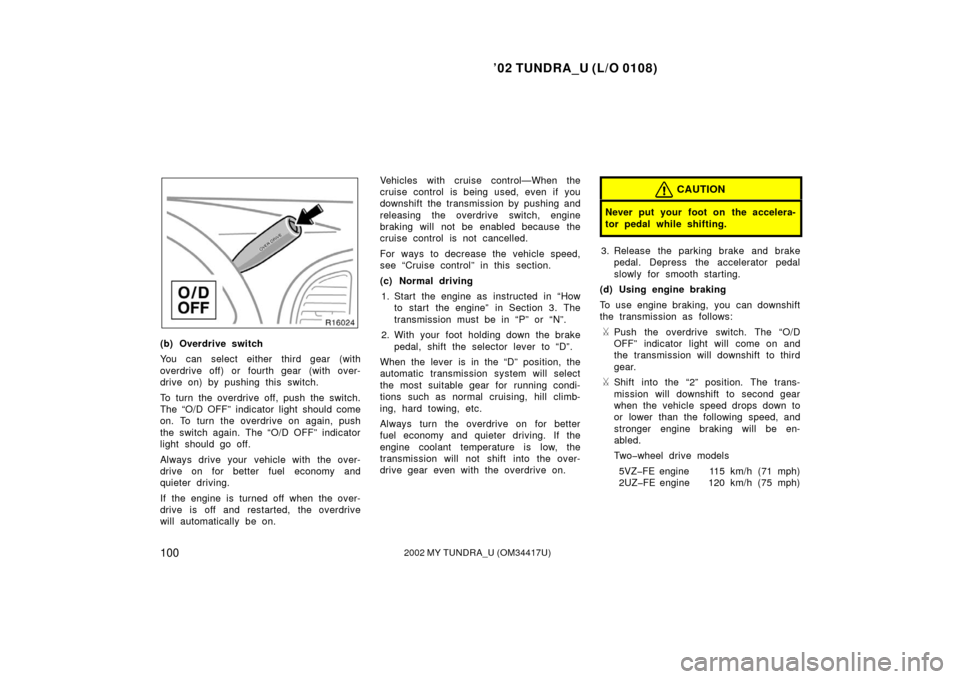

(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on. Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Twowheel drive models
5VZFE engine 115 km/h (71 mph)
2UZFE engine 120 km/h (75 mph)

’02 TUNDRA_U (L/O 0108)
1012002 MY TUNDRA_U (OM 34417U)

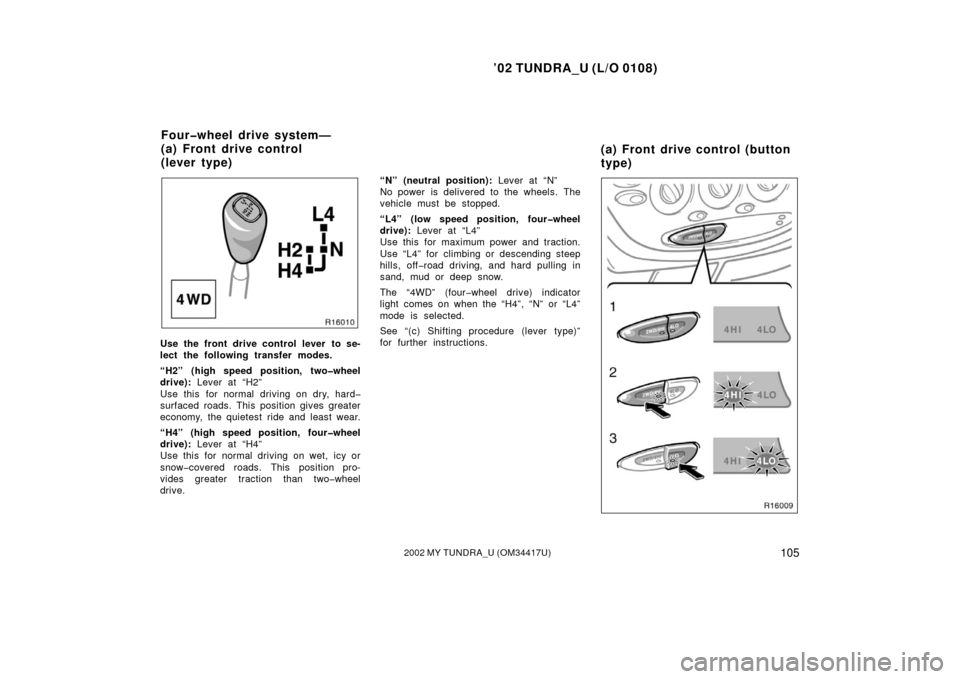

Fourwheel drive models
5VZFE engine Front drive control lever in “H2” or
“H4” 109 km/h (68 mph)
Front drive control lever in “L4”
37 km/h (23 mph)
2UZFE engine “2WD” or “4HI” mode is selected 120 km/h (75 mph)
“4LO” mode is selected
41 km/h (25 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Twowheel drive models
5VZFE engine 55 km/h (34 mph)
2UZFE engine 58 km/h (36 mph) Fourwheel drive models
5VZFE engine Front drive control lever in “H2” or
“H4” 52 km/h (32 mph)
Front drive control lever in “L4”
10 km/h (6 mph)
2UZFE engine “2WD” or “4HI” mode is selected 58 km/h (36 mph)
“4LO” mode is selected
11 km/h (7 mph)
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using “2” and “L” positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
NOTICE
 Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
Twowheel drive models
5VZFE engine— “2” 115 km/h (71 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
2UZFE engine— “2” 120 km/h (75 mph) . . . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . . . .

’02 TUNDRA_U (L/O 0108)
1022002 MY TUNDRA_U (OM 34417U)
Fourwheel drive models
5VZFE engine—
Front control lever in “H2” or
“H4” “2” 110 km/h (68 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
Front control lever in “L4”
“2” 40 km/h (25 mph) . . . . . . . . . .
“L” 20 km/h (12 mph) . . . . . . . . . .
2UZFE engine—
“2WD” or “4HI” mode is selected “2” 120 km/h (75 mph) . . . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . . . .
“4LO” mode is selected “2” 45 km/h (28 mph) . . . . . . . . . .
“L” 25 km/h (16 mph) . . . . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.

’02 TUNDRA_U (L/O 0108)
1032002 MY TUNDRA_U (OM 34417U)
(i) Rocking your vehicle if stuck

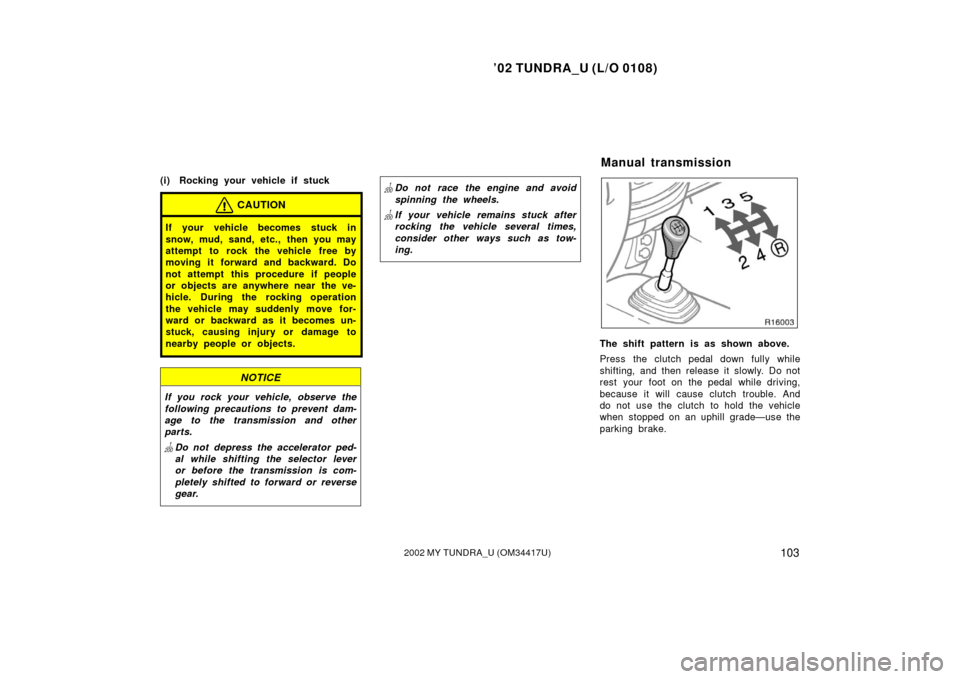

CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Manual transmission

’02 TUNDRA_U (L/O 0108)
1042002 MY TUNDRA_U (OM 34417U)
Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption. Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
Twowheel drive models
gear km/h (mph)
1 45 (28)
2 85 (53)
3 125 (78)
4 165 (112)
Fourwheel drive models gear km/h (mph) “H2” or “H4” “L4”
1 45 (28) 15 (9)
2 85 (53) 30 (18)
3 125 (78) 45 (28)
4 165 (103) 70 (43)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.

’02 TUNDRA_U (L/O 0108)
1052002 MY TUNDRA_U (OM 34417U)
Use the front drive control lever to se-
lect the following transfer modes.
“H2” (high speed position, twowheel
drive): Lever at “H2”
Use this for normal driving on dry, hard
surfaced roads. This position gives greater
economy, the quietest ride and least wear.
“H4” (high speed position, fourwheel
drive): Lever at “H4”
Use this for normal driving on wet, icy or
snowcovered roads. This position pro-
vides greater traction than twowheel
drive. “N” (neutral position): Lever at “N”
No power is delivered to the wheels. The
vehicle must be stopped.
“L4” (low speed position, fourwheel
drive):
Lever at “L4”
Use this for maximum power and traction.
Use “L4” for climbing or descending steep
hills, offroad driving, and hard pulling in
sand, mud or deep snow.
The “4WD” (fourwheel drive) indicator
light comes on when the “H4”, “N” or “L4”
mode is selected.
See “(c) Shifting procedure (lever type)”
for further instructions.
Fourwheel drive system—
(a) Front drive control
(lever type) (a) Front drive control (button
type)
