2002 TOYOTA TUNDRA Owners Manual

’02 TUNDRA_U (L/O 0108)
582002 MY TUNDRA_U (OM 34417U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the convertible seat, press
the bucklerelease button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.
—Installation with 3point
type seat belt

’02 TUNDRA_U (L/O 0108)
592002 MY TUNDRA_U (OM 34417U)

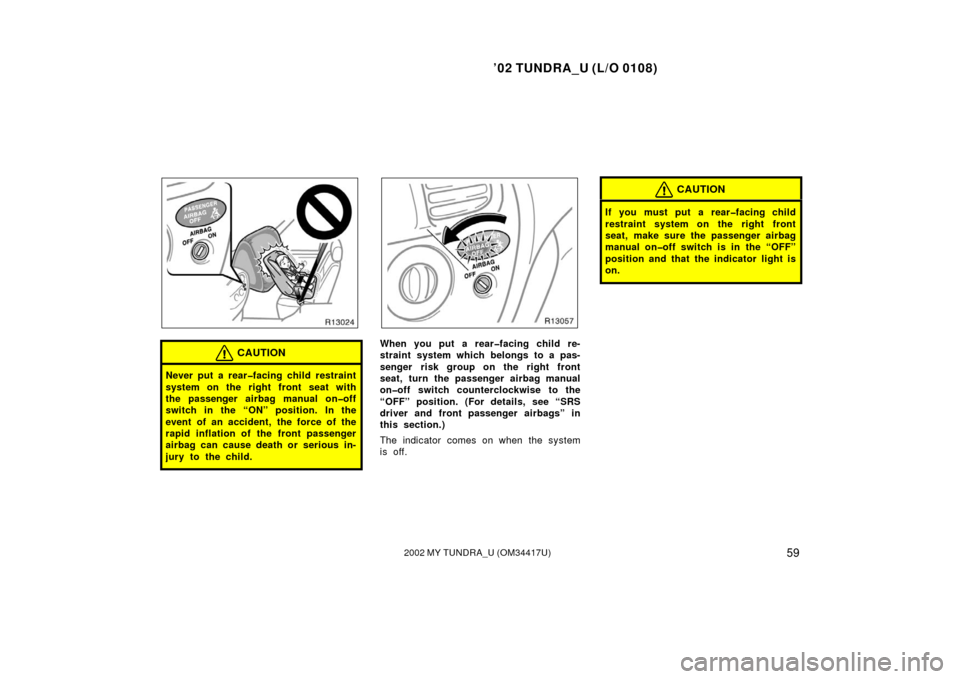

CAUTION
Never put a rearfacing child restraint
system on the right front seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child.
When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver and front passenger airbags” in
this section.)
The indicator comes on when the system
is off.
CAUTION
If you must put a rearfacing child
restraint system on the right front
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.

’02 TUNDRA_U (L/O 0108)
602002 MY TUNDRA_U (OM 34417U)

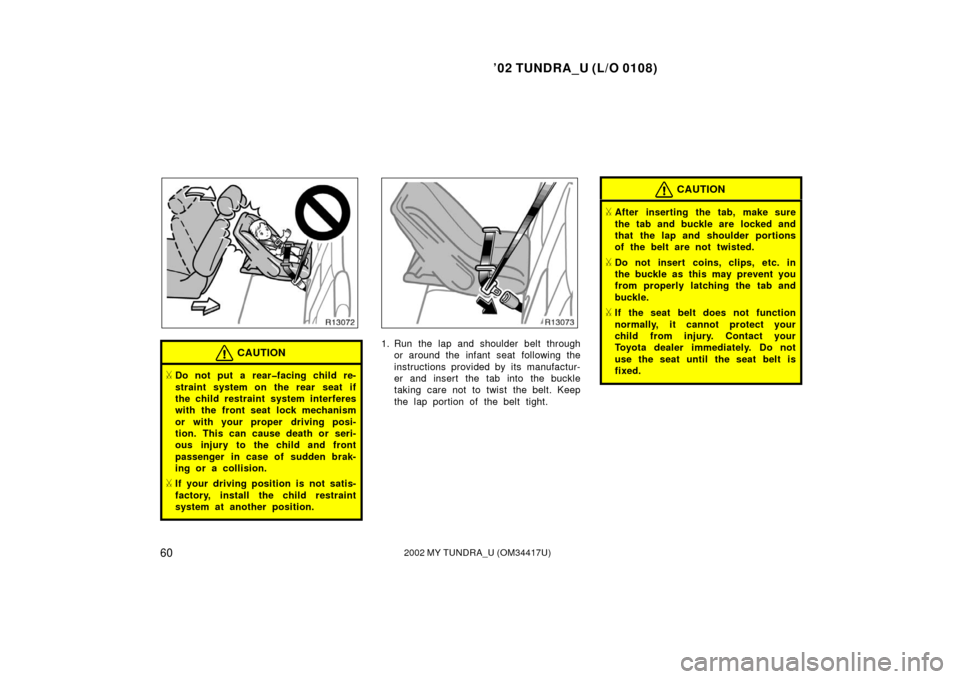

CAUTION
Do not put a rearfacing child re-
straint system on the rear seat if
the child restraint system interferes
with the front seat lock mechanism
or with your proper driving posi-
tion. This can cause death or seri-
ous injury to the child and front
passenger in case of sudden brak-
ing or a collision.
If your driving position is not satis-
factory, install the child restraint
system at another position.
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.

’02 TUNDRA_U (L/O 0108)
612002 MY TUNDRA_U (OM 34417U)

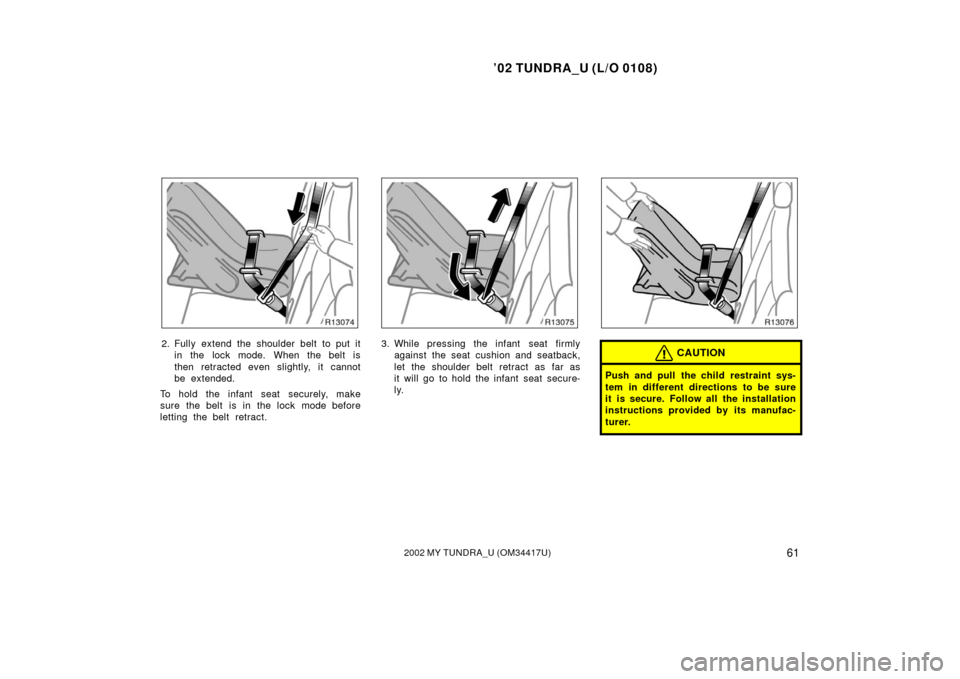

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’02 TUNDRA_U (L/O 0108)
622002 MY TUNDRA_U (OM 34417U)

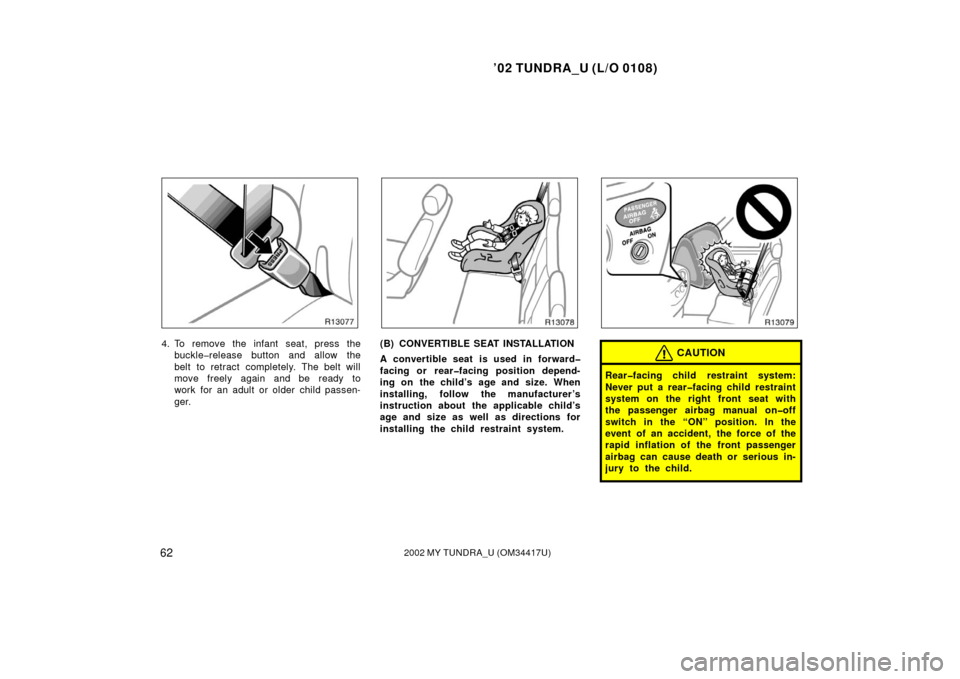

4. To remove the infant seat, press the
bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s
instruction about the applicable child’s
age and size as well as directions for
installing the child restraint system.CAUTION
Rearfacing child restraint system:
Never put a rearfacing child restraint
system on the right front seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child.

’02 TUNDRA_U (L/O 0108)
632002 MY TUNDRA_U (OM 34417U)

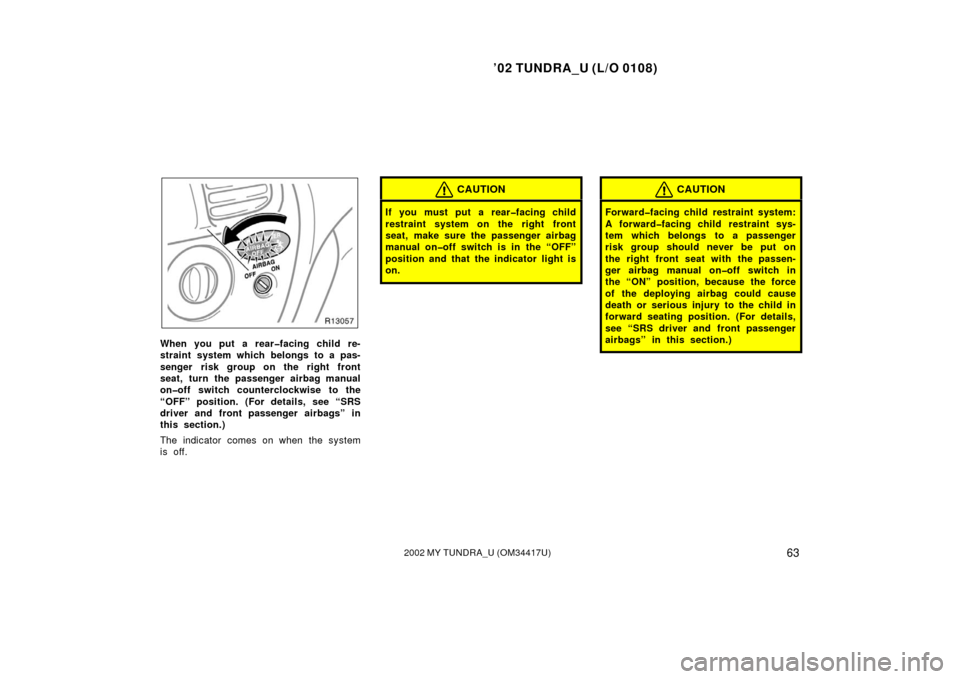

When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver and front passenger airbags” in
this section.)
The indicator comes on when the system
is off.
CAUTION
If you must put a rearfacing child
restraint system on the right front
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
CAUTION
Forwardfacing child restraint system:
A forwardfacing child restraint sys-
tem which belongs to a passenger
risk group should never be put on
the right front seat with the passen-
ger airbag manual onoff switch in
the “ON” position, because the force
of the deploying airbag could cause
death or serious injury to the child in
forward seating position. (For details,
see “SRS driver and front passenger
airbags” in this section.)

’02 TUNDRA_U (L/O 0108)
642002 MY TUNDRA_U (OM 34417U)
CAUTION
Do not put a rearfacing child re-
straint system on the rear seat if
the child restraint system interferes
with the front seat lock mechanism
or with your proper driving posi-
tion. This can cause death or seri-
ous injury to the child and front
passenger in case of sudden brak-
ing or a collision.
If your driving position is not satis-
factory, install the child restraint
system at another position.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.

’02 TUNDRA_U (L/O 0108)
652002 MY TUNDRA_U (OM 34417U)

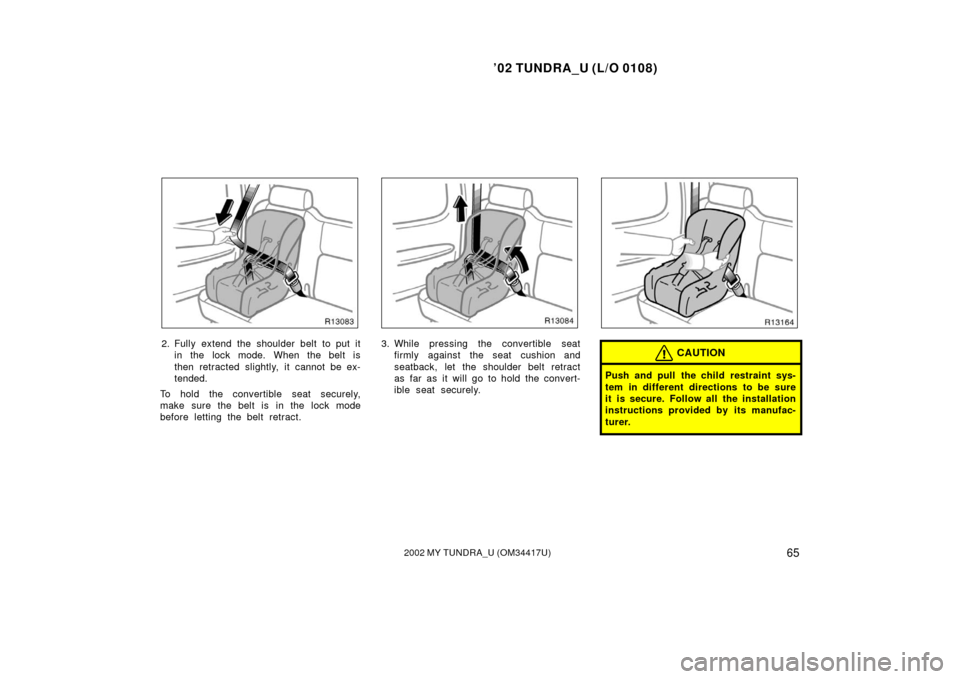

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
